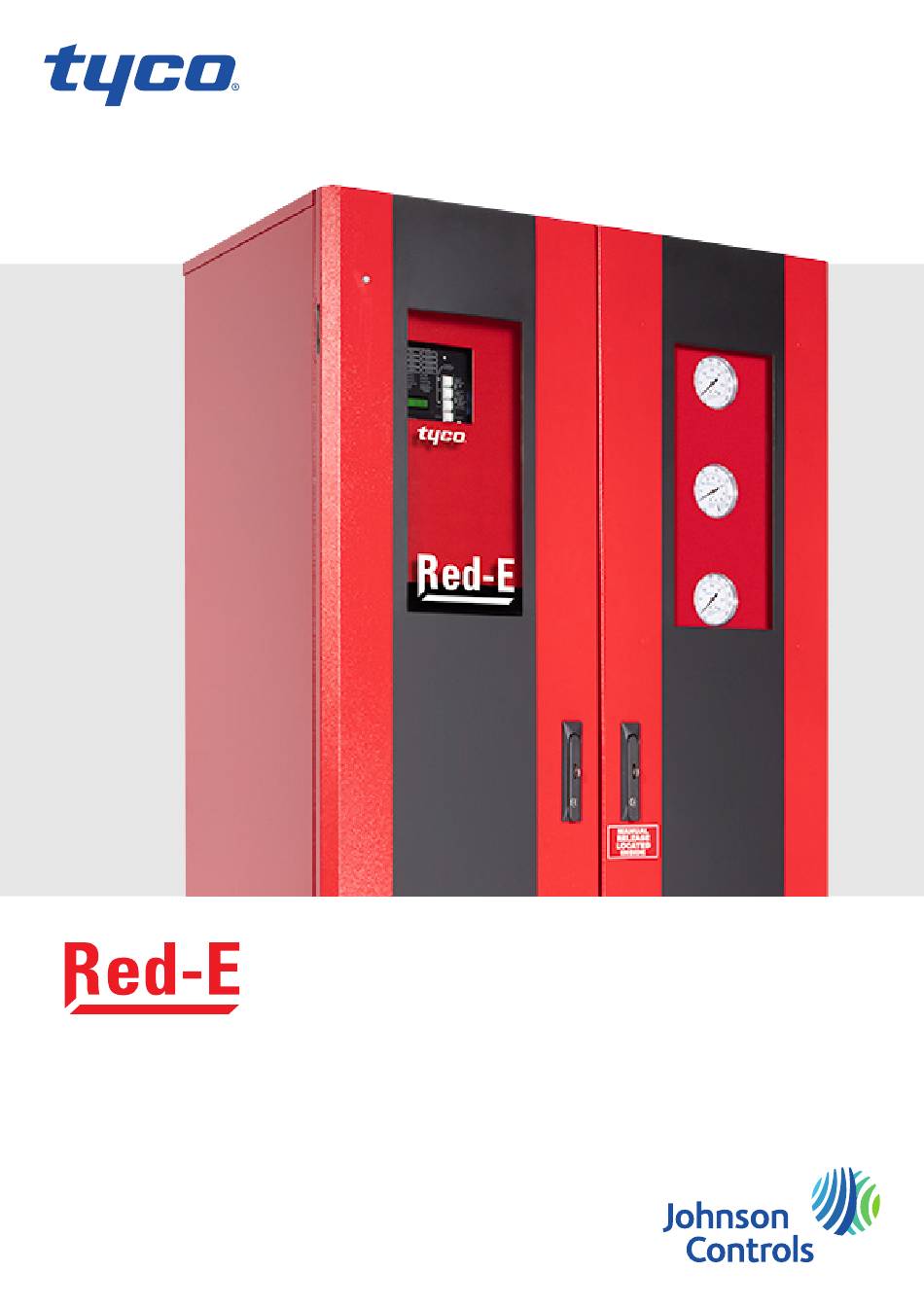

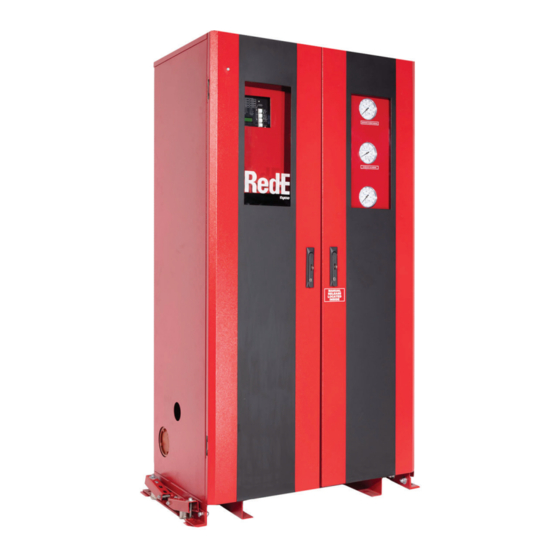

  • Page 1 Installation Guide Doc DV5A RED-E 001 REV2 06/2019...

  • Page 3: Table Of Contents

    Contents Introduction .............................. 1 Overview ..............................2 Read Documentation ............................. 2 Position the cabinet............................... 2 Connect the Piping ..............................2 Connect the Electrical Circuits..........................2 Set the System ..............................2 Positioning the Cabinet ..........................3 Piping Connections ........................... 3 Electrical Connections ..........................
  • Page 4 Table of Figures Figure 1 Base Wheel Adjustment Parts ....................... 3 Figure 2 Base Wheel Retraction........................... 3 Figure 3 Bolt Hole Locations ..........................3 Figure 4 Wheel Base Extension..........................3 Figure 5 Small Cabinet Enclosure......................... 4 Figure 6 Large Cabinet Enclosure ........................4 Figure 7 Red-E DV-5A Double Interlock Preaction (Electric-Electric) Wiring Schematic ........

  • Page 6: Introduction

    Introduction This manual provides guidance for the installation of Red-E Cabinet DV-5A integrated fire protection packages. The installation procedure does not cover the testing and commissioning of the system. The entire sprinkler system including this integrated package must be tested before placing the system in operation.

  • Page 7: Overview

    Overview Read Documentation Read the documentation which was provided with the unit Position the cabinet. Insure sufficient room for cabinet door swings. Place near an open drain (funnel drain, sump, etc.). Take into consideration the supply and system piping, drains and electrical conduits. Connect the Piping Connect the water supply to the cabinet.

  • Page 8: Positioning The Cabinet

    Positioning the Cabinet Place the cabinet on a hard level surface. The cabinet is equipped with rollers that allow it to be moved more easily into its final position. Once the cabinet is located, retract the wheels by turning the adjusting nut in the counter-clockwise direction to lower the cabinet rails until they contact the floor.

  • Page 9: Electrical Connections

    main drain connection size is indicated in the Red-E Cabinet DV-5A technical data sheets TFP1301 and TFP1401. Connect the water supply header to a water main of sufficient size in accordance with NFPA standards and other applicable codes. Connect the system connection to a network of sprinkler heads. IMPORTANT: Connect the cabinet drains to a drain that is capable of handling the discharge from a fully open main drain valve at the supply pressure without causing water damage to the surrounding area and/or equipment.
  • Page 10 IMPORTANT • For models equipped with compressors, read and understand the complete General Air Products, Inc. Oil-Less Compressor Instruction Sheets which were provided in the documentation package with this unit before connecting electrical wiring to the compressor or attempting to set the valve. •...

  • Page 11: Standard Programs

    Standard Programs The following standard programs are recommended for easy operation of the Red-E DV-5A. Deluge, Single Interlock Preaction or Double Interlock Preaction (Pneumatic-Electric) The PFC-4410RC, has more than 20 standard programs which are detailed in the Installation, Operation and Instruction Manual for the Potter PFC-4410RC.
  • Page 12 The panel will display the current banner message. Custom messages are created by using the SET and SELECT buttons to scroll through the alphabet and symbol characters then selecting the character by pressing the FUNCTION button in the box above the “up” arrow. When the FUNCTION button is pressed, the “up”...
  • Page 13 The Zone 1 label is set in the same way as the banner. The zone 1 label default value is: When the “up” arrow has been advanced to the last selectable character, pressing the FUNCTION button will cause the display to move to the next custom message: SELECT Press the SELECT button to display the current message FUNCTION...
  • Page 14 The Zone 3 label is set in the same way as the banner. The zone 3 label default value is: When the “up” arrow has been advanced to the last selectable character, pressing the FUNCTION button will cause the display to move to the next custom message: SELECT Press the SELECT button to display the current message FUNCTION...
  • Page 15 Refer to the Installation, Operation and Instruction Manual for the Potter PFC-4410RC in order to change the password. The panel now displays the following: Push the programming switch back to run in order to exit the programming mode. The panel now displays the standby screen:...
  • Page 16 Red-E DV-5A Deluge, Single Interlock Preaction, Double Interlock Preaction (Pneumatic-Electric) Program ZONES SUP 1 SUP 2 OUTPUTS Supervisory Low Air Conventional Conventional Tamper Waterflow Supervisory GENERAL ALARM WATERFLOW BELL SOLENOID VALVE (#7) WATERFLOW ALARM Description: Red-E DV-5A Deluge, Single Interlock Preaction or Double Interlock Preaction (Pneumatic-Electric) release for single hazard Inputs: 2 supervisory zones*, 2 conventional detection zones, 1 valve tamper zone, 1 waterflow alarm zone...
  • Page 17 5.1K TERMINAL BLOCK LOCATED INSIDE THE POTTER PFC-4410-RC CONTROL PANEL (FIELD WIRED) OBSERVE POLARITY WHEN CONNECTING SMOKE DETECTORS 5.1K 5.1K 5.1K 5.1K 5.1K 5.1K 5.1K 5.1K (FIELD WIRED) (FIELD WIRED) (FIELD WIRED) SOLENOID NOT USED FOR DELUGE SYSTEM WET OR DRY PILOT RELEASE. NOTES: 5.1K ALL FIELD WIRING MUST BE IN ACCORDANCE WITH THE PFC-4410RC...
  • Page 18 5.1K TERMINAL BLOCK LOCATED INSIDE THE POTTER PFC-4410-RC CONTROL PANEL (FIELD WIRED) OBSERVE POLARITY WHEN CONNECTING 5.1K SMOKE DETECTORS 5.1K 5.1K 5.1K 5.1K 5.1K 5.1K 5.1K (FIELD WIRED) (FIELD WIRED) (FIELD WIRED) SOLENOID NOT USED FOR SINGLE-INTERLOCK WET OR DRY PILOT RELEASE. NOTES: 5.1K ALL FIELD WIRING MUST BE IN ACCORDANCE WITH THE PFC-4410RC...
  • Page 19 5.1K Red-E DV-5A Double Interlock Electric Pneumatic Preaction Wiring Schematic TERMINAL BLOCK LOCATED INSIDE THE POTTER PFC-4410-RC CONTROL PANEL (FIELD WIRED) OBSERVE POLARITY WHEN CONNECTING SMOKE DETECTORS 5.1K 5.1K 5.1K 5.1K 5.1K 5.1K 5.1K 5.1K (FIELD WIRED) (FIELD WIRED) (FIELD WIRED) SOLENOID NOT USED FOR DELUGE SYSTEM WET OR DRY PILOT RELEASE.
  • Page 20 Double Interlock Preaction (Electric-Electric) The PFC-4410RC has more than 20 standard programs which are detailed in the Installation, Operation and Instruction Manual for the Potter PFC-4410RC. Red-E Cabinet Double Interlock Preaction (Electric-Electric) configurations are pre-wired to function with standard program #13. CAUTION Selecting a standard program other than #13 can cause unintended results if pre-wired devices are re-assigned (e.g.
  • Page 21 The panel will display the current banner message. Custom messages are created by using the SET and SELECT buttons to scroll through the alphabet and other characters then selecting the character by pressing the FUNCTION button in the box above the “up” arrow. When the FUNCTION button is pressed, the “up”...
  • Page 22 SELECT Press the SELECT button to display the current message FUNCTION The Zone 1 label is set in the same way as the banner. The zone 1 label default value is: When the “up” arrow has been advanced to the last selectable character, pressing the FUNCTION button will cause the display to move to the next custom message: SELECT Press the SELECT button to display the current message...
  • Page 23 When the “up” arrow has been advanced to the last selectable character, pressing the FUNCTION button will cause the display to move to the next custom message: SELECT Press the SELECT button to display the current message FUNCTION The Zone 3 label is set in the same way as the banner. The zone 3 label default value is: When the “up”...
  • Page 24 When the “up” arrow has been advanced to the last selectable character, pressing the FUNCTION button will cause the display to move to the next programming section and the following screen will be displayed: This allows the user to change the password. All panels are shipped from the factory with a password of 000.
  • Page 25 Red-E DV-5A Double Interlock Preaction (Electric-Electric) Program ZONES SUPERVISORY OUTPUTS Supervisory Conventional Tamper Waterflow Alarm GENERAL ALARM WATERFLOW BELL SOLENOID VALVE (#7) WATERFLOW ALARM Description: Red-E DV-5A Double Interlock Preaction (Electric -Electric) release for single hazard, detection and low air alarm zones cross-zoned. Inputs: 2 supervisory zones, 1 detection zone, 1 low air alarm zone, 1 valve tamper zone, 1 waterflow alarm zone Outputs: 1 general alarm, 2 waterflow, 1 solenoid release circuit...
  • Page 26 5.1K (FIELD WIRED) OBSERVE POLARITY WHEN CONNECTING TERMINAL BLOCK LOCATED SMOKE DETECTORS INSIDE THE POTTER PFC-4410-RC CONTROL PANEL 5.1K 5.1K 5.1K TO CIRCUIT BREAKER PANEL 5.1K 120VAC / 6OHz 120 VOLT MODEL 165 VA MAX. 220VAC / 50Hz 220 VOLT MODEL 185 VA MAX.

  • Page 27: Deluge Valve Setting Procedure

    Deluge Valve Setting Procedure Perform Steps 1 through 13 when initially setting the TYCO DV-5A Valve, after an operational test of the fire protection system, or after system operation due to a fire. Refer to Figures 7, 8, or 9, as applicable.
  • Page 28 DV-5A Valve Auto. System Main Control Valve N.O. Automatic Drain Valve Auto. Main Drain Valve N.C. Diaphragm Supply Valve N.O. Manual Reset Actuator Dry Pilot Actuator Auto. Manual Control Station N.C. Alarm Test Valve N.C. Drip Funnel Drain Water Supply Gauge Gauge Test Valve N.O.
  • Page 29 DV-5A Valve Auto. System Main Control Valve N.O. Automatic Drain Valve Auto. Main Drain Valve N.C. Diaphragm Supply Valve N.O. Manual Reset Actuator Solenoid Valve N.C. Manual Control Station N.C. Alarm Test Valve N.C. Drip Funnel Drain Water Supply Gauge Gauge Test Valve N.O.
  • Page 30 NOTICE In order to prevent the possibility of a subsequent operation of an overheated solder type pilot sprinkler, any solder type pilot sprinklers that were possibly exposed to a temperature greater than their maximum rated ambient must be replaced. Step 7. Operate (open) the Manual Control Station (8) and then open the Diaphragm Supply Valve (5). After unaerated water ceases to discharge from the Manual Control Station (8) drain tube, slowly close the operating lever by pushing it up.

  • Page 31: Remote Resetting Deluge Valve Setting Procedure

    Remote Resetting Deluge Valve Setting Procedure Perform Steps 1 through 13 when initially setting the TYCO DV-5A Valve with Remote-Resetting Trim for service or after an operational test of the fire protection system (Ref. Figure 10). DV-5A Valve Auto. System Main Control Valve N.O.
  • Page 32 Step 6. Reset the electric detection system in accordance with the manufacturer’s instructions to de- energize the solenoid valve. Step 7. Operate (open) the Manual Control Station (8) and then open the Diaphragm Supply Valve (5). After unaerated water ceases to discharge from the Manual Control Station (8) drain tube, slowly close the operating lever by pushing it up.
  • Page 33 Remote Resetting Pressure Reducing Deluge Valve Setting Procedure Perform Steps 1 through 13 when initially setting the TYCO DV-5A Valve with Remote-Resetting, Pressure-Reducing Trim for service or after an operational test of the fire protection system (Ref. Figure 11). Figure 8 Remote Resetting Pressure Reducing Deluge Schematic Piping Diagram...
  • Page 34 Step 1. Close the System Main Control Valve (4). Step 2. Close the Diaphragm Supply Valve (5). Step 3. Open the Main Drain Valve (4) and System Drain Valve (23). Close the System Drain Valve (23) after water ceases to discharge. Leave the Main Drain Valve (4) open. At this time make certain that the Pressure Gauge Valves and the Alarm Control Valve (OP1), as applicable, are open.
  • Page 35 NOTICE After any downstream pressure adjustment, the following items are to be recorded on a tag attached to the valve: • Valve installation location • Inlet static pressure • Inlet residual pressure • Outlet residual pressure • Intended outlet flow The tag is not to be removed until after the system has been accepted by the authority having jurisdiction.
  • Page 36 Figure 9 DV-5A Valve - Remote-Resetting, Pressure-Reducing Trim System Outlet Pressure Pilot Valve Adjustment...

  • Page 37: Single Interlock Preaction Valve Setting Procedure

    Single Interlock Preaction Valve Setting Procedure Perform Steps 1 through 16 when initially setting the TYCO DV-5A Valve, after an operational test of the fire protection system, or after system operation due to a fire. Refer to Figure 13, 14, or 15, as applicable.
  • Page 38 DV-5A Valve Auto. System Main Control Valve N.O. Automatic Drain Valve Auto. Main Drain Valve N.C. Diaphragm Supply Valve N.O. Manual Reset Actuator Dry Pilot Actuator Auto. Manual Control Station N.C. Alarm Test Valve N.C. Drip Funnel Drain Water Supply Gauge Water Supply Gauge Test Valve N.O.
  • Page 39 DV-5A Valve Auto. System Main Control Valve N.O. Automatic Drain Valve Auto. Main Drain Valve N.C. Diaphragm Supply Valve N.O. Manual Reset Actuator Solenoid Valve Auto. Manual Control Station N.C. Alarm Test Valve N.C. Drip Funnel Drain Water Supply Gauge Water Supply Gauge Test Valve N.O.
  • Page 40 Perform Steps 1 through 16 when initially setting the TYCO DV-5A Valve, after an operational test of the fire protection system, or after system operation due to a fire. Refer to Figure 13, Figure 14, or Figure 15, as applicable.
  • Page 41 Step 11. Verify the ability for the DV-5A Diaphragm to hold pressure as follows: With the diaphragm chamber pressurized per Step 10, temporarily close the Diaphragm Supply Valve (5), and then observe the Diaphragm Gauge (15) for a drop in pressure. If a drop in pressure is noted, the DV-5A Diaphragm is to be replaced and/or any leaks must be corrected before proceeding to the next step.

  • Page 42: Double Interlock Preaction Valve Setting Procedure

    Double Interlock Preaction Valve Setting Procedure Perform Steps 1 through 20 when initially setting the TYCO DV-5A Valve, after an operational test of the fire protection system, or after system operation due to a fire. Refer to 16 or 17, as applicable, and determine which type actuation system is being set.
  • Page 43 DV-5A Valve Auto. System Main Control Valve N.O. Automatic Drain Valve Auto. Main Drain Valve N.C. Diaphragm Supply Valve N.O. Manual Reset Actuator Solenoid Valve Auto. Manual Control Station N.C. Alarm Test Valve N.C. Drip Funnel Drain Water Supply Gauge Water Supply Gauge Test Valve N.O.
  • Page 44 Step 7. Replace all damaged or operated sprinklers. Replacement sprinklers must be of the same type and temperature rating as those that operated.TICE In order to prevent the possibility of a subsequent operation of an overheated solder type sprinkler, any solder type sprinklers possibly exposed to a temperature greater than their maximum rated ambient must also be replaced.
  • Page 45 Step 15. Open the (System) Downstream Shut-Off Valve (21), as will be the case when resetting a system after performing an operational test. Step 16. Previously in Step 9 for Electric/Pneumatic Actuation, the detection system was reset; however, at this time for Electric/Electric Actuation, the Solenoid Valve (7) is disconnected via the Potter RCDS-1 Releasing Circuit Switch, or equivalent.

  • Page 46: Component Access

    Component Access Red-E DV-5A Cabinets have been designed to permit easy access to all valve and trim components in order to facilitate the maintenance and testing without removing the enclosure components. Compressor Access: The DV-5A compressor is mounted on a quick access extendable rail to permit easy servicing of the compressor air filter (follow the instructions in the compressor manual for air filter servicing requirements).

  • Page 47: Standard Programming Entries

    Standard Programming Entries Deluge, Single Interlock Preaction and Double Interlock Preaction Electric-Pneumatic The following can be used to verify that the panel settings correspond to the default values for Deluge, Single Interlock preaction and Double Interlock Preaction Electric-Pneumatic configurations. To verify the program settings of the standard program, push the Program switch to the PROGRAM position. The panel displays the following: SELECT FUNCTION...
  • Page 48 Press the SET button 3 times to move to the next position. SELECT FUNCTION Press the SET button to move to the next position. SELECT FUNCTION Press the SET button to move to the next position. SELECT FUNCTION...
  • Page 49 Press the SET button to move to the next position. SELECT FUNCTION Press the SET button to move to the next position. SELECT FUNCTION Press the SET button to move to the next position. SELECT FUNCTION...
  • Page 50 Press the SET button to move to the next position. SELECT FUNCTION Press the SET button to move to the next position. SELECT FUNCTION Press the SET button to move to the next position. SELECT FUNCTION...
  • Page 51 Press the SET button to move to the next position. SELECT FUNCTION Press the SELECT button until the display reads SELECT “PROGRAM # 0” FUNCTION Press the SET button to set PROGRAM #0 and move to the next position. SELECT FUNCTION...
  • Page 52 Press the SET button to move to the next position. SELECT FUNCTION Press the SET button to move to the next position. SELECT FUNCTION Press the SET button to move to the next position. SELECT FUNCTION...
  • Page 53 Press the SET button to move to the next position. SELECT FUNCTION Press the SET button to move to the next position. SELECT FUNCTION Press the SET button to move to the next position. SELECT FUNCTION...
  • Page 54 Press the SET button to move to the next position. SELECT FUNCTION Press the SET button to move to the next position. SELECT FUNCTION Press the SET button to move to the next position. SELECT FUNCTION...
  • Page 55 Press the SET button to move to the next position. SELECT FUNCTION Press the SET button to move to the next position. SELECT FUNCTION Press the SET button to move to the next position. SELECT FUNCTION...
  • Page 56 SELECT Press the FUNCTION button to move to the next FUNCTION position. SELECT Press the FUNCTION button to move to the next FUNCTION position. SELECT Press the FUNCTION button to move to the next FUNCTION position.
  • Page 57 SELECT Press the FUNCTION button to move to the next FUNCTION position. Press the SELECT button to display the current SELECT message FUNCTION SELECT Press the FUNCTION button 10 times to move to FUNCTION the next position.
  • Page 58 Press the SELECT button to display the current SELECT message FUNCTION SELECT Press the FUNCTION button 10 times to move to FUNCTION the next position. Press the SELECT button to display the current SELECT message FUNCTION...
  • Page 59 SELECT Press the FUNCTION button 10 times to move to FUNCTION the next position. Press the SELECT button to display the current SELECT message FUNCTION SELECT Press the FUNCTION button 10 times to move to FUNCTION the next position.
  • Page 60 Press the SELECT button to display the current SELECT message FUNCTION SELECT Press the FUNCTION button 10 times to move to FUNCTION the next position. Press the SELECT button to display the current SELECT message FUNCTION...

  • Page 61: Double Interlock Preaction Electric-Electric

    SELECT Press the FUNCTION button 10 times to move to FUNCTION the next position. Press the SET button 3 times to move to the next position. SELECT FUNCTION Push the programming switch back to the run position to exit the program mode. The panel now displays the standby screen: If all of the entries above match those on the actual panel, the control panel is in the default Red-E DV-5A deluge, single interlock or double interlock preaction electric-pneumatic configuration.
  • Page 62 The following can be used to verify that the panel settings correspond to the default values for Double Interlock Preaction Electric-Electric configurations. To verify the program settings of the standard program, push the Program switch to the right. The panel displays the following: SELECT Press the FUNCTION button to move to the next FUNCTION...
  • Page 63 Press the SET button 3 times to move to the next position. SELECT FUNCTION Press the SET button to move to the next position. SELECT FUNCTION Press the SET button to move to the next position. SELECT FUNCTION...
  • Page 64 Press the SET button to move to the next position. SELECT FUNCTION Press the SET button to move to the next position. SELECT FUNCTION Press the SET button to move to the next position. SELECT FUNCTION...
  • Page 65 Press the SET button to move to the next position. SELECT FUNCTION Press the SET button to move to the next position. SELECT FUNCTION Press the SET button to move to the next position. SELECT FUNCTION...
  • Page 66 Press the SET button to move to the next position. SELECT FUNCTION SELECT Press the SELECT button until the display reads “PROGRAM # 0” FUNCTION Press the SET button to set PROGRAM #0 and move to the next position. SELECT FUNCTION...
  • Page 67 Press the SET button to move to the next position. SELECT FUNCTION Press the SET button to move to the next position. SELECT FUNCTION Press the SET button to move to the next position. SELECT FUNCTION...
  • Page 68 T A M Press the SET button to move to the next position. SELECT FUNCTION Press the SET button to move to the next position. SELECT FUNCTION Press the SET button to move to the next position. SELECT FUNCTION...
  • Page 69 Press the SET button to move to the next position. SELECT FUNCTION Press the SET button to move to the next position. SELECT FUNCTION Press the SET button to move to the next position. SELECT FUNCTION...
  • Page 70 Press the SET button to move to the next position. SELECT FUNCTION Press the SET button to move to the next position. SELECT FUNCTION Press the SET button to move to the next position. SELECT FUNCTION...
  • Page 71 Press the SET button to move to the next position. SELECT FUNCTION SELECT Press the FUNCTION button to move to the next FUNCTION position. SELECT Press the FUNCTION button to move to the next FUNCTION position.
  • Page 72 SELECT Press the FUNCTION button to move to the next FUNCTION position. Press the SELECT button to display the current SELECT message FUNCTION SELECT Press the FUNCTION button 10 times to move to the FUNCTION next position.
  • Page 73 Press the SELECT button to display the current SELECT message FUNCTION SELECT Press the FUNCTION button 10 times to move FUNCTION to the next position. Press the SELECT button to display the current SELECT message FUNCTION...
  • Page 74 SELECT Press the FUNCTION button 10 times to move to the FUNCTION next position. Press the SELECT button to display the current SELECT message FUNCTION Press the SET button to move to the next position. SELECT FUNCTION...
  • Page 75 Press the SELECT button to display the current SELECT message FUNCTION SELECT Press the FUNCTION button 10 times to move to FUNCTION the next position. Press the SELECT button to display the current SELECT message FUNCTION...
  • Page 76 SELECT Press the FUNCTION button 10 times to move to FUNCTION the next position. Press the SET button 3 times to move to the next position. SELECT FUNCTION Push the programming switch back to the run position to exit the program mode. The panel now displays the standby screen: If all of the entries above match those on the actual panel, the control panel is in the default Red-E DV-5A double interlock preaction electric-electric configuration.

  • Page 77: Electrical Wiring Schematics For Non-Integral Panel Models

    APPENDIX A Electrical Wiring Schematics for Non-Integral Panel Models. Deluge Release Wiring Schematic (Non-Integrated Releasing Panel)
  • Page 78 Remote Resetting and Remote Resetting Pressure Reducing Deluge Wiring Schematic (Non-Integrated Releasing Panel)
  • Page 79 Single Interlock Wiring Schematic (Non-Integrated Releasing Panel)
  • Page 80 Double Interlock Electric-Pneumatic Wiring Schematic (Non-Integrated Releasing Panel)
  • Page 81 Double Interlock Electric-Electric Wiring Schematic (Non-Integrated Releasing Panel)
