10/100/1000 4-Port
VPN Router

User Guide

WIRED
RV0041
Model No.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RV0041 and is the answer not in the manual?

Questions and answers

Related Manuals for Linksys RV0041

Summary of Contents for Linksys RV0041

  • Page 1: User Guide

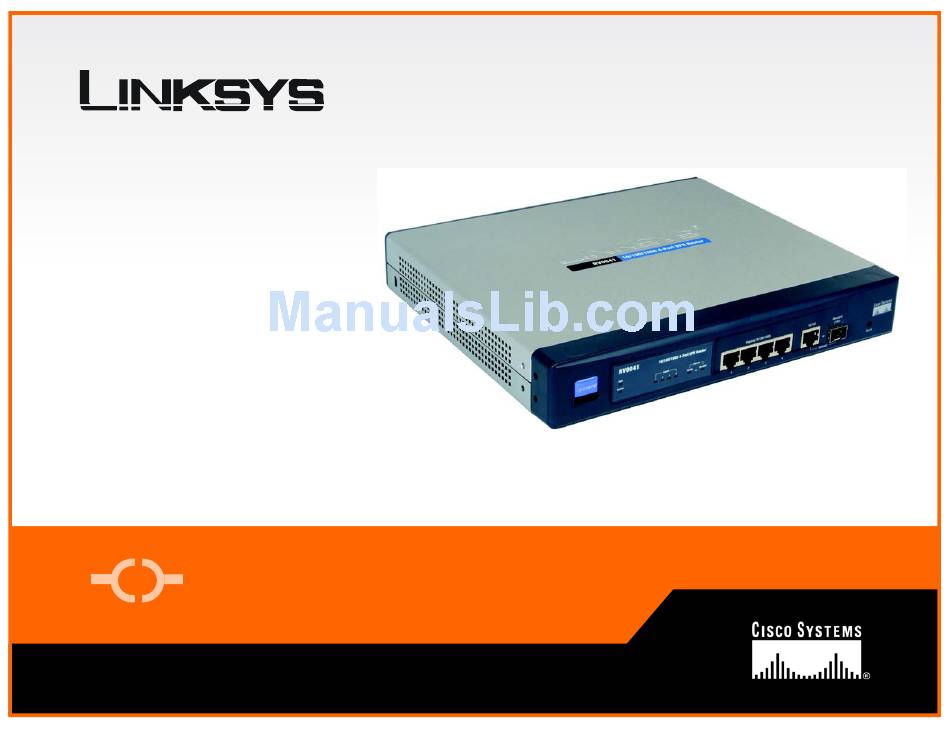

    ® A Division of Cisco Systems, Inc. 10/100/1000 4-Port VPN Router User Guide WIRED RV0041 Model No.

  • Page 2: Copyright And Trademarks

    10/100/1000 4-Port VPN Router Copyright and Trademarks Specifications are subject to change without notice. Linksys is a registered trademark or trademark of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2005 Cisco Systems, Inc. All rights reserved.

  • Page 3: Table Of Contents

    The Front Panel The Back Panel Chapter 4: Connecting the Router Overview Connection Instructions Chapter 5: Setting Up and Configuring the Router Overview How to Access the Web-based Utility System Summary Tab Setup Tab - Network Setup Tab - Password...
  • Page 4 Appendix B: Finding the MAC Address and IP Address for Your Ethernet Adapter 75 Windows 98 or Me Instructions Windows 2000 or XP Instructions For the Router’s Web-based Utility Appendix C: Physical Setup of the Router Setting up the Router Appendix D: Battery Replacement Replacing a Lithium Battery...
  • Page 5 10/100/1000 4-Port VPN Router Appendix J: Regulatory Information Appendix K: Contact Information...

  • Page 6: List Of Figures

    10/100/1000 4-Port VPN Router List of Figures Figure 2-1: VPN Router-to-VPN Router VPN Figure 2-2: Computer-to-VPN Router VPN Figure 3-1: Front Panel Figure 3-2: Back Panel Figure 4-1: Example of a Typical Network Figure 5-1: Router’s IP Address Figure 5-2: Login Screen...
  • Page 7 10/100/1000 4-Port VPN Router Figure 5-24: System Management Tab - DNS Name Lookup Figure 5-25: System Management Tab - Ping Figure 5-26: System Management Tab - Factory Default Figure 5-27: Are You Sure Figure 5-28: System Management Tab - Firmware Upgrade...
  • Page 8 Figure B-3: MAC Address/Physical Address Figure B-4: MAC Address Clone Figure C-1: Mounting Brackets Figure C-2: Attaching the Brackets to the Router and Rack-Mounting the Router 78 Figure C-3: Wall-Mounting the Router Figure C-4: Wall-Mounting Hardware Figure E-1: Upgrade Firmware...

  • Page 9: Chapter 1: Introduction

    Chapter 1: Introduction Welcome Thank you for choosing the 10/100/1000 4-Port VPN Router. The Linksys 10/100/1000 4-Port VPN Router is an advanced Internet-sharing network solution for your small business needs. Like any router, it lets multiple computers in your office share an Internet connection. But the 10/100/1000 4-Port VPN Router allows you to connect gigabit-equipped PCs for gigabit networking, as well as including four 10/100/1000 ports for network connectivity.

  • Page 10: What's In This Guide

    This chapter instructs you on how to connect the Router to your network. • Chapter 5: Set Up and Configure the Router This chapter explains how to use the Web-Based Utility to set up the Router and configure its settings. • Appendix A: Troubleshooting This appendix describes some problems and solutions, as well as frequently asked questions, regarding installation and use of the 10/100/1000 4-Port VPN Router.
  • Page 11 This appendix supplies the Router’s warranty information. • Appendix J: Regulatory Information This appendix supplies the Router’s regulatory information. • Appendix K: Contact Information This appendix provides contact information for a variety of Linksys resources, including Technical Support. Chapter 1: Introduction What’s in this Guide?

  • Page 12: Chapter 2: Networking Basics

    A Router is a network device that connects two networks together. The Router connects your local area network (LAN), or the group of PCs in your home or office, to the Internet. The Router processes and regulates the data that travels between these two networks.

  • Page 13: Why Do I Need A Vpn

    It also will provide the Router with a dynamic IP address to establish a connection to the Internet. By default, a DHCP server (on the LAN side) is enabled on the Router. If you already have a DHCP server running on your network, you MUST disable one of the two DHCP servers.

  • Page 14: What Is A Vpn

    What is a VPN? A VPN, or Virtual Private Network, is a connection between two endpoints - a VPN Router, for instance - in different networks that allows private data to be sent securely over a shared or public network, such as the Internet.

  • Page 15: Figure 2-1: Vpn Router-To-Vpn Router Vpn

    As VPNs utilize the Internet, distance is not a factor. Using the VPN, the businesswoman now has a secure connection to the central office's network, as if she were physically connected. For additional information and instructions about creating your own VPN, please visit Linksys’s website at www.linksys.com.

  • Page 16: Chapter 3: Getting To Know The Router

    Orange. The Diag LED lights up when the system is not ready. The LED goes off when the system is ready. System Green. The System LED lights up when the Router is powered on. If the LED is flashing, the Router is running a diagnostic test. Chapter 3: Getting to Know the Router...

  • Page 17: The Back Panel

    10/100/1000 4-Port VPN Router 1-4 (Gigabit) Green. The Gigabit LEDs serve two purposes. If an LED is continuously lit, the Router is connected to a device through the corresponding port (1, 2, 3, or 4). If the LED is flashing, the Router is actively sending or receiving data over that port.

  • Page 18: Chapter 4: Connecting The Router

    IP address automatically, so unless you have changed the default setting, then you will not need to configure your PCs.) • Set up and configure the Router with the setting(s) provided by your Internet Service Provider (ISP) according to “Chapter 5: Setting up and Configuring the Router.”...

  • Page 19: Connection Instructions

    DSL modem. 2. Connect one end of an Ethernet network cable to one of the numbered ports on the front of the Router. Connect the other end to an Ethernet port on a network device, e.g., a PC, print server, hub, or switch.

  • Page 20: Chapter 5: Setting Up And Configuring The Router

    Chapter 5: Setting Up and Configuring the Router Overview The Router comes with a Web-based Utility that allows for easy set up and configuration. This chapter will explain all of the functions in this Utility. (You can access the web-based utility by accessing 192.168.1.1.) There are eleven main tabs in the Utility: System Summary, Setup, DHCP, System Management, Port Management, Firewall, VPN, Log, Wizard, Support, and Logout.
  • Page 21 Restarting with this button will send out your log file before the box is reset. • Setting Backup. This screen allows you to make or import a backup file of your Preferences file for the Router. Port Management Tab •...
  • Page 22 • Wizard. Use this tab to access two Setup Wizards, the Basic Setup Wizard and Access Rule Setup Wizard. Support Tab • Support. The buttons on this tab allow you to access the user guide and the Linksys website. Logout Tab •...

  • Page 23: How To Access The Web-Based Utility

    DRAM: This displays the amount of Dynamic Random Access Memory (DRAM), in Megabytes, the Router has. Flash: This displays the amount of Flash Memory, in Megabytes, the Router has. System Up Time: This displays the length of time in Days, Hours, and Minutes that the Router has been active, along with the current time.

  • Page 24: Port Statistics

    Port Statistics You can check the status of any of the Router’s ports simply by clicking the port number on the port diagram. If the port is disabled, it will be red; if enabled, it will be black. If it is connected, it will be green.

  • Page 25: Vpn Setting Status

    If you have set up the mail server and the log cannot be sent to mail server successfully, this will show “E-mail cannot be sent out, probably use incorrect settings.” Chapter 5: Setting Up and Configuring the Router System Summary Tab...

  • Page 26: Setup Tab - Network

    The Setup screen contains all of the Router’s basic setup functions. These functions can be set from this screen but normally don’t need to be adjusted, as the Router has been designed to be used in most network settings without changing any of the default values. Some users, however, may need to enter additional information in order to connect to the Internet through an ISP (Internet Service Provider) or broadband (DSL, cable modem) carrier.

  • Page 27: Figure 5-7: Wan Connection Type - Static Ip

    Max Idle Time setting. 3. By selecting the Keep Alive option, the Router will keep the connection alive by sending out a few data packets at the Redial Period, so your Internet service thinks that the connection is still active.

  • Page 28: Setup Tab - Password

    The Router's default User Name and Password is admin. For greater network security, you should change the Router's password from this default. If you leave the password field blank, all users on your network will be able to access the Router simply by entering admin into the password field.

  • Page 29: Setup Tab - Dmz Host

    Port forwarding can be used to set up public services on your network. When users outside your network (i.e., from the Internet) make certain requests on your network, the Router can forward those requests to the appropriate computers equipped to handle the requests. If, for example, you set port number 80 (HTTP) to be forwarded to IP Address 192.168.1.2, then all HTTP requests from outside users will be forwarded to 192.168.1.2.

  • Page 30: Port Triggering

    Click the Save Settings button to save the settings, click the Cancel Changes button to undo your changes, click the Show Tables to see the details. NOTE: The Router’s WAN IP (NAT Public) Address may not be included in a range. NOTE: One-to-One NAT does not change the way the firewall functions work. Access to machines on the LAN from the Internet will not be allowed unless Network Access Rules are set.

  • Page 31: Setup Tab - Upnp Page

    NOTE: One-to-One NAT does change the way the firewall functions work. Access to machines on the LAN from the Internet will be allowed unless Network Access Rules are set. Chapter 5: Setting Up and Configuring the Router Setup Tab - UPnP Page Figure 5-15: Setup Tab - UPnP...

  • Page 32: Setup Tab - Mac Clone

    Some ISPs require that you register a MAC address. The MAC Clone feature “clones” your network adapter's MAC address onto the Router, and prevents you from having to call your ISP to change the registered MAC address to the Router's MAC address. The Router's MAC address is a 12-digit code assigned to a unique piece of hardware for identification.

  • Page 33: Setup Tab - Advanced Routing

    Internet connection. When this Router is in Router Mode, you must have another router function as the gateway in order for any computer connected to the Router to be able to connect to the Internet. RIP (Routing Information Protocol): The Router, using the RIP protocol, calculates the most efficient route for the network’s data packets to travel between the source and the destination, based upon the shortest paths.

  • Page 34: Static Routing

    Internet through this device. This is an advanced feature. Please proceed with caution. To set up static routing, you should add routing entries in the Router's table that tell the device where to send all incoming packets. All of your network routers should direct the default route entry to this Router.

  • Page 35: Dhcp Tab - Setup

    DHCP Tab - Setup Setup The Router can be used as a DHCP (Dynamic Host Configuration Protocol) server on your network. A DHCP server assigns available IP addresses to each computer on your network automatically. If you choose to enable the DHCP server option, you must configure all of the PCs on your LAN to connect to a DHCP server.

  • Page 36: Dhcp Tab - Status

    SNMP manager. A name of no more than 64 alphanumeric characters long must be entered. Send SNMP Trap to: Enter the IP Address or Domain Name in this field where the Router can send traps. Click the Save Settings button to save the SNMP settings or click the Cancel Changes button to undo your changes.

  • Page 37: System Management Tab - Diagnostic

    The Domain Name Service (DNS) allows to look up websites by entering an easily remembered host name, such as www.RV0041.com, instead of numerical TCP/IP addresses to access Internet resources. The Router has a DNS lookup tool that will return the numerical TCP/IP address of a host name.

  • Page 38: System Management Tab - Factory Default

    Click the Firmware Download from Linksys Web Site button to download the Router’s Firmware from the Linksys Support page. Select the Router from the pull-down menu and choose the firmware from the options. After downloading the firmware, follow the Firmware Upgrade instructions above.

  • Page 39: System Management Tab - Restart

    Click the Export button and choose where you would like to store your Preferences file. This file will be called “RV0041.exp” by default, but you may rename it if you wish. This process may take up to a minute. Chapter 5: Setting Up and Configuring the Router...

  • Page 40: Port Management Tab - Port Setup

    Speed: This allows you to manually configure the per-port speed as 10Mbps, 100Mbps, or 1000Mbps. The SFP interface can only be configured at 100Mbps. Duplex: This configures the port to half-duplex or full-duplex throughput. Chapter 5: Setting Up and Configuring the Router Port Management Tab - Port Setup...

  • Page 41: Port Management Tab - Port Status

    Status (Half or Full), Auto negotiation (Enabled or Disabled). Click the Refresh button to refresh the port status. Chapter 5: Setting Up and Configuring the Router Port Management Tab - Port Status Half-Duplex: data transmission that can occur in two directions over a single line, but only one direction at a time.

  • Page 42: Firewall Tab - General

    Firewall Tab - General From the Firewall Tab, you can configure the Router to deny or allow users from accessing the Internet or even network servers. You can set up different packet filters for different users within your network based on their network Port number or access from the Internet based on their IP addresses.

  • Page 43: Firewall Tab - Access Rules

    Internet. Custom rules can be created to override Default Rules, but there are four default rules that will be always active, and custom rules cannot override these six rules. These are: * HTTP service from LAN side to RV0041 is always allowed. * DHCP service from LAN side is always allowed.
  • Page 44 Management settings or click the Cancel Changes button to undo your changes. When your settings are correct, a screen will let you know that settings are successful. Chapter 5: Setting Up and Configuring the Router Firewall Tab - Access Rules...

  • Page 45: Firewall Tab - Content Filter

    Click the Save Settings button when you finish the Content Filter settings, or click the Cancel Changes button to undo your changes. Figure 5-35: Firewall Tab - Content Filter Chapter 5: Setting Up and Configuring the Router Firewall Tab - Content Filter...

  • Page 46: Vpn Tab - Summary

    VPN routers. A Client to Gateway tunnel is created between the 10/100/1000 4-port VPN Router and a PC using the Linksys VPN Client Software. Click the Add Now button, which will open the appropriate screen for setting up that type of tunnel.

  • Page 47: Groupvpn Status

    Tunnel(s) Enable and Tunnel(s) Defined: This will show the amount of tunnels enabled and tunnels defined. GroupVPN Status: This section displays the status of VPN tunnels created with the Linksys VPN Client Software. These tunnels will then be displayed here, with the following information about each tunnel: Group Name: This will show the name you entered when creating the Client to Gateway tunnel.

  • Page 48: Vpn Tab - Gateway To Gateway

    IP Addresses are static and do not change. IP Only: If you select IP Only, only the specific IP Address set will be able to access the tunnel. The Router’s WAN IP address (set above) will automatically appear in this field.

  • Page 49: Figure 5-40: Vpn Tab - Gateway To Gateway Remote Group Setup

    VPN device is known, you can select IP by DNS Resolved, and enter the real domain name on the Internet. RV0041 will get the IP address of remote VPN device by DNS Resolved, and IP address of remote VPN device will be displayed on VPN Status of Summary page.

  • Page 50: Figure 5-41: Vpn Tab - Gateway To Gateway Ipsec Setup

    VPN device is known, you can select IP by DNS Resolved, and enter the real domain name on the Internet. RV0041 will get the IP address of remote VPN device by DNS Resolved, and IP address of remote VPN device will be displayed on VPN Status of Summary page.
  • Page 51 ESP packets. DES is 56-bit encryption and 3DES is 168-bit encryption. Both sides must use the same Encryption method. 3DES is recommended because it is more secure. Chapter 5: Setting Up and Configuring the Router VPN Tab - Gateway to Gateway...
  • Page 52 Preshared keys regularly to maximize VPN security. Click the Save Settings button to save the settings or click the Cancel Changes button to undo the changes. Chapter 5: Setting Up and Configuring the Router VPN Tab - Gateway to Gateway...

  • Page 53: Figure 5-42: Vpn Tab - Gateway To Gateway Advanced

    MD5 and SHA1. MD5 produces a 128-bit digest to authenticate packet data and SHA1 produces a 160-bit digest to authenticate packet data. Both sides of the tunnel should use the same algorithm. NetBIOS broadcast: Check the box to enable NetBIOS traffic to pass through the VPN tunnel. By default, RV0041 blocks these broadcasts.

  • Page 54: Vpn Tab - Client To Gateway

    With Tunnel Enabled This screen allows you to create VPN tunnels from remote PCs (with Linksys VPN Client Software) to VPN routers. You can reach this page by clicking the Client to Gateway tab or from the Mode Choose screen (figure 5-44).

  • Page 55: Figure 5-45: Vpn Tab - Client To Gateway Remote Group Setup

    VPN device is known, you can select IP by DNS Resolved, and enter the real domain name on the Internet. RV0041 will get the IP address of remote VPN device by DNS Resolved, and IP address of remote VPN device will be displayed on VPN Status of Summary page.
  • Page 56 10/100/1000 4-Port VPN Router the Internet. RV0041 will get the IP address of remote VPN device by DNS Resolved, and IP address of remote VPN device will be displayed on VPN Status of Summary page. IP + Domain Name (FQDN) Authentication: f you know the static IP address of remote client, select IP address from drop-down menu.

  • Page 57: Figure 5-46: Vpn Tab - Client To Gateway Ipsec Setup

    Domain Name (FQDN) (Fully Qualified Domain Name): Enter the Domain Name of the Remote Client. When the Remote Client requests to create a tunnel with the Router, the Router will act as a responder. The Domain Name must match the local settings of the Remote Client.
  • Page 58 If PFS is enabled, a hacker using brute force to break encryption keys is not able to obtain other or future IPSec keys. Chapter 5: Setting Up and Configuring the Router VPN Tab - Client to Gateway...

  • Page 59: Figure 5-47: Vpn Tab - Client To Gateway Advanced

    Group VPN is enabled, it will be limited as Aggressive Mode. If you select Dynamic IP in Remote Client Type in tunnel mode, it will also be limited as Aggressive Mode. Chapter 5: Setting Up and Configuring the Router VPN Tab - Client to Gateway...

  • Page 60: Vpn Tab - Vpn Pass Through

    MD5 and SHA1. MD5 produces a 128-bit digest to authenticate packet data and SHA1 produces a 160-bit digest to authenticate packet data. NetBIOS broadcast: Check the box to enable NetBIOS traffic to pass through the VPN tunnel. By default, RV0041 blocks these broadcasts.

  • Page 61: Log Tab - System Log

    Enable Syslog: Checking this box enables the Logging feature, called Syslog. Syslog Server: In addition to the standard event log, the Router can send a detailed log to an external Syslog server. Syslog is an industry-standard protocol used to capture information about network activity. The Router’s Syslog captures all log activity and includes every connection source and destination IP address, IP service, and number of bytes transferred.

  • Page 62: Log Tab - System Statistics

    This tab displays the system statistics including the Device Name, Status, IP Address, MAC Address, Subnet Mask, Default Gateway, and DNS for LAN and WAN. Figure 5-51: Log tab - System Statistics Chapter 5: Setting Up and Configuring the Router Log Tab - System Statistics...

  • Page 63: Wizard Tab

    Use this tab to access the Router’s two Setup Wizards: the Basic Setup Wizard and the Access Rule Setup Wizard. They will help you to set up the Router to access the Internet and set up a Firewall security policy, or Access Rule.

  • Page 64: Figure 5-55: Basic Setup Wizard - Selecting Wan Connection Types

    5. At the final screen, click Save Settings if you are satisfied with all of your settings. Click Previous if you want to return to the previous screen. Click Exit if you want to exit the wizard. Chapter 5: Setting Up and Configuring the Router Wizard Tab...

  • Page 65: Access Rule Setup

    3. From the next screen choose if you’d like to Allow or Deny the action you’ll be choosing for the rule. Click Next to continue. Click Previous if you want to return to the previous screen. Click Exit if you want to exit the wizard. Chapter 5: Setting Up and Configuring the Router Wizard Tab Figure 5-57: Access Rule Wizard -...

  • Page 66: Figure 5-59: Access Rule Wizard - Select The Service

    Any, single, or Range. Click Next to continue. Click Previous if you want to return to the previous screen. Click Exit if you want to exit the wizard. Chapter 5: Setting Up and Configuring the Router Wizard Tab...

  • Page 67: Figure 5-61: Access Rule Wizard - Select The Destination

    8. At the final screen, if you don’t need to make any changes click Save Settings. Click Previous if you want to return to the previous screen. Click Exit if you want to exit the wizard. Chapter 5: Setting Up and Configuring the Router Wizard Tab...

  • Page 68: Support Tab

    Support Tab On Line Manual Click the On Line Manual button, and it will link to the Support page of the Linksys website. Click the Downloads button from the Technical Support menu, then select the RV0041 from the drop-down menu, select your operating system, then click Downloads for this Product.

  • Page 69: Appendix A: Troubleshooting

    Appendix A: Troubleshooting This appendix provides solutions to problems that may occur during the installation and operation of the Router. Read the descriptions below to help solve your problems. If you can't find an answer here, check the Linksys website at www.linksys.com.

  • Page 70: For Windows 2000

    Properties button. Select Use the following IP address option. D. Enter a unique IP address that is not used by any other computer on the network connected to the Router. You can only use an IP address in the ranges 192.168.1.2 to 192.168.1.99 and 192.168.1.151 to 192.168.1.254.
  • Page 71 10/100/1000 4-Port VPN Router 2. I want to test my Internet connection. A. Check your TCP/IP settings. For Windows 98 and Millennium: Refer to Windows Help for details. Make sure Obtain IP address automatically is selected in the settings. For Windows 2000: 1.
  • Page 72 D. In the command prompt, type ping followed by your Internet IP address and press the Enter key. The Internet IP Address can be found in the web interface of the Router. For example, if your Internet IP address is 1.2.3.4, you would enter ping 1.2.3.4 and press the Enter key.
  • Page 73 AH has limitations due to occasional incompatibility with the NAT standard. Change the IP address for the Router to another subnet to avoid a conflict between the VPN IP address and your local IP address. For example, if your VPN server assigns an IP address 192.168.1.X (X is a number from 1 to 254) and your local LAN IP address is 192.168.1.X (X is the same number used in the VPN IP address), the...
  • Page 74 DMZ hosting. There may be cases when you want to host an online game or Internet application. This would require you to set up the Router to deliver incoming packets or data to a specific computer. This also applies to the Internet applications you are using. The best way to get the information on what port services to use is to go to the website of the online game or application you want to use.
  • Page 75 DMZ hosting. (In other words, data that enters the Router will be checked first by the forwarding settings. If the port number that the data enters from does not have port forwarding, then the Router will send the data to whichever PC or network device you set for DMZ hosting.) Follow these steps to set DMZ hosting:...
  • Page 76 12. I need to upgrade the firmware. In order to upgrade the firmware with the latest features, you need to go to the Linksys website and download the latest firmware at www.linksys.com. Follow these steps: Appendix A: Troubleshooting...
  • Page 77 10/100/1000 4-Port VPN Router A. Go to the Linksys website at http://www.linksys.com and download the latest firmware, or use the Web-based Utility to be automatically redirected to the download webpage. Go to System Management - Firmware Upgrade, and click the Firmware Download from Linksys Web Site button. Select the Router from the pull-down menu and choose the firmware from the options.
  • Page 78 For most DSL users, it is strongly recommended to use MTU 1492. If you are having some difficulties, perform the following steps: A. To connect to the Router, go to the web browser, and enter http://192.168.1.1 or the IP address of the Router.

  • Page 79: Frequently Asked Questions

    Subnet Mask, Default Gateway, and DNS). Restart the computer that is having a problem. • If the PCs are configured correctly, but still not working, check the Router. Ensure that it is connected and powered on. Connect to it and check its settings. (If you cannot connect to it, check the LAN and power connections.)
  • Page 80 10/100/1000 4-Port VPN Router Does the Router support any operating system other than Windows 98, Millennium, 2000, or XP? Yes, but Linksys does not, at this time, provide technical support for setup, configuration or troubleshooting of any non-Windows operating systems.
  • Page 81 Reset the Router by holding down the Reset button for ten seconds. Reset your cable or DSL modem by powering the unit off and then on. Obtain and flash the latest firmware release that is readily available on the Linksys website, www.linksys.com.
  • Page 82 10/100/1000 4-Port VPN Router How many ports can be simultaneously forwarded? Theoretically, the Router can establish 4,000 sessions at the same time, but you can only forward 30 ranges of ports. Does the Router replace a modem? Is there a cable or DSL modem in the Router? No, this version of the Router must work in conjunction with a cable or DSL modem.

  • Page 83: Appendix B: Finding The Mac Address And Ip Address For Your Ethernet Adapter

    This section describes how to find the MAC address for your computer’s Ethernet adapter so you can use the MAC address cloning feature of the Router. You can also find the IP address of your computer’s Ethernet adapter. This IP address is used for the Router’s filtering, forwarding, and/or DMZ features. Follow the steps in this appendix to find the adapter’s MAC or IP address in Windows 98, Me, 2000, or XP.

  • Page 84: For The Router's Web-Based Utility

    The example in Figure C-3 shows the Ethernet adapter’s IP address as 192.168.1.100. Your computer may show something different. For the Router’s Web-based Utility For MAC address cloning, enter the MAC Address in the User Defined WAN MAC Address field or select MAC Address from this PC.

  • Page 85: Appendix C: Physical Setup Of The Router

    This section describes the physical setup of the Router, including the installation of the mounting brackets. Setting up the Router You can set the Router on a desktop, install it in a rack with attached brackets, or mount it on the wall. Placement of the Router Set the Router on a desktop or other flat, secure surface.

  • Page 86: Figure C-2: Attaching The Brackets To The Router And Rack-Mounting The Router

    10/100/1000 4-Port VPN Router Line up the bracket holes with the holes in the Router and attach with the screws, using four on each side of the Router. After the brackets are attached to the Router by screws, you can rack-mount it. Attach the Router to the rack with two screws on each side.

  • Page 87: Figure C-3: Wall-Mounting The Router

    (94mm). Install two screws or nails into the wall, 3.701 in (94 mm) apart. After the nails are secured on the wall, line up the Router’s holes with the screws on the wall to wall-mount it. The suggested mounting hardware is shown in Figure D-4.

  • Page 88: Figure C-4: Wall-Mounting Hardware

    10/100/1000 4-Port VPN Router Figure C-4: Wall-Mounting Hardware Appendix C: Physical Setup of the Router Setting up the Router...

  • Page 89: Appendix D: Battery Replacement

    Linksys Technical Support. Do not attempt to replace this battery yourself. You must call Linksys Technical Support to replace the battery. Danger of explosion exists if the lithium battery is incorrectly replaced. The battery can only be replaced with the same or equivalent type of CR2032 lithium battery.

  • Page 90: Appendix E: Upgrading Firmware

    10/100/1000 4-Port VPN Router Appendix E: Upgrading Firmware You can use the Router’s Web-based Utility to upgrade the firmware; however, if you do so, you may lose the settings you have configured on the Router. To upgrade the Router’s firmware, follow these instructions: 1.

  • Page 91: Appendix F: Windows Help

    10/100/1000 4-Port VPN Router Appendix F: Windows Help All Linksys networking products require Microsoft Windows. Windows is the most used operating system in the world and comes with many features that help make networking easier. These features can be accessed through Windows Help and are described in this appendix.

  • Page 92: Appendix G: Glossary

    DHCP (Dynamic Host Configuration Protocol) - A protocol that lets one device on a local network, known as a DHCP server, assign temporary IP addresses to the other network devices, typically computers. DMZ (Demilitarized Zone) - Removes the Router's firewall protection from one PC, allowing it to be “seen” from the Internet.
  • Page 93 10/100/1000 4-Port VPN Router Encryption - Encoding data to prevent it from being read by unauthorized people. Ethernet - A network protocol that specifies how data is placed on and retrieved from a common transmission medium. Firewall - Security measures that protect the resources of a local network from intruders.
  • Page 94 IP network. This protocol is also used as a type of broadband connection in Europe. Router - A networking device that connects multiple networks together, such as a local network and the Internet. Server - Any computer whose function in a network is to provide user access to files, printing, communications, and other services.
  • Page 95 10/100/1000 4-Port VPN Router Switch - 1. Device that is the central point of connection for computers and other devices in a network, so data can be shared at full transmission speeds. 2. A device for making, breaking, or changing the connections in an electrical circuit.

  • Page 96: Appendix H: Specifications

    10/100/1000 4-Port VPN Router Appendix H: Specifications Standards IEEE 802.3, 802.3u Ports 4 10/100/100 Gigabit Ports, 1 10/100 RJ-45 Internet Port, 1 SFP Port Button Reset Cabling Type Ethernet Category 5 LEDs System, Internet, SFP, Diag, 1-4 UPnP able/cert Security Features...

  • Page 97: Appendix I: Warranty Information

    Linksys product will be free of defects in materials and workmanship under normal use. Your exclusive remedy and Linksys's entire liability under this warranty will be for Linksys at its option to repair or replace the product or refund Your purchase price less any rebates.

  • Page 98: Appendix J: Regulatory Information

    10/100/1000 4-Port VPN Router Appendix J: Regulatory Information FCC STATEMENT This product has been tested and complies with the specifications for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 99: Appendix K: Contact Information

    Can't find information about a product you want to buy on the web? Do you want to know more about networking with Linksys products? Give our advice line a call at: Or fax your request in to: If you experience problems with any Linksys product,...
