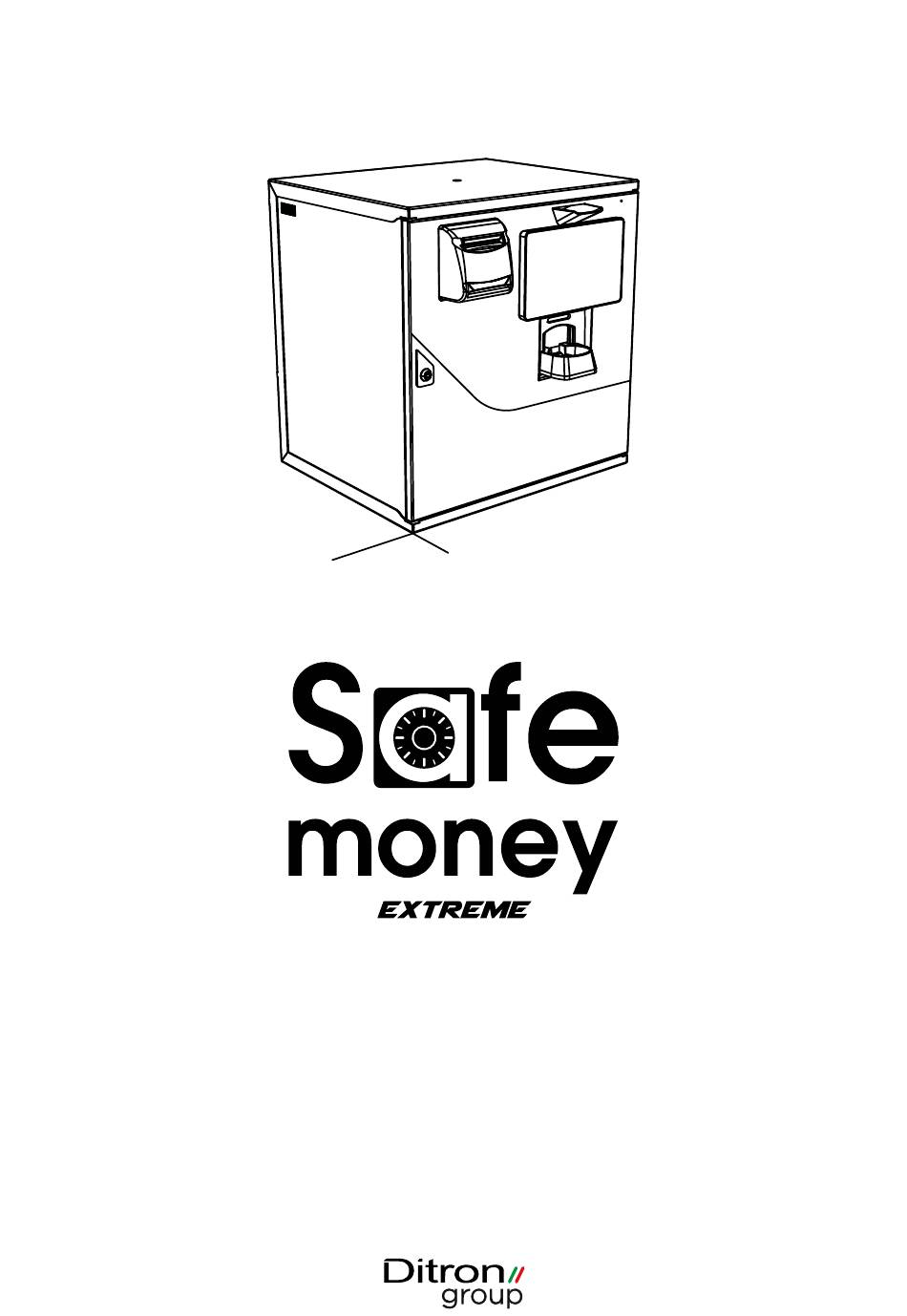

- Page 1 Installation guide...
-
Page 2: Table Of Contents
Installation guide Intelligent cash drawer SafeMoney Extreme Index 1. Information......................1 2. Security instructions..................2 ........................3 2.1 Skills .........................3 2.2 Cables ......................3 2.3 Temperature ....................3 2.4 Weight and modules 3. Presentation of the product................4 4. Product dimensions..................5 5. Included parts....................6 6. Main functions....................7 7. -
Page 3: Information
Installation guide 1. Information Please follow the above instructions for the machine installation and after sale service. Thank you for choosing Ditron. Visit www.ditron.eu for futher information. PRESERVE FOLLOWING INSTRUCTIONS This manual contains important instructions to follow during installation and maintenance. -
Page 4: Security Instructions
Installation guide Intelligent cash drawer SafeMoney Extreme 2. Security instructions Installation and removal The installation and the machine removal must be done by an expert technician. Warning: Before to start after sale service or uninstallation of the product, be sure power supply is unplugged. Warning: Once SafeMoney Extreme is installed, check every internal module is properly fixed to the chassis. -
Page 5: Skills
Intelligent cash drawer SafeMoney Extreme Installation guide 2. Security instructions 2.1 SKILLS Technical personel who will work with electricity line, machines and equipment must be well trained. Not authorized personel must not work with the above equipment if not under followed to an authori- zed technician. -
Page 6: Presentation Of The Product
Installation guide Intelligent cash drawer SafeMoney Extreme 3. Presentation of the product 1 - hole for eyebolt 8 - BNR3 banknote acceptor 9 - CLS banknote dispenser 10 - connection pannel coin acceptor 11 - touch display 12 - frontal frame coin dispenser 13 - “hard reset”... -
Page 7: Product Dimensions
Intelligent cash drawer SafeMoney Extreme Installation guide 4. Product dimensions 521.0 465.0 10’’ side view front view 44.5 435.0 560.0 top view measurements expressed: mm + - 0.5mm REV.01... -
Page 8: Included Parts
Installation guide Intelligent cash drawer SafeMoney Extreme 5. Included parts BOX A 1 - case (cables, power supply and battery) 2 - keys 3 - power cable 4 - door adhesive 5 - SW activation key BOX B 6 - CLS (cables included) BOX C 7 - cashbox and recycler (cables included) BOX D... -
Page 9: Main Functions
Installation guide Cassetto automatico SafeMoney 6. Main functions COIN RECYCLE Maximum insertion speed: bulk coin insertion “smart coin system” Technical features Accepted coins: from € 0,01 to € 2,00 Maximum delivery speed: up to 6 coins / sec. Capacity in recycle: 3673 coins Cashbox for coin storage: n/a BANKNOTES RECYCLE Insertion: one by one... -
Page 10: Preparation For Installation
Check if the desk is able to support SafeMoney’s weight Check the desk composition. To guarantee the perfect installation, Safe Money Extreme must be installed screwing it to the desk using the 4 screws holes. Some desk materials could not be suitable for the SafeMoney installation. - Page 11 Installation guide Intelligent cash drawer SafeMoney Extreme 7. Preparation for installation Check the POS is located near to the SafeMoney Extreme and the ETH cable is properly fixed. Teach the users to the correct way to use the machine and check “dust zone” to exclude consequences related to dust and row materials near the Safemoney Extreme.
-
Page 12: Installation
Intelligent cash drawer SafeMoney Extreme Installation guide 8. Installation Warning: It is mandatory to screw the SafeMoney to the desk. Use the guide support in the box for the screws holes. Un-box the machine and check steps in “Installation requirements”. Then Go on with the installation. 8.1 Template guide pic.1 Put the template guide on the desk and fix it with... -
Page 13: Built-In Positioning
Intelligent cash drawer SafeMoney Extreme Installation guide 8. Installation 8.3 Built-in positioning pic.4 SafeMoney Extreme has been projected to be installed into the pre-existent desk with periphe- 561.0 rals to the customer or the operator. 133.0 364.5 145.6 255.5 60.8 For this layout it is necessary to customize the desk in order to have the access to the periphe- rals. -
Page 14: Bnr Mounting
Intelligent cash drawer SafeMoney Extreme Installation guide 8.Installation 8.4 BNR mounting pic.6 4) Connect the cables. 5) Arm the cash box module (open and close it) then insert it in the related space. 6) Close using the key k2 then lift up the green lever (B). 8.5 Insert BNR pic.7 Before starting to connect the cashbox and... -
Page 15: Insert Cls
Intelligent cash drawer SafeMoney Extreme Installation guide 8. Installation 8.6 Insert CLS PIC.8 Before starting to connect the CLS, check the machine is not connected to the power supply and it is properly secured. Unbox CLS module, use the supplied key to unlock unit and remove the expanded transport element. - Page 16 Assistance contacts e. commercial@ditron.eu t. +390812428557 w. www.ditron.eu Specifications are subject to change without notice Installation guide Intelligent cash drawer SafeMoney Extreme - REV.01 - Ott. 2022...
