WA360 -- In-Line Remote Mute Switch

General Description

General Description
The Shure WA360 lets you remotely mute Shure lavalier microphones during presentations or performances.
When installed between a lavalier microphone and a preamplifier or wireless transmitter, the WA360 can function
as an audio on/off button, a push-to-talk switch, or a "cough" button. The WA360 is ideal for vocalists, lecturers,
clergy, sports referees-anyone who needs easy, instant ability to mute a lavalier microphone.
The WA360 is compatible with all Shure microphones terminated with a Switchcraft TA4F connector. These in-
clude Models 839W, WL83, WL83A, WL84, WL84A, WL93, WL183, WL184, WL185, WH10TQG, WH20TQG,
WCM16,SM83A, SM84A, MX183, MX184, and MX185.

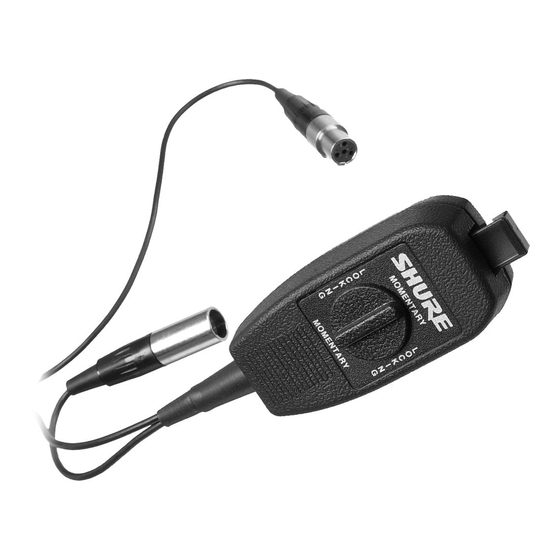

The WA360 is supplied with two permanently attached cables: an 102 mm (approx. 4 in.) cable with a TA4M con-
nector that attaches to the microphone cable, and an 838 mm (approx. 33 in.) cable with a TA4F connector that at-
taches to the input jack on a transmitter or preamplifier.

FEATURES

• Small and lightweight, with convenient push-button on/off switch
• Selectable momentary or locking operation
• Provides audio muting without pops or clicks
• Can be used with wired or wireless microphones equipped with a 4-pin female mini connector, (TA4F)
• Plugs directly into a Shure preamplifier or bodypack wireless transmitter
• Ultra-reliable switch for years of dependable service
• Rugged, high-impact case
• Rotatable stainless steel belt clip for easy attachment to belt or waistband

INSTALLATION

1. Plug 4-pin male mini connector (TA4M) from the WA360 cable into the microphone cable connector.
2. Plug 4-pin female mini connector (TA4F) from the WA360 cable into the bodypack transmitter or preamplifier in-
put.
1/3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WA360 and is the answer not in the manual?

Questions and answers

Summary of Contents for Shure WA360

  • Page 1 WCM16,SM83A, SM84A, MX183, MX184, and MX185. The WA360 is supplied with two permanently attached cables: an 102 mm (approx. 4 in.) cable with a TA4M con- nector that attaches to the microphone cable, and an 838 mm (approx. 33 in.) cable with a TA4F connector that at- taches to the input jack on a transmitter or preamplifier.
  • Page 2 Shure Incorporated 3. Clip the WA360 to your belt or waistband, if desired. OPERATION When the ON/OFF button is UP, the microphone is OFF. When the button is DOWN, the microphone is ON. The button can be configured for either locking or momentary operation.
  • Page 3 Shure Incorporated Wiring WA360 WIRING DIAGRAM...
