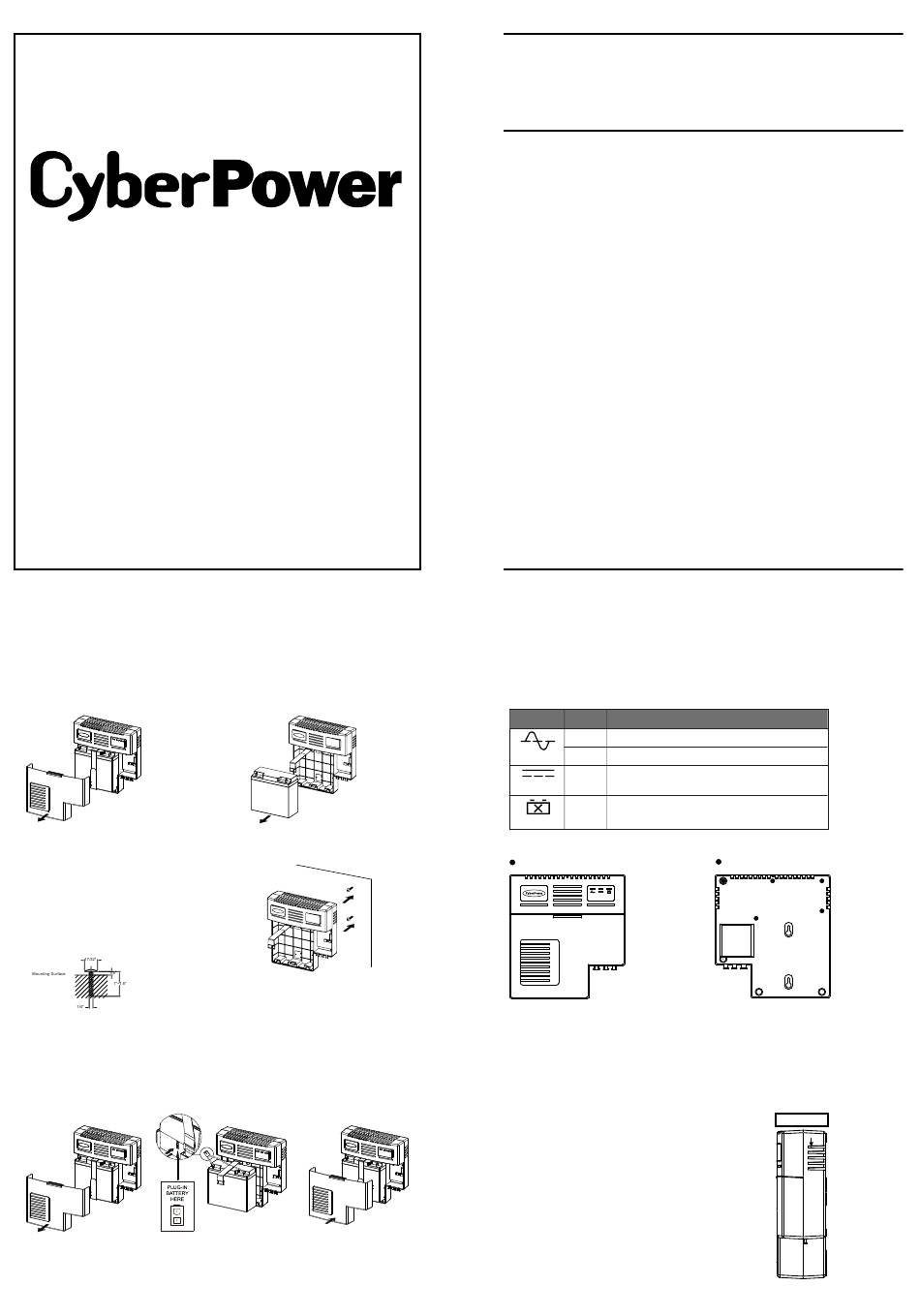

CyberPower CyberShield CSN75A12V3 User Manual

User's Manual for
INSTALLATION
Step 1:
a. Remove the battery cover .
RECOMMENDED SCREW SIZE
Step 3:
a. Use the enclosed installation template to mark an installation location for the unit.
b. Mount the screws on the wall.
c. Put the keyhole slots of the unit on the two screws.
d. Connect the battery connector and replace the battery back.
BATTERY REPLACEMENT
This battery is hot-swappable. As long as utility power is on , you may leave the UPS and connected
equipment on while replacing a new battery.
Step 1: Step 2:
a. Remove the battery cover. a. Loosen the battery strap.
b. Disconnect battery cable connector
to remove battery.
c. Replace with new battery and
re-connect the battery connector.
CyberShield
CSN75A12V3
Step 2:
a. Unstrap strap from battery.
b. Slide battery off of the shelf.
c. Disconnect battery cable connector at the chassis end.
Step 3:
a. Tighten the battery strip and
close the battery cover .
CyberShield UPSs are designed to provide a local power solution for
cable telephony, wireless local loop (WLL), and fiber to the home
(FTTH) broadband equipment.
IMPORTANT SAFETY WARNINGS
(SAVE THESE INSTRUCTIONS)
This manual contains important instructions regarding the installation and operation of this device.
Read this manual thoroughly before attempting to unpack , install or operate this device.
CAUTION! The battery can energize hazardous live parts inside even when the AC input power is
disconnected.
CAUTION! To reduce the risk of fire or electric shock, install in a temperature and humidity
controlled indoor area, free of conductive contaminants. To find the acceptable
temprature and humidity ranges,please refer to the device specifications.
CAUTION! To avoid electric shock, unplug power cable from the AC power source before servicing
the battery or installing a computer component.
CAUTION! To reduce the risk of electric shock, keep the cover on. there are no user serviceable
parts inside the unit, including the battery. Please contact us or our dealer for service.
CAUTION! When replacing batteries, the replacement should have the same rating:
Listed/Certified Valve Regulated Lead Acid Battery, 12V, max. 20Ah.
CAUTION! Before replacing batteries, remove conductive jewelry, such as chains, watches and rings,
and use tools with insulated handles. High energy passed through conductive materials
can cause severe burns.
CAUTION! Don't dispose of batteries in a fire. Batteries may explode if improperly disposed.
Recycle batteries in accordance with local regulations.
CAUTION! The UPS battery is charging when it's connected to utility power. The battery is charging
during its first 24 hours of normal operation. Don't expect full battery capacity during this
initial charging period.
CAUTION! It is recommended to connect the until to the required equipment and battery before
plugging in the utility power.
CAUTION! Runtimes based on testing fully-charged, new batteries at normal operating conditions.
Runtime curve is approximate and varies based on battery age, level of charge at test,
environment, and other variables.
WARNING INDICATOR
Indicator Color Condition
Green UPS is on utility power.
Yellow UPS is on battery power.
AC
DC output power is provided by the battery or
Green
utility power.
OUTPUT
The battery is not connected or the battery
Red
needs to be replaced.
BATTERY
Front Panel
AC OUTPUT BATTERY
BUZZER ON / OFF SWITCH
The default position of the buzzer switch is OFF.If you want to enable this function, there is a button
inside the hole, please insert a paper clip or small pointed object into the hole and press the button.
.
Back Panel
Alarm Silence
