CyberPower CSN30C12V-E User Manual

User's Manual for

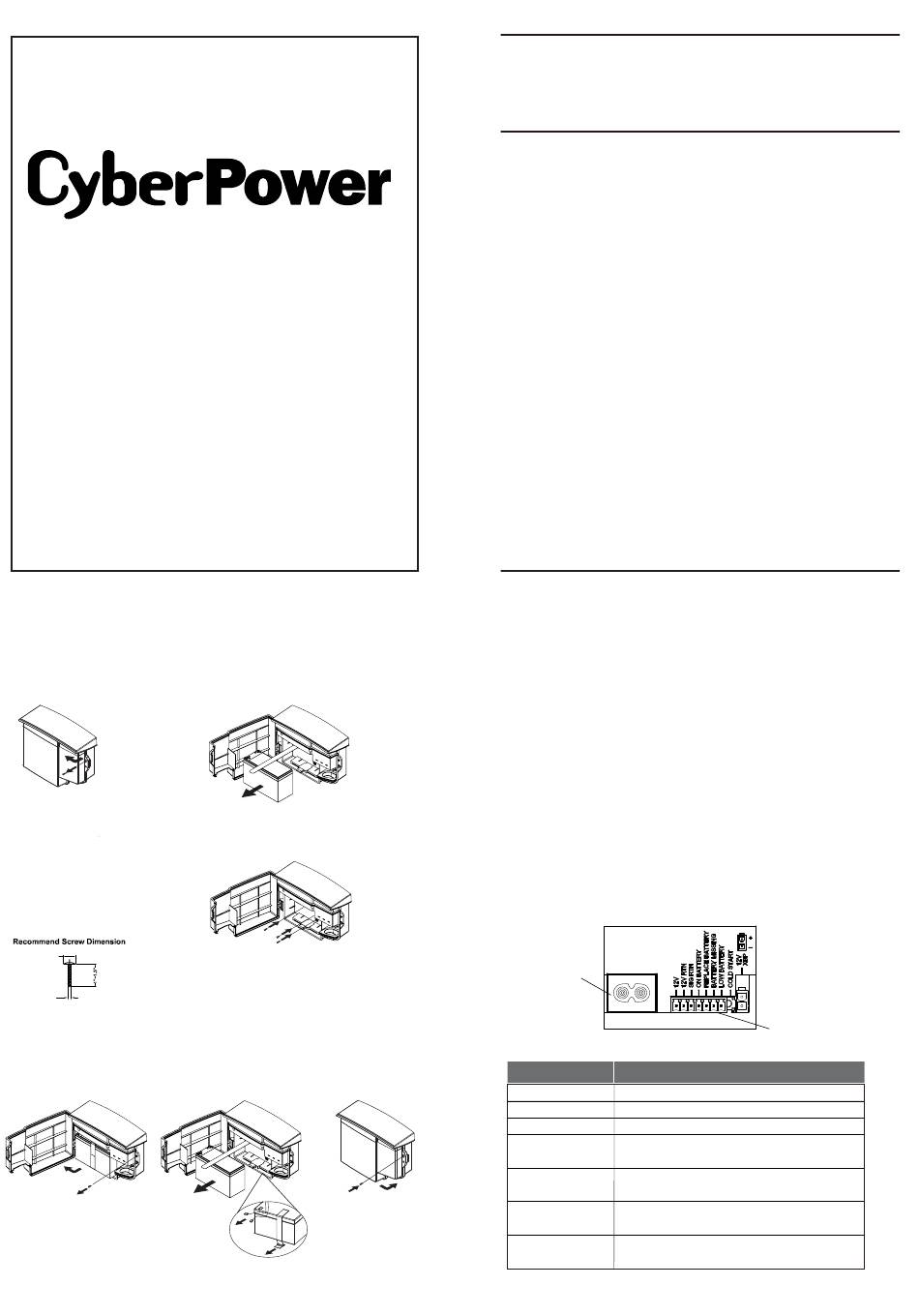

INSTALLATION
Step 1:
a. Remove the case screw.
b. Open the battery cover.
13/32"
Step 3:
a. Use the enclosed installation template to mark an installation location for the unit.
b. The unit can only be wall-mounted in one direction with the connector facing down.
c. Mount the unit on the wall with 3 mounting screws into the keyhole slots.
d. Tighten the screws to secure the unit.
3/16"
e. Reconnect the battery cable connector and place the battery back.
BATTERY REPLACEMENT
This battery is hot-swappable. As long as utility power is on , you may leave the Battery Backup
Power Supply and connected equipment on while replacing a new battery.
Step 1: Step 2:
a. Remove the case screw. a. Loosen the battery strap.
b. Open the battery cover. b. Disconnect battery cable connector
to remove battery.
c. Replace with new battery and
reconnect the battery connector.
CyberShield
CSN30C12V-E
Step 2:
a. Loosen strap from battery.
b. Slide battery off of the shelf.
c. Remove battery cable connector.
Step 3:
a. Tighten the battery strap.
b. Close the battery cover and
lock the case screw.

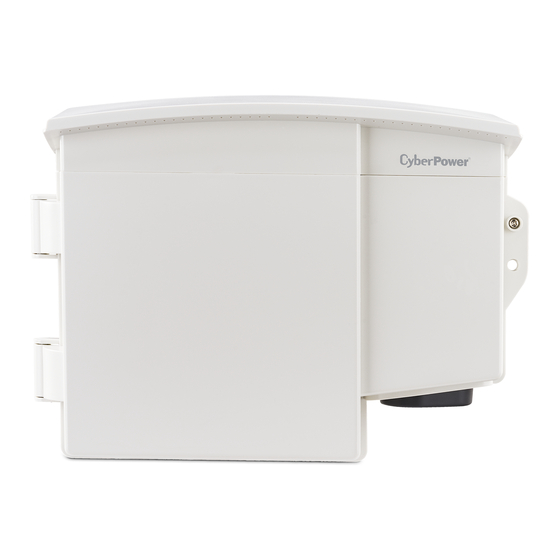

CyberShield UPSs are designed to provide a local power solution for
cable telephony, wireless local loop (WLL), and fiber to the home
(FTTH) broadband equipment.
IMPORTANT SAFETY WARNINGS
(SAVE THESE INSTRUCTIONS)
This manual contains important instructions regarding the installation and operation of this device.
Read this manual thoroughly before attempting to unpack , install or operate this device
CAUTION! The battery can energize hazardous live parts inside even when the AC input power is
disconnected.
CAUTION! To reduce the risk of electric shock, keep the cover on. there are no user serviceable
parts inside the unit, including the battery. Please contact us or our dealer for service.
CAUTION! To avoid electric shock, unplug power cable from the AC power source before servicing
the battery or installing a computer component.
CAUTION! Power Cable Selection:
A power cable (4.5m max.) being identified as 18AWG, "OUTDOOR" or "WATERPROOF"
should be selected while necessary.
CAUTION! It is recommended to connect the unit to the required equipment and battery before
plugging in the utility power.
CAUTION! When replacing batteries, the replacement should have the same rating:
Listed/Certified Valve Regulated Lead Acid Battery, 12V, max. 9Ah.
CAUTION! Before replacing batteries, remove conductive jewelry, such as chains, watches and rings,
and use tools with insulated handles. High energy passed through conductive materials
can cause severe burns.
CAUTION! Don't dispose of batteries in a fire. Batteries may explode if improperly disposed.
Recycle batteries in accordance with local regulations.
CAUTION! The UPS battery is charging when it's connected to utility power. The battery is charging
during its first 24 hours of normal operation. Don't expect full battery capacity during this
initial charging period.
CAUTION! Runtimes based on testing fully-charged, new batteries at normal operating conditions.
Runtime curve is approximate and varies based on battery age, level of charge at test,
environment, and other variables.
CAUTION! Keep the gap around the UPS for air circulation.
OPERATION
Please refer to the following recommendations to connect equipment and power source.
Step1. Refer to the BATTERY REPLACEMENT to connect the battery.
Step2. Refer to the COMMUNICATION SIGNALS to setup the connector and connect equipment
to the UPS.
Step3. Plug the UPS power cord into the utility power cord inlet.
Step4. Plug the UPS power cord into the wall outlet.
COMMUNICATION SIGNALS
The communication signals of this unit are isolated from the internal circuitry via open collector opto-
coupled transistors. The connection "SIG RTN" (Signal Return) is a common return point for all
communication signals. In the typical application, the attached equipment digital ground connects to
Signal Return, and pull-up resistors turn the open collector signals into logic levels.
Utility power cord inlet
Signal
12V + Voltage output
12V RTN - Voltage output
SIG RTN Signal return
Low when operating from utility line.
ON BATTERY
Open when operating from battery.
Low when battery is charged.
REPLACE BATTERY
Open when battery fails the Self Test.
Low when battery is present.
BATTERY MISSING
Open when battery is missing.
Low when battery is near full charge capacity.
LOW BATTERY
Open when operating from a battery with < 10% capacity.
Communication signals
Message
