Summary of Contents for Quantum Design PlatiniX 1E

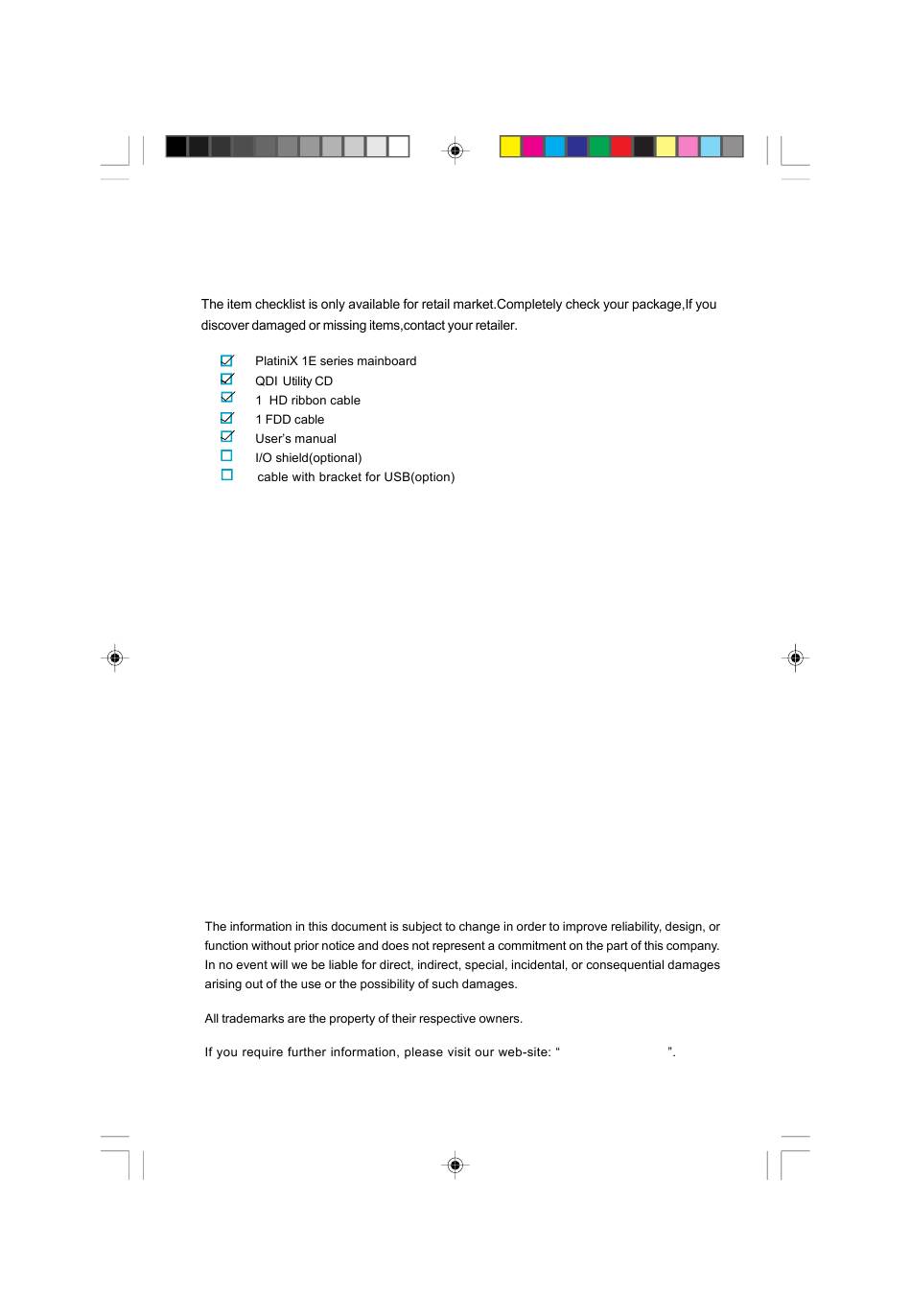

  • Page 1 All manuals and user guides at all-guides.com Item Checklist Notice www.qdigrp.com 02-6-5, 16:25 P1EenÐòÑÔ.p65...

  • Page 2: Declaration Of Conformity

    20th Floor, Devon House, Taikoo Place, 979 King’s Road, Quarry Bay, Hong Kong declares that the product Mainboard PlatiniX 1E is in conformity with (reference to the specification under which conformity is declared in accordance with 89/336 EEC-EMC Directive) þ...
  • Page 3 All manuals and user guides at all-guides.com Declaration of Conformity Trade Name: QDI Computer ( U. S . A. ) Inc. Model Name: PlatiniX 1E Responsible Party: QDI Computer ( U. S. A.) Inc. Address: 41456 Christy Street Fremont, CA 94538...
  • Page 4 All manuals and user guides at all-guides.com C O N T E N T S C O N T E N T S C O N T E N T S C O N T E N T S C O N T E N T S 1.
  • Page 5 All manuals and user guides at all-guides.com C O N T E N T S C O N T E N T S C O N T E N T S C O N T E N T S C O N T E N T S 3.
  • Page 6 All manuals and user guides at all-guides.com Note: This manual is suitable for PlatiniX 1E series of mainboards. Each mainboard is carefully designed for the PC user who wants different features. -A: with onboard Audio -6A: with 6 channel Audio...
  • Page 7 All manuals and user guides at all-guides.com Caution Be sure to unplug the AC power supply before adding or removing expansion cards or other system peripherals, especially the memory devices, otherwise your mainboard or the system memory might be seriously damaged. Caution Be sure to add some Silicone Grease between the CPU and the heatsink to keep them fully contacted to meet the heat sink requirement.
  • Page 8 All manuals and user guides at all-guides.com 02-6-5, 16:25 P1EenÐòÑÔ.p65...

  • Page 9: Chapter 1 Introduction

    All manuals and user guides at all-guides.com Chapter 1 Introduction Overview ® ® ® Key Features Form factor Microprocessor ® ® System memory Onboard IDE 02-6-5, 16:25 P1Een.p65...
  • Page 10 All manuals and user guides at all-guides.com Onboard LAN (available on PlatiniX 1E-L/-AL/-6AL) 6 USB Onboard I/O ″ ″ Onboard Audio(Optional) AGP Interface Advanced features 02-6-5, 16:25 P1Een.p65...
  • Page 11 All manuals and user guides at all-guides.com BIOS Green function Expansion slots 02-6-5, 16:25 P1Een.p65...
  • Page 12 All manuals and user guides at all-guides.com 02-6-5, 16:25 P1Een.p65...

  • Page 13: Installation Instructions

    All manuals and user guides at all-guides.com Chapter 2 Installation Instructions External Connectors PS/2 Keyboard/Mouse Connector PS/2 Mouse connector PS/2 Keyboard connector USB1, USB2 and LAN Connectors LINK ACTIVE LAN(optional) USB1 USB2 Be sure to unplug the AC power supply before adding or removing expansion cards or other system peripherals, otherwise your mainboard and expansion cards might be seriously damaged.
  • Page 14 All manuals and user guides at all-guides.com Line-in jack, Microphone-in jack, Speaker-out jack and MIDI/Joystick Connector MIDI/Joystick Speaker out Microphone in Line in 6-Channel Audio MIDI/Joystick Front Center&Woofer Back Left&Right Left&Right Parallel Port, Serial Port Connectors (UART1, UART2) Parallel Port UART2 UART1 02-6-5, 16:25...
  • Page 15 All manuals and user guides at all-guides.com ATX12V Power Supply Connector & Power Switch (POWER SW) Push once +12V Power Supply Connector ATX Power Supply Connector 3.3V 3.3V GND 5V GND PS-OK 5VSB 3.3V -12V PS-ON POWER SW Note Note If you change “Soft-off by PWR-BTTN”...
  • Page 16 All manuals and user guides at all-guides.com Speaker Connector (SPEAKER) Power LED Connector (PWR_LED) GREEN LED Connector (GREEN_LED) ACPI LED Connector (ACPI_LED) Hardware Green Connector (SLEEP SW) Key Lock Connector (KEYLK) HD_LED HDD LED(+) HDD LED(-) ORANGE(-) GREEN(-) LED+ POWER SPKDATA RESET EMPTY...
  • Page 17 All manuals and user guides at all-guides.com USB3,4 ;USB5,6 USB3,4 USB3,4 USB5,6 USB5,6 Infrared Header (IrDA) VCC IRRX IRTX IrDA 02-6-5, 16:26 P1Een.p65...
  • Page 18 All manuals and user guides at all-guides.com Fan Connectors (PWRFAN, CPUFAN, CHSFAN) CPUFAN +12V SENSE +12V PWRFAN SENSE +12V CHSFAN SENSE Chassis Security Switch (CHSSEC) Indicate signal CHSSEC 02-6-5, 16:26 P1Een.p65...
  • Page 19 All manuals and user guides at all-guides.com Wake-Up On LAN (WOL) +5V standby Signal for waking up Wake-Up On Internal Modem (WOM) +5V standby Signal for waking up 02-6-5, 16:26 P1Een.p65...
  • Page 20 All manuals and user guides at all-guides.com Audio Connectors (CD_IN 1, CD_IN 2, MODEM) CD Right Channel Common CD Left Channel CD_IN 1 CD 2 Right Channel Common CD 2 Left Channel CD_IN 2 Mono-Out (to Modem) Phone-In (from Modem) MODEM 4-pin SMBus Connector(SMBUS) SMBCLK...
  • Page 21 All manuals and user guides at all-guides.com Communication and Networking Riser Slot(CNR) CNR Slot Sound Connector (PC-PCI) PC-PCI DMA REQUEST SERIAL INTERRUPT REQUEST PC-PCI DMA ACKNOWLEDGE PC-PCI 02-6-5, 16:26 P1Een.p65...
  • Page 22 All manuals and user guides at all-guides.com Audio Interface(Optional) Microphone in FrontLineOutR Line in LineNextR LineNextL Speaker Out Earphone FrontLineOutL Front Audio jack Speaker 4 6 8 10121416 1 3 5 7 91 11315 BLSPK (Audio Interface) Symbol Symbol Active LINE Out(R) Active LINE Out(L) GND (ALO) GND (ALO)
  • Page 23 All manuals and user guides at all-guides.com Main Expansion Slots and Connectors 02-6-5, 16:26 P1Een.p65...
  • Page 24 All manuals and user guides at all-guides.com Jumper Settings → Enable Front/Back Panel USB Device Wake-up Function (JFUSB/JUSB) 02-6-5, 16:26 P1Een.p65...
  • Page 25 All manuals and user guides at all-guides.com Clear CMOS (JCC) Wake-Up On LAN (JP5) 02-6-5, 16:26 P1Een.p65...
  • Page 26 All manuals and user guides at all-guides.com Overclocking Jumper Setting (JFSB) JFSB AUTO FSB 100MHz 133MHz Open JFSB Warning: Be sure your selection is right. CPU over speed will be dangerous! We will not be responsible for any damages caused. Enable/Disable onboard LAN (JLAN) 02-6-5, 16:26 P1Een.p65...
  • Page 27 All manuals and user guides at all-guides.com BIOS-Protection Jumper (JAV) 02-6-5, 16:26 P1Een.p65...
  • Page 28 All manuals and user guides at all-guides.com Enable keyboard password power-on function (JKB) Note: 1. If using this function, 5VSB line of the power supply should be capable of delivering enough current for all the devices connected to the keyboard port, if not, you will be unable to power up the system using the keyboard.
  • Page 29 All manuals and user guides at all-guides.com Enable/Disable onboard audio (JSD) 02-6-5, 16:26 P1Een.p65...
  • Page 30 All manuals and user guides at all-guides.com 02-6-5, 16:26 P1Een.p65...

  • Page 31: Chapter 3 Bios Description

    All manuals and user guides at all-guides.com Chapter 3 BIOS Description Utility Support: AWDFLASH.EXE We strongly recommend you only upgrade BIOS when encounter problems. Before upgrading your BIOS, review the description below to avoid making mistakes, destroying the BIOS and resulting in a non-working system.

  • Page 32: Load Optimized Defaults

    All manuals and user guides at all-guides.com AWARD BIOS Description Entering Setup Press <Del> to enter SETUP Load Optimized Defaults Standard CMOS Features Setup 02-6-5, 16:26 P1Een.p65...
  • Page 33 All manuals and user guides at all-guides.com Hard Disk Primary Master/Primary Slave/Secondary Master/Secondary Slave 02-6-5, 16:26 P1Een.p65...
  • Page 34 All manuals and user guides at all-guides.com LBA (Logical Block Addressing) mode LARGE mode Remark 02-6-5, 16:26 P1Een.p65...
  • Page 35 All manuals and user guides at all-guides.com Video Halt On Memory 02-6-5, 16:26 P1Een.p65...
  • Page 36 All manuals and user guides at all-guides.com QDI Innovation features Item Option Description [SpeedEasy setting] x8~x23 Default 100/33MHz 166/33MHz [BootEasy setting] Enabled Disabled [LogoEasyII setting] Enabled Disabled 02-6-5, 16:26 P1Een.p65...
  • Page 37 All manuals and user guides at all-guides.com Item Option Description [RecoveryEasyII setting] English Chinese NULL F2~F12 [BIOS -protectEasy setting] Enabled Disabled W W W W W ar ning ning W W W W W ar ar ning ar ning ning ning ning ning...

  • Page 38: Advanced Bios Features Setup

    All manuals and user guides at all-guides.com Advanced BIOS Features Setup Item Option Description Enabled Disabled Enabled Disabled Enabled Disabled Disabled Floppy/LS120 CDROM Enabled Disabled 02-6-5, 16:27 P1Een.p65...
  • Page 39 All manuals and user guides at all-guides.com Normal Fast Enabled Disabled 6-30 250-1000 Setup System Non-OS2 Enabled Disabled 02-6-5, 16:27 P1Een.p65...

  • Page 40: Advanced Chipset Features Setup

    All manuals and user guides at all-guides.com Advanced Chipset Features Setup Item Option Description By User By SPD 1.5~3 5,6,7 Non-ECC Auto DDR200 DDR266 Enabled Disabled Enabled Disabled 02-6-5, 16:27 P1Een.p65...
  • Page 41 All manuals and user guides at all-guides.com Enabled Disabled Enabled Disabled Enabled Disabled Enabled Disabled 4/8/16Min 32Min 4/8/16/32MB 64/128MB 256MB Enabled Disabled +/-0.25% +/-0.38% Disabled 02-6-5, 16:27 P1Een.p65...

  • Page 42: Power Management Setup

    All manuals and user guides at all-guides.com Power Management Setup Item Option Description Enabled Disabled S1(POS) S3(STR) S1 and S3 User Define Min Saving Max Saving Blank Screen V / H SYNC + Blank DPMS Note: When the green monitor does not detect the V/H-SYNC signals, the electron gun will be turned off.
  • Page 43 All manuals and user guides at all-guides.com Stop Grant PwrOn Suspend 3,4,5,7,9, 10,11 Disabled 1Min ~ 1Hour Disabled 1 - 15 Min Instant-Off Delay 4 sec 12.5%, 25%, 50%, 37.5%, 62.5%, 75%, 87.5% Enabled Disabled Enabled Disabled Enabled Disabled Enabled Disabled 02-6-5, 16:27 P1Een.p65...
  • Page 44 All manuals and user guides at all-guides.com Enabled Disabled Enabled Disabled Enabled Disabled 02-6-5, 16:27 P1Een.p65...

  • Page 45: Pnp/Pci Configurations Setup

    All manuals and user guides at all-guides.com PNP/PCI Configurations Setup Item Option Description Enabled Disabled Manual Auto(ESCD) Enabled Disabled 02-6-5, 16:27 P1Een.p65...

  • Page 46: Integrated Peripherals

    All manuals and user guides at all-guides.com Integrated Peripherals Item Option Description Enabled Disabled Mode 0 - 4 Auto Auto Disabled Enabled Disabled Enabled Disabled Auto Disabled Auto Disabled 02-6-5, 16:27 P1Een.p65...
  • Page 47 All manuals and user guides at all-guides.com Auto Onboard Ext.CNR PCI Slot Enabled Disabled 6/8 MHz 12/16 MHz Button only Password Enter Enabled Disabled 3F8/IRQ4 2F8/IRQ3 3E8/IRQ4 2E8/IRQ3 Auto Disabled Normal, IrDA ASKIR Hi, Lo/Lo, Hi Lo, Lo/ Hi, Hi 02-6-5, 16:27 P1Een.p65...
  • Page 48 All manuals and user guides at all-guides.com Enabled Disabled Half Full IR-Rx2Tx2 RxD2, TxD2 378/IRQ7 278/IRQ5 3BC/IRQ7 Disabled ECP+EPP EPP1.7 EPP1.9 OFF,ON Former-Sts Disabled 201,209 Disabled 02-6-5, 16:27 P1Een.p65...

  • Page 49: Pc Health Status

    All manuals and user guides at all-guides.com PC Health Status Item Option Description C/122 C/127 C/133 C/140 C/145 C/151 C/158 C/176 C/185 C/194 C/205 Disabled 02-6-5, 16:27 P1Een.p65...
  • Page 50 All manuals and user guides at all-guides.com C/140 C/149 C/158 Disabled 02-6-5, 16:27 P1Een.p65...

  • Page 51: Password Setting

    All manuals and user guides at all-guides.com Password Setting ENTER PASSWORD PASSWORD DISABLED System Setup Boot with BIOS defaults 02-6-5, 16:27 P1Een.p65...
  • Page 52 All manuals and user guides at all-guides.com Appendix Appendix Appendix Appendix Appendix QDI Utility CD 1. Driver Install 2. Accessory 3. Browse CD Utility Documents Norton AntiVirus 02-6-5, 16:27 P1Een.p65...
  • Page 53 All manuals and user guides at all-guides.com LogoEasy II LogoEasy II LogoEasy II LogoEasy II LogoEasy II LogoEasy II LogoEasy II LogoEasy II LogoEasy II LogoEasy II ITEM LogoEasy II LogoEasy ü ------ Support x ------- Not Support LogoEasy II 02-6-5, 16:27 P1Een.p65...
  • Page 54 All manuals and user guides at all-guides.com A. Using CBLOGO.EXE Utility (Under DOS ): B. Using QFlash (Under Windows ): * We reserve the right of modifying the default full-logo of QDI without further notification. BIOS-ProtectEasy BIOS-ProtectEasy BIOS-ProtectEasy BIOS-ProtectEasy BIOS-ProtectEasy 02-6-5, 16:27 P1Een.p65...
  • Page 55 All manuals and user guides at all-guides.com RecoveryEasy II RecoveryEasy II RecoveryEasy II RecoveryEasy II RecoveryEasy II RecoveryEasy II RecoveryEasy II RecoveryEasy II RecoveryEasy II RecoveryEasy II Introduction: Features: ð Secure Backup ð Ease to Operate ð Adavantage Function ð Flexible Combination 02-6-5, 16:27 P1Een.p65...
  • Page 56 All manuals and user guides at all-guides.com Backup Backup content Restore content Menu Language and Hotkey Selection Menu language Select Hot key for Backup 02-6-5, 16:27 P1Een.p65...
  • Page 57 All manuals and user guides at all-guides.com 3 Hot key for Recovery NOTE: Hard Disk Selection Menu Backup Function Introduction 1 Backup Partition Table 2 Backup System Partition C: 3 Backup Whole Disk 4 Backup CMOS Setup 5 Free Backup Area 6 Exit Backup Menu 02-6-5, 16:28 P1Een.p65...
  • Page 58 All manuals and user guides at all-guides.com 1 Backup Partition Table 2 Backup System Partition 3 Backup Whole Disk 4 Backup CMOS Setup 5 Release Backup Area 6 Exit Backup Menu Recovery Function Introduction 02-6-5, 16:28 P1Een.p65...
  • Page 59 All manuals and user guides at all-guides.com 1 Recover Partition Table 2 Recover System Partition 3 Recover Whole Disk 4 Recover CMOS Setup 5 Exit Backup Menu 1.Recover Partition Table 2.Recover System Partition 3.Recover Whole Disk 4.Recover CMOS Setup 5 Exit Recovery Menu 02-6-5, 16:28 P1Een.p65...
  • Page 60 All manuals and user guides at all-guides.com SpeedEasy SpeedEasy SpeedEasy SpeedEasy SpeedEasy SpeedEasy SpeedEasy SpeedEasy SpeedEasy SpeedEasy Procedures: CPU SteedEasy Setup Menu Do not set CPU frequency higher than its working frequency. W W W W W ar ar ning ning ning ning...
  • Page 61 All manuals and user guides at all-guides.com BootEasy BootEasy BootEasy BootEasy BootEasy BootEasy BootEasy BootEasy BootEasy BootEasy Note: Setting the jumper JAV as open if you encounter the above conditions. 02-6-5, 16:28 P1Een.p65...
  • Page 62 All manuals and user guides at all-guides.com StepEasyII StepEasyII StepEasyII StepEasyII StepEasyII 1MHz increase 1MHz decrease Get user’s Manual Load save frequency Save Minimize Window frequency Value Run at the default frequency Exit Program “GO”button to run at the select frequency Installation 02-6-5, 16:28 P1Een.p65...
  • Page 63 All manuals and user guides at all-guides.com Because there exists some risk for the CPU chip or the mainboard to change the CPU frequency , We suggest you read the manual carefully before installing QDI StepEasyII . to avoid accident, we recommend you to close your When start QDI StepEasyII, other program before run StepEasyII.
  • Page 64 All manuals and user guides at all-guides.com QDI BootEasy(German) 02-6-5, 16:28 P1Een.p65...
  • Page 65 All manuals and user guides at all-guides.com Instalación de la placa base Legend-QDI PlatiniX 1E(Spanish): 02-6-5, 16:28 P1Een.p65...
  • Page 66 All manuals and user guides at all-guides.com Instalación del sistema: Un disco compacto con controladores de Legend-QDI esta incluido en el paquete de la placa base Legend-QDI PlatiniX 1E. 1. Instalación de los controladores 02-6-5, 16:28 P1Een.p65...
  • Page 67 All manuals and user guides at all-guides.com 2. Accessorios (Opcional) 3. Navegue por el CD Utility 02-6-5, 16:28 P1Een.p65...
  • Page 68 All manuals and user guides at all-guides.com Manuel d’installation des cartes mères de la série Legend- QDI PlatiniX 1E (French): Intégration du système : 02-6-5, 16:28 P1Een.p65...
  • Page 69 All manuals and user guides at all-guides.com 02-6-5, 16:28 P1Een.p65...
  • Page 70 All manuals and user guides at all-guides.com Installation du système : Lors de son achat un CD-ROM d’installation Legend-QDI est livré avec la carte mère de la série Legend-QDI PlatiniX 1E. Driver Install : 02-6-5, 16:28 P1Een.p65...
  • Page 71 All manuals and user guides at all-guides.com Accessory : Browse CD : 02-6-5, 16:28 P1Een.p65...
  • Page 72 All manuals and user guides at all-guides.com Legend-Qdi PlatiniX 1E installazione mainboard (Italian): protectEasy; 02-6-5, 16:28 P1Een.p65...
  • Page 73 All manuals and user guides at all-guides.com Installazione di sistema IL CD CONTENENTE I DRIVER DELLA VOSTRA MAINBOARD LEGEND-QDI E’ CONTENUTO NELLA SCATOLA 1. Installazione driver 02-6-5, 16:28 P1Een.p65...
  • Page 74 All manuals and user guides at all-guides.com Guardando il CD 02-6-5, 16:28 P1Een.p65...

  • Page 75: Mainboard Layout

    All manuals and user guides at all-guides.com Mainboard Layout Note: The layout includes all options. It is for your reference only. 02-6-5, 16:28 P1Een.p65...
