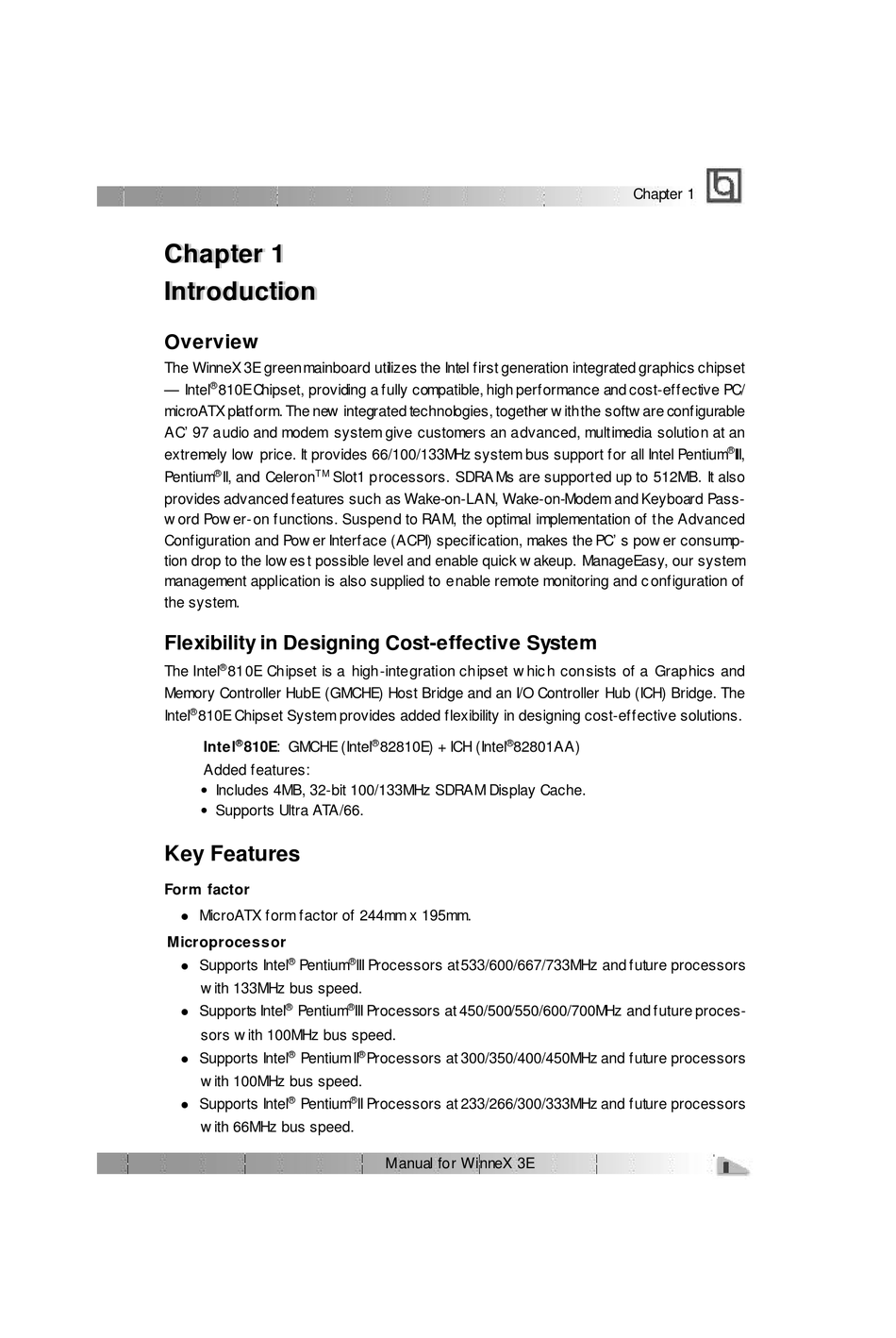

Quantum Design WinneX 3E Manual

Chapter 1 Chapter 1
Introduction Introduction
Overview
The WinneX 3E green mainboard uti l izes the Intel first generation integrated graphics chipset
®
— Intel 810E Chipset, providing a fully compatible, high performance and cost-effective PC/
microATX pl a tform. The new integrated technol o gies, together w ith the softw are configurable
AC'97 audio and modem system give customers an advanced, multimedia solution at an
extremely low price. It provides 66/100/133MHz system bus support for all Intel Pentium
® T M
Pentium II, and Celeron Slot1 processors. SDRA Ms are supported up to 512MB. It also
provides advanced features such as Wake-on-LAN, Wake-on-Modem and Keyboard Pass-
w ord Pow er- on functions. Suspend to RAM, the optimal implementation of the Advanced
Configuration and Pow er Interface (ACPI) specification, makes the PC's pow er consump-
tion drop to the low es t possible level and enable quick w akeup. ManageEasy, our system
management application is also supplied to enable remote monitoring and c onfiguration of
the system.
Flexibility in Designing Cost-effective System
®
The Intel 810E Chipset is a high-integration chipset w hic h consists of a Graphics and
Memory Controller HubE (GMCHE) Host Bridge and an I/O Controller Hub (ICH) Bridge. The
®
Intel 810E Chipset System provides added flexibility in designing cost-effective solutions.
®
Intel 810E: GMCHE (Intel
Added features:
• Includes 4MB, 32-bit 100/133MHz SDRAM Display Cache.
• Supports Ultra ATA/66.
Key Features
Form factor
MicroATX form factor of 244mm x 195mm.
l
Microprocessor
®
Supports Intel Pentium
l
w ith 133MHz bus speed.
®
Supports Intel Pentium
l
sors w ith 100MHz bus speed.
®
Supports Intel Pentium II
l
w ith 100MHz bus speed.
®
Supports Intel Pentium
l
w ith 66MHz bus speed.
® ®
82810E) + ICH (Intel 82801AA)
®
III Processors at 533/600/667/733MHz and future processors
®
III Processors at 450/500/550/600/700MHz and future proces-
®
Processors at 300/350/400/450MHz and future processors
®
II Processors at 233/266/300/333MHz and future processors
Manual for WinneX 3E
Chapter 1
®
I I I,
