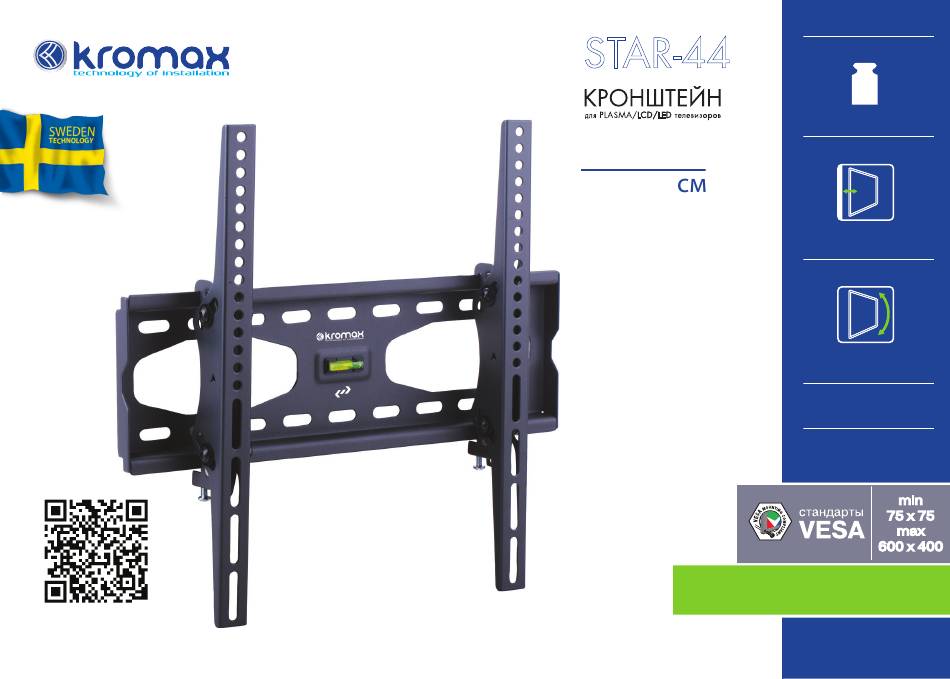

- Page 1 STAR-44 ИНСТРУКЦИЯ НАГРУЗКА кг 26"-55" РАССТОЯНИЕ 66 -140 Расстояние до стены мм НАКЛОН Угол наклона ±12° ЦВЕТ GREY TITAN 75 х 75 600 х 400 НАКЛОННЫЙ...
- Page 2 technology of installation Dear Customer! Thank you for choosing our product. This user manual contains the information about assembling procedure and mounting instructions. Please care- fully learn it and follow the guidelines stated here in order to completely use all the advantages and convenience which our wall mounts give you.
- Page 3 ВНИМАНИЕ technology of installation STAR-44 bracket for wall mounting PLASMA / LCD / LED TV-sets with screen sizes 26 “-55” inches (66-140 cm) and maximum load for 40 kg. • The wall plate must be mounted on solid Concrete, concrete block mounting or wood stud with plaster thickness not more than 3 mm.
- Page 4 COMPLETE SET · КОМПЛЕКТАЦИЯ technology of installation SCREW SET TO TV WALL MOUNTING SET Ø8 50mm x 3 Ø10 50mm x 6 Ø8 x 6 NECESSARY TOOLS Ø10 Ø6...
- Page 5 ШАГ STEP technology of installation Wood Stud Mounting - Using the wall plate as a template, mark with a pencil six dots on a wall for drilling holes - Drill in the wall six holes of 4 mm diameter and at least 50 mm depth - Mount the wall plate to the wall and fasten it with a self-tap screw (A) and washer (E) - Don’t tighten the screws too hard Крепления...
- Page 6 ШАГ STEP technology of installation Solid Concrete and Concrete Block Mounting - Using the wall plate as a template, mark with a pencil six dots on a wall for drilling holes - Drill in the wall six holes of 10 mm diameter and at least 50 mm depth - Insert plastic anchors (B) in the holes and ensure they are fully wedged inside the wall - Mount the wall plate to the wall and fasten it with a self-tap screw (A) and washer (E) - Don’t tighten the screws too hard...
- Page 7 ШАГ STEP technology of installation MOUNTING HO WHEN IT IS NECESSARY TO USE SPACERS? Select the suitable bolts from the parts bag according to the TV size and the thread holes at the back of TV. Screw 4 selected bolts (F,G,H,I,J,K) into the thread holes on the TV back through washer (C) and the corresponding holes on the monitor bracket.
- Page 8 ШАГ STEP technology of installation стена Hang the two monitor brackets together with the panel TV on the wall plate, relax the hands until they are caught hold of. Навесьте телевизор с установленными направляющими на стеновую пластину, закрепленную на стене. Отпустите...
- Page 9 ШАГ STEP technology of installation стена болт Fix the two bolts under the monitor brackets inside of the wall plate and then screw them down. Для надежной фиксации телевизора на стеновой пластине, закрутите два крепежных болта безопасности снизу направляющих.
- Page 10 Company KROMAX grants 18 years producer guarantee on all welding and mechanical connections. In case of any defects detection the product will be repaired or replaced for free. If the model is out of production, the company KROMAX has the right to offer substitute of the similar price and functionality.
- Page 11 ЗАМЕТКИ · NOTE technology of installation...
- Page 12 Office 1803, Olimpiyskiy10, Mytischi, Moscow region, Russia, 141009 +7(495)926 0677; +7(495)926 0688 Россия, МО, г. Мытищи, Олимпийский пр-т, дом 10, офис1803 +7(495)926 0677; +7(495)926 0688...
