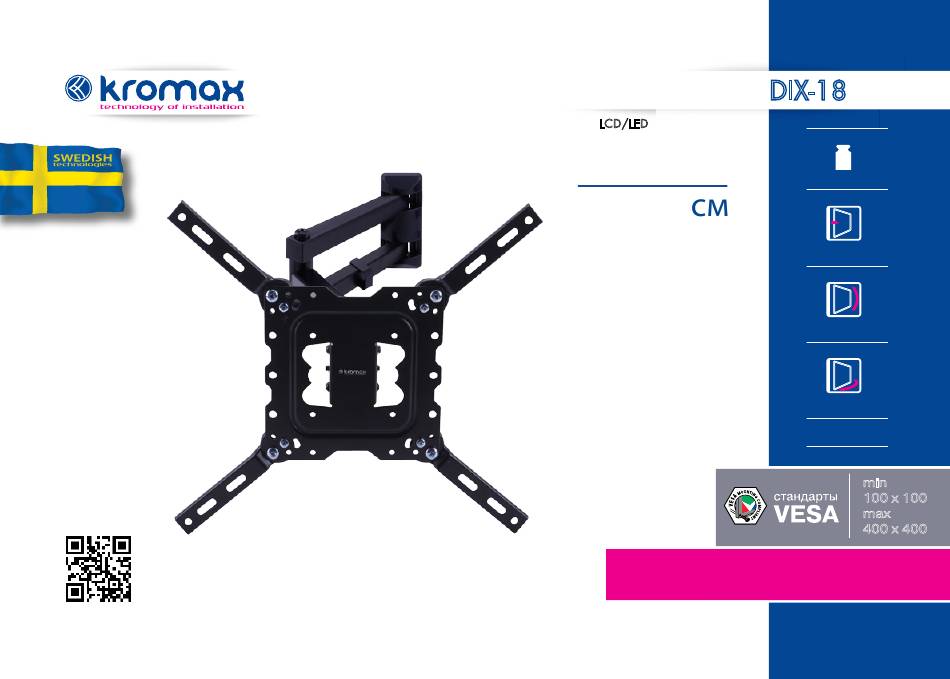

- Page 1 ИНСТРУКЦИЯ КРОНШТЕЙН DIX-18 для телевизоров LCD/LED 22"-55" НАГРУЗКА кг 56 -140 РАССТОЯНИЕ Расстояние до стены мм НАКЛОН Угол наклона ±15° ПОВОРОТ Угол поворота 180° ЦВЕТ BLACK 100 х 100 400 х 400 НАКЛОННО-ПОВОРОТНЫЙ...
- Page 2 Dear Customer! Thank you for choosing our product. This user manual contains the information about assembling procedure and mounting instructions. Please care- fully learn it and follow the guidelines stated here in order to completely use all the advantages and convenience which our wall mounts give you.
- Page 3 · ВНИМАНИЕ DIX-18 bracket for wall mounting LCD / LED TV-sets with screen sizes 22 “-55” inches (56-140 cm) and maximum load for 40 kg. • The wall plate must be mounted on solid Concrete, concrete block mounting or wood stud with plaster thickness not more than 3 mm.
- Page 4 COMPLETE SET · КОМПЛЕКТАЦИЯ SCREW SET TO TV M4*30mm x 4 M4*15mm x 4 M5*15mm x 4 M6*12mm x 4 M8 x 4 M6*30mm x 4 M6*15mm x 4 M5*30mm x 4 M8*15mm x 4 M6 x 4 M8*30mm x 4 M8*12mm x 4 M6 x 4 M8 x 4...
- Page 5 ШАГ STEP Wood Stud Mounting - Remove the plastic cover - Attach vertically to the wall and mark the water level with a pencil strictly vertical line. - Using the bracket as a template, mark with a pencil two dots on a wall for drilling holes - Drill in the wall two holes of 4 mm diameter and at least 50 mm depth - Mount the wall plate to the wall and fasten it with with the bolts (A) and...
- Page 6 ШАГ STEP Solid Concrete and Concrete Block Mounting - Remove the plastic cover - Attach vertically to the wall and mark the water level with a pencil strictly vertical line. - Using the bracket as a template, mark with a pencil two dots on a wall for drilling holes - Drill in the wall two holes of 10 mm diameter and at least 50 mm depth - Insert plastic anchors (B) in the holes and ensure they are fully wedged in...
- Page 7 ШАГ STEP - Using the spanner S=13(0) to loosen the nut, then lift and remove the TV plate from the wall plate. - Открутите фиксирующую гайку на ТВ пластине и удалите пластину с кронштейна.
- Page 8 ШАГ STEP - Attached the TV plate directly to the back of TV using screw (F/G/H/I/J/K/ L/M), flat washer (C) and spacer (D) provided. WHEN IT IS NECESSARY TO USE SPACERS? - If the size of the TV plate is smaller than the size of the holes on the back of the TV, you can use the beams and the vertical bars refer to the following measure - Using the spanner (0) to assemble the four extension boards to the TV plate...
- Page 9 ШАГ STEP - Lift the display together with the TV plate above the wall plate, hang the TV plate to the wall plate as shown in the fig. - Then using the spanner S=13(0) to tighten the nut to fix them firmly. - Установите...
- Page 10 ШАГ STEP ±180° ±90° ±90° ±5° 400 mm 350 mm 66 mm 300 mm 605 mm 200 mm 100 mm ±15° ±5°...
- Page 11 Company KROMAX grants 18 years producer guarantee on all welding and mechanical connections. In case of any defects detection the product will be repaired or replaced for free. If the model is out of production, the company KROMAX has the right to offer substitute of the similar price and functionality.
- Page 12 Office 1803, Olimpiyskiy10, Mytischi, Moscow region, Russia, 141009 +7(495)926 0677; +7(495)926 0688 Россия, МО, г. Мытищи, Олимпийский пр-т, дом 10, офис1803 +7(495)926 0677; +7(495)926 0688...
