technology of installation

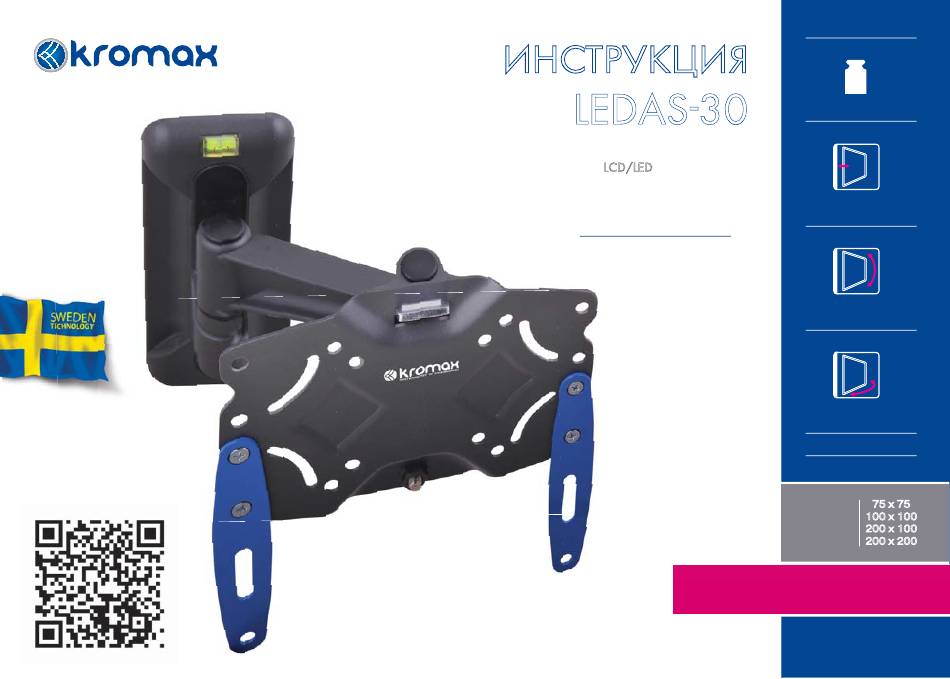

ИНСТРУКЦИЯ
LEDAS - 30
КРОНШТЕЙН
для
телевизоров
LCD/LED
15"-40"
38 -102 см
НАГРУЗКА
40кг
25
кг
РАССТОЯНИЕ
Расстояние до стены
85
250
-
мм
НАКЛОН
Угол наклона
15°
±
ПОВОРОТ
Угол поворота
180°
ЦВЕТ
-
СЕРЫЙ
75 х 75
стандарты
100 х 100
VESA
200 х 100
200 х 200
НАКЛОННО-ПОВОРОТНЫЙ
Advertisement
Related Manuals for KROMAX LEDAS-30
Summary of Contents for KROMAX LEDAS-30
- Page 1 НАГРУЗКА ИНСТРУКЦИЯ technology of installation 40кг LEDAS - 30 кг РАССТОЯНИЕ КРОНШТЕЙН для телевизоров LCD/LED 15"-40" Расстояние до стены мм НАКЛОН 38 -102 см Угол наклона 15° ± ПОВОРОТ Угол поворота 180° ЦВЕТ СЕРЫЙ 75 х 75 стандарты 100 х 100 VESA 200 х...
- Page 2 technology of installation Dear Customer! Thank you for choosing our product. This user manual contains the information about assembling procedure and mounting instructions. Please care- fully learn it and follow the guidelines stated here in order to completely use all the advantages and convenience which our wall mounts give you.
- Page 3 • ВНИМАНИЕ technology of installation LEDAS-30 bracket for wall mounting LCD / LED TV-sets with screen sizes 15 “-40” inches (38-102 cm) and maxi- mum load for 25 kg. • The wall plate must be mounted on solid Concrete, concrete block mounting or wood stud with plaster thickness not more than 3 mm.
- Page 4 COMPLETE SET • КОМПЛЕКТАЦИЯ technology of installation SCREW SET TO TV КОМПЛЕКТ БОЛТОВ ДЛЯ КРЕПЛЕНИЯ К ТЕЛЕВИЗОРУ болт болт болт болт M4 30mm x 4 M4 15mm x 4 M5 30mm x 4 M5 15mm x 4 болт болт болт болт...
- Page 5 ШАГ STEP technology of installation Using the inner hexagon spanner S=6 (N) to loosen the bolt. Lift and remove the TV-plate from the wall plate. Используя шестигранный ключ S = 6 (N), ослабьте фиксирующий болт. Затем снимите ТВ-пластину с кронштейна.
- Page 6 ШАГ STEP technology of installation Use the inner hexagon spanner S=6 (N) to remove the long bolt and the locknut, separate the wall plate from the mount. Remove the two plastic cover from the wall plate. Используя шестигранный ключ S = 6 (N), открутите болт и гайку, затем отделите колено от стеновой пластины.
- Page 7 ШАГ STEP technology of installation Ø6mm 50mm Wood Stud Mounting - Using the wall plate as a template, mark with a pencil three dots on a wall for drilling holes - Drill in the wall three holes of 4 mm diameter and at least 50 mm depth - Mount the wall plate to the wall and fasten it with a self-tap screw (A) and washer (E) - Don’t tighten the screws too hard Крепления...
- Page 8 ШАГ STEP technology of installation Ø10mm 50mm Solid Concrete and Concrete Block Mounting - Using the wall plate as a template, mark with a pencil three dots on a wall for drilling holes - Drill in the wall three holes of 10 mm diameter and at least 50 mm depth - Insert plastic anchors (B) in the holes and ensure they are fully wedged inside the wall - Mount the wall plate to the wall and fasten it with a self-tap screw (A) and washer (E) - Don’t tighten the screws too hard...
- Page 9 ШАГ STEP technology of installation Set back the two plastic cover to the wall plate. Use the inner hexagon spanner S=6 (N) to assemble the mount. Установите на место две пластиковые заглушки. Затем закрепите колено в стеновой пластине, используя шестигранный ключ S = 6 (N).
- Page 10 ШАГ STEP technology of installation MOUNTING HOLES WHEN IT IS NECESSARY TO USE SPACERS? КРЕПЕЖНЫЕ ОТВЕРСТИЯ КОГДА НЕОБХОДИМО ИСПОЛЬЗОВАТЬ ВТУЛКИ? 200 мм 100 мм 75 мм F,G,H,I,J,K,L,M Select the suitable bolts from the parts bag according to the TV size and the thread holes at the back of TV. Screw 4 selected bolts (F,G,H,I,J,K,L,M) into the thread holes on the TV back through washer (C) and the corresponding holes on the TV-plate.
- Page 11 ШАГ STEP technology of installation MOUNTING HOLES WHEN IT IS NECESSARY TO USE SPACERS? КОГДА НЕОБХОДИМО ИСПОЛЬЗОВАТЬ ВТУЛКИ? КРЕПЕЖНЫЕ ОТВЕРСТИЯ 200 мм 100 мм 75 мм F,G,H,I,J,K,L,M If the size of the TV-plate is smaller than the size of the holes that on the back of the TV, fi x the two extension boards on the TV-plate tightly.
- Page 12 ШАГ STEP technology of installation Lift the TV together with the TV-plate, hang them into the wall plate, and remove the TV-plate from the wall plate. Using the inner hexagon spanner s=6(N) to screw back the bolt on the TV-plate. Установите...
- Page 13 ШАГ STEP technology of installation ±180° ±15° ±3° The view angle of the display can be adjusted between in the specifi c range as shown in the fi g. Оптимальное для просмотра положение экрана можно отрегулировать путем наклона, поворота и вращения.
- Page 14 Company KROMAX grants 18 years producer guarantee on all welding and mechanical connections. In case of any defects detection the product will be repaired or replaced for free. If the model is out of production, the company KROMAX has the right to off er substitute of the similar price and functionality.
- Page 15 ЗАМЕТКИ • NOTE technology of installation...
- Page 16 technology of installation Offi ce 1803, Olimpiyskiy10, Mytischi, Moscow region, Russia, 141009 +7(495)926 0677; +7(495)926 0688 Россия, МО, г. Мытищи, Олимпийский пр-т, дом 10, офис1803 +7(495)926 0677; +7(495)926 0688...
