Altech CB Series Instruction Manual

C B120W CB240W CB280W CB480W: S
Thank you for having chosen one of our products for your work.
We are certain that it will give the utmost satisfaction and be a notable help on the job.
General Description
CB series is Charge & Testing devices in "Switching
technology" and "Battery Care philosophy", since many
years parts of the know-how ADEL system. This
technology led to the development of this advanced multi-
stage battery charging, completely automatic and suited to
meet the most advanced
manufacturers. The Battery Care concept is base on
algorithms that implement rapid and automatic cycle of
battery charging, battery charge optimization during time, flat batteries recovery and real time diagnostic during
installation and operation. The Real Time Auto-diagnostic system, monitoring battery faults such as, elements in short
circuit, accidental reverse polarity connection, disconnection of the battery, they can easily be detected and removed
by help of Blink Code of Diagnosis Led; during the installation and after sell. Each device is suited for all battery
types, jumper selection sets a predefined curves for: Open Lead Acid, Sealed Lead Acid, Gel, Ni-Cd and Li-Ion. A
rugged casing with bracket for DIN rail mounting provide IP20 protection degree.
Safety and warning notes
WARNING – Explosion Hazard Do not disconnect Equipment unless power has been switched off or the area is
known to be non-hazardous.
WARNING – Explosion Hazard. Substitution of components may impair suitability for class I, Division 2.
WARNING – Switch off the system before connecting the module. Never work on the machine when it is
live. The device must be installed in according with UL508 or UL 60950. The device must have a suitable
isolating facility outside the power supply unit, via which can be switched to idle. Danger of fatal Injury!
Connection (terminal and wiring):
Cable Connection: The following cable cross-sections may be used:
Solid Stranded
(mm 2 ) (mm
0.2 – 2.5 0.2 – 2.5
In:
4.0 6.0
0.2 – 2.5 0.2 – 2.5
Out:
4.0 6.0
Signal: 0.2 – 2.5 0.2 – 2.5
The connection is made by the screw type 2.5 mm
designed for operating temperatures of > 75 °C. Wiring terminal shall be marked to indicate the proper connection
for the power supply. Output Power connections:
Altech Corp. ® • 35 Royal Road
B
mart
requirements of
Main Characteristics
AWG Torque (Nm)
2 )
24 – 14 0.5 – 0.6 Nm
30 – 10 0.8 – 1.0 Nm
24 – 14 0.5 – 0.6 Nm
30 – 10 0.8 – 1.0 Nm
24 – 14 0.5 – 0.6 Nm
• Flemington, NJ 08822-6000

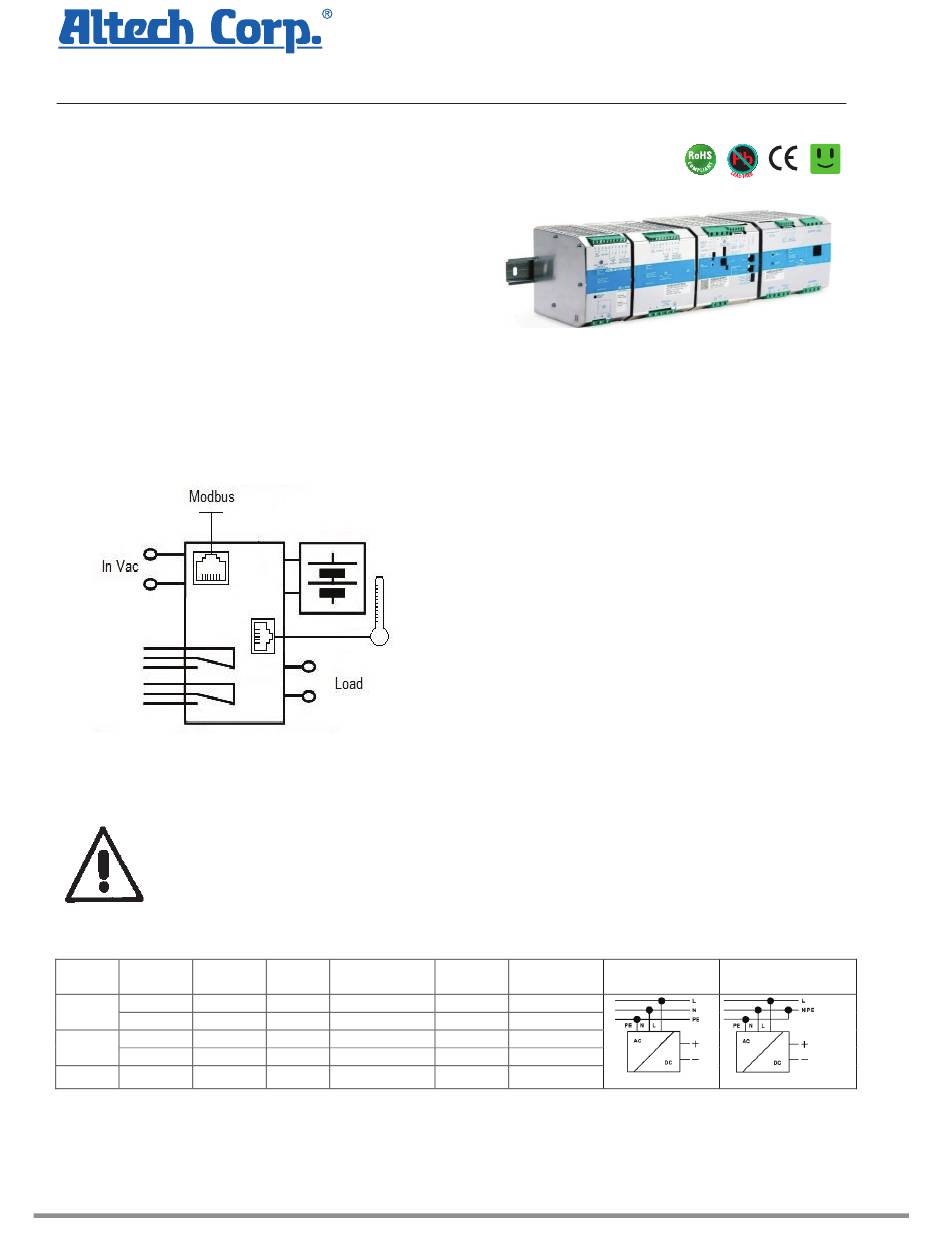

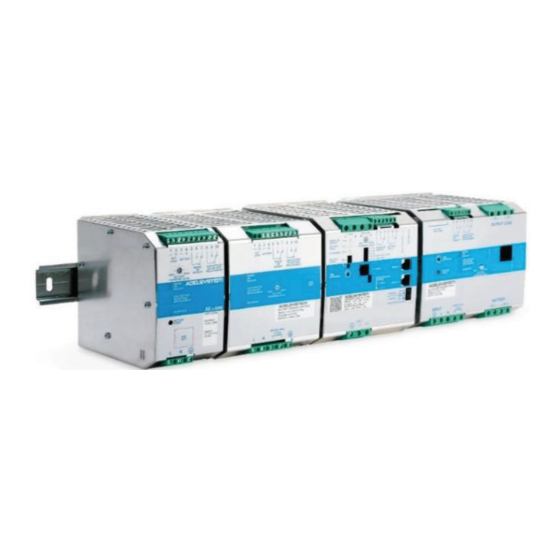

CB Smart Battery Chargers
Instruction Manual CB120-240-280-480W_R13_A24.AAA
C
attery hargers
battery
• Input: Single-phase 115 – 230– 277 Vac
• Output Battery: charging:
• Suited for the following battery types: Open Lead Acid, Sealed
Lead Acid, Lead Gel, Ni-Cd and Li-Ion
• Automatic diagnosis of battery status and battery Life Test
function (Battery Care)
• Switching technology- High efficiency
• Three charging levels: Iuou Bulk, Absorption, Float
• Protected against short circuit, Over Load and inverted polarity
• Output dry contact for discharged or damaged battery
• Output dry contact for Mains or Back-Up
• Protection degree IP20 - DIN rail; Space saving
• Temperature Compensated Charging
• ADELBus connection: ModBus (RTU)
Stripping All In One
Length (Size)
7 mm Size 1 and 2
7 mm Size 3 and 4
7 mm Size 1 and 2
7 mm Size 3 and 4
7 mm All types
2 or 4.0 mm 2 terminal blocks. Use only copper cables that are
• P 908.806-9400 •
Instruction Manual
24 Vdc 10A – 20 A
12 Vdc 10A – 35 A
1 Phase L N PE 1 Phase L N PE
Input AC Input AC
F 908.806.9490 • www.altechcorp.com
.009A4
