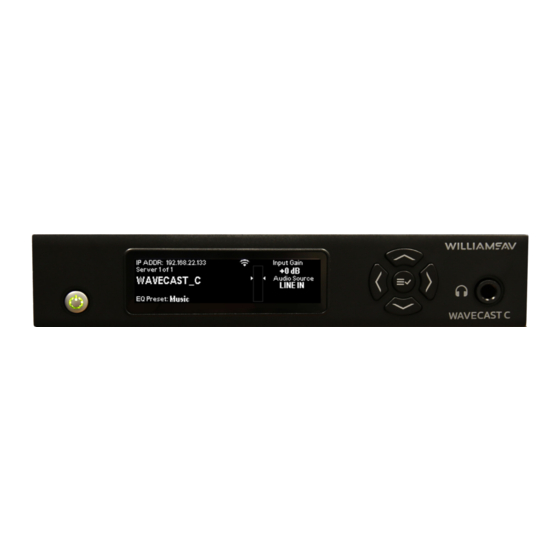

WaveCAST C
Assistive Listening System WF T5C and WF T5CD
USER MANUAL
MAN 281A-1022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WF T5C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Williams AV WF T5C

  • Page 1 WaveCAST C Assistive Listening System WF T5C and WF T5CD USER MANUAL MAN 281A-1022...
  • Page 2: Table Of Contents

    WaveCAST C Table of Contents Safety Warnings and Instructions   �������������������������������������������������������������������������������������������������������������������������������� Recycling Instructions   ������������������������������������������������������������������������������������������������������������������������������������������������������ System Overview   ��������������������������������������������������������������������������������������������������������������������������������������������������������������� Quick Setup Instructions   ������������������������������������������������������������������������������������������������������������������������������������������������� Router and Network Equipment Selection   ��������������������������������������������������������������������������������������������������������������� Wiring and Connections   �������������������������������������������������������������������������������������������������������������������������������������������������� Ethernet and Dante RJ-45 Connection   ���������������������������������������������������������������������������������������������������������������������������������������������������������������������� 7 Audio Source Connections   ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 7 Multi-Channel Sources  ...
  • Page 3: Safety Warnings And Instructions

    2. Voltage Label (Rear Panel) – A label located at the rear panel power connection indicates the DC power input for the unit. The label will read 24VDC. Use the Williams AV TFP 062 power supply for this unit. 3. Do not plug in the input, output, Ethernet, Antenna, or Dante connections while the power switch is switched to the on position.
  • Page 4: System Overview

    WaveCAST C System Overview The WaveCAST C is designed to support those who want to use their own smartphones and headphones for a more discreet assistive listening experience. Simplicity is also available for those who want a more traditional assistive listening system with a dedicated Wi-Fi receiver and headset. WaveCAST C supports the iOS and Android WaveCAST Apps and the Wi-Fi Receiver.
  • Page 5: Quick Setup Instructions

    WaveCAST C. 3. In the address bar of the browser, type in the IP address of the WF T5C (the IP Address is shown on the transmitter's main info screen) and push the enter key on the keyboard. (Note: it is not necessary to type “http://”...
  • Page 6: Router And Network Equipment Selection

    The WaveCAST Networking Guide is available on the Williams AV website for additional networking tips. The WaveCAST networking guide applies to the WaveCAST C as well as other WaveCAST products.
  • Page 7: Ethernet And Dante Rj-45 Connection

    Ethernet and Dante RJ-45 Connection If connecting to a network or directly to a PC, a. Ethernet cable must be used. A crossover cable is not necessary because the WF T5C is auto-configuring. Audio Source Connections The WaveCAST C transmitter will accept the following audio sources: 1�...
  • Page 8: Avoiding Hum In The Audio (As A Result Of A Ground Loop)

    WaveCAST C Avoiding Hum in the Audio (as a Result of a Ground Loop) A hum created by a ground loop can often be eliminated by connecting a capacitor in series with the audio line shield to the transmitter’s ground. This method also maintains good radio frequency (RF) shielding. Determining the effectiveness of this method for your installation usually requires some experimentation.
  • Page 9: Controls And Features

    WI-FI ROUTER LAPTOP (OR DESKTOP) COMPUTER DANTE NETWORK (SWITCH) CAT5e CABLE DANTE AUDIO AND NETWORK CONTROL CAN BE COMBINED ON THE SAME NETWORK WF T5C IF DESIRED (NOT SHOWN). ANALOG LINE/MIC INPUT (XLR OR 1/4”) BALANCED, UNBALANCED, OR PHANTOM. TO AC...
  • Page 10 WaveCAST C screen. After several seconds, the default Main Info Screen screen will be displayed. The WaveCAST C is now fully operational. NOTE: If the transmitter's internal tests fail, the transmitter will display a failure message. If it continues to fail on repeated boot-ups, call WilliamsAV and ask for Tech Blue to assist.
  • Page 11: System Settings

    WaveCAST C Selecting "Network" will display the following info: When the network audio server is enabled, the wi-fi symbol in the upper left corner of the VU meter area will appear in bright white. When disabled or disconnected from the network, the icon will appear dim with a small ‘x’ in one corner.
  • Page 12: Audio Input Gain

    WaveCAST C (Mic+Phnt), 400Hz 0dB Test Tone or Dante (optional). This can be set through the front OLED display or the web page. Note: When selecting Mic +12v, the additional voltage will not activate until ‘Select’ is pressed as confirmation. Audio Input Gain The Audio Input Gain adjusts the incoming audio level into the WaveCAST C.
  • Page 13: Dynamic Range Compression

    WaveCAST C Dynamic Range Compression Dynamic range compression reduces the volume of loud sounds and amplifies soft sounds. This type of compression is typically used for voice and hearing assistance applications for a listener who has difficulty hearing the quiet sounds of an audio broadcast. For listening to music programs, concerts, etc., lower compression ratios or no compression is generally used.
  • Page 14: Additional Wavecast Servers

    WaveCAST C found. (Assuming there is a DHCP server on the network). Any change from the default configuration (DHCP) has to be done through the WebGUI. For example, entering a Static IP, Subnet, etc. Network Settings can only be edited from the web page. Additional WaveCAST Servers Several WaveCAST devices can be on the same network.
  • Page 15: Dante

    WaveCAST C To set up a static IP Address: 1. Determine appropriate static IP, subnet mask and gateway addresses for the WaveCAST C. a. If someone set up your network, they may be able to help you determine an appropriate IP address (i.e. network system administrator).
  • Page 16: Web Page

    WaveCAST C Web Page The WaveCAST C provides a web page to manage the transmitter settings which can be accessed over either a hard-wired or wireless network connection with most internet browsers. Most changes take effect when the submit button is clicked. The only setting that takes immediate effect is the audio input gain, so that the changes can be immediately seen on the VU meter.
  • Page 17 WaveCAST C Main Settings Page The Main Settings page displays all current audio settings, as well as corresponding WaveCAST C web-based controls. It is the first page to appear when logging into the website. Note: Network speed can also affect the audio monitor updating and web page performance.
  • Page 18 WaveCAST C Options Page The Options page displays user preferences that can be tailored to each WaveCAST C system. The description sets the name of the device, which may be used to uniquely identify the device without referring to the IP address. Error Message: ERR_WEB_404_RESPONSE This error message indicates no internet connection.
  • Page 19 Receiver app. This image can be used to easily distinguish the content of your audio broadcast. The image must be under 128kB and be in PNG or JPG format. If no custom image is uploaded, the default Williams AV W logo will display instead: The image can be replaced at any time.
  • Page 20 WaveCAST C Network Settings Page The Network Settings page displays the current network configuration of the unit. Typically these are not modified after initial installation is completed. Changing a static IP address or subnet will not instantly take place. The changed IP address or subnet will only take affect once the device is rebooted.
  • Page 21 Updates are performed from the Admin page. At the bottom of the page, upload the update file (provided by Williams AV) and hit the update button. Your system will begin the update process from there, which will include a reboot. Do not power down the device until it has successfully rebooted (main info screen has appeared)��...
  • Page 22: Wavecast Receiver App

    WaveCAST C WaveCAST Receiver App The WaveCAST Receiver app allows listeners to hear the audio on their personal, Wi-Fi connected devices, such as a mobile phone. Make sure the latest app is downloaded on the device and the latest OS is installed. Download the WaveCAST App Download the WaveCAST app from the Apple App Store for iOS devices or Google Play Store for Android devices.
  • Page 23: Wavecast Receiver

    Connections" on page 7 for how to properly configure the Audio Source. • Check for ground loops or noise on the input signal. If you are still having trouble, call your Authorized Williams AV dealer or representative. Noise in audio grows when program is silent •...
  • Page 24: Wi-Fi Reception Difficulties

    • Images may not load when many users are connected. Try reloading the list of channels. • Specifications WF T5C / WF T5CD Dimensions 8.45” W x 8.25” D x 1.72”H (21.5 cm x 21 cm x 4.4 cm) Weight Transmitter: 3.2 lbs (1.45 kg)
  • Page 25: Remote Telnet Control

    WaveCAST C Signal-to-Noise Ratio 64 dB (typical) Transmitted RF @ 1kHz Total Harmonic Distortion Less than 0.25% @ 1 kHz (RF output) Common Mode Rejection >57 dB @ 1 kHz, Mic or Line mode Audio Input Gain Adjust Adjustable from +24dB to -60 dB, in 1dB steps from front screen or web interface. Phantom Power 14.4 VDC applied through 2.2 kΩ...
  • Page 26 Williams AV shall not be liable to any person or entity for any medical expenses or any direct, incidental or consequential damages caused by any use, defect, failure or malfunctioning of the product, whether a claim for such damages is based upon warranty, contract, tort or otherwise, the sole remedy for any defect, failure or malfunction of the products is replacement of the product.
  • Page 27 If it is necessary to return the system for service, your Customer Service Representative will give you a Return Authorization Number (RA) and shipping instructions. Pack the system carefully and send it to: Williams AV Attn: Repair Dept� 10300 Valley View Road Eden Prairie, MN 55344 USA Your warranty becomes effective the date you purchase your system.
  • Page 28 WaveCAST C This page intentionally left blank. WilliamsAV.com MAN 281A-1022 U.S. | 800.843.3544 info@williamsav.com INTL | +1.952.943.2252 info-intl@williamsav.com © 2022, Williams AV, LLC...
