Summary of Contents for TCS FBI6110

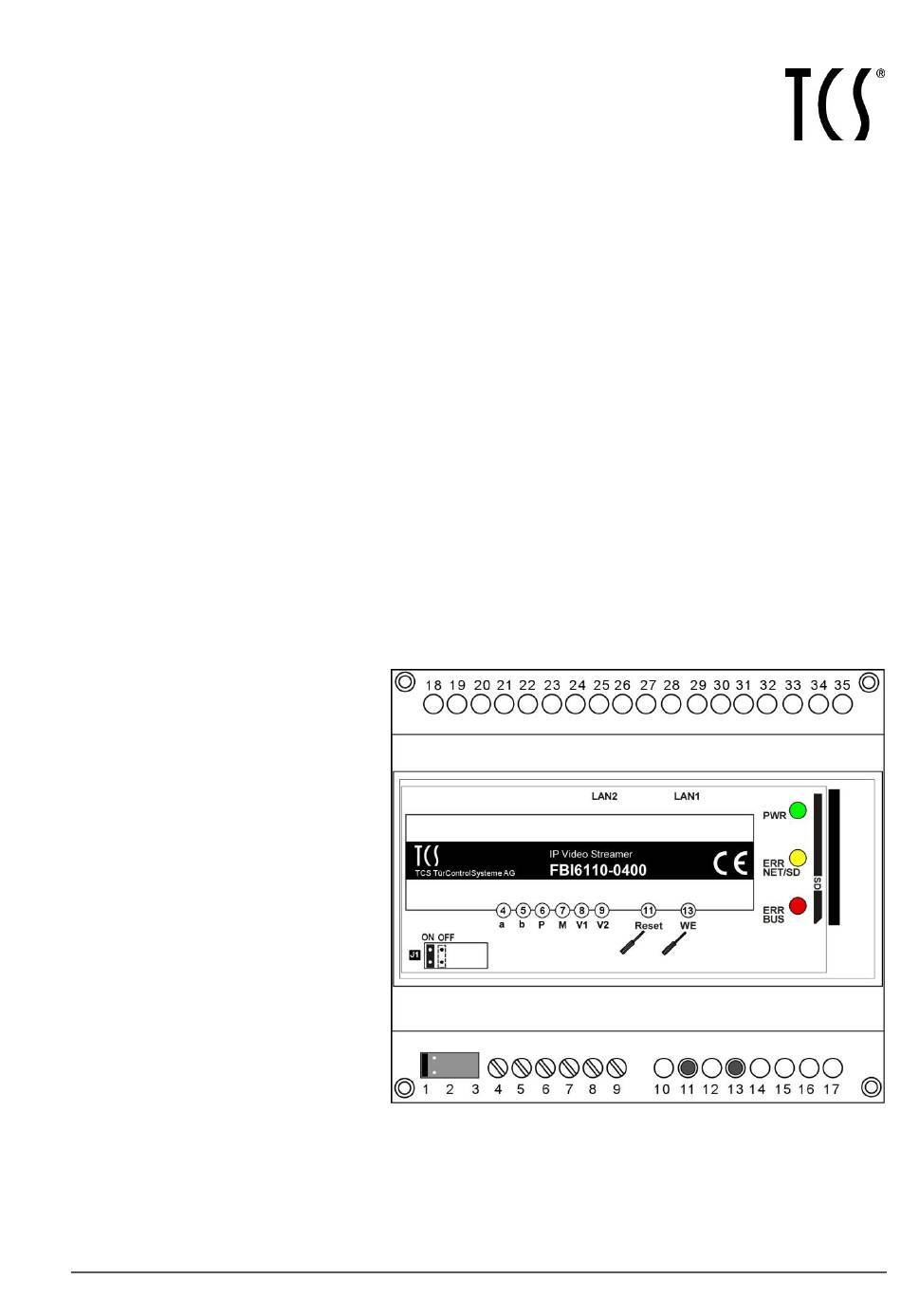

- Page 1 Product information IP Video Streamer FBI6110 TCS TürControlSysteme AG, TCS Hotline Germany: hotline@tcsag.de Subject to technical changes. PI_FBI6110-uk 2 A...
-
Page 2: Table Of Contents
Intended use ........................5 Short description ....................... 5 Connect the lines ....................... 6 Note ..........................6 Connection lines to the TCS system ................6 Connect the device ......................6 Wiring diagram with SIP-Gateway ..................7 Connection diagram ......................7 Commissioning ........................8 Error detection and indication ................... -
Page 3: Scope Of Delivery
Information on disposal ....................26 Warranty ........................... 26 Notes ..........................27 Service ..........................28 Scope of delivery 1 x FBI6110-0400 (with SD card 2 GB) product information Safety instructions General safety regulations Attention! Mounting, installation, commissioning and repair of electronic devices have to be carried out only by qualified electricians. -
Page 4: Technical Data
RJ45 socket LAN 2 LED, yellow: indicates data current each with LED, yellow and LED, green LED, green: ON, if the FBI6110 is connected to the network resp. with the SIP-Gateway to reset the FBI6110 push button reset ... -
Page 5: Device Overview
TCS:BUS and Video push button reset Intended use The FBI6110 is a Linux-based web server to connect TCS video systems to network. It is suitable for DIN-rail mounting according to DIN EN 50022. Short description browser-based usage and configuration, no programme and driver installation neces- sary (condition: JavaScript and Java) ... -
Page 6: Connect The Lines
03/2013 error indication, optical (LED) integrated two-wire video receiver for direct connection to TCS video systems RJ45 socket for connection to the network (10/100 Base-TX) RJ45 socket to connect a SIP-Gateway via an integrated switch ™... -
Page 7: Wiring Diagram With Sip-Gateway
03/2013 Wiring diagram with SIP-Gateway floor push button network Connection diagram TCS TürControlSysteme AG, TCS Hotline Germany: hotline@tcsag.de Subject to technical changes. PI_FBI6110-uk... -
Page 8: Commissioning
The card must always be in the device. For a safe functionality, only the enclosed SD card is to be used. The SD card can be ordered as spare part directly at TCS (see Spare parts, acces- sory, page 26). -
Page 9: Settings
Otherwise, the used PC/laptop has to be switched temporarily to an IP address within the address area of the FBI6110 in order to establish a connection with the Video Streamer. To establish/ adjust your network connection, please use the network installation assistant or the help function of your operating system, keyword: set up network. -
Page 10: Live Transmission
AS address (video source) under Settings. Operation button function The images of all connected TCS video sources can be switched in se- video step quence. open the Can open the door at the current video front-door station. - Page 11 OFF/ON Note Between control functions, which are offered by the TCS:BUS®, also products of the series ex- tent can be integrated in the Video Streamer. It is possible to get information on the switching state between the usual switching acts. The status of the sensors of the extent series can be displayed directly on the Video Streamer.
-
Page 12: Image Reproduction
Video Streamer: http://192.168.1.201 The start page is called. Select Settings. Enter the user name and the password (pre-adjusted: ad- min and 1234) and click OK. TCS TürControlSysteme AG, TCS Hotline Germany: hotline@tcsag.de Subject to technical changes. PI_FBI6110-uk... -
Page 13: Video
The refresh rate must be slowed down. Port, over which the video stream is realised. video port (1025..65534) Ports from 1025 to 65534 are possible. Factory setting= 12000. TCS TürControlSysteme AG, TCS Hotline Germany: hotline@tcsag.de Subject to technical changes. PI_FBI6110-uk... -
Page 14: Network
If the IP address was changed manually, the web browser may not be able to display the web page with the feedback. If this is the case, enter the new IP manually into the browser to get back to the main page. TCS TürControlSysteme AG, TCS Hotline Germany: hotline@tcsag.de Subject to technical changes. PI_FBI6110-uk... -
Page 15: General
Parameter Explanation Here, a name can be assigned to the FBI6110 in order to identify the device name device. The name appears on the site Live transmission. Via the selection menu Language you can select with the current vari- language ant the languages German, English, French, Italian and Spanish. -
Page 16: Video Sources
To activate or deactivate the display of the camera in the camera se- indication lection list (menu Live transmission). To activate or deactivate die automatic image storage in case of door image storage calls. TCS TürControlSysteme AG, TCS Hotline Germany: hotline@tcsag.de Subject to technical changes. PI_FBI6110-uk... -
Page 17: Control
(ON = control function 1 or 3, OFF = control function 2 or 4) TCS TürControlSysteme AG, TCS Hotline Germany: hotline@tcsag.de Subject to technical changes. PI_FBI6110-uk... -
Page 18: Time/Date
The time refers to the standard time GMT. Only GMT is displayed, summer and winter time are not taken into account. For considering summer and winter time, the option must be activat- summer time automatically TCS TürControlSysteme AG, TCS Hotline Germany: hotline@tcsag.de Subject to technical changes. PI_FBI6110-uk... -
Page 19: Change The Password
You can also remove the administrator password, if there is no need for safety. Save without filling in the fields. Observe that other persons can manipulate the device without password protection! TCS TürControlSysteme AG, TCS Hotline Germany: hotline@tcsag.de Subject to technical changes. PI_FBI6110-uk... -
Page 20: Forgot Password
The network factory settings are: IP address: 192.168.1.201 Subnet mask: 255.255.255.0 User: admin Password: 1234 Password User Only the administrator can change or delete the password User. TCS TürControlSysteme AG, TCS Hotline Germany: hotline@tcsag.de Subject to technical changes. PI_FBI6110-uk... -
Page 21: Send Short Message
03/2013 Send short message In the menu TCS:BUS Short message, a short message (sms) can be send to the video ™ ™ indoor stations of a group or to all video indoor stations (ecoos IVW221x, sky IVW2221 ™ or skyline IVW3012). - Page 22 To read and delete the message, follow the instructions as described in the ™ ™ product information of the specific video indoor station (ecoos IVW221x, sky IVW2221 or ™ skyline IVW3012). TCS TürControlSysteme AG, TCS Hotline Germany: hotline@tcsag.de Subject to technical changes. PI_FBI6110-uk...
-
Page 23: Accessibility From The Internet
As external IP/DynDNS address, you have to enter your selected address, followed by a colon and the port for the video transmission. Press the Save button. TCS TürControlSysteme AG, TCS Hotline Germany: hotline@tcsag.de Subject to technical changes. PI_FBI6110-uk... -
Page 24: It Safety
IT safety Server are easy targets of attack, if they are available unprotected in the internet. TCS recommends to secure the access to the Video Streamer and to establish the con- nection via VPN. Therefore, you should find a safe server in the internet, which is equipped with an in- stalled VPN server. -
Page 25: Faq
Check, if the digit in the field “Group“ is similar to door station. Incorrect input of the group the digit, which you assigned to this group within digit configo Ev. change the group digit. TCS TürControlSysteme AG, TCS Hotline Germany: hotline@tcsag.de Subject to technical changes. PI_FBI6110-uk... -
Page 26: Spare Parts, Accessory
03/2013 Spare parts, accessory Short text Article number SD card for FBI6110-0400 / FVM1000-0400 E33392 Conformity The device meets the requirements of the EU directive 2004/108/EG by respecting the standards: EN 61000-6-3, EN 61000-6-1. Declarations of conformitiy for download under www.tcsag.de, Downloads, trade in- formation. -
Page 27: Notes
03/2013 Notes TCS TürControlSysteme AG, TCS Hotline Germany: hotline@tcsag.de Subject to technical changes. PI_FBI6110-uk... -
Page 28: Service
Please send your questions and inquiries to hotline@tcsag.de Headquarters TCS TürControlSysteme AG, Geschwister-Scholl-Str. 7, D-39307 Genthin Phone: +49 (0) 3933 / 87 99 10, Fax: +49 (0) 3933 / 87 99 11, E-Mail: info@tcsag.de, www.tcsag.de TCS TürControlSysteme AG, TCS Hotline Germany: hotline@tcsag.de Subject to technical changes.
