Additional Resources - Control 4 Zigbee IO C4-Z2IO Installation Manual

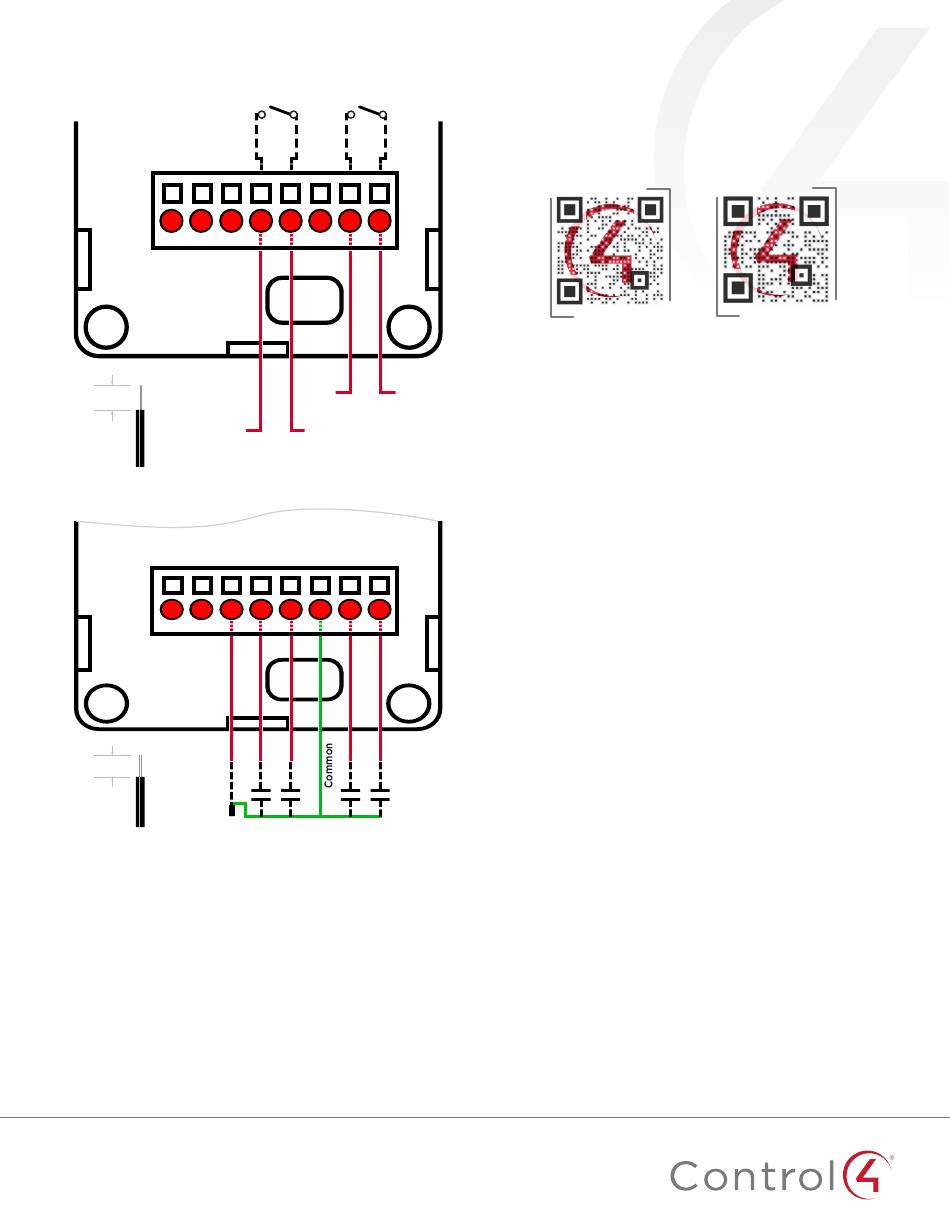

Sample wiring configurations
Option 1: R1, R2 (both SPST)
PWR Cm T
16-28 AWG
from equipment
3/8˝
(9.5 mm)
Load2
Relay 2
Option 2: C1, C2, C3, C4 (including an optional external thermistor)
PWR Cm T
16-28 AWG
from
equipment
3/8˝
(9.5 mm)
Thermistor
