Specifications - Control 4 Zigbee IO C4-Z2IO Installation Manual

Specifications

C4-Z2IO (single)
Model numbers
C4-Z2IO-5PK (5-pack)
System requirements
Control4 OS system
OS version 2.10.0 or greater
requirements
Control4 system
Each installed Zigbee IO adds sensor and input
integration connections to the Composer project.
The Zigbee IO (C4-Z2IO) is available in the Composer
Driver
Online Driver Database.
Communication
Control4 Zigbee Pro mesh networking protocol, based
Networks supported
on the IEEE 802.15.4 Zigbee standard
Zigbee data rate
250 kbps
Zigbee frequency range
2.405 – 2.475 GHz
Connections
4 inputs, accepts AWG 16-28, common ground
Contact sensor input
connection.
Relay terminal ratings
0.5A @ 50V, 1A @ 24V or less
1 thermistor input, sold separately.
External thermistor
See "Accessories"
Infrared
Two 3.5 mm IR ports
Integrated features
Internal magnetic reed switch
Internal contact
Requires external magnet, sold separately
Integrated internal
Internal thermistor can be used for local temperature
thermistor
sensing: 0 to 40 °C (32 to 104 °F)
Integrated humidistat
Can measure local humidity from 5% to 90%.
Power consumption
100mA at 12V, fully active
External low-voltage
Micro USB power supply (included)
power supply AC/DC 5-24V (optional)
Available colors
Black (water-based paintable enclosure)
Dimensions (L × W × H)
78.7 × 65.7 × 26.6 mm (3.1 × 2.6 × 1.05")
Weight
70.9 grams (2.5 oz.)
Temperature:
Operational 0 to 40 °C (32 to 104 °F)
Storage -29 to 70 °C (-20 to 158 °F)
Environmental
Humidity 5% to 95% non-condensing
This device is not waterproof and must be kept out of
direct contact with water. The product must not be
immersed.
The cover assembly plastics are paintable with any
Paintable enclosure
water-based residential paints. Do not clog the cover
assembly vent holes with paint.
Accessories
External thermistor
ZCA-EXT10A, AC-DOTS1-W, AC-PMT51-W
3 3
Power
Other
Installing
1 Place the device in a location which ensures the following:
• Easy access to any externally-connected wires
• Zigbee mesh networking efficiency
Note: Make sure the device has good Zigbee wireless
reception by (1) ensuring it is within range of another Zigbee
device and (2) avoiding other electrical equipment that may
cause interference with the Zigbee signal (such as cordless
telephones that operate on the 2.4 GHz frequency.)
• Avoiding unnecessary exposure to extreme environmental
conditions.
IMPORTANT! Do not place the device in direct sunlight.
2 If an external thermistor is used with the device, place it away
from direct sunlight, drafts, doorways, skylights, windows, and
exterior walls for best accuracy.

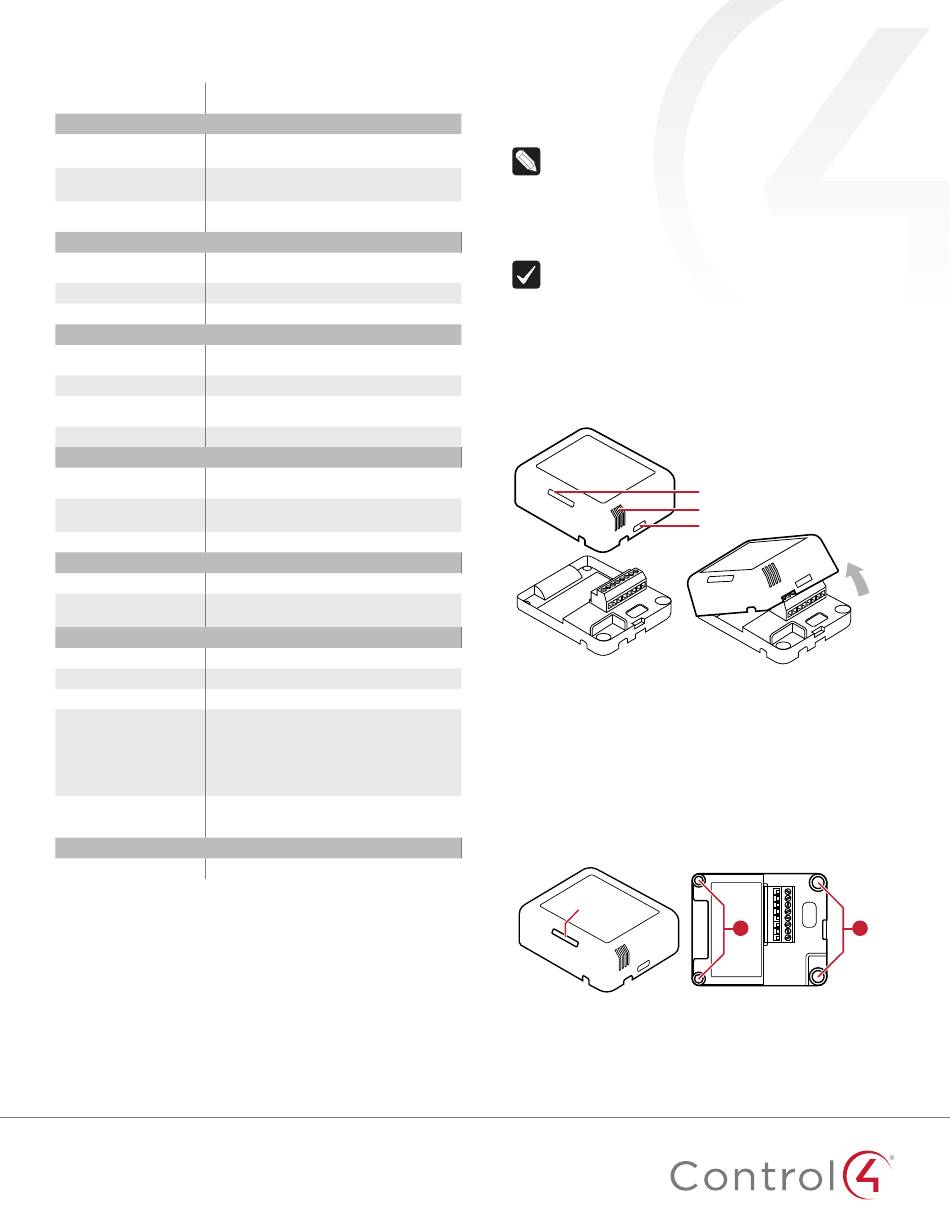

3 Detach the tray from the cover by inserting a flat screwdriver into
the opening slot in the side of the cover and pushing in gently,
while at the same time pulling the cover out and away from the
tray.
C O
V E R
T R A
Y
The cover holds the radio logic board
(the actual device) and pins and the
internal contact. The cover attaches
to the tray. The tray holds the wiring
terminals and is mounted to a wall or
flat surface.
4 Position the tray against the wall or other flat surface.
5 If you are using the internal contact, position the device so that the
narrow indentation that marks the internal contact (on the long
edge of the cover) aligns with the external magnet (not included).
Indentation
6 Mark the locations of the four screw holes on the wall.
7 If mounting the device to drywall, remove the tray from the wall
and drill four 4.75 mm (3/16-inch) mounting holes at the four
screw hole locations (A) previously marked on the wall.
Internal contact location
Temperature chamber/LED display
Opening slot
The cover "rocks" into contact with the tray.
To separate the two, insert a screwdriver or
other flat object into the opening slot on the
side of the cover, gently push in and then
"rock" it away from the tray.
A A
