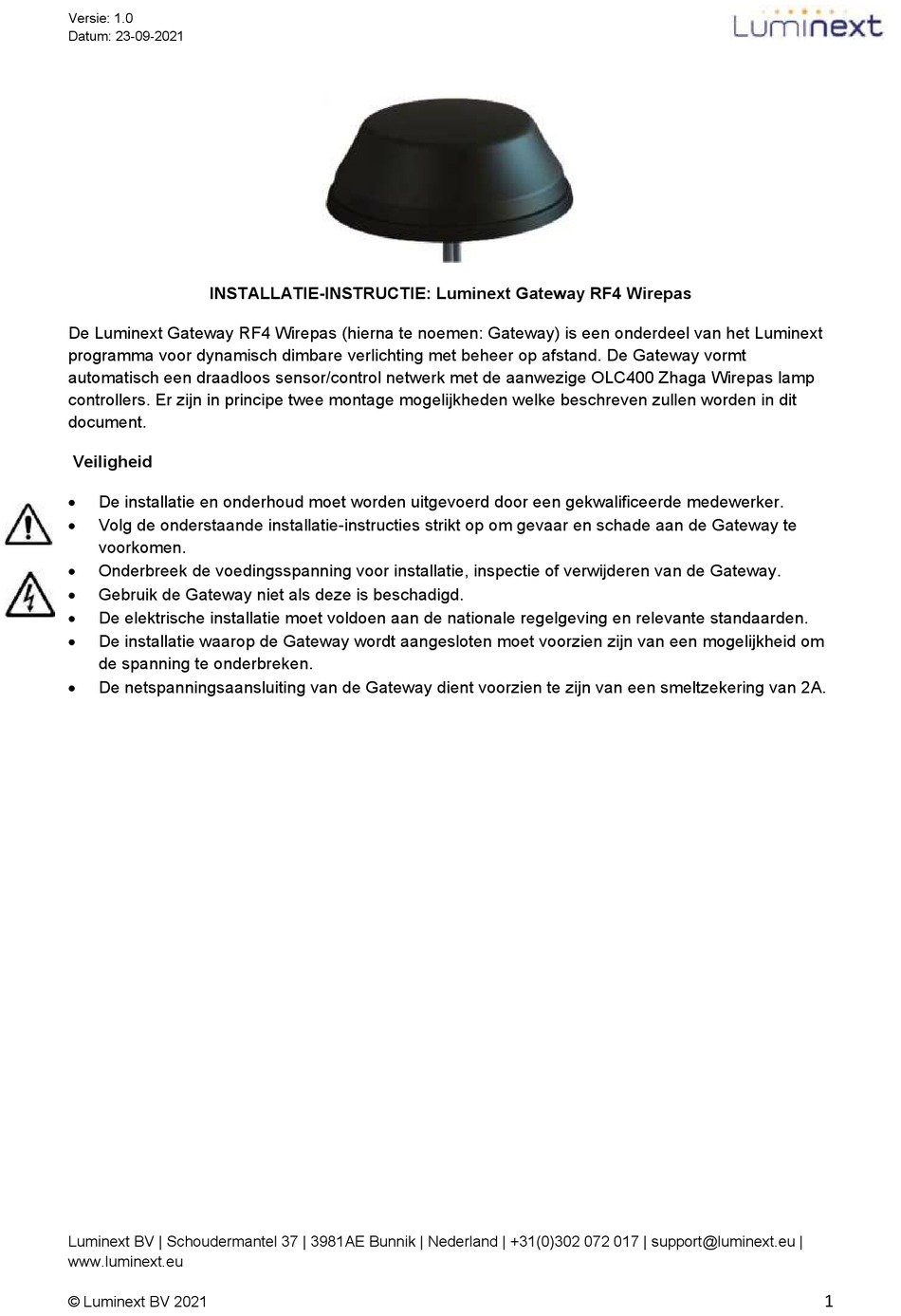

Versie: 1.0
Datum: 23-09-2021

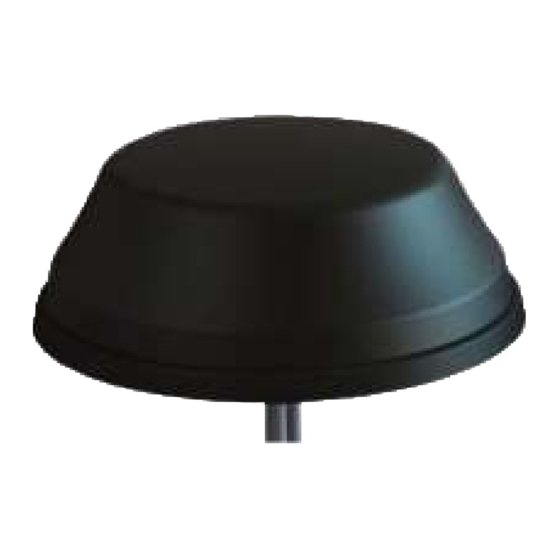

INSTALLATIE-INSTRUCTIE: Luminext Gateway RF4 Wirepas
De Luminext Gateway RF4 Wirepas (hierna te noemen: Gateway) is een onderdeel van het Luminext
programma voor dynamisch dimbare verlichting met beheer op afstand. De Gateway vormt
automatisch een draadloos sensor/control netwerk met de aanwezige OLC400 Zhaga Wirepas lamp
controllers. Er zijn in principe twee montage mogelijkheden welke beschreven zullen worden in dit
document.
Veiligheid
De installatie en onderhoud moet worden uitgevoerd door een gekwalificeerde medewerker.
Volg de onderstaande installatie-instructies strikt op om gevaar en schade aan de Gateway te
voorkomen.
Onderbreek de voedingsspanning voor installatie, inspectie of verwijderen van de Gateway.
Gebruik de Gateway niet als deze is beschadigd.
De elektrische installatie moet voldoen aan de nationale regelgeving en relevante standaarden.
De installatie waarop de Gateway wordt aangesloten moet voorzien zijn van een mogelijkheid om
de spanning te onderbreken.
De netspanningsaansluiting van de Gateway dient voorzien te zijn van een smeltzekering van 2A.
Luminext BV | Schoudermantel 37 | 3981AE Bunnik | Nederland | +31(0)302 072 017 | support@luminext.eu |
www.luminext.eu
© Luminext BV 2021
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RF4 Wirepas and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Luminext RF4 Wirepas

  • Page 1 De netspanningsaansluiting van de Gateway dient voorzien te zijn van een smeltzekering van 2A.  Luminext BV | Schoudermantel 37 | 3981AE Bunnik | Nederland | +31(0)302 072 017 | support@luminext.eu | www.luminext.eu © Luminext BV 2021...
  • Page 2 4. Sluit de voeding aan op 230Vac van de stuurstroomgroep in de kast. 5. Schakel de stuurstroom IN. 6. Controleer of de Gateway online komt in Luminizer. Luminext BV | Schoudermantel 37 | 3981AE Bunnik | Nederland | +31(0)302 072 017 | support@luminext.eu | www.luminext.eu © Luminext BV 2021...
  • Page 3 4. Sluit de voedingskabel aan op de aansluitkast onderin de mast. 5. Test of de Gateway online komt in Luminizer door deze (tijdelijk) onder spanning te zetten. Luminext BV | Schoudermantel 37 | 3981AE Bunnik | Nederland | +31(0)302 072 017 | support@luminext.eu | www.luminext.eu...
  • Page 4 Open dit product niet. In het geval van een defect moet de Gateway worden vervangen. Hergebruik Gooi dit product niet weg bij het huisvuil, breng het naar een inzamelpunt voor hergebruik. Luminext BV | Schoudermantel 37 | 3981AE Bunnik | Nederland | +31(0)302 072 017 | support@luminext.eu | www.luminext.eu © Luminext BV 2021...
  • Page 5 Date: 23-09-2021 INSTALLATION INSTRUCTION: Gateway RF4 Wirepas The Gateway RF4 Wirepas (Gateway in the remainder of this document) is a product in the Luminext program for dynamic dimmable street lighting with remote management. The Gateway automatically forms a wireless-sensor-and-control network with the surrounding OLC400 Zhaga Wirepas controllers that is self-organizing and self-synchronizing.
  • Page 6 4. Connect the 230Vac to the power supply. 5. Switch ON the power supply. 6. Check if the gateway status changes to ONLINE in Luminizer. Luminext BV | Schoudermantel 37 | 3981AE Bunnik | Nederland | +31(0)302 072 017 | support@luminext.eu | www.luminext.eu © Luminext BV 2021...
  • Page 7 4. Connect the 230Vac to the junction box inside the pole. 5. Power the gateway and check in Luminizer if the Gateway status changes to ONLINE. Luminext BV | Schoudermantel 37 | 3981AE Bunnik | Nederland | +31(0)302 072 017 | support@luminext.eu | www.luminext.eu...
  • Page 8 Recycling Do not dispose this product as household waste, bring it to an appropriate collection point for recycling. Luminext BV | Schoudermantel 37 | 3981AE Bunnik | Nederland | +31(0)302 072 017 | support@luminext.eu | www.luminext.eu © Luminext BV 2021...
