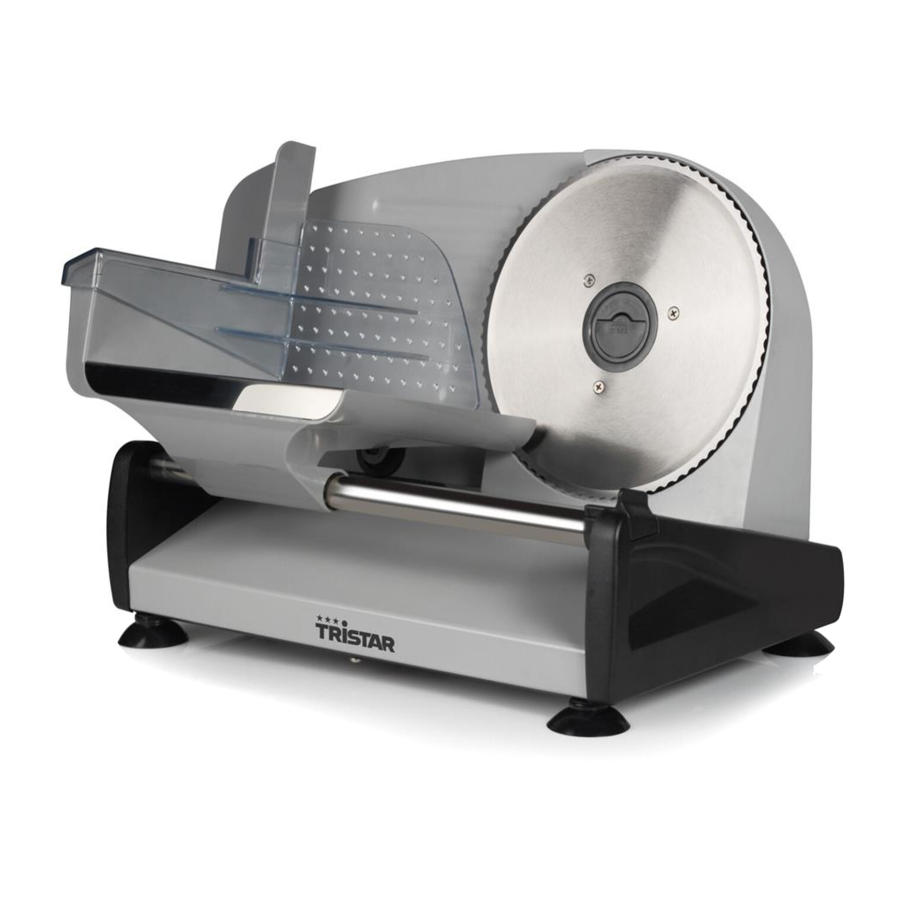

Tristar EM-2099 - Food Slicer Manual

Table of Contents

Contents

1 SAFETY INSTRUCTIONS
2 PARTS DESCRIPTION
3 BEFORE THE FIRST USE
4 USE
5 CLEANING AND MAINTENANCE
- 5.1 Remove the cutting blade
- 5.2 Cleaning the leading rod and cradle
6 GUARANTEE
7 GUIDELINES FOR PROTECTION OF THE ENVIRONMENT
8 SUPPORT
9 Documents / Resources
- 9.1 Download manual

SAFETY INSTRUCTIONS

By ignoring the safety instructions the manufacturer can not be hold responsible for the damage.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
Do not use this appliance with a damaged cord or plug or when the appliance has malfunctions, or has been damaged in any manner. To avoid a hazard make sure that a damaged cord or plug will be replaced by an Competent qualified repair service(*). Do not repair this appliance yourself.
Never move the appliance by pulling the cord and make sure the cord can not become entangled.
The appliance must be placed on a stable, level surface.
The user must not leave the device unattended while it is connected to the supply.
This appliance is only to be used for household purposes and only for the purpose it is made for.
The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
To protect yourself against an electric shock, do not immerse the cord, plug or appliance in the water or any other liquid.
Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.
Always disconnect the device from the supply if it is left unattended and before assembling, disassembling or cleaning.
Do not allow children to use the device without supervision.
This appliance must be used with the sliding feed table and the piece holder in position unless this is not possible due to the size or shape of the food.

PARTS DESCRIPTION

Parts

On/off switch
Thickness Adjusting knob
Food pusher
Cradle
Cutting blade
Back cover
Leading rod

BEFORE THE FIRST USE

Take the appliance and accessories out the box. Remove the stickers, protective foil or plastic from the device.
Put the power cable into the socket. (Note: Make sure the voltage which is indicated on the device matches the local voltage before connecting the de vice. Voltage 220V-240V 50Hz)
Before using your appliance for the first time, wipe off all removable parts with a damp cloth. Never use abrasive products.

USE

Use the setting button to choose the desired cutting width.
The cutting width is adjustable from 1 to 15 mm.
Slide the cradle to the left and place the food on the cradle.
Place the holder on the cradle, use this holder to push the food slightly against the back cover.
Activate the device by using the on/off switch which is located on the left side of the device.
NOTE: this appliance is equipped with a safety switch (A), first bring the safety switch towards yourself then push simultaneously the on/off switch and the appliance will start. By pushing the on/off switch again the appliance will stop.
Attention! Do never touch the blade, the blade is very sharp and can injure you severely.
Slide the cradle slowly to the right against the rotating blade. Capture the sliced food at the back of the device.
Attention! Never use the device without the holder, you can seriously injure.
When turning of the device the blade remains turning for a while, do not touch the knife.
After 10 minutes of continuous use, turn off the device and allow it to cool down, to prevent overheating of the engine.

CLEANING AND MAINTENANCE

Unplug the appliance and allow it to cool down. Use a soft, slightly damp cloth to wipe appliance surfaces. Do not allow water or any other liquid to get into the unit.

Remove the cutting blade

Before removing the blades, disconnect the power plug.
Attention! Never touch the edges of the blades! Make sure the removed cutting knife cannot roll off the table! Keep children away!
For removing the cutting blade. Push the 'push button' in the middle of the cutting blade, a latch will come out, turn the latch clockwise to unlock the cutting blade.
Now you can clean the blade in soapy water, the blade is also dishwasher safe.
For placing the cutting blade back in position. Make sure the tabs on the blade will match the recesses in the appliance and put on the blade, lock the blade by turning the latch counter-clockwise.

Cleaning the leading rod and cradle

For disassemble the leading rod and cradle. At the right side of the leading rod you will find an hatch, slide this hatch to the right now you can take out the leading rod and you will be able to clean these parts.

GUARANTEE

This product is guaranteed for 24 months granted. Your warranty is valid if the product is used in accordance to the instructions and for the purpose for which it was created. In addition, the original purchase (invoice, sales slip or receipt) is to be submitted with the date of purchase, the name of the retailer and the item number of the product.
For the detailed warranty conditions, please refer to our service website: www.service.tristar.eu

GUIDELINES FOR PROTECTION OF THE ENVIRONMENT

This appliance should not be put into the domestic garbage at the end of its durability, but must be offered at a central point for the recycling of electric and electronic domestic appliances. This symbol on the appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling of used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection.
