Clevertronics LP CFLLED Series Installation & Maintenance Instructions

Clevertest and Clevertest Plus
Refer to the supplementary operation guide supplied with the Product.
After Power ON, the Status LED on a Clevertest Plus enabled fitting will display a rapid Green or Red
flashing for a period up to 2 minutes.
4HR: CTP will only test for the 2 hours (first test) and 90 minutes duration. 4 hours testing would only be
facilitated as a Manual Discharge Test.
Zoneworks and DATA Monitored Options
Fittings with part numbers -ZW, -HV, -DATA
These fittings are monitored using either Powerline Carrier Technology that utilize the power cable to
provide data communication, RF transceiver modules operating in the ISM band or a dedicated data cable
to/from data routers installed on a dedicated data trunk connected to a central Server (can also be
connected via Ethernet/Internet/Fibre). Zoneworks software on the server is used to monitor, coordinate
testing and collate test data from each fitting. Zoneworks Fittings can be commissioned by a single push
of the test switch or by scanning the supplied barcode. The LED Test Switch indicator provides a
multifunction indication of the status of the fitting during testing and normal operation:
Option State
ZW, HV, DATA Commissioned
ZW, DATA Un-commissioned
Un-commissioned
HV
With network connectivity
Un-commissioned
HV
Without network connectivity
ZW, DATA Emergency Light Test In Progress
HV Emergency Light Test In Progress
In the case of the DATA version a 2-way "figure 8" cable and terminal block facilitates the connection to
the DATA network via a multi-drop bus (daisy chain connection). For further information of installation of
a Zoneworks system, please refer to the Zoneworks Users Guide and Commissioning Guide (incl. DATA
version)
DALI EM Option
Supalites with part numbers -DALI are fitted with DALI modules (nodes) that facilitate connection and
rd
integration to 3 Party Lighting Control Systems. Before installing the -DALI Supalite, please confirm that
the Lighting Control System has the capability to monitor DALI Emergency Luminaires. The Supalite will
be addressed and configured into the control system by the Lighting Control System Commissioning
Technicians and not Clevertronics.
State LED Operation
Commissioned/ Un-commissioned LED on Solid (GREEN)
Emergency Light Test in progress LED flashes at 1s On (Yellow) & 1s Off
"IDENTIFY COMMAND"
Fitting goes into emergency mode for 10 seconds
A 2-way "figure 8" cable and terminal block facilitates the connection to the DALI network OR a 5/6way
"structured wiring system" lead and plug facilitating the power and DALI connection. DALI connections
are marked as Da Da.
are fitted with Zoneworks communications modules (nodes).
LED Operation
LED on Solid (Green)
Batt plugged-in: yellow 1s, green 1s
Batt unplugged: red 1s, off 1s
Batt plugged-in: yellow 1s, green 1s
Batt unplugged: red 1s, off 1s
Batt plugged-in: yellow 250mS, green
250mS, yellow 250mS, green 250mS,
green 1s
Batt unplugged: red 250mS, off
250mS, red 250mS,off 250mS, off 1s
LED flashes at yellow 5s , 0ff 1s
LED flashes at yellow 1s , 0ff 1s

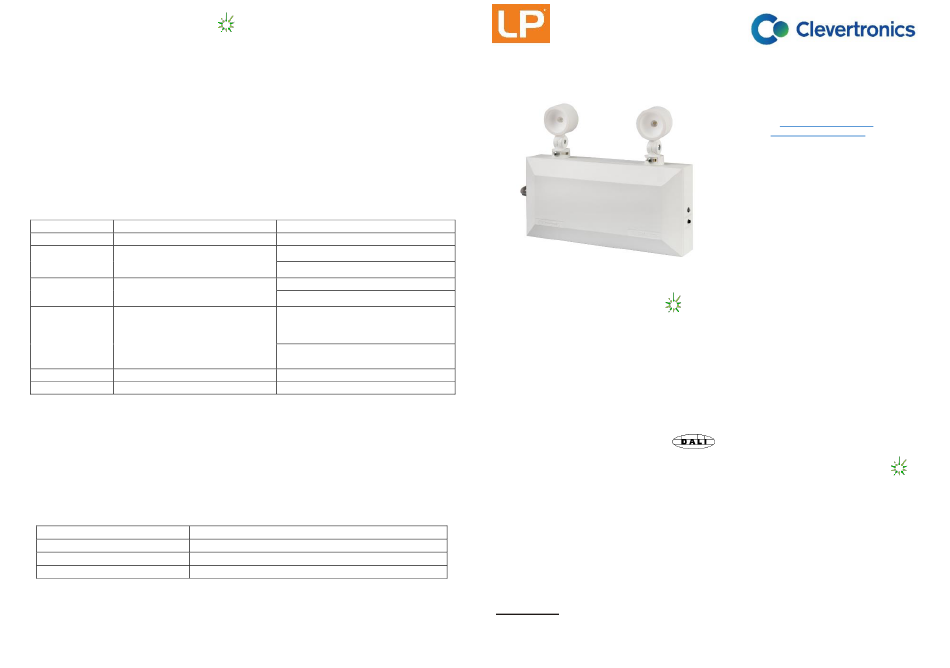

LP™ Supalite LED Emergency Luminaire
Installation & Maintenance Instruction Leaflet
Designed in Australia to comply with the
requirements of AS2293.3: 2005 and AS/NZS
CISPR15: 2011.
NOTE: Standard product codes with this
enabled with Clevertest Plus capability. Please refer to
the operation guide supplied with the product for details.
Models:
CFLLED-xx-yy-ww-zz
Testing
:
Manual Test xx = Blank
Zoneworks xx = ZW
Zoneworks DATA xx = DATA
DALI xx = DALI
HIVE xx = HV
Clevertest xx = CT (NOTE: Products supplied with the Clevertest Plus Symbol
activated with Clevertest PLUS capability. Please refer to the operation
guide supplied with the product for details).
Spare Parts:
1550230 BATT: LP 3.2V 6400mAh.200mm lead.Brkt.
1100955 LED Flood LampHeadAss,Cable&Cnnctr,Right
1100954 LED Flood Lamp HeadAss,Cable&Cnnctr,Left
1100956 LED Flood Lamp Head Ass, Cable&Ctr, Left,
1100957 LED Flood Lamp Head Ass, Cable&Ctr, Right,
8002953 PCA: xFLLED #CT10142-L9 250-550mA
Important:
It is illegal for anyone, except for a licensed electrician to install or maintain this product. Before installation,
ensure that the electricity supply has been switched off and isolated. Installation must be carried out in
accordance with the relevant Australian and International Standards.
