BABBITT LS7000 Owner's Manual

Level switch
Hide thumbs Also See for LS7000:

Advertisement

Quick Links

LS7000 LEVEL SWITCH
OWNERS MANUAL
♦ INSTALLATION
♦ CALIBRATION
♦ TROUBLESHOOTING
♦ WARRANTY
P.O. Box 70094
Houston, TX 77270
(713) 467-4438

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LS7000 and is the answer not in the manual?

Questions and answers

Summary of Contents for BABBITT LS7000

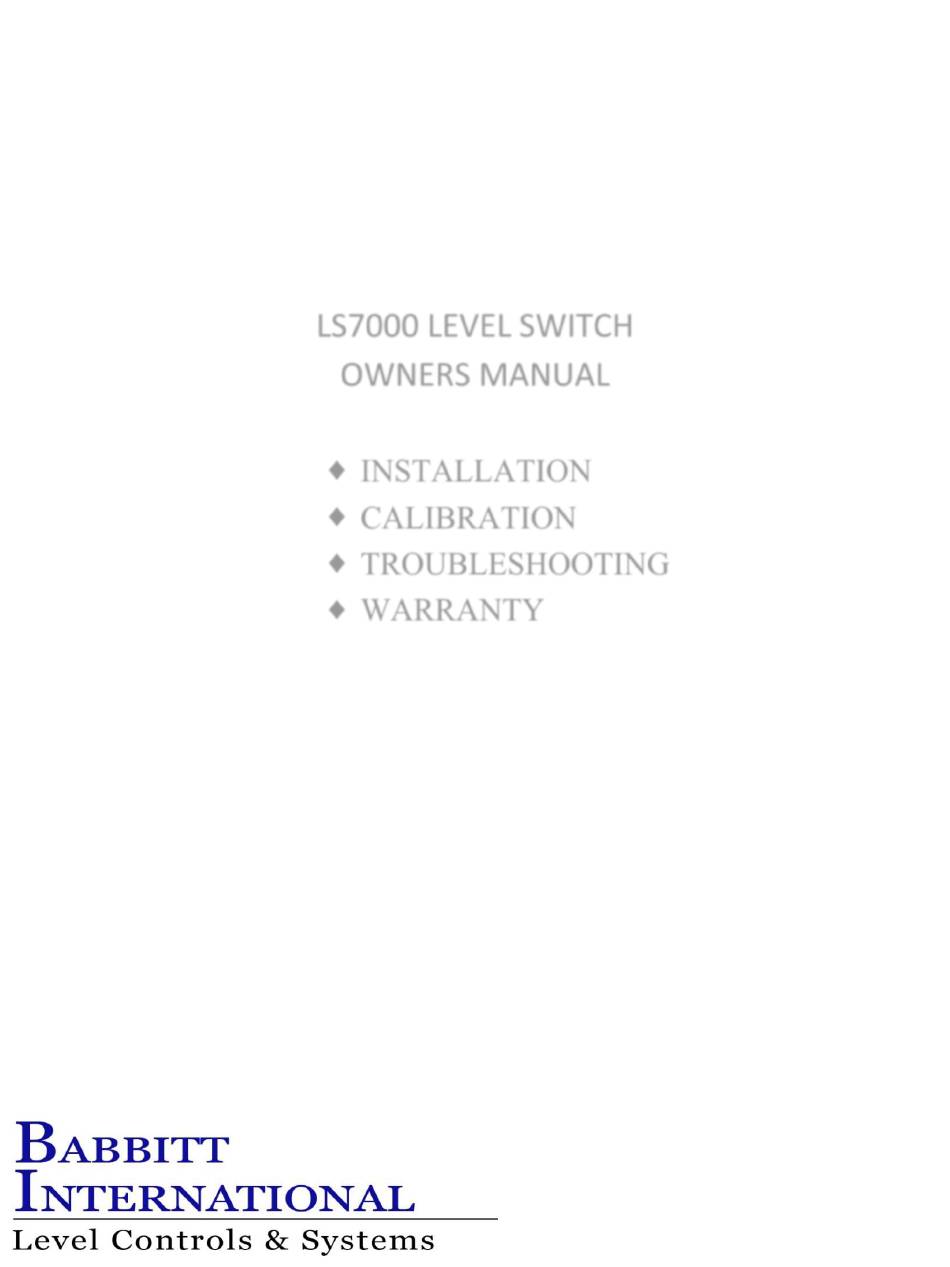

  • Page 1 LS7000 LEVEL SWITCH OWNERS MANUAL ♦ INSTALLATION ♦ CALIBRATION ♦ TROUBLESHOOTING ♦ WARRANTY P.O. Box 70094 Houston, TX 77270 (713) 467-4438...
  • Page 2 High voltage that may be present on leads could cause electrical shock.  Make sure the main power to the Babbitt LS7000 level switch is off and the lines to any other external power source are disconnected or not powered while wiring the instrument.
  • Page 3: Table Of Contents

    www.babbittinternational.com Reference Manual 2021 Table of Contents 1. DESCRIPTION ................................4 1.1 General Description ..............................4 1.2 Specifications ................................4 1.3 Ordering Information .............................. 5 1.4 GA Drawing ................................5 3. INSTALLATION ................................ 6 3.1 Inspection ................................6 3.2 Bench Test ................................6 3.3 Physical Installation ..............................
  • Page 4: Description

    1.1 General Description The LS7000 is a point level switch that detects the presence or absence of material in a bin, silo, tank or other container. The basic unit is made up of a solid stainless-steel probe attached to an explosion proof housing.
  • Page 5: Ordering Information

    www.babbittinternational.com Reference Manual 2021 1.3 Ordering Information 1.4 GA Drawing...
  • Page 6: Installation

    MUST BE MADE AFTER the unit is installed where it will be used. 3.3 Physical Installation 1) The LS7000 is installed into the vessel wall using a 1” NPT process connection. This can be either a threaded coupling or a tapped entry such as a flange.
  • Page 7: Removing The Electronics

    On gravity filled vessels, take into consideration the angle of repose formed by the product. d) On dry product that flows like water (starch), when using the LS7000 to stop the flow by means of a butterfly valve or knifegate, make sure the probe is long enough to allow time to close these slow moving valves.
  • Page 8: Typical Applications And Wiring Diagrams

    5 AMP RELAY CONTACTS SUPPLY VOLTAGE *NOTE: EACH LS7000 POWER SUPPLY IS INTENDED FOR ONLY ONE SUPPLY VOLTAGE. THIS VOLTAGE IS PRINTED ON THE POWER SUPPLY BOARD. FOR 115 VAC OR 230 VAC UNITS, HOOK UP THE HOT LEAD TO L1 AND THE NEUTRAL TO L2, WITH APPROPRIATE GROUND.
  • Page 9 www.babbittinternational.com Reference Manual 2021...
  • Page 10 www.babbittinternational.com Reference Manual 2021...
  • Page 11 www.babbittinternational.com Reference Manual 2021...
  • Page 12 www.babbittinternational.com Reference Manual 2021...
  • Page 13 www.babbittinternational.com Reference Manual 2021...
  • Page 14: Calibration

    Reference Manual 2021 4. CALIBRATION PLEASE READ THE ENTIRE CALIBRATION PROCEDURE BEFORE CALIBRATING THE LS7000. 4.1 Time Delay The time delay is adjustable between 1/8 second to 2 hours. If no time delay is required, turn the time adjustment pot completely CCW and set S1 down, S2 up. The potentiometer has 20 turns and freewheels at the end of its travel without damage.
  • Page 15: Fail Safe Selection

    4.4 Sensitivity Calibration The LS7000 should be calibrated when no material is touching the probe, when the unit is installed where it will be used. 1. Observe the Red LED. If it is on, go to Step 3 2.
  • Page 16: Maintenance And Troubleshooting

    No routine maintenance is required other than keeping the interior of the unit clean and free of dirt, dust and other contaminants. The LS7000 consists of two main sub-assemblies. These are the enclosure with the probe assembly and the power supply board. The following troubleshooting guide will assist in determining how to correct most of the problems which may occur in the field.
  • Page 17: Warranty

    Customer Service: 1-800-835-8012 or 713-467-4438 (8:00 a.m. to 5:00 p.m. CST US) 6. WARRANTY All components of the LS7000 are warranted to be free from defects in material and workmanship for a period of two years from the date of purchase. This warranty applies to general purchaser and to components installed, serviced and operated according to instructions.
