  • Page 1 AI-X User Guide Version 10.1...
  • Page 2 AI-X User Guide Version 10.1.0 November 10, 2022 Copyright © 2022 Smart Eye AB. All rights reserved. Smart Eye AB F ¨ orsta L ˚ anggatan 28B 413 27 Gothenburg Sweden www.smarteye.se...

  • Page 3: Table Of Contents

    3 AI-X Hardware ........

  • Page 4: Introduction

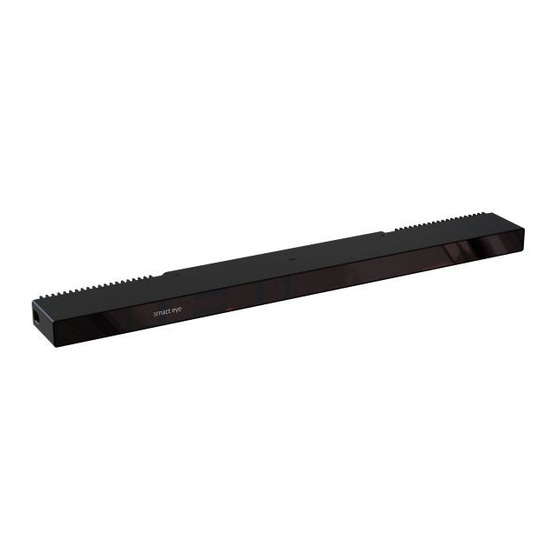

    1.1 Intended use The AI-X eye tracker is designed for screen-based eye tracking research within marketing, UX and media. The AI-X works well in all indoor illumination conditions, and offers precise and accurate eye tracking on displays up to 24”.

  • Page 5: Software And System Requirements

    2 Software and System Requirements 2.1 System requirements Operating System Windows 10 Creators Update (version 1703) or higher 4 GB Quad core 6th generation Intel Core or Intel Xeon processor or newer Camera Interface USB 3.0 Maximum Display Size 24” (16:9 aspect ratio) 2.2 Compatible software iMotions...

  • Page 6: Ai-X Hardware

    3 AI-X Hardware 3.1 What’s in the box AI-X eye tracker Two Chem Pad™ wipes for cleaning the mounting area Two mounting brackets with tape Safety and setup info note 3.2 Product care The front glass of the eye tracker needs to be clean in order to ensure optimal tracking. If dirt or dust ends up on the front glass, the eye tracker has to be cleaned in a correct manner.

  • Page 7: Setup

    4 Setup 4.1 Software installation The software Smart Eye Tracker needs to be installed before using your eye tracker. Follow the installation steps below. 1. Launch the Smart Eye Tracker installer by double clicking it. 2. Click the Install button to start the installation.

  • Page 8: Mounting The Eye Tracker On A Display

    1. Find the center of the lower display edge by marking manually or by using the center marker in the Smart Eye Setup Tool. 2. Clean the mounting area around the center with the Chem Pad™ wipe.

  • Page 9: Create An Eye Tracker Setup

    4.3 Create an eye tracker setup 1. Run the Smart Eye Setup Tool. The Smart Eye Setup Tool is found in the Windows Start Menu. Smart Eye Setup Tool 2. Select your eye tracker. 3. Create a new setup by pressing the New Setup button.

  • Page 10: Phone Setup

    4. Check that the size in the setup summary matches the size of the selected display. 5. Enter a file name for your setup and press Finish. The setup has now been saved and the Smart Eye Setup Tool can be closed. 4.3.2 Phone setup 1.

  • Page 11: Support

    If your problems persist or if you don’t find any solution here, please contact support. I can’t install Smart Eye Tracker. Make sure you have admin rights on the computer where you attempt to install Smart Eye Tracker. The laptop goes to sleep when I connect the eye tracker to the bracket.

  • Page 12: Appendix A Safety And Compliance

    The maximum temperature on the outside of the device was 36 degrees during the test. The AI-X eye tracker is designed with a good margin to operate at a temperature of 36 degrees and neither the function nor the lifespan of the product is adversely affected.

  • Page 13: Appendix B Technical Specifications

    Appendix B Technical Specifications Sampling Rate 60 Hz Headbox (Freedom of head movement) 35 x 30 cm at 65 cm distance Operating Distance 45 - 85 cm Accuracy 0.5 degrees (typ.) Precision 0.1 degrees (typ.) Output Data Gaze point, pupil diameter, time stamp All outputs as binocular data with associated quality index Blink Recovery Time...
