- Page 1 AI-X User Guide Version 9.0...
- Page 2 AI-X User Guide Version 9.0.0-18-g61d67351d April 15, 2020 Copyright c 2020 Smart Eye AB. All rights reserved. Smart Eye AB F ¨ orsta L ˚ anggatan 28B 413 27 Gothenburg Sweden www.smarteye.se...
-
Page 3: Table Of Contents
3 AI-X Hardware ........ -
Page 4: Introduction
1.1 Intended use The AI-X eye tracker is designed for screen-based eye tracking research within marketing, UX and media. The AI-X works well in all indoor illumination conditions, and offers precise and accurate eye tracking on screens up to 24”. -
Page 5: Software And System Requirements
2 Software and System Requirements 2.1 System requirements Operating System Windows 10 Anniversary Update (version 1607) or newer 4 GB Quad core 6th generation Intel Core or Intel Xeon processor or newer Camera Interface USB 3.0 Maximum Screen Size 24” (16:9 aspect ratio) 2.2 Compatible software iMotions... -
Page 6: Ai-X Hardware

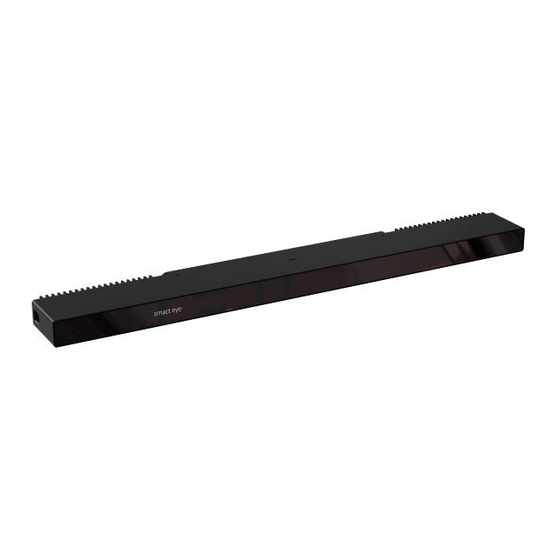

3 AI-X Hardware 3.1 What’s in the box AI-X eye tracker Two Chem Pad wipes for cleaning the mounting area Two mounting brackets with tape Safety and setup info note 3.2 Product care The front glass of the eye tracker needs to be clean in order to ensure optimal tracking. If dirt or dust ends up on the front glass, the eye tracker has to be cleaned in a correct manner. -
Page 7: Setup
4 Setup 4.1 Software installation The software Smart Eye Tracker needs to be installed before using your eye tracker. Follow the installation steps below. 1. Launch the Smart Eye Tracker installer by double clicking it. 2. Click the Install button to start the installation. -
Page 8: Mounting
1. Find the center of the lower screen edge by marking manually or by using the center marker in the Smart Eye Setup Tool. 2. Clean the mounting area around the center with the Chem Pad wipe. -
Page 9: Camera Calibration
Please note that the Smart Eye Setup Tool sometimes uses the word camera instead of eye tracker. In this context the words are synonyms. 1. Run the Smart Eye Setup Tool. The Smart Eye Setup Tool is found in the Windows Start Menu. - Page 10 Calibration window 5. Calibrate your camera by aligning the dashed lines to the edges of the camera. Con- firm the calibration by pressing Enter. Once confirmed, the calibration is saved, and the Smart Setup Tool can be closed.
-
Page 11: Support
If your problems persist or if you don’t find any solution here, please contact support. I can’t install Smart Eye Tracker. Make sure you have admin rights on the computer where you attempt to install Smart Eye Tracker. The laptop goes to sleep when I connect the eye tracker to the bracket. -
Page 12: Appendix A Safety And Compliance
The maximum temperature on the outside of the device was 36 degrees during the test. The AI-X eye tracker is designed with a good margin to operate at a temperature of 36 degrees and neither the function nor the lifespan of the product is adversely affected. -
Page 13: Appendix B Technical Specifications
Appendix B Technical Specifications Sampling Rate 60 Hz Headbox (Freedom of head movement) 35 x 30 cm at 65 cm distance Operating Distance 45 - 85 cm Accuracy 0.5 degrees (typ.) Precision 0.1 degrees (typ.) Output Data Gaze point, pupil diameter, time stamp All outputs as binocular data with associated quality index Blink Recovery Time...
