Summary of Contents for Smart Eye Aurora
- Page 1 Aurora User Guide Version 10.1...
- Page 2 Aurora User Guide Version 10.1.0 November 10, 2022 Copyright © 2022 Smart Eye AB. All rights reserved. Smart Eye AB F ¨ orsta L ˚ anggatan 28B 413 27 Gothenburg Sweden www.smarteye.se...
-
Page 3: Table Of Contents
3 Aurora Hardware ........ -
Page 4: Introduction

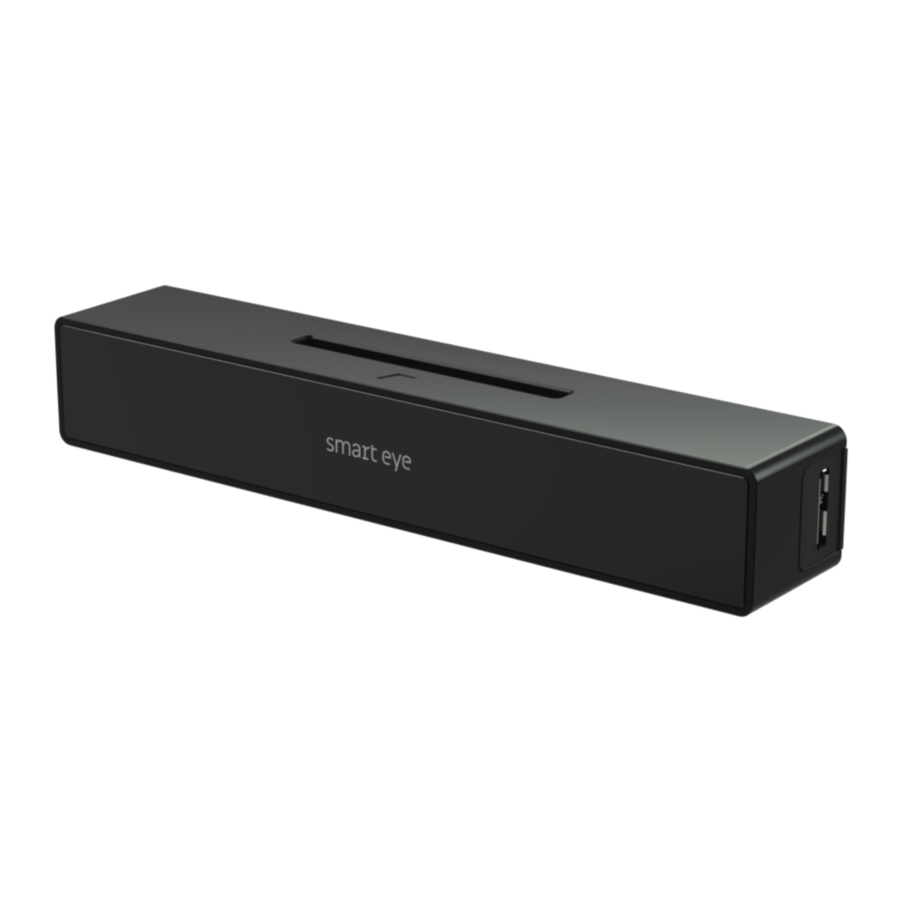

1 Introduction The Smart Eye Aurora is an eye tracker designed to deliver insights wherever you are. The small size of the Aurora makes it easy to switch between different displays and projects, with- out compromising on the performance. If your needs change in the future, the existing Aurora can be upgraded to deliver higher framerate. -
Page 5: Software And System Requirements
2 Software and System Requirements 2.1 System requirements Operating System Windows 10 Creators Update (version 1703) or higher 4 GB Quad core 6th generation Intel Core or Intel Xeon processor or newer Camera Interface USB-C Maximum Display Size 24” (16:9 aspect ratio) 2.2 Compatible software iMotions www.imotions.com... -
Page 6: Aurora Hardware
3 Aurora Hardware 3.1 What’s in the box Aurora eye tracker Two Chem Pad™ wipes for cleaning the mounting area Two mounting brackets with tape Safety and setup info note Textile travel bag USB-C cable, 2 m 3.2 Product care The front glass of the eye tracker needs to be clean in order to ensure optimal tracking. -
Page 7: Setup
Smart Eye Setup tool. 4.1 Software installation The software Smart Eye Tracker needs to be installed before using your eye tracker. Follow the installation steps below. 1. Launch the Smart Eye Tracker installer by double clicking it. -
Page 8: Mounting The Eye Tracker On A Display
1. Find the center of the lower display edge by marking manually or by using the center marker in the Smart Eye Setup Tool. 2. Clean the mounting area around the center with the Chem Pad™ wipe. -
Page 9: Create An Eye Tracker Setup
4.3 Create an eye tracker setup 1. Run the Smart Eye Setup Tool. The Smart Eye Setup Tool is found in the Windows Start Menu. Smart Eye Setup Tool 2. Select your eye tracker. 3. Create a new setup by pressing the New Setup button. -
Page 10: Phone Setup
4. Check that the size in the setup summary matches the size of the selected display. 5. Enter a file name for your setup and press Finish. The setup has now been saved and the Smart Eye Setup Tool can be closed. 4.3.2 Phone setup 1. -
Page 11: Maintenance
2. Select Aurora as eye tracker and open the Advanced Settings... 3. Connect the Aurora eye tracker to a USB-C port on the computer (if not already done so). Verify that eye tracker information is updated with values from the eye tracker. - Page 12 2. Select Aurora as eye tracker and open the Advanced Settings... 3. Connect the Aurora eye tracker to a USB-C port on the computer (if not already done so). Verify that eye tracker information is updated with values from the eye tracker.
-
Page 13: Support
If your problems persist or if you don’t find any solution here, please contact support. I can’t install Smart Eye Tracker. Make sure you have admin rights on the computer where you attempt to install Smart Eye Tracker. The laptop goes to sleep when I connect the eye tracker to the bracket. -
Page 14: Appendix A Safety And Compliance
The maximum temperature on the outside of the device was T degrees during the test. The Aurora eye tracker is designed with a good margin to operate at a temperature of T degrees and neither the function nor the lifespan of the product is adversely affected. -
Page 15: Appendix B Technical Specifications
Mount Type On display (with mounting plate) Operating System Windows 10 and 11 Accessories External Processing Unit, Aurora Expansion * Requires Aurora Expansion Box Accessory ** Cable length limited to 2 m for Aurora 250 Hz connected to Expansion Box...
