QUICK START GUIDE for TENDO SPRINT SYSTEM

1. Install computer software

2. Install TSS signal receiver driver

3. Setup the hardware

4. Start using TSS

1. Install computer software from the installation flash disc or visit
https://www.tendosport.com/support/software-updates/tendo-sprint-system/
2. Install TSS signal receiver driver. It is a part of the software installation.

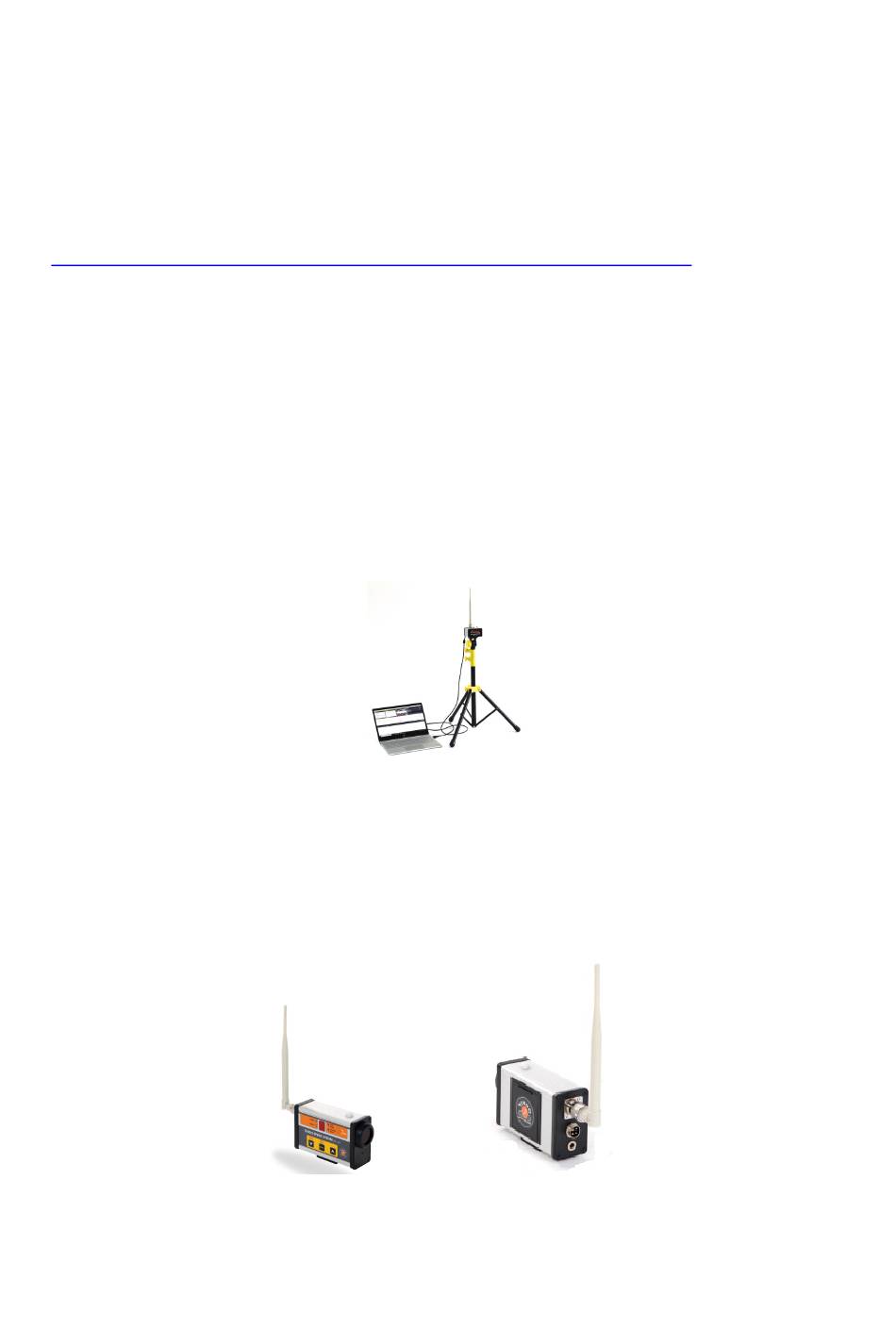

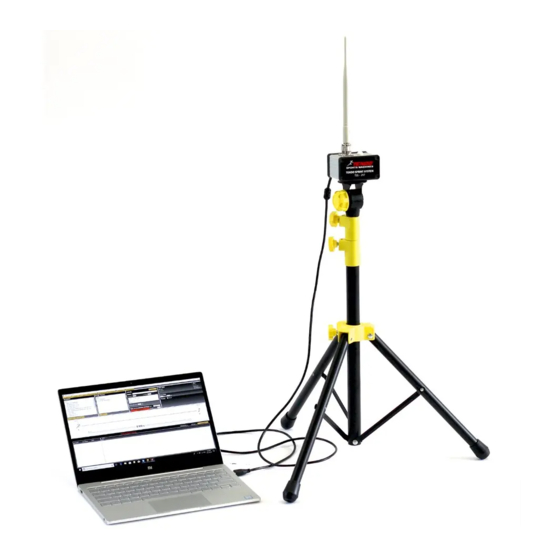

TSS signal receiver is used to receive data from the photocells wirelessly. The TSS signal
receiver is connected to a computer via a USB cable.

Signal receiver setup

Screw antenna onto the top connector of the signal receiver and tighten the antenna nut.
Attach the signal receiver to a steel plate located on the top of the tripod via a magnet. The
magnet is located on the bottom of the signal receiver.
It is recommended to place the signal receiver is the same height as the photocells for
a better radio signal.

3. Setup the Optogate

- Open the tripod so the bottom yellow plastic part is approximately 25 cm (10 in) from the
bottom end of the tube. Secure the position by tightening the locking screw.
- Attach the photocell to a steel plate located on the top of the tripod via magnet located on
the bottom of the photocell.
- Screw antenna onto the top connector of the photocell. But not tighten the nut yet!
Set the antenna to the perpendicular position first, then tighten the nut.
!!
If you tighten the nut before the antenna is set to the correct position, it could cause
damage to the antenna
!!
1
