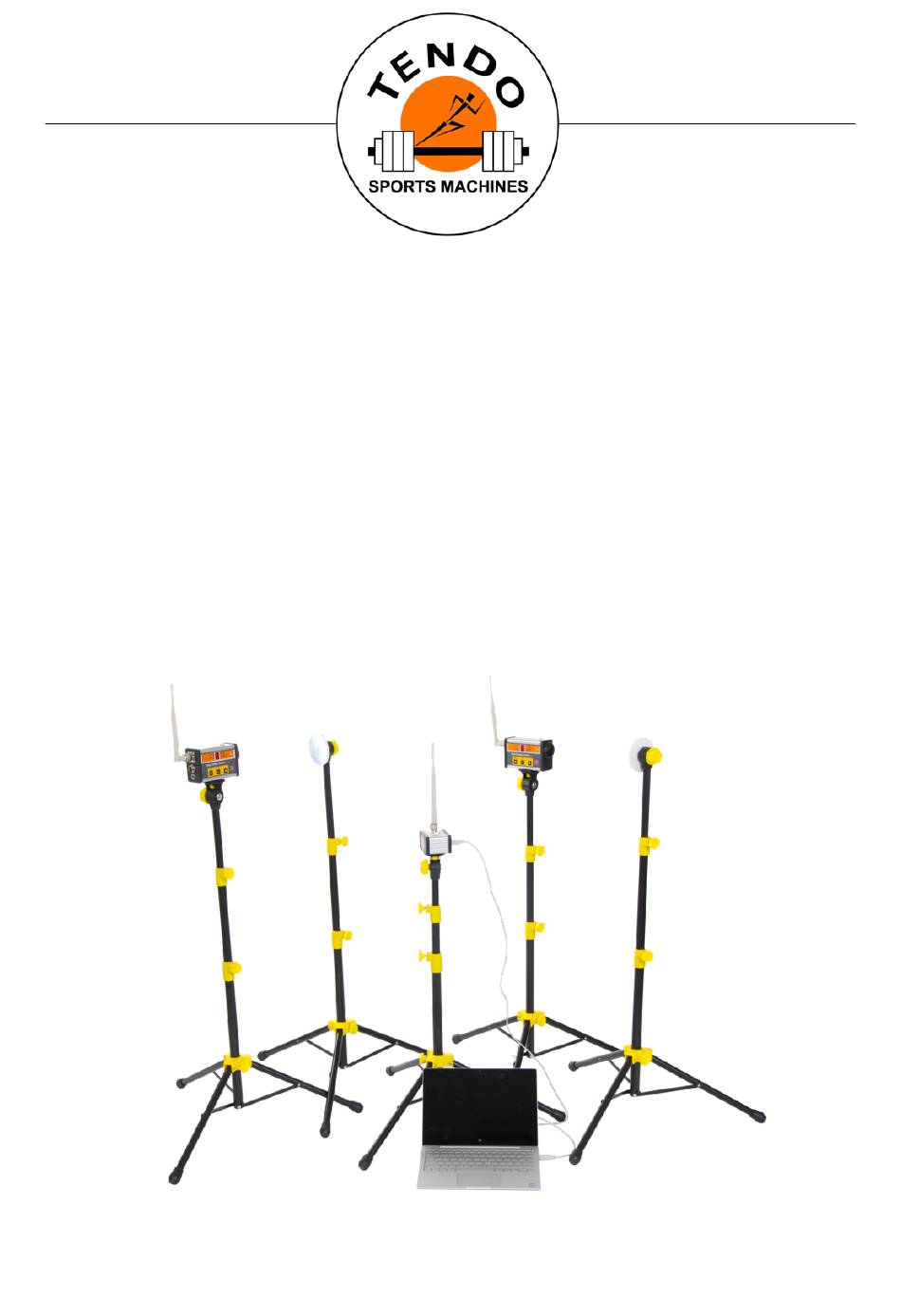

- Page 1 TENDO Sprint System INTELLIGENT, WIRELESS TIMING SYSTEM Hardware User Manual model: TSS-217 www.tendosport.com...
-
Page 2: Table Of Contents
CONTENT QUICK START GUIDE 1 ACKNOWLEDGEMENT 2 SAFETY PRECAUTIONS 3 PRODUCT DESCRIPTION 3.1 About the product 3.2 Content of the basic TSS kit 3.3 Technical specifications 4 HARDWARE SETUP 4.1 Battery installation 4.2 Photocell/reflector installation 4.3 Tripod installation 4.4 Photocell 4.4.1 Photocell setup via menu panel 4.4.1.1 Switching ON 4.4.1.2 Photocell’s settings... -
Page 3: Quick Start Guide
4. Start using TSS 1 ACKNOWLEDGEMENT Thank you for purchasing Tendo product. We hope you will be satisfied with our product and customer service. Please read the user manual fully before using the product. Save the manual for future reference. -
Page 4: Product Description
3 PRODUCT DESCRIPTION 3.1 About the product TENDO Sprint System (TSS) is a wireless computer system used to measure time of short distances in training and testing of athletes. Information provided by TSS is essential in sports where the performance is assessed thought speed, sprint, endurance, reaction, shuttle tests, etc. - Page 5 2 photocells 2 reflectors 1 TSS signal receiver 5 tripods 1 manual 1 computer software installation CD 1 carrier bag 2 sets of rechargeable batteries (4 pieces each set) 2 power adapters 3 antennas (10) 1 signal receiver to PC connecting cable (11) (10) (11)
-
Page 6: Technical Specifications
The kit can be expanded by purchasing more photocells and reflector pairs with tripods. Please contact your seller for more information 3.3 Technical specifications • Maximum distance between photocell and reflector is 5 m • Maximum distance between photocell and TSS signal receiver is 100 m •... -
Page 7: Tripod Installation
4.3 Tripod installation 1. Open the tripod so the bottom yellow plastic part is approximately 25 cm from the bottom end of the tube (see the picture below). Secure the position by tightening the locking screw. 2. Attach the photocell to a steel plate located on the top of the tripod via magnet located on the bottom of the photocell. -
Page 8: Photocell Setup Via Menu Panel
Menu panel Battery compartment There are three connectors located on the rear side of the photocell: Antenna connector Connector for RFID reader Power supply adapter connector Optical sensor and speaker are located on the front side of the photocell. Fastening magnet is placed on the bottom of the photocell. -
Page 9: Photocell's Settings
4.4.1.2 Photocell’s settings • The setting of the photocell represents the photocell’s function: = start 1 - 8 = split times = finish • To see the current setting of the photocell, press the ON/OFF button anytime (short press only). The setting will be displayed for 3s. -
Page 10: Switching Off
It is possible to use any photocell number for start, finish and split times. However, it needs to be synchronised with the gate setting in the Tendo Sprint System computer software (the same number for start, finish and split times). -
Page 11: Battery Charging
After the batteries are fully charged, the Battery LED light is turned off. Battery LED = Battery status indicator Battery LED light - = batteries are charged orange Battery LED light - Flashing = batteries need to be charged orange Battery LED light - = batteries are charging 4.4.3 Battery charging Each photocell has its own built-in battery charger. -
Page 12: Tss Signal Receiver
4.5 TSS signal receiver TSS signal receiver is used to receive data from the photocells wirelessly. The TSS signal receiver is connected to a computer via a USB cable. 4.5.1 Signal receiver setup Screw antenna onto the top connector of the signal receiver and tighten the antenna nut. Attach the signal receiver to a steel plate located on the top of the tripod via a magnet. - Page 13 3. Your computer will recognise the new device and install the TSS signal receiver driver Once the driver is installed the system is ready for use @tendosport_official TENDO Sport @tendosportsmachines @tendosport Tendo Sports Machines @TendoSport Manufactured in Europe. TENDO Sport Zlatovska 22 ...
