Assa Abloy Securitron EEB2 Installation & Operating Instructions

Securitron
Exit Button with Integrated Timer
Installation & Operating Instructions
Description
Model Securitron EEB2 is a two-inch square, exit button,
mounted on a stainless steel, single gang key plate.
Model Securitron EEB3N is a rectangular exit button,
mounted on a 1 3/4" stainless steel narrow stile key plate.
Both Securitron EEB2 and EEB3N have a 3A switching
capacity and a timer set for 30 seconds. These units are
intended only for release of a magnetic lock from the inside
of a door. When the button is pressed, the lock releases
for 30 seconds. If pressed again during the 30-second
lock release period, the unit will "retrigger" starting a
new 30-second lock release period. These buttons are
specifically intended for installation on access controlled
egress doors, as described in the International Building Code
(IBC). Check your jurisdiction for applicable IBC codes.
A motion detector, such as the Securitron Model XMS,
is the primary means of magnetic lock release on the
door. The Securitron EEB2 or EEB3N exit button is
employed as a backup means of releasing the lock in
case of a problem with the motion detector. It should
be noted that the exact release time will vary with
temperature, but it will not be less than 30 seconds.
UL294 Access Control
Performance Levels
The following are the UL294 access
control performance levels:
• Destructive Attack = Level 1
• Line Security = Level 1
• Endurance = Level 1 (6,000 cycles)
• Standby Power = Level 1
EEB2, EEB3N
®

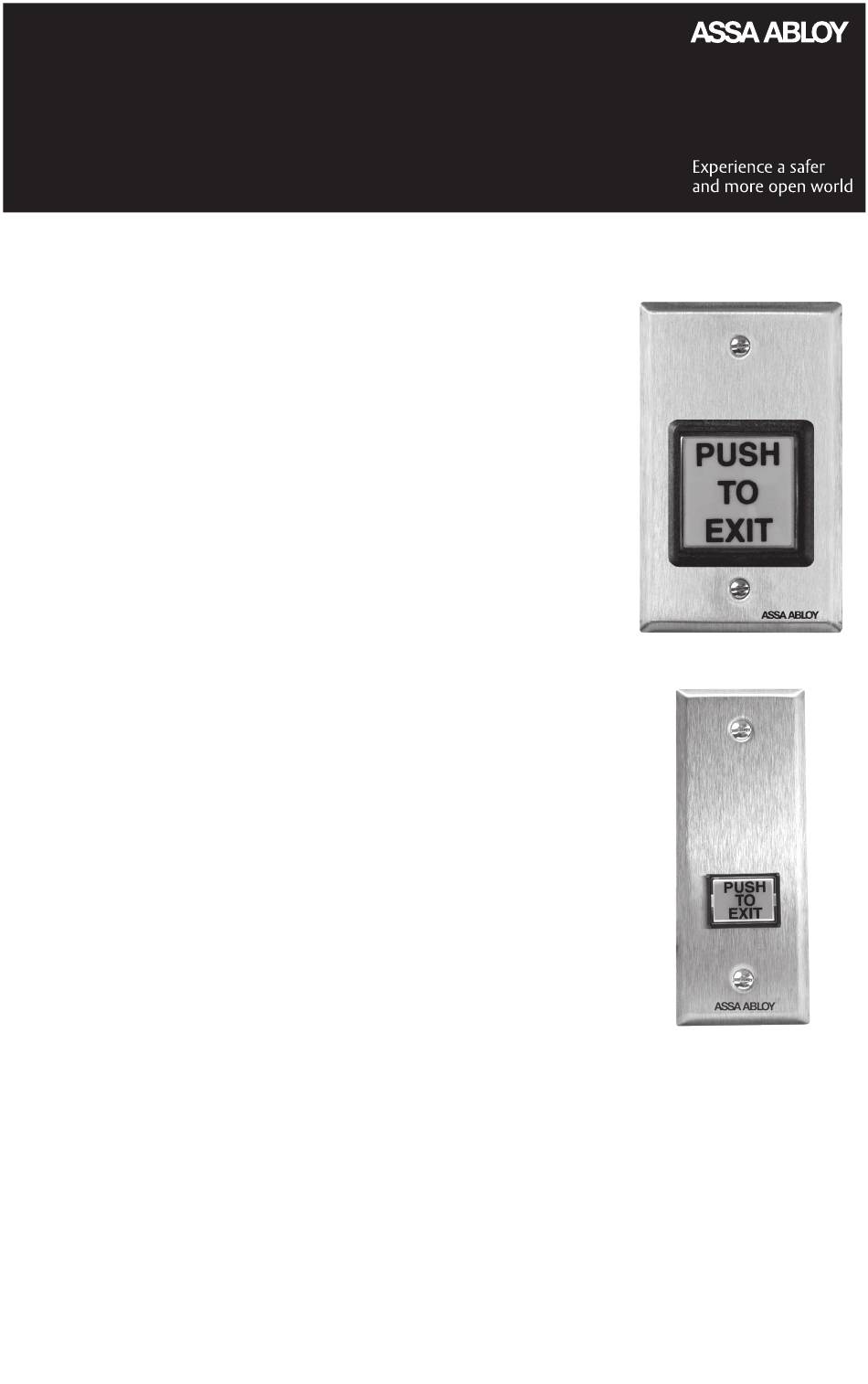

Securitron EEB2
Securitron EEB3N
