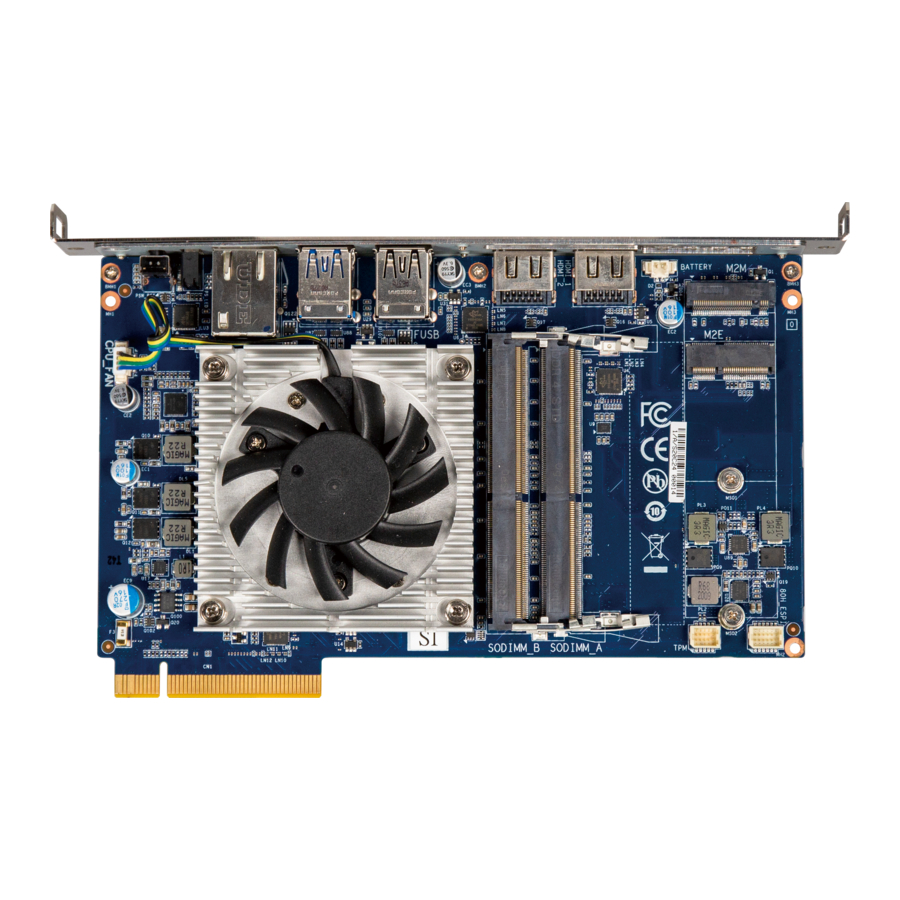

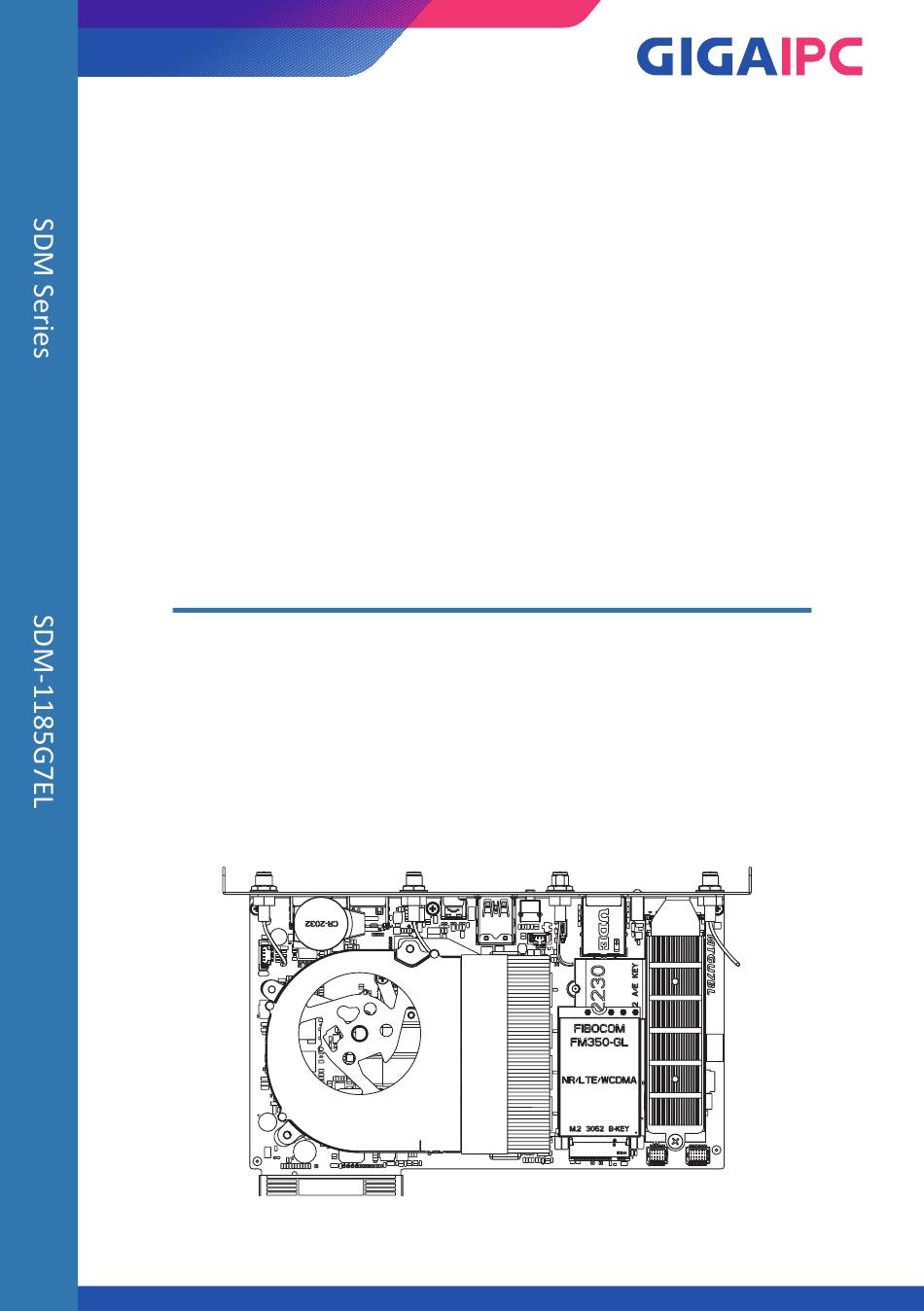

Page 1 SDM-1185G7EL (MTGU7BL-IA) Smart Display Module Series Quick Start Guide www.gigaipc.com...
Page 2 While reasonable efforts have been made in the preparation of this document to assure its accuracy, GIGAIPC assumes no liabilities resulting from errors or omissions in this document, or from the use of the information contained herein.
Page 3: Smart Display Module Series
Core, Atom are trademarks of Intel Corporation • • ITE is a trademark of Integrated Technology Express, Inc. IBM, PC/AT, PS/2, and VGA are trademarks of International Business • Machines Corporation. All other product names or trademarks are properties of their respective owners. www.gigaipc.com...
Page 4: Copyright Notice
Before setting up your product, please make sure the following items have been shipped: Item Quantity SDM-1185G7EL US power cord PSU ADP 12V 120W 100-240VAC External Antenna for WiFi module If any of these items are missing or damaged, please contact your distributor or sales representative immediately. www.gigaipc.com...
Page 5: Acknowledgement
(if any), its specifications, dimensions, jumper/ connector settings/definitions, and driver installation instructions (if any), to facilitate users in setting up their product. Users may refer to the GIGAIPC.com for the latest version of this document. www.gigaipc.com...
Page 6: Packing List
Make sure the device is installed near a power outlet and is easily accessible. 10. Keep this device away from humidity. 11. Place the device on a solid surface during installation to prevent falls 12. Do not cover the openings on the device to ensure optimal heat dissipation. www.gigaipc.com...
Page 7: About This Document
18. D O N O T L E AV E T H I S D E V I C E I N A N U N C O N T R O L L E D ENVIRONMENT WITH TEMPERATURES BEYOND THE DEVICE’S PERMITTED STORAGE TEMPERATURES (SEE CHAPTER 1) TO PREVENT DAMAGE. www.gigaipc.com...
Page 8: Safety Precautions
Il y a un risque d’explosion si la batterie est remplacée de façon incorrecte. Ne la remplacer qu’avec le même modèle ou équivalent recommandé par le constructeur. Recycler les batteries usées en accord avec les instructions du fabricant et les directives gouvernementales de recyclage. www.gigaipc.com...
Page 9: Table Of Contents
HDMI_1, HDMI_2 (HDMI connector) ......21 2.2.5 Battery (Battery cable Connector) ....... 22 2.2.4 TPM (Trusted Platform Module Connector) ....23 2.2.3 CPU_FAN (CPU Fan connector) ........24 2.2.4 M2M (1 x 2280 M.2 M-Key (Support NVME only)) ..25 www.gigaipc.com...
Page 10: Fcc Statement
Power & Performance : GT - Power Management Control ................51 4.3.5 PCIE Configuration ............52 4.3.6 PCH-FW Configuration ..........53 4.3.7 Thermal Configuration ..........58 4.3.8 Platform Settings ............63 4.3.9 ACPI D3Cold settings ............. 67 4.3.10 AMT Configuration ............68 www.gigaipc.com...
Page 11 4.3.26 USB Configuration ............90 4.3.27 Network Stack Configuration ........91 4.3.28 CSM Configuration ............92 4.3.29 Info Report Configuration ..........93 4.3.30 NVMe Configuration ............. 94 4.3.31 offboard SATA Controller Configuration ....... 95 4.3.32 SDIO Configuration ............96 www.gigaipc.com...
Page 12 4.3.34 I n t e l ( R ) E t h e r n e t C o n t r o l l e r ( 3 ) I 2 5 5 - L M -D8:5E:D3:E3:6B:E1 ............98 4.3.35 Driver Health ..............99 Chipset - System Agent (SA) Configuration ....100 Chipset - PCH-IO Configuration ........124 Security ............... 138 Boot ................141 Save & Exit ..............142 www.gigaipc.com...
Page 13: Chapter 1 - Product Specifications
Chapter 1 Chapter 1 - Product Specifications www.gigaipc.com...
Page 14 25 25 122.1 122.1 www.gigaipc.com...
Page 15: Specifications
1 x USB 3.2 Type C Gen 2x1 (with DP output) Rear I/O 1 x PWR LED 1 x HDD LED 4 x External Antenna Holes (Optional) 1 x Reset button 1 x Power button 1 x TPM header (SPI interface) OS Compatibility Windows® 10/11 (x64) www.gigaipc.com...
Page 16 Single Box size: 345 x 221 x 70 (mm) Packing Content Including : US power cord x 1 (P/N: 25CP0-007001-Q0R) PSU ADP 12V 120W 100-240VAC x 1 (P/N: 25EP4-201202-F3S) External Antenna for WiFi module x 2 (P/N: 25CA0-163002-A5S) Order 9MTGU7BLMR-IA (Box packing) Information www.gigaipc.com...
Page 17: Chapter 2 - Hardware Information
Chapter 2 Chapter 2 – Hardware Information www.gigaipc.com...
Page 18: Jumpers And Connectors
Jumpers and Connectors www.gigaipc.com...
Page 19 2 x HDMI HDMI_2 BATTERY 1 x Battery cable connector 1 x Trusted Platform Module Connector CPU_FAN 1 x CPU Fan connector 1 x 2280 M.2 M-Key (Support NVME only) 1 x 3052 M.2 B-Key 1 x 2230 M.2 E-Key www.gigaipc.com...
Page 20: Lan (Rj45 Lan Port)
LAN (RJ45 LAN Port) LAN Connector State Description Orange On 2.5Gbps data rate Green On 1Gbps data rate 100M&10Mbps data rate Connector PN Vendor Pin No. Definition Pin No. Definition TX1+ TX3+ RB1-GB-0010 TX1- TX3- TX2+ TX4+ TX2- TX4- www.gigaipc.com...
Page 21: Usb32 (Usb 3.2 Type A Gen 2X1)
2.2.2 USB32 (USB 3.2 Type A Gen 2x1) USB 3.2 Gen 2x1 connector Connector PN Vendor 18-A9830-6A33-A TCONN Definition Definition USB_Dn USB_Dn USB_Dp USB_Dp USB3_RXn USB3_RXn USB3_RXp USB3_RXp USB3_TXn USB3_TXn USB3_TXp USB3_TXp www.gigaipc.com...
Page 22: Usbtc (Usb 3.2 Type C Gen 2X1)
2.2.3 USBTC (USB 3.2 Type C Gen 2x1) USB Type C Connector Connector PN Vendor DX07S024JJ2 Pin No. Definition Pin No. Definition TX1p TX2p TX1n TX2n VBUS VBUS VBUS VBUS RX2n RX1n RX2p RX1p www.gigaipc.com...
Page 23: Hdmi_1, Hdmi_2 (Hdmi Connector)
2.2.4 HDMI_1, HDMI_2 (HDMI connector) HDMI HDMI Connector Connector PN Vendor D13-0715-19681 WALTA Pin No. Definition Pin No. Definition TX2p CLKn TX2n TX1p TX1n TX0p Hot Plug TX0n Detect CLKp www.gigaipc.com...
Page 24: Battery (Battery Cable Connector)
2.2.5 Battery (Battery cable Connector) Pin 1 Battery Connector Pin No. Definition 3.3V RTC www.gigaipc.com...
Page 25: Tpm (Trusted Platform Module Connector)
2.2.4 TPM (Trusted Platform Module Connector) Pin 1 TPM Connector Connector PN Vendor 87216-1004-06 ACES Pin No. Definition Clock SPI_CS TPM_SO RESET TPM_SI 3.3V www.gigaipc.com...
Page 26: Cpu_Fan (Cpu Fan Connector)
2.2.3 CPU_FAN (CPU Fan connector) Pin 1 CPU FAN Connector Connector PN Vendor 85205-0470N ACES A1250WV-S-04PC JOINT-TECH Pin No. Definition Speed control Detect www.gigaipc.com...
Page 27: M2M (1 X 2280 M.2 M-Key (Support Nvme Only))
Wakeup PCIE Clockp PCIE3 TXn 3.3V PCIE3 TXp 3.3V 3.3V Pin No. Definition Pin No. Definition PCIE2 RXn 3.3V SUSCLK PCIE2 RXp Detect 3.3V 3.3V PCIE2 TXn 3.3V PCIE2 TXp Connector PN Vendor PCIE1 RXn PCIE1 RXp 80159-8523 BELLWETHER www.gigaipc.com...
Page 28: M2E (1 X 2230 M.2 E-Key (Wifi 6E Ax210 Gig+ 2230 Card)
PCIE CLOCKp PCIE CLOCKn 74 75 SUSCLK Pin No. Definition Pin No. Definition PCIE Clock PCIRST 3.3V Request 3.3V PCIE wake up BT_Disable WLAN_DISABLE 3.3V 3.3V Pin No. Definition Pin No. Definition Connector PN Vendor APCI0076-P002A LOTES PCIE_TXp PCIE_TXn www.gigaipc.com...
Page 29: M2B (1 X 3052 M.2 B-Key)
Clock request 3.3V CLK_p PCIE_WAKE 3.3V WAN OFF USB Dp WAN Disable USB Dn Pin No. Definition Pin No. Definition Reset M2B_WAKE 3.3V 3.3V WAN Disable2 3.3V USB3_RXp Connector PN Vendor USB3_RXn SIM_RST# 2E0BC26-S58BB-7H FOXCONN SIM_CLK USB3_TXn SIM_DATA USB3_TXp SIM_PWR www.gigaipc.com...
Page 30: Chapter 3 - Sdm-L Installation
Chapter 3 Chapter 3 – SDM-L Installation www.gigaipc.com...
Page 31: Dimension
Dimension 122.1 122.1 25 25 www.gigaipc.com...
Page 32: Installation
Installation [SDM Install] ＊ The image is for reference only. The actual product could be slightly different. www.gigaipc.com...
Page 33: Chapter 4 - Bios
Chapter 4 Chapter 4 – BIOS www.gigaipc.com...
Page 34: Introduction
Execute command or enter the submenu Increase the numeric value or make ＋ changes Decrease the numeric value or make – changes General Help Previous Values Load Optimized Defaults Settings Save changes & Exit the BIOS Setup program Exit the BIOS Setup program www.gigaipc.com...
Page 35: The Main Menu
The Main Menu The main menu shows the basic system information. Use arrow keys to move among the items. www.gigaipc.com...
Page 36 Package : Not Implemented Yet TXT Capability of Platform/PCH : shows if support TXT Capability Production Type : shows PCH's production type Dual Output Fast Read shows if dual output fast read support support Read ID/Status Clock Freq shows Read ID/Status Clock frequency www.gigaipc.com...
Page 37 ME FW version Shows ME firmware version Set the Date for the system System Date (Format : Week - Month - Day - Year) Set the time for the system System Time (Format : Hour - Minute - Second) www.gigaipc.com...
Page 38: Advanced
Advanced The Advanced menu is to configure the functions of hardware settings through submenu. Use arrow keys to move among the items, and press <Enter> to access into the related submenu. www.gigaipc.com...
Page 39: Rc Acpi Settings
Disabled : Disables support for the BDAT ACPI table (Default setting) Support Enabled : Enables support for the BDAT ACPI table Wake system from Disabled : Disables system wake up from S5 (Default setting) Enabled : Enables system wake up from S5 www.gigaipc.com...
Page 40 Enabled : Enables Low power S0 Idle Capability PCI Delay Disabled : Disables PCI Delay optimization function (Default setting) Optimization Enabled : Enables PCI Delay optimization function Disabled : Disables MSI support in FADT MSI enabled Enabled : Enables MSI support in FADT (Default setting) www.gigaipc.com...
Page 41: Connectivity Configuration
USB : To be abled to select BT interface (Default setting) Configure ACPI objects for wireless devices Advanced settings Disabled : Disables for advanced settings (Default setting) Enabled : Enables for advanced settings WWAN Please see next page Configuration www.gigaipc.com...
Page 42 Disabled : Disables WWAN Reset workaround function Workaround Enabled : Enables WWAN Reset workaround function (Default setting) WA - WWAN OEM WWAN OEM Sub-vendor ID SVID WA - WWAN SVID The timeout value is for detecting WWAN OEM SVID. Detect Timeout www.gigaipc.com...
Page 43: Cpu Configuration
Virtualization independent partitions. With virtualization, one computer system can Technology function as multiple virtual systems. Enabled (Default setting) / Disabled PECI Disabled / Enabled (Default setting) Enabled (Default setting) / Disabled AVX3 Enabled (Default setting) / Disabled www.gigaipc.com...
Page 44 18.3) SMM Use SMM en-US Indication : SMM Enable MSR for MP sync in SMI Disabled / Enabled (Default setting) Configure Total Memory Encryption (TME) to protect DRAM data from Total Memory physical attacks. Encryption Disabled (Default setting) / Enabled RaceCondition- Disabled (Default setting) / Enabled Response Policy www.gigaipc.com...
Page 45: Power & Performance : Cpu - Power Management Control
4.3.4 Power & Performance : CPU - Power Management Control www.gigaipc.com...
Page 46 Per Core P State HwP Autonomous Disabled / Enabled (Default setting) EPP Grouping EPB override over Disabled (Default setting) / Enabled PECI HwP Fast MSR Disabled / Enabled (Default setting) Support 1.10 HDC Control Disabled / Enabled (Default setting) www.gigaipc.com...
Page 47 3-Core Turbo Ratio Limit Ratio (TRLR) Override 4-Core Turbo Ratio Limit Ratio (TRLR) Override each Core Turbo Ratio Limit Ratio (TRLR) with range of Max Non-Turbo Ratio up to 120. 1.11.1.7) Energy Efficient Turbo : Disabled / Enabled (Default setting) www.gigaipc.com...
Page 48 Power Limit 2 : in Milli Watts. Ex : For 12.50W, please enter 12500 Power Limit 1 Time Window : value in seconds. The value may vary from 0 to 128. Config TDP Turbo Activation Ratio : Needs to be configured with valid values. www.gigaipc.com...
Page 49 Disabled (Default settings) / Enabled 1.12.5) Acoustic Noise Settings: 1.12 CPU VR Settings Acoustic Noise Mitigation : help mitigate acoustic noise on certain SKUs when the CPU is in deeper C state. Disabled (Default settings) / Enabled 1.12.6) VccIn VR Settings : www.gigaipc.com...
Page 50 Range is 0-32767, is defined in 1/8A increments. Ex : For a TDC current Limit of 125A, please enter 1000. 1.12.6.14) TDC Time Window : Range from 1ms to 10ms (value in milli seconds), except for 9ms. 9ms has no valid encoding in the MSR definition. www.gigaipc.com...
Page 51 Option item : Disabled or C1 1.16.4) Package C-State demotion : Disabled / Enabled (Default setting) 1.16.5) Package C-State Un-demotion : Disabled / Enabled (Default setting) 1.17 CState Pre-Wake Disabled / Enabled (Default setting) IO MWAIT 1.18 Disabled (Default setting) / Enabled Redirection www.gigaipc.com...
Page 52 EPG DIMM Idd3N 1.32 EPG DIMM Idd3P Power Limit 3 Power Limit 3 Override 1.33 Settings Disabled (Default setting) / Enabled CFG Lock : Disabled /Enabled (Default setting) CPU Lock 1.34 Configuration Overclocking Lock : Disabled / Enabled (Default setting) www.gigaipc.com...
Page 53: Power & Performance : Gt - Power Management Control
Option items : Default Max Frequency (Default setting), 100Mhz, 150Mhz, 200Mhz, 250Mhz, 300Mhz, 350Mhz, 400Mhz, 450Mhz, Maximum GT 500Mhz, 550Mhz, 600Mhz, 650Mhz, 700Mhz, 750Mhz, 800Mhz, frequency 850Mhz, 900Mhz, 950Mhz, 1000Mhz, 1050Mhz, 1100Mhz, 1150Mhz, 1200Mhz Disable Turbo GT Enabled / Disabled (Default setting) frequency www.gigaipc.com...
Page 54: Pcie Configuration
4.3.5 PCIE Configuration Item Description PCIe IMR : IMR Configuration Disabled (Default setting) / Enabled www.gigaipc.com...
Page 55: Pch-Fw Configuration
4.1) USB Provisioning of AMT : Inserting a specially formatted USB drive AMT Configuration into a system, to let the other system remotely control. Disabled / Enabled (Default setting) 4.2) MAC Pass Through : Disabled (Default setting) / Enabled www.gigaipc.com...
Page 56 Disabled (Default setting) / Enabled 4.6.2) MEBx Selection Screen : Enables or Disables MEBx Selection Screen. Disabled (Default setting) / Enabled 4.6.3) Hide Unconfigure ME Confirmation Prompt : To hide un- configured ME without password confirmation prompt. Disabled (Default setting) / Enabled www.gigaipc.com...
Page 57 Disabled / Enabled (Default setting) 10.1) TPM Device Selection : PTT Configuration dTPM : External TPM (When using External TPM module or having TPM chip on MB) PTT : Internal TPM (Default setting) 10.2) TPM 1.2 Deactivate : Disabled (Default setting) / Enabled www.gigaipc.com...
Page 58 12.8) End of Post Message : Option items : Disabled End of Post Message , or Send in DXE (Default setting) 12.9) DOI3 Setting for HECI Disable : Disabled (Default setting) / Enabled 12.10) MCTP Broadcast Cycle : Disabled (Default setting) / Enabled www.gigaipc.com...
Page 59 Disabled (Default setting) / Enabled Anti-Rollback SVN Configuration 13.1) Automatic HW-Enforced Anti-Rollback SVN : Disabled (Default setting) / Enabled 13.2) Set HW-Enforced Anti-Rollback for Current SVN : Disabled (Default setting) / Enabled Extend CSME Measurement to Disabled (Default setting) / Enabled TPM-PCR www.gigaipc.com...
Page 60: Thermal Configuration
Enabled : ACPI thermal management uses DTS SMM mechanism to obtain CPU temperature values. Critical Temp Reporting (Out of spec) : ACPI thermal management uses EC reported temperature values and DTS SMM is used to handle out of spec. www.gigaipc.com...
Page 61 Enabled : Enables PROCHOT Response function 2.10) PROCHOT Lock : Disabled : Disables PROCHOT Lock function (Default setting) Enabled : Enables PROCHOT Lock function 2.11) ACPI T-States : Disabled : Disables ACPI T-States function (Default setting) Enabled : Enables ACPI T-States function www.gigaipc.com...
Page 62 3.6.3) Passive TSP Value : This value sets the TSP value for the ACPI Passive cooling Formula. It represents in tenths of a second how often the OS will read the temperature when passive cooling is enabled. Range is 2 - 32. www.gigaipc.com...
Page 63 4.4) Intel(R) Dynamic Tuning Technology Configuration : An Integer containing the Intel(R) Dynamic Tuning Technology Configuration. Bitmap as below : 0=enable, 1=disable BIT 0 - Generic UI Access Control BIT 1 - Restricted UI Acess Control BIT 2 - shell Access Control BIT 3 - Environment Monitoring www.gigaipc.com...
Page 64 4.14.6) Design Variable 5 : An integer is between 0 - 255 4.14.7) PPCC object : Disabled / Enabled (Default setting) 4.14.8) ARTG object : Disabled / Enabled (Default setting) 4.14.9) PMAX object : Disabled / Enabled (Default setting) 4.14.10) _TMP 1 object : Disabled (Default setting) / Enabled www.gigaipc.com...
Page 65: Platform Settings
Notification Disabled (Default setting) / Enabled Feature Device password Disabled / Enabled (Default setting) support Select the Pmic Vcc IO Voltage level Pmic Vcc IO Level Option items : Disabled (Default setting), 1.05V, 1.071V, 1.023V, 0.997V, 0.850V, 0.900V, 0.950V www.gigaipc.com...
Page 66 Select DG1 platform support : Add In Card (Default setting) , or MB Support Down. Enable PowerMeter Disabled (Default setting) / Enabled Intel trusted device Enabled / Disabled (Default setting) setup boot Enable VITO Support : VITO Disabled (Default setting) / Enabled TCSS Platform setting www.gigaipc.com...
Page 67 21.9.1) Integrated Thunderbolt (TM) Support : Disabled / Enabled (Default setting) 21.9.2) Wake From Thunderbolt(TM) Devices : Disabled / Enabled (Default setting) 21.9.3) Native OS security for TBT : Native OS security solution for Thunderbolt host Disabled / Enabled (Default setting) www.gigaipc.com...
Page 68 21.9.4.4) Force Poweron Timeout value for ITBT : Force Poweron Timeout value for Integrated Thunderbolt (TM) 21.9.4.5) ITBT RTD3 Disabled / Enabled (Default setting) 21.9.4.6) ITBT RTD3 EXIT DELAY : value in milli seconds Dynamic one-time Disabled (Default setting) / Enabled switch www.gigaipc.com...
Page 69: Acpi D3Cold Settings
4.3.9 ACPI D3Cold settings Item Description ACPI D3Cold Disabled (Default setting) / Enabled Support www.gigaipc.com...
Page 70: Amt Configuration
USB Provisioning the other system remotely control. of AMT Disabled / Enabled (Default setting) MAC Pass Disabled (Default setting) / Enabled Through CIRA Configuration Activate Remote Assistance Process : Trigger CIRA boot Disabled (Default setting) / Enabled ASF Congifuration www.gigaipc.com...
Page 71 ME without password confirmation prompt. Disabled (Default setting) / Enabled 6.4) MEBx OEM Debug Menu Enable : Enables or Disables MEBx debug message. Disabled (Default setting) / Enabled 6.5) Unconfigure ME : To Un-configure ME without password. Disabled (Default setting) / Enabled www.gigaipc.com...
Page 72 Option items : Auto (Default setting), 80x25, 100x31 Settings 7.2) UI Mode Resolution : resolution for UI text mode. Option items : Auto (Default setting), 80x25, 100x31 7.3) Graphics Mode Resolution : Resolution for graphics mode. Option items : Auto (Default setting), 640x480, 800x600, 1024x768 www.gigaipc.com...
Page 73: Bclk Configuration
BCLK RFI Frequency - SAGV High/ BCLK RFI Frequency - SAGV Max : CPU - BCLK Clock BCLK RFI Frequency value is in 10kHz increments. Range is 0 and 98- Settings 100Mhz. Example : For 98.75MHz, please enter 9875 BCLK Spread Disabled / Enabled (Default setting) www.gigaipc.com...
Page 74: Debug Settings
Platform Debug (DCI OOB), Enabled (2 Wire DCI 00B), Enabled (USB3 DbC), Enabled (XDP/ Consent MIPI60), Manual VT-d Debug 5.1) IGD VTD Enable : Settings Enabled (Default setting) / Disabled 5.2) IPU VTD Enable : Enabled (Default setting) / Disabled www.gigaipc.com...
Page 75 128KB, 256KB, 512KB, 1MB, 2MB, 4MB, 8MB, 16MB, 32MB, 64MB, 128MB 6.7) JTAG C10 Power Gate : Disabled / Enabled (Default setting) 6.8) Three Strike Conunter : Disabled / Enabled (Default setting) 6.9) CrashLog Feature : Disabled / Enabled (Default setting) www.gigaipc.com...
Page 76 Disabled : Disables CrashLog GPRs function (Default setting) Settings Enabled : Enables CrashLog GPRs function Gprs Enabled, Smm Gprs Disabled 6.13) PMC Debug Message Enable : Disabled (Default setting) / Enabled 6.14) Delayed Authentication Mode : Disabled (Default setting) / Enabled www.gigaipc.com...
Page 77: Debug Configuration
4.3.13 Debug Configuration Item Description Disabled (Default setting) /Enabled Legacy UART Disabled / Enabled (Default setting) USB3 Disabled (Default setting) / Enabled Serial IO UART Disabled (Default setting) / Enabled Trace HUB Disabled / Enabled (Default setting) www.gigaipc.com...
Page 78: Trusted Computing
Choose PPI spec version Spec Version Option items : 1.2 or 1.3 (Default setting) PH Randomization Disabled / Enabled (Default setting) Device Select Option items : TPM 1.2, TPM 2.0, Auto (Default setting) Disable Block Sid Enabled / Disabled (Default setting) www.gigaipc.com...
Page 79: Acpi Settings
Enable ACPI Auto Disabled (Default setting) / Enabled Configuration Enable Hibernation Disabled / Enabled (Default setting) ACPI Sleep State Option items : Suspend Disabled , S3 (Suspend to RAM) (Default setting) S3 Video Repost Disabled (Default setting) / Enabled www.gigaipc.com...
Page 80: Smart Settings
4.3.16 SMART Settings Item Description Run SMART Self Test on all HDDs during POST. SMART Self Test Disabled : Disables SMART Self Test (Default setting) Enabled : Enables SMART Selft Test www.gigaipc.com...
Page 81: It8613 Supr Io Configuration
Serial Port : Confiugration Enabled : Enables allows you to configure the serial port settings Disabled : if Disabled, displays no configuration for the serial port Device settings : Display the specified Serial Port base I/O address and IRQ www.gigaipc.com...
Page 82: Hardware Monitor
Normal : Fan speed set by BIOS default (Default setting) Control Full Speed : Set Fan operates at full speed CPU Temperature Shows current CPU temperature System Shows current system temperature Temperature CPU Fan Speed Shows current CPU fan Speed www.gigaipc.com...
Page 83: S5 Rtc Wake Settings
Enable or Disable System to wake on a specific time. Wake system Disabled : Disables system to wake on a specific time (Default setting) from S5 Fixed Time : Enables system to wake on a specific time (Format : hr : min : sec) www.gigaipc.com...
Page 84: Serial Port Console Redirection
Emergency 3.2) Terminal Type EMS : VT100, VT100+, VT-UTF8 (Default setting), Management ANSI Services (EMS) 3.3) Bits per second EMS : 9600, 19200, 57600, 115200 (Default setting) 3.4) Flow Control EMS : None (Default setting), Hardware RTS/CTS, Software Xon/Xoff www.gigaipc.com...
Page 85: Intel Txt Information
4.3.21 Intel TXT Information Shows Intel TXT information www.gigaipc.com...
Page 86: Acoustic Management Configuration
4.3.22 Acoustic Management Configuration www.gigaipc.com...
Page 87: Switchable Graphics
4.3.23 Switchable Graphics Item Description SG Mode Select Muxless (Default setting) www.gigaipc.com...
Page 88: Sio Common Setting
4.3.24 SIO Common Setting Item Description Lock Legacy Disabled (Default setting) / Enabled Resources www.gigaipc.com...
Page 89: Option Rom Dispatch Policy
Disabed / Enabled (Default setting) ROM Dispatch Policy 3.3) Slot #17 Empty : Enable or Disable Option ROM execution for selected Slot. Disabled / Enabled (Default setting) 3.4) Slot #18 Mass Strorage Controller : Disabled / Enabled (Default setting) www.gigaipc.com...
Page 90 Disabled / Enabled (Default setting) 3.14) Slot #48 Empty : Enable or Disable Option ROM execution for selected Slot. Disabled / Enabled (Default setting) 3.15) Slot #50 Empty : Enable or Disable Option ROM execution for selected Slot. Disabled / Enabled (Default setting) www.gigaipc.com...
Page 91: Pci Subsystem Settings
1.1) Re-Size BAR Support : If system has Resizable BAR capable PCIe Devices, this option Enables or Disables Resizable BAR support PCI Settings Disabled (Default setting) / Enabled Common for all Devices 1.2) BME DMA Mitigation : Disabed (Default setting) / Enabled www.gigaipc.com...
Page 92: Usb Configuration
Option items : 10 sec, 20 sec (Default setting), 30 sec, 40 sec delays and time- outs 5.3) Device power-up delay Auto / Manual (Default setting) 5.4) Device power-up delay in seconds : Range is 1 to 40 second www.gigaipc.com...
Page 93: Network Stack Configuration
When Network stack is enabled : IPv6 HTTP Support Disabled (Default setting) / Enabled PXE boot wait time Use either +/- or numeric key to set the value. Media detect count Use either +/- or numeric key to set the value. www.gigaipc.com...
Page 94: Csm Configuration
4.3.28 CSM Configuration Item Description CSM Support Disabled (Default setting) / Enabled www.gigaipc.com...
Page 95: Info Report Configuration
4.3.29 Info Report Configuration Item Description Post Report : Post Report Disabled (Default setting) / Enabled Error Message Info Error Message : Report Disabled / Enabled (Default setting) Summary Screen : Summary Screen Disabled (Default setting) / Enabled www.gigaipc.com...
Page 96: Nvme Configuration
4.3.30 NVMe Configuration Shows NVMe M.2 SSD information www.gigaipc.com...
Page 97: Offboard Sata Controller Configuration
4.3.31 offboard SATA Controller Configuration www.gigaipc.com...
Page 98: Sdio Configuration
4.3.32 SDIO Configuration Item Description SDIO Access Mode Option items : Auto (Default setting), ADMA, SDMA www.gigaipc.com...
Page 99: Tls Auth Configuration
4.3.33 Tls Auth Configuration Item Description Server CA Configuration Enroll Cert Enroll Cert Using File : Option items : SYSTEM 256MB, Windows 102GB, WinRE 1023MB, RecoveryImage 7GB Cert GUID : Input digit character in 11111111-2222-3333-4444-12345 890ab format. www.gigaipc.com...
Page 100: D8:5E:d3:E3:6B:e1
4.3.34 Intel(R) Ethernet Controller (3) I255-LM -D8:5E:D3:E3:6B:E1 shows Intel Ethernet controller information www.gigaipc.com...
Page 101: Driver Health
4.3.35 Driver Health Item Description Intel(R) Gigabit Provides Health Status for the Drivers/Contorllers 0.8.08 Healthy Intel(R) Gigabit Provides Health Status for the Drivers/Contorllers 0.9.03 Healthy www.gigaipc.com...
Page 102: Chipset - System Agent (Sa) Configuration
Chipset - System Agent (SA) Configuration Item Description Memory Configuration 1.1.1) Memory Thermal Configuration : www.gigaipc.com...
Page 103 1.1.1.3) PECI Injected Temperature : to let memory temperatures to be injected to the processor via PECI. Disabled (Default setting) / Enabled 1.1.1.4) EXTTS# via TS-on-Board : to routing TS-on-Board's ALERT# and THERM# to EXTTS# pins on the PCH. Disabled (Default setting) / Enabled www.gigaipc.com...
Page 104 1.1.1.5) EXTTS# via TS-on-DIMM : to routing TS-on-DIMM's ALERT# to EXTTS# pin on the PCH. Disabled (Default setting) / Enabeld 1.1.1.6) Virtual Temperature Sensor (VTS) : Disabled (Default setting) / Enabled 1.1.2) MeMory Training Algorithms : Memory Configuration www.gigaipc.com...
Page 105 1.1.2.14) DIMM RON Training* : Disabled / Enabled (Default setting) 1.1.2.15) Write Drive Strength/Equalization 2D* : Disabled / Enabled (Default setting) 1.1.2.16) Write Slew Rate Training* : Disabled (Default setting) / Enabled 1.1.2.17) Read ODT Training* : Disabled / Enabled (Default setting) www.gigaipc.com...
Page 106 1.1.2.31) TxDqTC0 Comp Training* : Disabled / Enabled (Default setting) 1.1.2.32) ClkTCO Comp Training* : Disabled (Default setting) / Enabled 1.1.2.33) TxDqsTCO Comp Training* : Disabled / Enabled (Default setting) 1.1.2.34) VccDLL Bypass Training : Disabled (Default setting) / Enabled www.gigaipc.com...
Page 107 Disabled / Enabled (Default setting) 1.1.2.48) Retrain Margin Check : Disabled / Enabled (Default setting) 1.1.2.49) Write Drive Strength Up/Dn independently : Disabled / Enabled (Default setting) 1.1.2.50) Margin Cehck Limit : Option items : Disabled , L1 (Default setting), L2, Both www.gigaipc.com...
Page 108 Disabled (Default setting) / Enabled 1.1.3.2) Memory profile : Option items : Default profile (Default setting), Custom profile 1.1.3.3) Memory Reference Clock : Option items : 133MHz (Default setting), 100MHz 1.1.4) MRC ULT Safe Config : Disabled (Default setting) / Enabled www.gigaipc.com...
Page 109 1.1.18) Third Point Gear : Selection for the Gear Ratio of the SAGV point. 1.1.19) Fourth Point Frequency : Specify the frequency for the given point. 1.1.20) Fourth Point Gear : Selection for the Gear Ratio of the SAGV point. 1.1.21) Retrain on Fast Fail : Disabled /Enabled (Default setting) www.gigaipc.com...
Page 110 1.1.34) Pwr Down Idle Timer : 0 for Auto. 64 for ULX/ULT, 128 for DT/Hal 1.1.35) Page Close Idle Timeout : Enabled (Default setting) / Disabled 1.1.36) Memory Scrambler : Disabled / Enabled (Default setting) 1.1.37) Force ColdReset : Enabled / Disabled (Default setting) www.gigaipc.com...
Page 111 Option items : Set A , Set B (Default setting) 1.1.55) Rank Margin Tool Loop Count : Specifies the Loop Count to be used during Rank Margin Tool Testing. 0 for Auto. 1.1.56) Vddq Voltage Override : 0 for Auto. www.gigaipc.com...
Page 112 Option items : Auto (Default setting), Disabled, Enabled 1.2.7) GTT size : Option items : 2MB, 4MB, 8MB (Default setting) 1.2.8) Aperture size : Option items : 128MB, 256MB (Default setting), 512MB, 1024MB 1.2.9) PSMI Support : Disabled (Default setting) / Enabled www.gigaipc.com...
Page 113 Max CdClock freq based on Reference Clk (Default setting) 1.2.21) Skip Full CD Clock Init : Enabled / Disabled (Default setting) 1.2.22) VBT Select : eDP (Default setting) / MIPI 1.2.23) IUER Button Enable : Disabled (Default setting) / Enabled www.gigaipc.com...
Page 114 Option items : 18 Bit (Default setting), 24 Bit 1.2.24.7) Backlight Brightness : Set VBIOS Brightness. Range is 0 - 255. 1.2.25) Intel(R) Ultrabook Event Support : 1.2.25.1) IUER Slate Enable : Disabled (Default setting) / Enabled 1.2.25.2) IUER Dock Enable : Disabled (Default setting) / Enabled www.gigaipc.com...
Page 115 1.4.2.) Enable the iTBT PCIe on Extra Segment : Disabled (Default setting) / Enabled 1.4.3) TCSS USB Configuration : 1.4.3.1) USB CONNECT OVERRIDE : Disabled (Default setting) / Enabled 1.4.3.2) TCSS xDCI Support : Disabled (Default setting) / Enabled www.gigaipc.com...
Page 116 1.4.15) TC Cold Power Saving Factor : Disabled (Default setting) / Enabled VMD setup menu Enable VMD controller : Intel VMD feature helps you to control and manage NVMe PCIe SSD. Enabled / Disabled (Default setting) Display setup menu www.gigaipc.com...
Page 117 Disabled (Default setting) / Enabled 1.7.11) Enable ClockReq Messaging : Disabed / Enabled (Default setting) 1.7.12) PCI Express Slot Selection : Option items : M2 (Default setting), CEMx4 slot 1.7.13) Enable RST GPIO Delay : Enabled (Default setting) / Disabled www.gigaipc.com...
Page 118 1.7.16.2) Connection Type : Option items : Built-in, Slot (Default setting) 1.7.16.3) ASPM : Set ASPM Level : Option items : Disabled (Default setting) , L1 1.7.16.4) L1 Substates : Option items : Disabled (Default seting), L1.1 , L1.1 & L1.2 www.gigaipc.com...
Page 119 1.7.16.13.6) SEFE : Root PCI Express System Error on Fatal Error Disabled (Default setting) / Enabled 1.7.16.13.7) SENFE : Root PCI Express System Error on Non-Fatal Error Disabled (Default setting) / Enabled 1.7.16.13.8) SECE : Root PCI Express Disabled (Default setting) / Enabled www.gigaipc.com...
Page 120 1.7.16.19) CPU PCIe Gen3 HWEQ Config 1.7.16.19.1) UPTP : Upstream Port Transmitter preset 1.7.16.19.2) DPTP : Downstream Port Transmitter preset 1.7.16.20) CPU PCIe Gen4 HWEQ Config 1.7.16.20.1) UPTP : Upstream Port Transmitter preset 1.7.16.20.2) DPTP : Downstream Port Transmitter preset www.gigaipc.com...
Page 121 Configuration 1.19.2~5) Control Logic 1 / Control Logic 2 / Control Logic 3 / Control Logic 4 : Disabled (Default setting) / Enabled 1.19.6) Camera1 : Disabled (Default setting) / Enabled 1.19.7) Camera2 : Disabled / Enabled (Default setting) www.gigaipc.com...
Page 122 Position 1 : this item indicates the current module is placed on the left side of the CRD-G2 card Position 2 : this item indicates the current module is placed on the right side of the CRD-G2 card (Default setting) www.gigaipc.com...
Page 123 Option items : Sensor (Default setting), VCM, EEPROM, EEPROM_ EXT1, EEPROM_EX2, EEPROM_EXT3, EEPROM_EXT4, EEPROM_EXT5, EEPROM_EXT6, EEPROM_EXT7, IO Expander, Flash 1.19.8.22) Flash Driver Selection : Option items : Disabled (Default setting), External, Internal PMIC 1.19.9) Camera3 : Disabled / Enabled (Default setting) www.gigaipc.com...
Page 124 Option items: Driver default (Default setting), ILEDA 16mA, ILEDB 2mA, ILEDB 4mA, ILEDB 8mA, ILEDB 16mA 1.19.10.8) Rotation : Option items : 0 (Default setting), 90, 180, 270 1.19.10.9) PPR Value : PPR value of sensor 1.19.10.10) PPR Unit : PPR unit of sensor www.gigaipc.com...
Page 125 Option items : Sensor (Default setting), VCM, EEPROM, EEPROM_ EXT1, EEPROM_EX2, EEPROM_EXT3, EEPROM_EXT4, EEPROM_EXT5, EEPROM_EXT6, EEPROM_EXT7, IO Expander, Flash 1.19.10.20) Flash Driver Selection : Option items : Disabled (Default setting), External, Internal PMIC 1.19.11) Camera4 : Disabled (Default setting) / Enabled www.gigaipc.com...
Page 126: Chipset - Pch-Io Configuration
Chipset - PCH-IO Configuration Item Description PCI Express Configuration www.gigaipc.com...
Page 127 Option items : Platform-POR, Enabled (Default setting), Disabled 2.1.13.2、4、6、8、 10、 12) ClkReq for Clock0 / ClkReq for Clock1 / ClkReq for Clock2 / ClkReq for Clock3 /ClkReq for Clock4 / ClkReq for Clock5 : Option items : Platform-POR (Default setting), Disabled www.gigaipc.com...
Page 128 2.2.2) SATA Mode Selection : Determines how SATA controller(s) operate AHCI (Default setting) 2.2.3) SATA Test Mode : Enabled / Disabled (Default setting) 2.2.4) Software Feature Mask Configuration : 2.2.4.1) HDD Unlock : Disabled / Enabled (Default setting) 2.2.4.2) LED Locate : Disabled / Enabled (Default setting) www.gigaipc.com...
Page 129 2.2.7.4) Spin Up Device : Disabled (Default setting) / Enabled 2.2.7.5) SATA Device Type : Identify the SATA port is connected to Solid State Drive or Hard Disk Drive Option items : Hard Disk Drive (Default setting) , Solid State Drive www.gigaipc.com...
Page 130 2.2.8.6) Topology : Identify the SATA Topology if it is Default or ISATA or Flex or Direct Connect or M2 : Option items : Unknown (Default setting), ISATA, Direct Connect, Flex, M2 2.2.8.7) SATA Port 2 DevSlp : Disabled / Enabled (Default setting) 2.2.8.8) DITO Configuration : Disabled (Default setting) / Enabled www.gigaipc.com...
Page 131 HS Physical Connector #4 / USB HS Physical Connector #5 / USB HS Physical Connector #6 / USB HS Physical Connector #7 / USB HS Physical Connector #8 /USB HS Physical Connector #9 : Disabled / Enabled (Default setting) www.gigaipc.com...
Page 132 Disabled (Default setting) / Enabled 2.5.1.2) HDA-Link Codec Select : Selects whether platform onboard codec (single verb table installed) or External codec Kit (multple verb tables installed) will be used : Option items : Platform Onboard , External Kit (Default setting) www.gigaipc.com...
Page 133 2.5.2.13~16) Date on Delay Select SNDW #1 / Date on Delay Select SNDW #2 / Date on Delay Select SNDW #3 / Date on Delay Select SNDW #4 : Option items : 2 clock periods , 3 clock periods (Default setting) www.gigaipc.com...
Page 134 Controller / UART1 Controller / UART2 Controller / UART3 Controller / UART4 Controller / UART5 Controller / UART6 Controller : Disabled (Default setting) / Enabled only for SPI1 Controller 2.7.23) GPIO IRQ Route : IRQ14 (Default setting) / IRQ15 2.7.24) Serial IO SPI1 Settings : www.gigaipc.com...
Page 135 Suggested Setting (Default setting) / Manual Throttling Control 2.9.2) DMI Thermal Setting : Determine if use Intel suggested setting : Suggested Setting (Default setting) / Manual 2.9.3) SATA Thermal Setting : Determine if use Intel suggested setting : Suggested Setting (Default setting) / Manual www.gigaipc.com...
Page 136 2.10.1.4) Enable Rail in S4 : Disabled (Default setting) / Enabled 2.10.1.5) Enable Rail in S5: Disabled (Default setting) / Enabled 2.10.1.6) Active Switch Supported : Disabled (Default setting) / Enabled 2.10.1.7) Normal Active Voltage Supported : Disabled (Default setting) / Enabled www.gigaipc.com...
Page 137 2.10.4.3) External Vnn Icc Max Value : Value are between 0 and 500 mA. 2.10.4.4) External Vnn Voltage Value : Value are in 2.5mV increments. Ex : 0 = 0mV, 1 = 2.5mV, 2 = 5mV 2.10.4.5) External Vnn Sx Icc Max Value : Value are between 0 and 500 www.gigaipc.com...
Page 138 2.21 Disabled / Enabled (Default setting) Reporting 2.22 LPM S0i2.0 Disabled / Enabled (Default setting) 2.23 LPM S0i2.1 Disabled / Enabled (Default setting) 2.24 LPM S0i2.2 Disabled / Enabled (Default setting) 2.25 LPM S0i3.0 Disabled / Enabled (Default setting) www.gigaipc.com...
Page 139 Enabled (Default setting) / Disabled Demotion Latch Events C10 2.44 Enabled / Disabled (Default setting) Exit Hybrid Storage Detection and Dynamic Configuration for Hybrid Storage Enable / Disabled (Default 2.45 Configuration setting) Mode Extended BIOS 2.46 Disabled (Default setting) / Enabled Range Decode www.gigaipc.com...
Page 140: Security
To set up Administrator's password Administrator Minimum length : 3 Password Maximum length : 20 To set up User's password User Password Minimum length : 3 Maximum length : 20 Secure Boot Press <Enter> to configure the advanced items www.gigaipc.com...
Page 141 No : Cancel to restore factory settings Reset To Setup Yes : Agree to setup mode Mode No : Cancel to setup mode Enables expert users to modify Secure boot policy variables without full Key Management authentication Press <Enter> to configure the advanced items www.gigaipc.com...
Page 142 'UEFI CA' from database from DB No : Cancel to remove 'UEFI CA' from database Restore DB variables to fac tor y Restore DB defaults defaults Yes : Agree to restore DB defaults No : Cancel to restore DB defaults www.gigaipc.com...
Page 143: Boot
On (Default setting) / Off Quiet Boot Disabled (Default setting) / Enabled Boot Option #1 Shows the information of the storage that be installed in the system Boot Option #2 Choose/set the boot priority Fast Boot Disabled (Default setting) / Enabled www.gigaipc.com...
Page 144: Save & Exit
Yes : Agree to discard changes and reset and Reset No : Cancel to discard changes and reset Save Changes done so far to any of the setup options. Save Changes Yes : Agree to Save configuration No : Cancel to Save configuration www.gigaipc.com...
Page 145 Yes : Agree to Save configuration Defaults No : Cancel to Save configuration Restore the user defaults to all the setup options Restore User Yes : Agree to restore user defaults Defaults No : Cancel to restore user defaults Boot override Boot override www.gigaipc.com...
