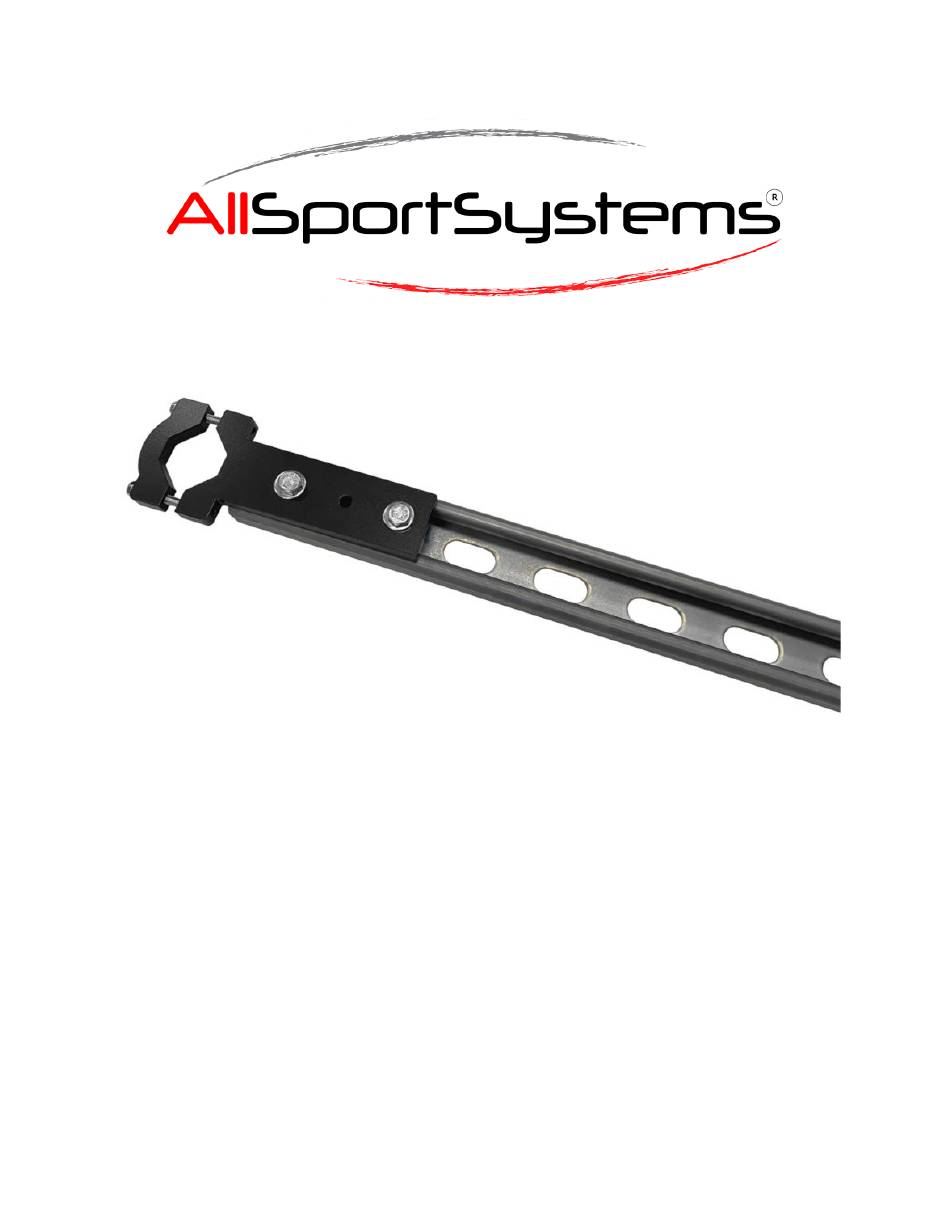

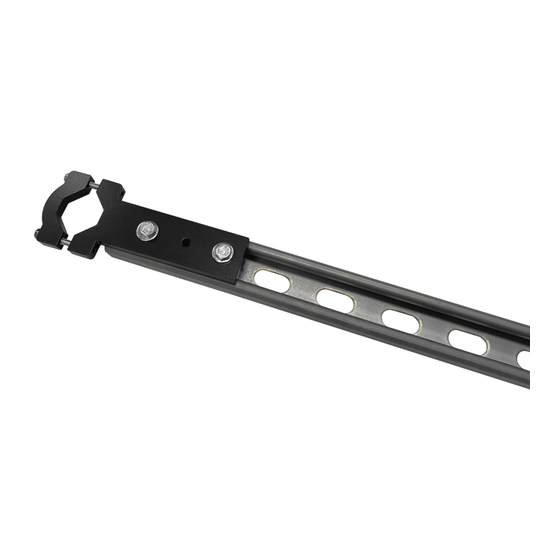

- Page 1 All S portSystems, Inc. © 2020. SkyBridge Installation Guide Page 1 of 9...
- Page 2 All S portSystems, Inc. © 2020. Cutting your strut to size: Just as you would for the width poles in your enclosure, you will need to cut your strut channel to fit within the cage itself. Precut extender kits are available for purchase H ERE Follow the below chart for what lengths you will need to cut your strut channel:...
- Page 3 All S portSystems, Inc. © 2020. Step 1: Attach SkyBridge to Unistrut ● Insert 2 of the included Unistrut nuts into each end of the Unistrut. ● Line up the SkyBridge bracket with the 2 Unistrut nuts. Page 3 of 9...
- Page 4 All S portSystems, Inc. © 2020. ● Using a 7/16” wrench or socket, fasten your SkyBridge bracket to the Unistrut using the included 1/4-20 bolts and washers. ● Remove the clamp using a 5/16” wrench or socket to unscrew it from the bracket.
- Page 5 All S portSystems, Inc. © 2020. Step 2: Attach Unistrut with SkyBridge brackets to your cage. ● Bring the open bracket to the point on your cage where you wish to hang the Unistrut and attach it by screwing the clamp to the bracket going around the pipe or coupling.
- Page 6 All S portSystems, Inc. © 2020. Appendix: ● For cages wider than 10’, you will need to add an extension to reach the sides of your enclosure. Parts Needed: ● 2 each - 4 Hole Unistrut Plate ● 4 each - 2” x ½” Bolts ●...
- Page 7 All S portSystems, Inc. © 2020. Step 1: Line up Unistrut and extender ● Line up the ends of your unistrut and unistrut extender Page 7 of 9...
- Page 8 All S portSystems, Inc. © 2020. Step 2: Begin attaching extender with plate and bolts ● Line up one of the 4 hole unistrut plates with the ends of the unistrut, dropping the four ½” bolts with washers through the holes of the plate.
- Page 9 All S portSystems, Inc. © 2020. ● On the back side of the unistrut, attach the second 4 hole unistrut plate with the four ½” nuts and washers, securing with ¾” wrenches Page 9 of 9...
