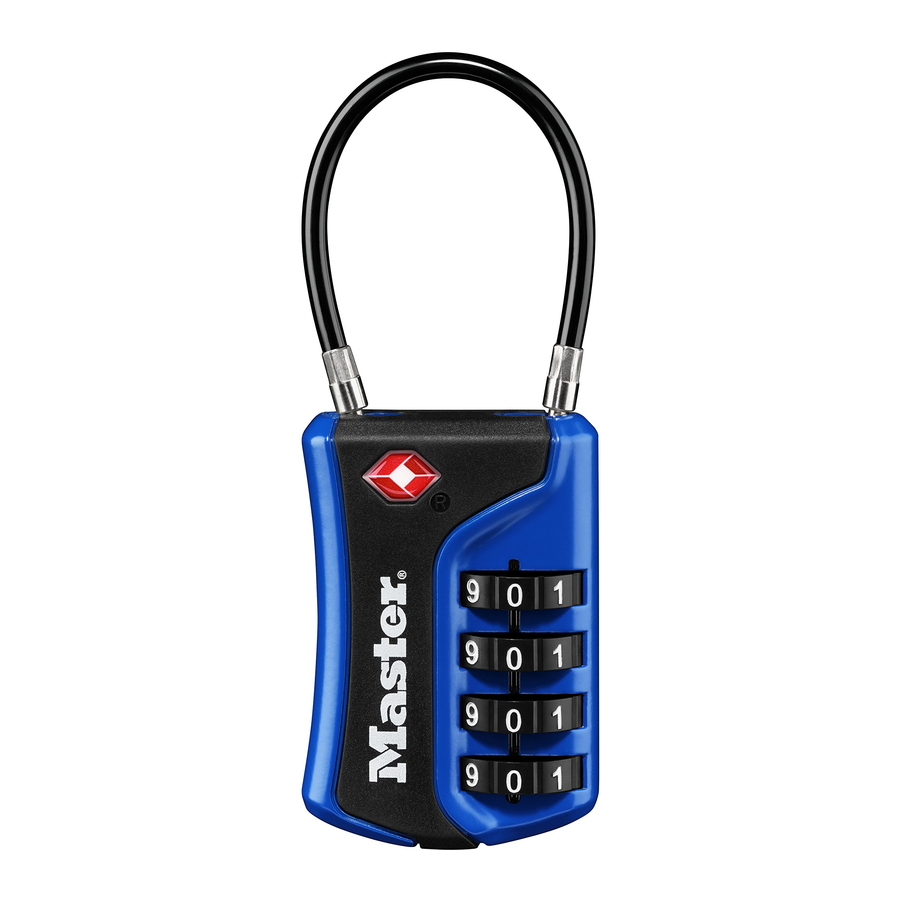

Masterlock 4697 Manual

OPERATING INSTRUCTIONS

This lock is preset at the factory to operate at 0-0-0-0.

To open

1. Adjust dials so the preset factory combination of 0-0-0-0 aligns with the markers.
2. Hold the cable (A) and move toward left. Then pull up the cable.

To set your own combination

1. Open the padlock, and then push the button (B).
2. Continue pressing the button (B) and set the dials to your own combination.
3. Release the button (B), then turn cable to the initial position by sliding right to close the lock.
4. Turn dials to scramble combination.
