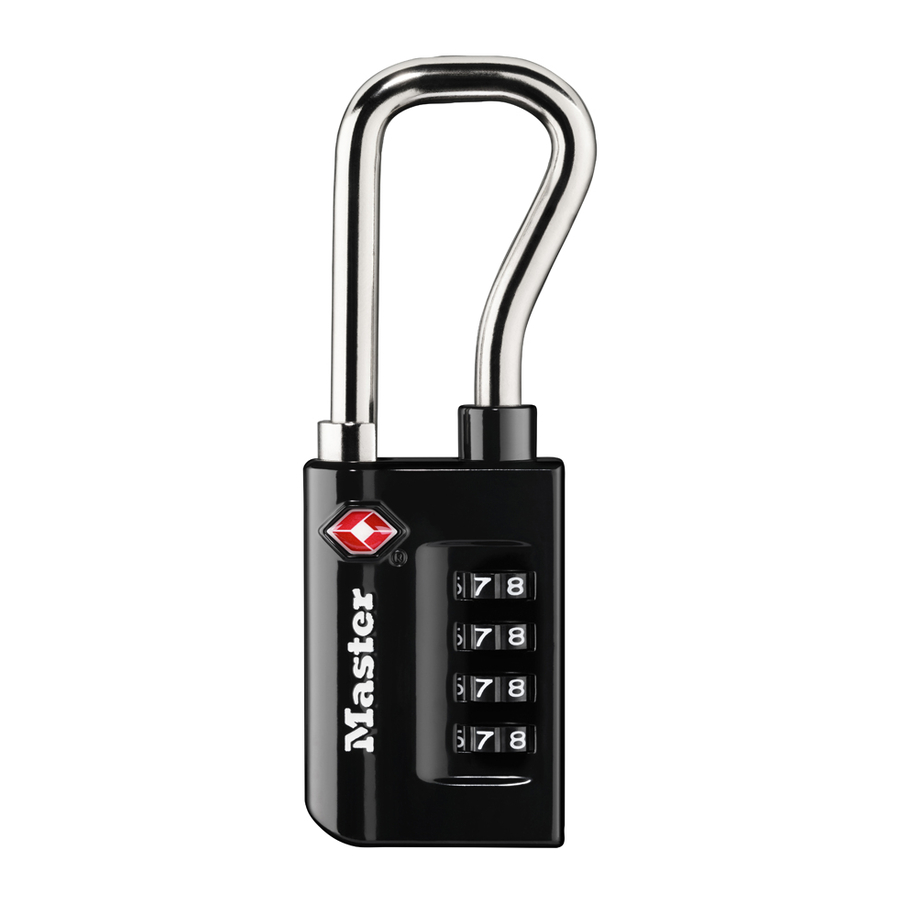

Masterlock 4696 Manual

OPERATING INSTRUCTIONS

This lock is preset at the factory to operate at 0-0-0-0.

To set your own combination

1. Adjust dials so the preset factory combination of 0-0-0-0 aligns with the markers. Pull out the shackle.


2. Turn shackle counterclockwise 90° so the notch on the shackle aligns with the notch in the lock body.


3. Firmly press shackle down into the body of the lock and rotate it counter clockwise an additional 90°. The shackle should be pushed securely inside the body of the lock so it will not come out.


4. Set the dials to your own combination.


5. Rotate the shackle 90° clockwise, then lift and rotate it an additional 90° and insert it into the shackle collar. Scramble the dials.
