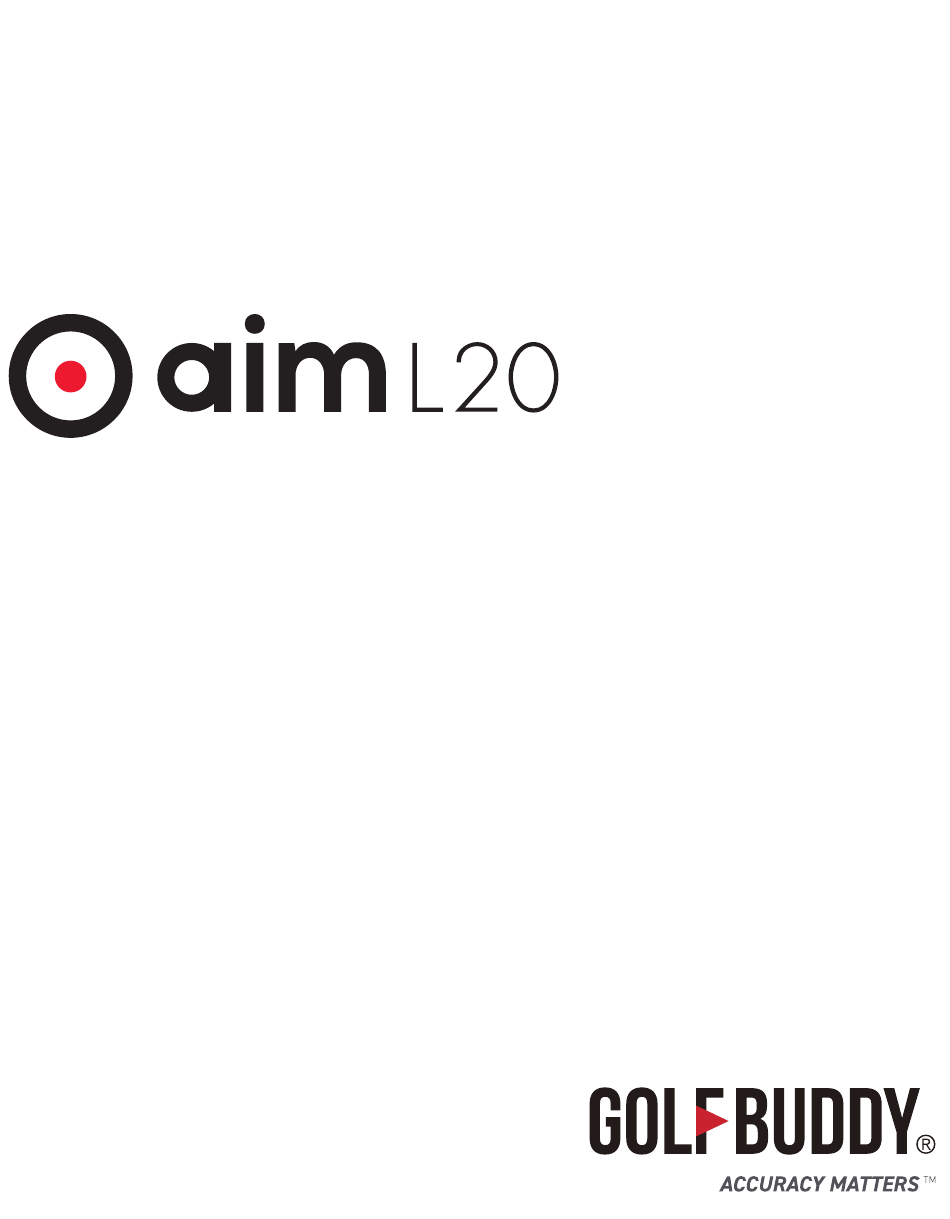

  • Page 1 User Guide...

  • Page 2: Package Includes

    PACKAGE INCLUDES Magnetic Leather Case Carabiner aim L20 User Guide USB C-Type Cable Microfiber Cloth User Guide (※ Charger not included) (For the Lens) APPERANCE Power / Measurement / Mode Button Shot tracking (2) Button Diopter Adjustment Objective Lens 6X Monocular...
  • Page 3 Displays when scan mode is activated Displays when pin mode is activated Measured Distance Height of the Target (Uphill: No indication, Downhill: -) Battery Indicator Displays when shot location is transmitted ※ aim L20 features a OLED that allows brighter and clearer display.

  • Page 4: Getting Started

    GETTING STARTED ▶ How To Charge • Open the protection cover located • It will charge normally without pushing the below the Eyepiece charging cable all the way into the terminal. • Plug in the charging cable to start ※ It may be damaged if excessive force is applied. charging(5V, 2A charger recommended, cable not included) ▶...
  • Page 5 ▶ How to turn ON / OFF Slope • Press the mode button for 5 seconds to turn ON/OFF slope. When the slope is ON, the distance adjusted for the elevation difference is displayed at the top, and the straight line distance and the elevation difference are displayed at the bottom. When the slope is OFF, only the straight line distance is displayed at the top.
  • Page 6 [Standard Mode and Pin Finder Mode] Press and hold Power/ Measurement button to activate Pin finder Mode • Press the Power / Measurement button to display the distance along with vibration. • Press and hold the Power / Measurement button for 2~3 seconds to activate Pin finder mode.
  • Page 7 ▶ Overview of Shot tracking • The shot tracking feature is for recording the current position by pressing ‘SHOT or Power/Measurement button’The current location is transmitted to the smartphone through Bluetooth, so the shot location and route can be reviewed after the round. •...
  • Page 8 ▶ How to use shot tracking [Shot tracking mode 1] • When the shot tracking button is pressed at the desired location, the shot tracking icon blinks for 3 seconds and the location data is transmitted. ※ In shot tracking mode 1, the power can be turned on with the shot tracking button. [Shot tracking mode 2] •...
  • Page 9 SAFETY WARNING, CARE AND MAINTENANCE Please read the manual guide carefully before using the device. - Do NOT aim directly at the sun or an eye(as it may cause eyesight loss). - Do NOT turn the device on while looking into the laser aperture or objective lens(as it may cause eyesignt loss).

  • Page 10: Troubleshooting

    TROUBLESHOOTING ▶ The unit does not turn on. • Press the Power / Measurement button. • When the power doesn’t turn on after pressing the button, check the battery charging level. ▶ The distance is not shown on the display. •...

  • Page 11: Specification

    SPECIFICATION Item Spec. Magnification Physical size 102.8 X 58.7 X 34.7 mm Weight 170g Measuring Speed 0.15seconds Range 2~880Y / 2~800M Accuracy +/- 1 yard Objective lens diameter 20 mm Eye Relief 15.5 mm Battery type Rechargeable (Li-ion) Battery life Min 500 actuations No.
  • Page 14 FCC Warning Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
