Summary of Contents for Leviton N3008-00D

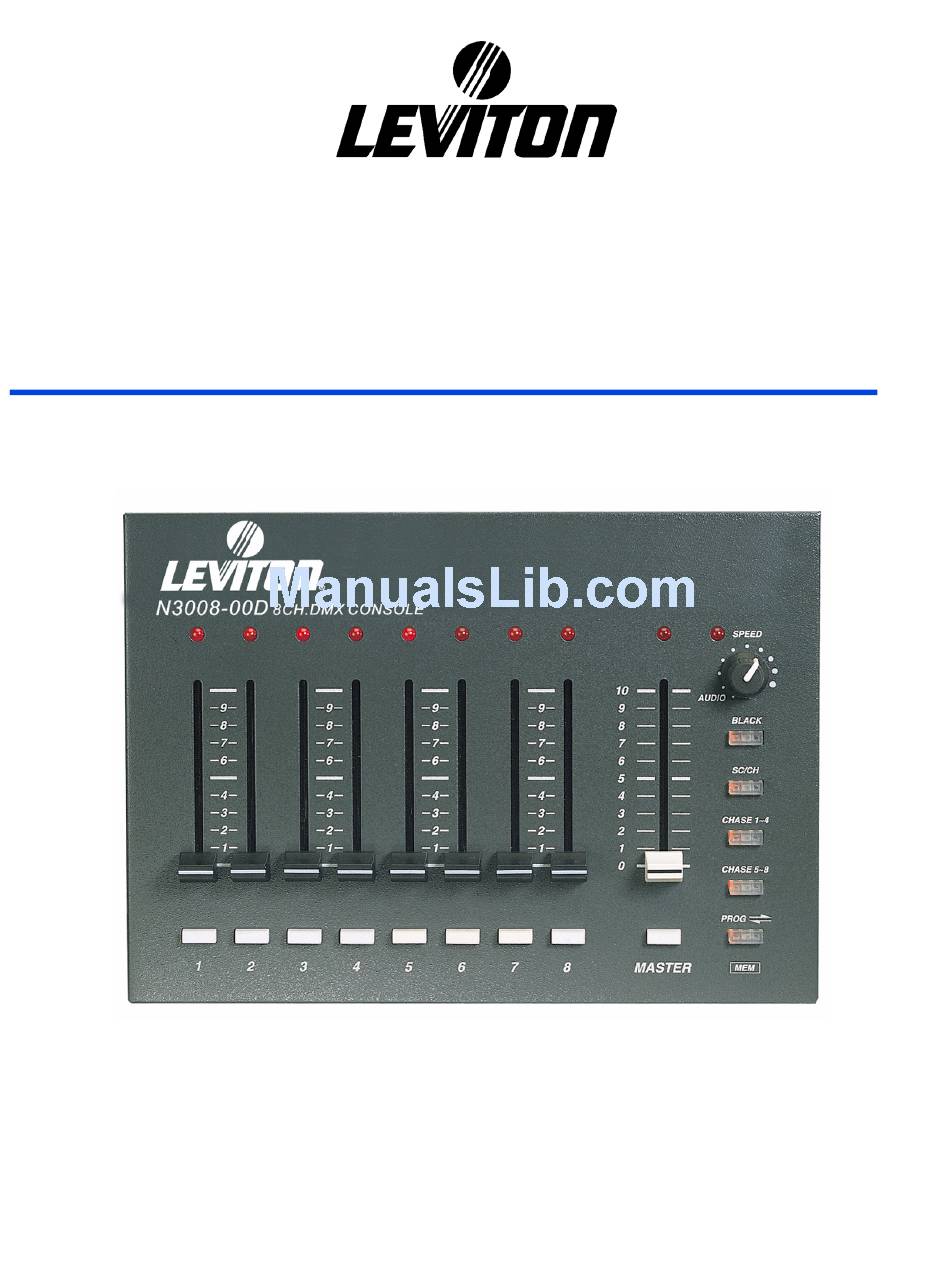

- Page 1 ___________________________ User Guide N3004-00D / N3008-00D (N3008-00D model shown) Document Release Aug. 2006 Revision A...
- Page 2 Leviton will not be responsible for any loss of use time or subsequent damages should any of the equipment fail during the warranty period, but agrees only to repair or replace defective equipment returned to its plant in Tualatin, Oregon.
-
Page 3: Table Of Contents
Table of Contents Chapter 1 Introduction... 1 About the Console ... 2 Features ... 2 Specifications ... 2 Warnings ! ... 2 Console Controls ... 3 Rear Panel ... 4 Audio Sensitivity Control ... 4 Using this Guide ... 5 Text Conventions ... - Page 4 N3004 / N3008 User Guide Page ii...
-
Page 5: Chapter 1 Introduction
Chapter 1 Introduction This chapter is intended to orient you to the Console and User Guide. The following sections are covered: • About the Console • Features • Specifications • Warnings • Console Controls • Rear Panel • Audio Sensitivity Control •... -
Page 6: About The Console
There are no user serviceable parts inside. Do not attempt any repairs yourself, as doing so will void the warranty. Please contact Leviton Technical Support if the unit is not functioning properly. If the unit has been stored in a cold environment (below 40ºF), do not turn the power on until it warms up or else damage may occur. -
Page 7: Console Controls
Console Controls Rev. A Master Fader Master Bump Button Chase / Audio Speed Control Black Out Button Scene / Channel Mode Button Chase 1 Button Chase 2 Button Memory Program / Chase Direction Button Channel / Scene Level LED Channel / Scene Faders Channel / Scene Bump Buttons Page 3... -
Page 8: Rear Panel
Chapter 1 Introduction Rear Panel Audio Sensitivity Control Page 4 N3004 / N3008 User Guide... -
Page 9: Using This Guide
1-800-959-6004. Please have the console model number and serial number as found on the back panel of the console available when you call. Contact Information Leviton Lighting Management Systems Division 20497 SW Teton, Tualatin, OR 97062 Mailing Address:... - Page 10 Chapter 1 Introduction N3004 / N3008 User Guide Page 6...
-
Page 11: Chapter 2 Operation
Chapter 2 Operation The following sections are covered in this chapter: • Setting Channel Levels • Master Fader • Master Bump Button • Channel Faders • Channel Bump Buttons • Scenes • Recording Scenes • Recalling Scenes • Scene Bump Buttons •... -
Page 12: Setting Channel Levels
Chapter 2 Operation Setting Channel Levels Master Fader The Master Fader is used to proportionally control the output of all the console channels. For example, if the level of channel 1 is at 80% and the master is set at 50%, the actual output of channel 1 will be 40%. -
Page 13: Scenes
Scenes Depending on the model, up to 8 scenes may be recorded for playback. Once channel levels are recorded, the scene can be recalled by either raising the scene’s fader or pressing the corresponding bump button. Recording Scenes The following example shows how to record channels into a simple scene: Procedure: 1. -
Page 14: Chases
Chapter 2 Operation Chases As mentioned earlier, a Chase is a series of factory programmed individual channel patterns or user recorded scenes that can be played back in a continuous loop. The [SPEED] control adjusts the step rate of the chase which is indicated by an LED that will flash whenever the chase is activated. The direction of the chase can be reversed by pressing the [PROG] button. -
Page 15: Scene Chase
Scene Chase Recording Scenes To initiate a scene chase, record scenes 1-4 as shown in the above section, then follow the example below: Procedure: Notes: 1. Press [SC/CH] until LED is On 2. Raise Master Fader to 100% (full) 3. Raise Faders 1-4 to 100% (full) 4. - Page 16 Chapter 2 Operation N3004 / N3008 User Guide Page 12...
- Page 18 Copyright © 2006 Leviton Manufacturing Company Incorporated. All Rights Reserved. Information contained herein is subject to change without notice. Document Release Aug. 2006. Rev. A P/N PK-93377-10-00-5A Leviton Lighting Management Systems Division 20497 SW Teton, Tualatin, OR 97062 Mailing Address:...
