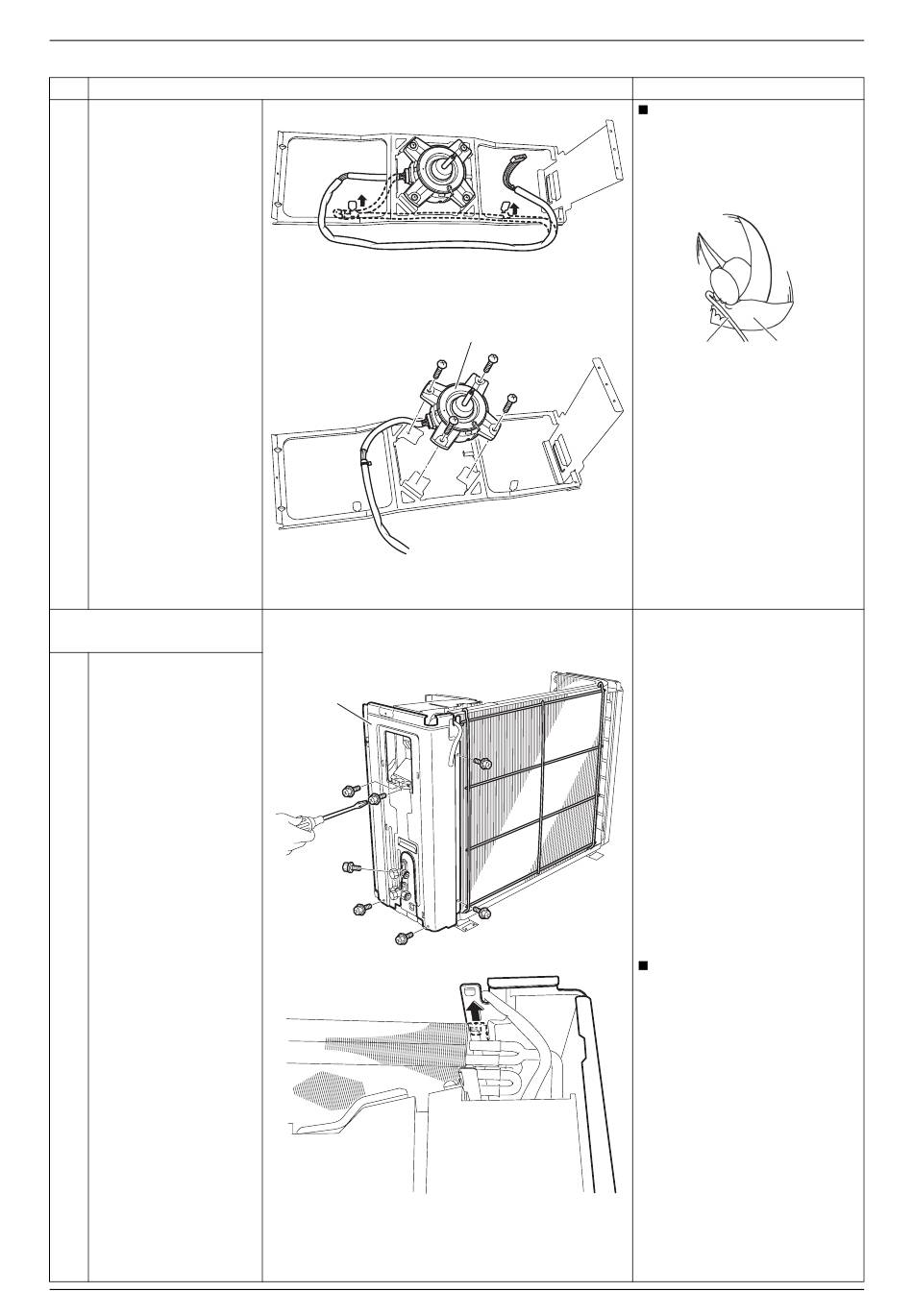

Daikin RXG25JV2C Removal Procedure page 9

Si001068
Step
8 Release the fan motor
lead wire from the 2
hooks.
Remove the 4 screws
9
and remove the fan
motor.
4. Remove the right side
panel.
Remove the 7 screws
1
on the right side panel.
Unfasten the hook on
2
the rear side.
Removal Procedure
Procedure
Right side panel
Removal of Outer Panels / Fan Motor
(R12579)
Fan motor
(R12580)
(R15670)
(R12584)
Points
When reassembling, put the
fan motor lead wire through
the back of the fan motor so
as not to be entangled with
the outdoor fan.
Lead wire Outdoor fan
(R12215)
When reassembling, make
sure to fit the hook.
7
