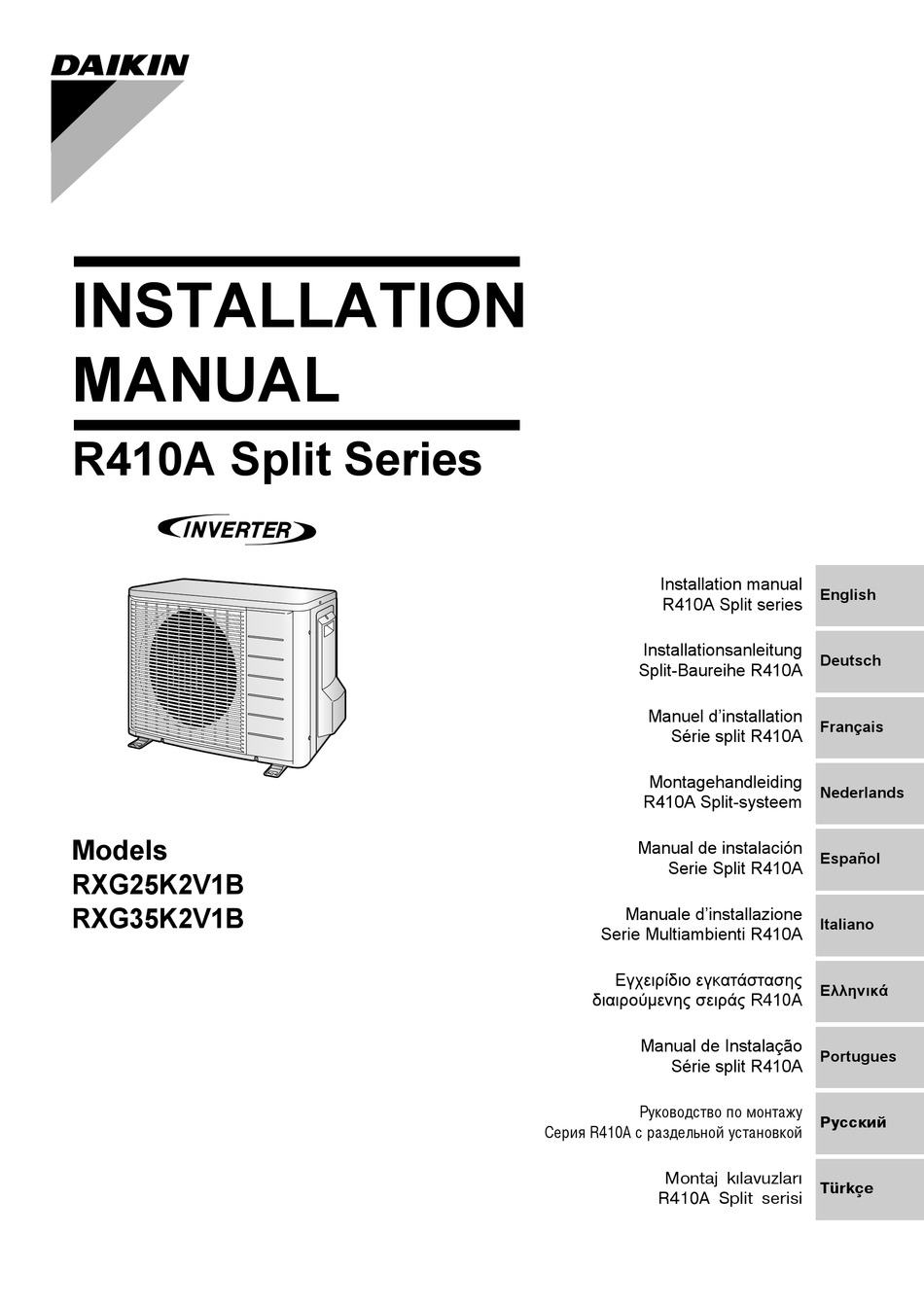

INSTALLATION
MANUAL
R410A Split Series
Models
RXG25K2V1B
RXG35K2V1B
Installation manual
R410A Split series
Installationsanleitung
Split-Baureihe R410A
Manuel d'installation
Série split R410A
Montagehandleiding
R410A Split-systeem
Manual de instalación
Serie Split R410A
Manuale d'installazione
Serie Multiambienti R410A
Εγχειρßδιο εγκατÜστασηò
διαιροýìενηò σειρÜò R410A
Manual de Instalação
Série split R410A
Рóêоводство по монтажó
Серия R410A с раздельной óстановêой
Montaj kýlavuzlarý
R410A Split serisi
English
Deutsch
Français
Nederlands
Español
Italiano
ΕλληνικÜ
Portugues
Рóссêий
Türkçe
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Daikin RXG25K2V1B
Summary of Contents for Daikin RXG25K2V1B
- Page 1 Split-Baureihe R410A Manuel d’installation Français Série split R410A Montagehandleiding Nederlands R410A Split-systeem Models Manual de instalación Español Serie Split R410A RXG25K2V1B RXG35K2V1B Manuale d’installazione Italiano Serie Multiambienti R410A Εγχειρßδιο εγκατÜστασηò ΕλληνικÜ διαιροýìενηò σειρÜò R410A Manual de Instalação Portugues Série split R410A Рóêоводство...
- Page 2 3SB64564-15G...
- Page 3 3SB64417-13L...
-
Page 5: Safety Precautions
Safety Precautions • The precautions described herein are classified as WARNING and CAUTION. They both contain important information regarding safety. Be sure to observe all precautions without fail. • Meaning of WARNING and CAUTION notices WARNING ..Failure to follow these instructions properly may result in personal injury or loss of life. CAUTION .. -
Page 6: Precautions For Selecting The Location
Accessories Accessories supplied with the outdoor unit: (A) Installation manual (B) Drain plug (Heat pump model) (C) Refrigerant charge label There is on the bottom packing case. (D) Multilingual fluorinated greenhouse gases label Precautions for Selecting the Location 1) Choose a place solid enough to bear the weight and vibration of the unit, where the operation noise will not be amplified. 2) Choose a location where the hot air discharged from the unit or the operation noise will not cause a nuisance to the neighbours of the user. -
Page 7: Outdoor Unit Installation Drawings
Outdoor Unit Installation Drawings Max. allowable length Min. allowable length 1.5m Max. allowable height Wrap the insulation pipe with Additional refrigerant the finishing tape from bottom required for refrigerant to top. 20g/m pipe exceeding 10m in length. Gas pipe O.D. 9.5mm Liquid pipe O.D. -
Page 8: Precautions On Installation
Installation Guidelines • Where a wall or other obstacle is in the path of outdoor unit’s inlet or outlet airflow, follow the installation guidelines below. • For any of the below installation patterns, the wall height on the outlet side should be 1200mm or less. Wall facing one side Walls facing two sides More than 50... - Page 9 Outdoor Unit Installation Flaring the pipe end (Cut exactly at 1) Cut the pipe end with a pipe cutter. right angles.) Remove burrs. 2) Remove burrs with the cut surface facing downward so that the chips do not enter the pipe. Flaring Set exactly at the position shown below.
- Page 10 Purging air and checking gas leakage • When piping work is completed, it is necessary to purge the air and check for gas leakage. WARNING • Do not mix any substance other than the specified refrigerant (R410A) into the refrigeration cycle. •...
- Page 11 Outdoor Unit Installation Refilling the refrigerant Check the type of refrigerant to be used on the machine nameplate. Precautions when adding R410A Fill from the liquid pipe in liquid form. It is a mixed refrigerant, so adding it in gas form may cause the refrigerant composition to change, preventing normal operation. 1) Before filling, check whether the cylinder has a siphon attached or not.
-
Page 12: Standby Electricity Saving
Standby Electricity Saving The standby electricity saving function turns off power supply to the outdoor unit and sets the indoor unit into standby electricity saving mode, thus reducing the power consumption of the air conditioner. CAUTION • The standby electricity saving function cannot be used for models other than the specified ones. ■... -
Page 13: Pump Down Operation
Pump Down Operation In order to protect the environment, be sure to pump down when relocating or disposing of the unit. 1) Remove the valve cap from liquid stop valve and gas stop valve. Hexagonal 2) Carry out forced cooling operation. wrench Liquid 3) After 5 to 10 minutes, close the liquid stop valve with a hexagonal wrench. - Page 14 Wiring WARNING • Do not use tapped wires, stranded wires, extension cords, or starburst connections, as they may cause overheating, electrical shock, or fire. • Do not use locally purchased electrical parts inside the product. (Do not branch the power for the drain pump, etc., from the terminal block.) Doing so may cause electric shock or fire.
-
Page 15: Trial Operation And Testing
Trial Operation and Testing Trial operation and testing 1-1 Measure the supply voltage and make sure that it falls in the specified range. 1-2 Trial operation should be carried out in either cooling or heating mode. • In cooling mode, select the lowest programmable temperature; in heating mode, select the highest programmable temperature. - Page 16 Two-dimensional bar code is a code for manufacturing. 3P254362-3E M10B207 (1102) HT...
