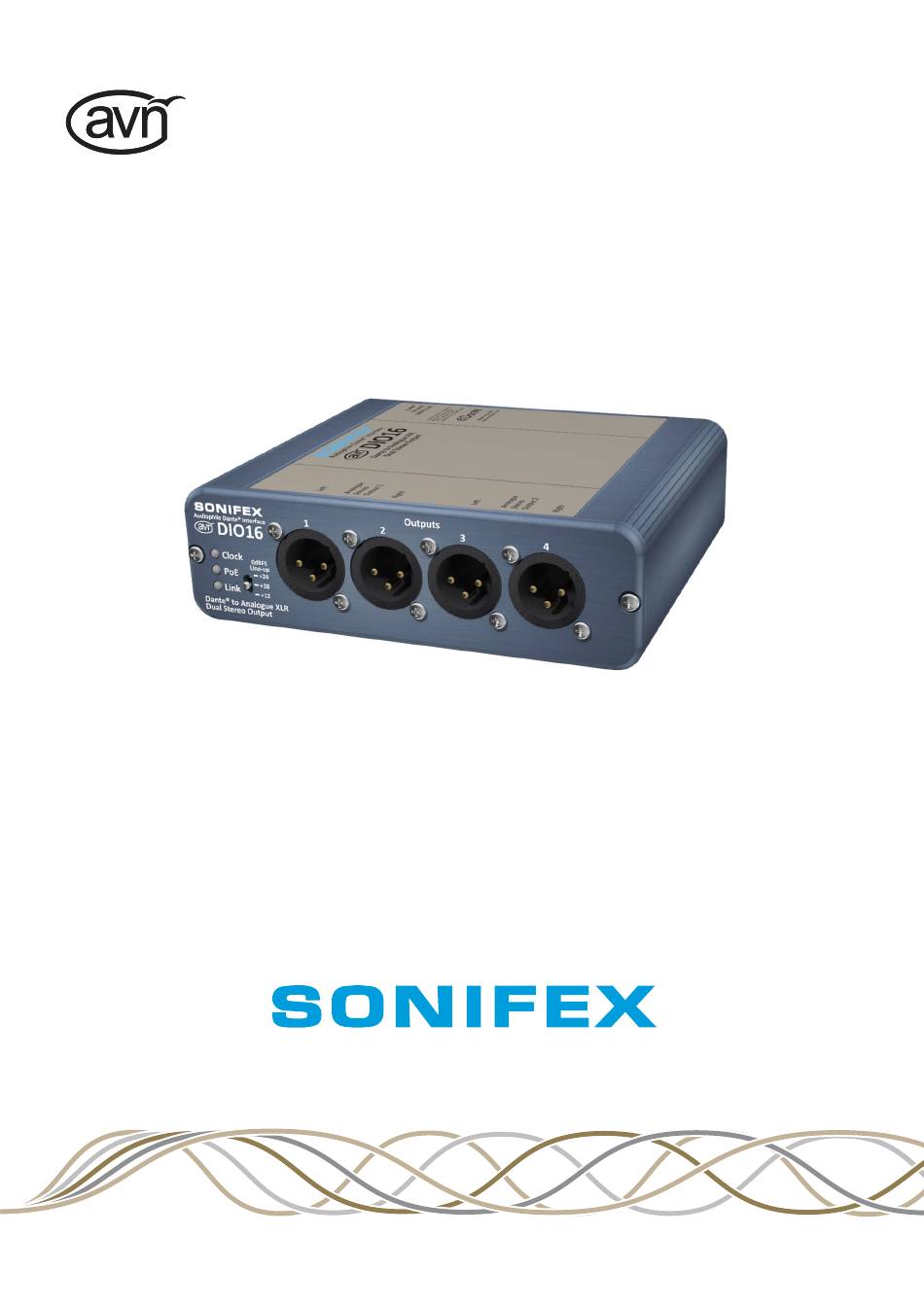

- Page 1 AVN-DIO16 Dante to 4 Analogue XLR Outputs ® Handbook Manufacturers of Audio Products for AV, Installed Sound, Broadcast Radio & Broadcast TV...
- Page 2 Contract. A reference to the consent, commitment on the part of the vendor. Sonifex Ltd shall not be liable for any loss or damage whatsoever arising from the use of information or any error contained in this manual.
- Page 3 (WEEE). out in Condi�on (a). The policy of Sonifex Ltd is to comply with all applicable laws of all Subject to Condi�on (e) no representa�on, condi�on, warranty or jurisdic�ons having authority over Sonifex’s business, including the WEEE other term, express or implied (by statute or otherwise) is given by the direc�ve.
- Page 4 Controller AVN-DIO Fig 2: AVN-DIO16 Rear Panel The AVN-DIO16 is a 4 analogue XLR output to Dante converter in the Sonifex Audio DIO range of Dante input/output devices. It features four balanced analogue XLR outputs and one Neutrik etherCON connector for direct connec�on to a Dante AoIP network.
- Page 5 AVN-DIO16 Handbook Network Troubleshooting If the device does not show up in Dante Controller please check that the Ethernet cable is correctly connected and that the device and computer are on the same network. If the computer and the device are on different IP subnets, the device will...
- Page 6 • Device Name • Sample Rate • Encoding • Clocking • Device Latency An op�on is also available to clear the configura�on, rese�ng all se�ngs to their default values. Fig 1-6: AVN-DIO16 Iso View Shown with AVN-DIOBT Brackets and Belt Clip A�ached...
- Page 7 Equipment Type AVN-DIO16: 4 Analogue XLR Outputs to Dante® Physical Specifica�on Fig 1-8: AVN-DIO16 Front Iso View Shown without Accessories Dimensions (Raw): 14.0cm (W) x 13.6cm (D) x 4.2cm (H) 5.5” (W) x 5.4” (D) x 1.7” (H) Dimensions (Boxed): 17.8cm (W) x 17cm (D) x 5.6cm (H)
- Page 8 AVN-DIO16 Handbook w w w . s o n i f e x . c o . u k t:+44 (0)1933 650 700 f:+44 (0)1933 650 726 sales@sonifex.co.uk...
