4 RB-DAC1 Digital to Analogue Converter

Introduction

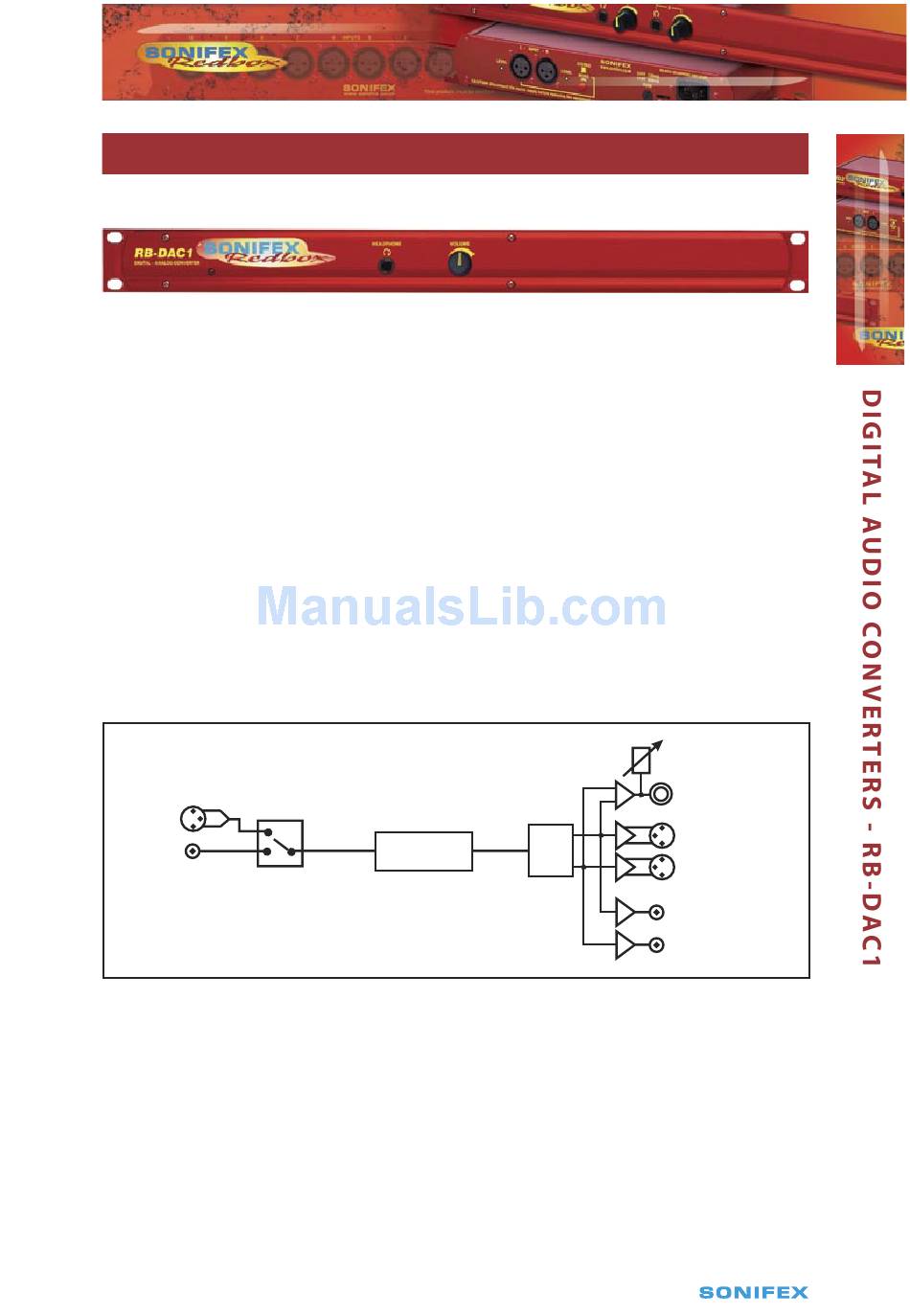

Fig 4-1: RB-DAC1 Front Panel
Using 24 bit, 96kHz capable devices, the RB-DAC1 Digital to Analogue Converter is a 1U
rack-mount which produces a stereo balanced XLR or unbalanced phono output from an
incoming AES/EBU or S/PDIF digital input signal. There is also a headphone output for
monitoring purposes.
The analogue outputs have an output level control, allowing full-scale settings selectable
from +12dBu, +18dBu or +24dBu. De-emphasis on the output can be enabled via
dipswitch.
There is a button to select either the AES/EBU or S/PDIF input for the D/A converter, which is
located on the rear panel.
When operating, the front panel power LED flashes whenever the unit is not synchronised
to the incoming digital signal.

System Block Diagram

AES/EBU
Digital
Input
Digital Source
S/PDIF
Selector
Fig 4-2: RB-DAC1 System Block Diagram
Redbox User Handbook No 1
DIGITA L AUDI O CONV ERT ERS
AES
DAC
Receiver
4
Volume Control
Stereo
Headphone
Output
L
Professional
Output
R
L
Consumer
Output
R
