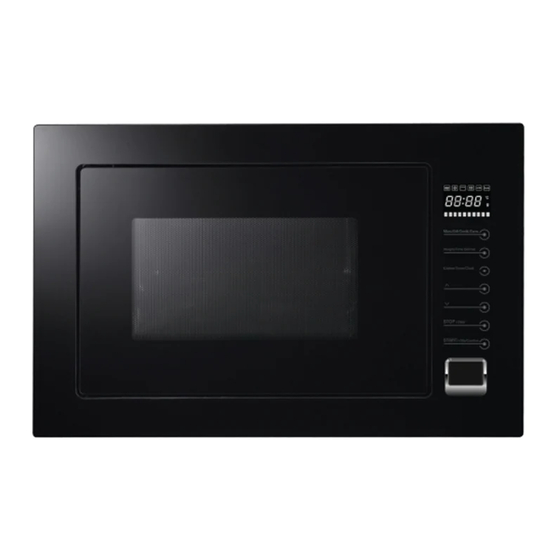

- Page 1 Built-in Microwave oven MODEL:TC925B8D Read these instructions carefully before using your microwave oven,and keep it carefully. If you follow the instructions, your oven will provide you with many years of good service. SAVE THESE INSTRUCTIONS CAREFULLY...
-
Page 3: Precautions To Avoid Possible Exposure To Excessive Microwave Energy
If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation. Sp ec i f i c at i o n s TC925B8D Model: Rated Voltage: 230-240V~50Hz... -
Page 4: Important Safety Instructions Warning
IMPORTANT SAFETY INSTRUCTIONS WARNING To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following: 1. Read and follow the specific:"PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY". - Page 5 6. WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy. 7. WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
- Page 6 16.Only use the temperature probe recommended for this oven.(for ovens provided with a facility to use a temperature-sensing probe.) 17.The microwave oven must be operated with the decorative door open. (for ovens with a decorative door.) 18.This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments;...
-
Page 7: Read Carefully And Keep For Future Reference
23. The microwave oven is intended to be used built-in. 24. Steam cleaner is not to be used. 25. Surface of a storage drawer can get hot. 26. WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. -
Page 8: To Reduce The Risk Of Injury To Persons Grounding Installation
To Reduce the Risk of Injury to Persons Grounding Installation DANGER Consult a qualified electrician or serviceman Electric Shock Hazard if the grounding instructions Touching some of the are not completely internal components can understood or if doubt exists cause serious personal as to whether the appliance injury or death. -
Page 9: Utensils Caution
CLEANING Be sure to unplug the appliance from the power supply. 1. Clean the cavity of the oven after using with a slightly damp cloth. 2. Clean the accessories in the usual way in soapy water. 3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty. - Page 10 Materials you can use in microwave oven Utensils Remarks Browning dish Follow manufacturer’s instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break. Dinnerware Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
-
Page 11: Setting Up Your Oven
SETTING UP YOUR OVEN Names of Oven Parts and Accessories Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories: Glass tray Turntable ring assembly Instruction Manual A) Control panel B) Turntable shaft C) Turntable ring assembly D) Glass tray E) Observation window... -
Page 12: Installation And Connection
Installation and connection 1.This appliance is only intended for domestic use. 2.This oven is intended for built-in use only. It is not intended for counter-top use or for use inside a cupboard. 3. Please observe the special installation instructions. 4.The appliance can be installed in a 60cm wide wall- mounted cupboard. -
Page 13: Installation Instructions
Installation Instructions Please Read the Manual Carefully Before Installation Please note Electrical connection The oven is fitted with a plug and must only be connected to a properly installed earthed socket. The socket must only be installed and the connecting cable must only be replaced by a qualified electrician, and in accordance with the appropriate regulations. - Page 14 B.Prep are the cab i inet 1. Read the instruction on the BOTTOM CANINET TEMPLATE , put the template on the bottom plane of cabinet. CENTER LINE FRONT EDGE 2. Make the marks on the bottom plane of cabinet according to marks"a" of the template Screw Bracket...
- Page 15 C .Install the oven 4. Install the oven to the cabinet - Make sure the back of the oven is locked by bracket. - Do not trap or kink the power cord. bracket 5. Open the door, fix the oven to the cabinet with Screw , at the installation hole. Then fix the Trim-kit plastic cover to the installation hole.
- Page 16 Operation Instructions 1. Clock Setting When the microwave oven is electrified, the LED will display "0:00", buzzer will ring once. 1) Press " Kitchen Timer/ Clock " twice to select clock function, the hour figures will flash. 2) Press " "...
- Page 17 " Microwave/Grill/Combi./Conve." Pad instructions Microwave Order Display Power 100% P100 3. Grill or Combi. Cooking Microwave/Grill/Combi./Conve. Press " " once, the LED will display "P100", and the " " will be lighted. Microwave/Grill/Combi./Conve. press " " for times or press '' '' to choose the grill or combination mode , and "G", "C-1", "C-2", "C-3"...
- Page 18 4. Convection Cooking(With preheating funtion) The convection cooking can let you to cook the food as a traditional oven. Microwave is not used. It is recommended that you should preheat the oven to the appropriate temperature before placing the food in the oven. Microwave/Grill/Combi./Conve.
- Page 19 6. Defrost By Weight 1) Press " " once, and the oven will display "dEF1". Weight/Time Defrost 2) Press " " to select the weight of food from 100 to 2000 g. The " " the " " will be lighted. 3) Press "...
- Page 20 The automatic menu procedure: Menu Weight Display Power 150g 250g 350g 100% AUTO REHEAT 450g 600g 1 (about 230g) A2 POTATO 2 (about 460g) 100% 3 (about 690g) 150g 300g 100% MEAT 450g 600g 150g A4 VEGETABLE 350g 100% 500g 150g 250g 350g...
- Page 21 11. Speedy Cooking (1)In waiting state, press " START/+30SEC./CONFIRM" key to cook with 100% power level for 30 seconds. Each press on the same key can increase 30 seconds. The maximum cooking time is 95 minutes. (2)In microwave,grill,convection ,combination cooking state or time defrost state, press "...
- Page 22 Trouble shooting It is forbidden to run the unit without any food inside. It is very dangerous. According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste.
