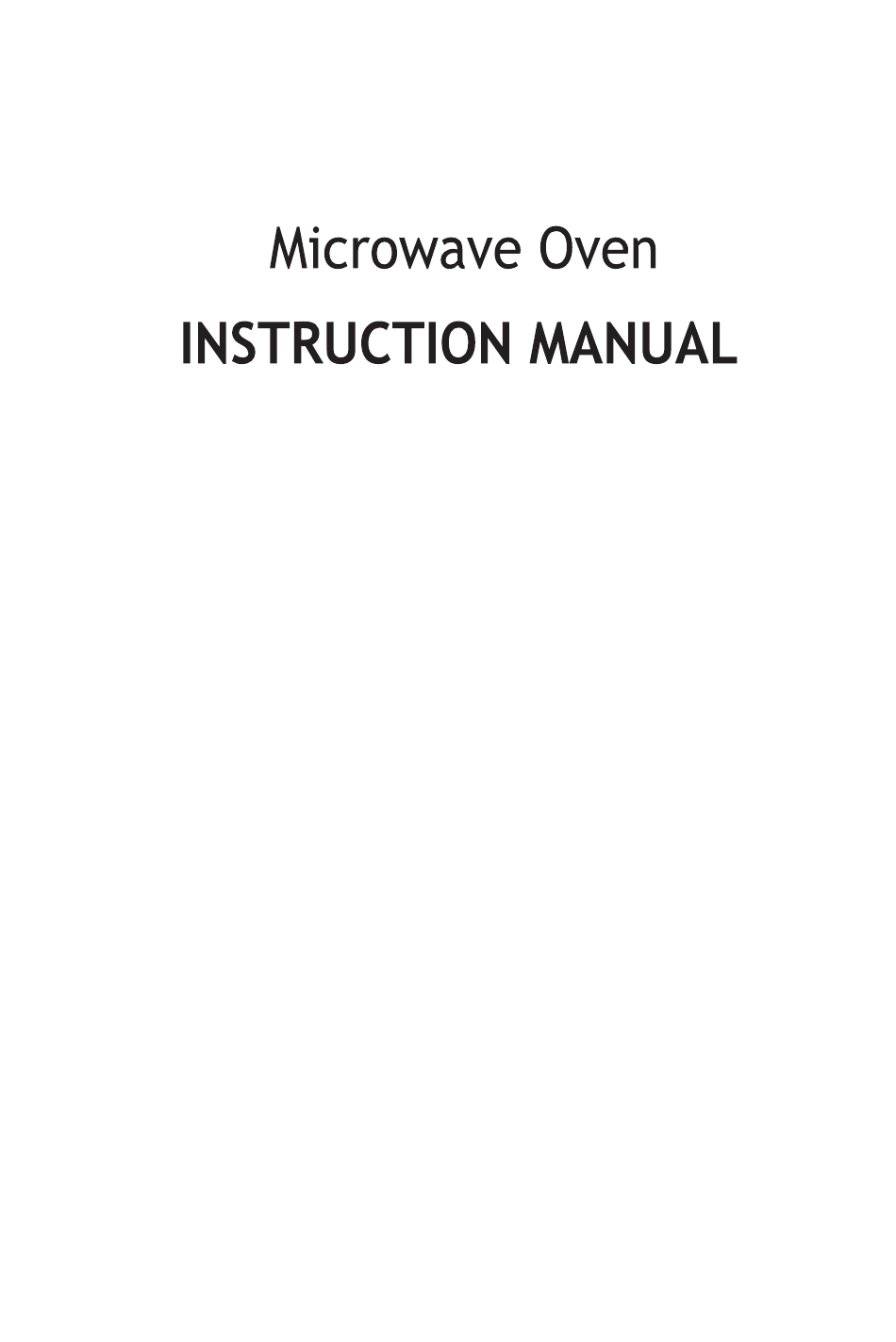

Model:TC051K6BW-S
Read these instructions carefully before using your
microwave oven, and keep it carefully.
If you follow the instructions, your oven will provide you with
many years of good service.
SAVE THESE INSTRUCTIONS CAREFULLY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TC051K6BW-S and is the answer not in the manual?

Questions and answers

Related Manuals for Midea TC051K6BW-S

Summary of Contents for Midea TC051K6BW-S

  • Page 1 Model:TC051K6BW-S Read these instructions carefully before using your microwave oven, and keep it carefully. If you follow the instructions, your oven will provide you with many years of good service. SAVE THESE INSTRUCTIONS CAREFULLY...

  • Page 2: Precautions To Avoid Possible Exposure To Excessive Microwave Energy

    (3) DOOR SEALS AND SEALING SURFACES (d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel. Sp ec i f i c at i o n s Model: TC051K6BW-S Rated Voltage: 120V~ 60Hz Rated Input Power (Microwave): 1650W...
  • Page 3 IMPORTANT SAFETY INSTRUCTIONS When using electrical appliances basic safety precautions should be followed, including the following: WARNING - To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy: 1. Read all instructions before using the appliance. 2.
  • Page 4 17. Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling point without appearing to be boiling. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THIS COULD RESULT IN VERY HOT LIQUID SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A UTENSIL IS INSERTED INTO THE LIQUID.

  • Page 5: Grounding Instructions

    GROUNDING INSTRUCTIONS This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

  • Page 6: Radio Interference

    RADIO INTERFERENCE 1. Operation of the microwave oven may cause interference to your radio, TV or similar equipment. 2. When there is interference, it may be reduced or eliminated by taking the following measures: 1) Clean door and sealing surface of the oven 2) Reorient the receiving antenna of radio or television.
  • Page 7 UTENSILS CAUTION - Personal Injury Hazard Tightly-closed utensils could explode. Closed containers should be opened and plastic pouches should be pierced before cooking. See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not safe to use for microwaving.

  • Page 8: Installation Instructions

    INSTALLATION INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS This product requires a three-prong grounded outlet. The installer must perform a ground continuity check on the power outlet box before beginning the installation to ensure that the outlet box is properly grounded. If not properly grounded, or if the outlet box does not meet electrical requirements noted (under ELECTRICAL REQUIREMENTS), a qualified electrician should be employed to correct any deficiencies.

  • Page 9: Electrical Requirements

    You should have the wall receptacle and circuit checked by a qualified electrician to make sure the receptacle is properly grounded. Where a standard two-prong wall receptacle is encountered, it is very important to have it replaced with a properly grounded three-prong wall receptacle, installed by a qualified electrician.

  • Page 10: Additional Parts

    PARTS INCLUDED (CONT.) ADDITIONAL PARTS PART QUANTITY Top Cabinet Template RearWall Template Installation Instructions Separately Packed Grease Filters Exhaust adaptor Glass Tray Turntabl Ring For some models Convection wire rack For some models Shelf...

  • Page 11: Tools You Will Need

    Tools you will need: • Tape measure • #1 Phillips screw driver • Hole saw • Electric drill • Stud finder or hammer • 3/16”, 1/2”, 5/8” drill bit • Level • Filler wood blocks for recessed bottom cabinets • Duct and masking tape •...

  • Page 12: Removing The Microwave Oven From The Carton/ Removing The Mounting Plate

    1. PLACEMENT OF THE MOUNTING 1 PLATE A. REMOVING THE MICROWAVE OVEN FROM THE CARTON/ REMOVING THE MOUNTING PLATE 1. Remove the installation instructions,use and care, exhaust adapter, turntable ring, shelf, filters, glass tray and the small hardwarebag. Do not remove the Styrofoam protecting the front of the oven.
  • Page 13 3. Pull the carton up and off the oven. 4. Cut the middle of the out erprotective plastic bag to remove the mounting plate. Screws Screws Mounting Plate 5. Remove the screws from each end of the mounting plate. This plate will be used as the rear wall template and for mounting.

  • Page 14: Determining Wall Plate Location Under Your Cabin Et

    C. DETERMINING WALL PLATE LOCATION UNDER YOUR CABIN ET Plate position-beneath flat bottom cabinet. 1/4" Minimum clearance NOT E: IT IS VER REA D Y IMPO IN THE AND FOL RTA NT INST ALLA LOW THE BEF ORE DIRE CTIO PRO CEE TION INST REA R...
  • Page 15 Plate position-beneath framed recessed cabinet bottom 1/4" Minimum clearance NOT E: IT IS VER REA D Y IMPO IN THE AND FOL RTA NT INST ALLA LOW THE BEF ORE DIRE CTIO PRO CEE TION INST REA R RUC TION WAL L DING WITH This Rear...
  • Page 16 D. ALIGNING THE WALL PLATE 3/8" TO EDGE 12" Trim the rear wall template along the dotted line. NOTE: IT IS VERY IMPORTANT TO READ AND FOLLOW THE DIRECTIONS IN THE INSTALLATION INSTRUCTIONS BEFORE PROCEEDING WITH THIS REAR WALL TEMPLATE. This Rear Wall Template serves to position the bottom 4"...

  • Page 17: Installation Types (Choose A, B Or C)

    2. INSTALLATION TYPES (Choose A, B or C) This microwave oven is designed for adaptation to the following three types of ventilation: A. Recirculating (Non-Vented Ductless) B. Outside Back Exhaust (Horizontal Duct) C. Outside Top Exhaust (Vertical Duct) NOTE: This microwave is shipped assembled for Recirculating. Select thetype of ventilation required for your installation and proceed to that section.

  • Page 18: Outside Top Exhaust (Vertical Duct)

    C. OUTSIDE TOP EXHAUST (VERTICAL DUCT) Adaptor in Place for Outside Top Exhaust See page 20 NOTE: Read the pages 14-15 only if you plan to vent your exhaust to the outside. If you plan to recirculate the air back into the room, proceed to page 10. A.
  • Page 19 A1. ATTACH THE MOUNTING PLATE TO THE WALL Attach the plate to the wall using toggle bolts. At least one wood screw must be used to attach the plate to a wall stud. NOTE: If the cabinet depth including the cabinet doors is more than 13'' then the unit must be spaced out from wall using adequate materials supporting 150 Ibs to allow proper top vent air exhaust/intake.
  • Page 20 3. Place the mounting plate against the wall and insert the toggle wings into the holes in the wall to mount the plate. NOTE: Before tightening toggle bolts and wood screw, make sure the bott m of the mounting plate touch the bottom of the cabinet when pushed flush against the wall and that the plate is properly centered under the cabinet.
  • Page 21 A4. MOUNT THE MICROWAVE OVEN FOR EASIER INSTALLATION AND PERSONAL SAFETY, WE RECOMMEND THATTWO PEOPLE INSTALL THIS MICROWAVE OVEN. IMPORTANT: Do not grip or use the handle or heat shield during installation. Do not remove the cardboard spacers between the heat shield and door. NOTE: If your cabinet is metal, use the nylon grommet around the power cord hole to prevent cutting of the cord.
  • Page 22 Cabinet Front Cabinet Bottom Shelf Filler Block Equivalent to Depth of Cabinet Recess Self-Aligning Screw Microwave Oven Top A4. Attach the microwave oven to the top cabinet. A4. MOUNT THE MICROWAVE OVEN (cont.) 5. Insert 2 self-aligning screws through outer top cabinet holes.
  • Page 23 A5. INSTALLING OR CHANGE THE CHARCOAL FILTER (Some Models) NOTE: The charcoal filter is factory installed in some models. Refer to the Use and Care to see if yours is factory installed and for replacement information. For models without the recirculation filter access door,follow these steps to replace or install a charcoal filter.
  • Page 24 A5. INSTALLING OR CHANGE THE CHARCOAL FILTER(cont.) A5.5 Press the bottom of charcoal filter to place it into the correct position. A5.6 Reinstall the vent by sliding the bottom of the vent into place. Push the vent top into position and slide right into place. Replace the two vent mounting screws located on top of the microwave using a #1 Phillips screwdriver.
  • Page 25 INSTALLATION INSTRUCTIONS FOR EXTERNAL EXHAUST DUCTING NOTE: If you need to install ducts, note that the total duct length of 31/4” x 10” (8.2 x 25.4 cm) rectangular or 5” (12.7cm) diameter / 6” (15.2 cm) diameter round duct should not exceed 140 equivalent feet (42.7 m). Outside ventilation requires an EXTERNAL EXHAUST DUCT.Read the following carefully.

  • Page 26: Outside Back Exhaust (Example Only)

    EXTERNAL EXHAUST DUCTING OUTSIDE TOP EXHAUST (EXAMPLE ONLY) The following chart describes an example of one possible ductwork installation. EQUIVALENT NUMBER EQUIVALENT Roof Cap 24 Ft. (7.3 m) x 24 Ft. (7.3 m) 12 Ft. (3.6 m) Straight 12 Ft. (3.6 m) x 12 Ft.
  • Page 27 B. OUTSIDE BACK EXHAUST (Horizontal Duct) INSTALLATION OVERVIEW B1. Prepare Rear Wall B2. Remove Blower Plate B3. Attach Mounting Plate to Wall B4. Prepare Top Cabinet B5. Adjust Blower B6. Mount the Microwave Oven IMPORTANT NOTES: • Make sure the screws for the blower motor and blower plate are securely tightened when they are reinstalled.
  • Page 28 B2. REMOVE BLOWER PLATE Remove and save the screw that holds the blower plate to the microwave. Lift off the blower plate. Blower Plate Back of Microwave B3. ATTACH THE MOUNTING PLATE TO THE WALL Attach the plate to the wall using toggle bolts. At least one wood screw must be used to attach the plate to a wall stud.
  • Page 29 NOTE: Before tightening toggle bolts and wood screw, make sure the bottom of the mounting plate touch the bottom of the cabinet when pushed flush against the wall and that the plate is properly centered under the cabinet. CAUTION: Be careful to avoid pinching fingers between the back of the mounting plate and the wall.
  • Page 30 3. Roll the blower unit 90° After Rotation Back of Back of Microwave Microwave B5. ADAPTING MICROWAVE BLOWER FOR OUTSIDE BACK EXHAUST (cont.) 4. Rotate blower unit counterclockwise 180°. Before Rotation After Rotation Back of Back of Microwave Microwave 5. Gently remove the wires from the grooves. Reroute the wires through grooves on other side of the blower unit.
  • Page 31 7. Remove the knockout plates in the back of the unit with snips. (For some models) Knockout Plates: Snip all 4 webs on each knockout panel and remove the metal knockouts for rear airflow. Please take care to remove any sharp edges created from removing Back of mircrowave the knockout plates.
  • Page 32 B6. MOUNT THE MICROWAVE OVEN FOR EASIER INSTALLATION AND PERSONAL SAFETY, WE RECOMMEND THATTWO PEOPLE INSTALL THIS MICROWAVE OVEN. IMPORTANT: Do not grip or use the handle or heat shield during installation. Do not remove the cardboard spacers between the heat shield and door. NOTE: If your cabinet is metal, use the nylon grommet around the power cord hole to prevent cutting of the cord.
  • Page 33 Cabinet Front Cabinet Bottom Shelf Filler Block Equivalent to Depth of Cabinet Recess Self-Aligning Screw Microwave Oven Top 4. Attach the microwave oven to the top cabinet. 5. Insert 2 self-aligning screws through outer top cabinet holes. Turn two full turns on each screw. 6.
  • Page 34 C. OUTSIDE TOP EXHAUST (Vertical Duct) INSTALLATION OVERVIEW C1. Attach Mounting Plate to Wall C2. Prepare Top Cabinet C3. Adapting Microwave Blower for Outside Top Exhaust C4. Check Damper Operation C5. Mount Microwave Oven C6. Adjust Exhaust Adaptor C7. Connect Ductwork IMPORTANT NOTES: •...

  • Page 35: C2. Use Top Cabinet Template For Preparation Of Top Cabinet

    To use toggle bolts: Spacing for Toggles More Than Wall Thickness Toggle Wings Mounting Toggle Plate Bolt Wall Bolt End Place the mounting plate against the wall and insert the toggle wings into the holes in the wall to mount the plate. NOTE: Before tightening toggle bolts and wood screw, make sure the bottom of the mounting plate touch the bottom of the cabinet when pushed flush against the wall and that the plate is properly centered under the cabinet.
  • Page 36 Blower Plate Back of Microwave Blower Motor Screw Remove the screw that holds the blower plate to the microwave. Remove and save the screw holding the blower motor to the microwave. 2. Carefully pull out the blower unit. The wires will extend far enough to allow you to adjust the blower unit.
  • Page 37 C3. ADAPTING MICROWAVE BLOWER FOR OUTSIDE 1. Place the microwave in its upright position, with the top of the unit facing up. Blower Plate Back of Microwave Blower Motor Screw Remove the screw that holds the blower plate to the microwave. Remove and save the screw holding the blower motor to the microwave.
  • Page 38 4. Place the blower unit back into the opening. AFTER: Fan Blade Openings Facing Top Back of Microwave CAUTION: Do not pull or stretch the blower unit wiring. Make sure the wires are not pinched, and that they are properly secured. C3.
  • Page 39 C4. CHECK FOR PROPER DAMPER OPERATION Blower Plate Exhaust Adaptor Damper Back of Microwave • Make sure tape securing damper is removed and damper pivots easily before mounting microwave. • You will need to make adjustments to assure proper alignment with your house exhaust duct after the microwave is installed.
  • Page 40 NOTE: When mounting the microwave oven, thread power cord through hole in bottom of top cabinet. Keep it tight throughout Steps 1–3. Do not pinch cord or lift oven by pulling cord. 1. Lift microwave, tilt it forward, and hook slots at back bottom edge onto four lower tabs of mounting plate.

  • Page 41: Available Cooking Options

    Available Cooking Options Microwave Cooking Your oven uses microwave energy to cook by a set time or weight, or automatically by sen- sor. Sensor microwave works by detecting the increasing humidity released during cooking. The oven automatically adjusts the cooking time to various types and amounts of food. Cooking Method Heat Source Heat Conduction...

  • Page 42: Cookware Tips

    Cookware Tips Convection Bake or Roast Metal Pans are recommended for all types of baked products, but especially where browning is important. Dark or dull finish metal pans are best for breads and pies because they absorb heat and produce crisper crust. Shiny aluminum pans are better for cakes, cookies or muffins because they reflect heat and help produce a light tender crust.
  • Page 43 SSID name. A large number of devices on the WiFi router can affect network stability, there is no way that Midea can advise a specific number limitation as this depends on router quality and many other factors.

  • Page 44: Operation

    OPERATION 1. Power up After connecting the oven to the power, “12:00” “PRESS” “CLOCK” “ENTER” and “TIME” show on the display. Buzzer sounds. If you want to set clock, press number keys to enter time. Then press “START/Enter/+30sec.” to confirm. 2.
  • Page 45 4. Defrost Amount Food Meat DEFROST x 1 0.1-6.0 lbs DEFROST x 2 Poultry 0.1-6.0 lbs 0.1-6.0 lbs DEFROST x 3 Fish Note: If the weight unit is set as kg, the weight range is 0.1-3.0kg. (1) Press “DEFROST” once, twice or three times to choose a defrost menu you need. (2) Press “START/Enter/+30sec.”...
  • Page 46 (1) Press “MELT/SOFTEN” repeatedly to select the food you want. (2) Press “START/Enter/+30sec.” to confirm. (3) Press a number key to set amount. You also can press “▲/▼” to adjust it. (4) Press “START/Enter/+30sec.” to start cooking. 7. Auto Cook Amount Food 1-6 Eggs...

  • Page 47: Speedy Cooking

    9. Speedy Cooking (1) In waiting state, press “START/Enter/+30sec.” to cook food with 100% power level for 30 seconds. Each press on the same key can increase 30 seconds and the maximum time value is “99:99”. In addition to auto menu and defrost, you can press “START/Enter/+30sec.”...
  • Page 48 12. Combination Cooking (Bake) Degree F Default (1) Press “BAKE” and then “BAKE” “325 F” will display. (2) Press number key to set temperature.(please see the chart above) You also can press “▲/▼” to adjust it. (3) Press “START/Enter/+30sec.” to confirm. (4) Press number keys to enter cooking time.
  • Page 49 15. Vent Level HIGH (1) Press “ ” once and then “HIGH” will display. Press it repeatedly to choose other levels. Then the fan will start working. 16. Light Level HIGH (1) Press “ ” once and then “HIGH” will display. Press it repeatedly to choose other levels.

  • Page 50: Maintenance

    MAINTENANCE Troubleshooting Check your problem by using the chart below and try the solutions for each problem. If the microwave oven still does not work properly, contact the nearest authorized service center. TROUBLE POSSIBLE CAUSE POSSIBLE REMEDY a. Electrical cord for oven is a.
