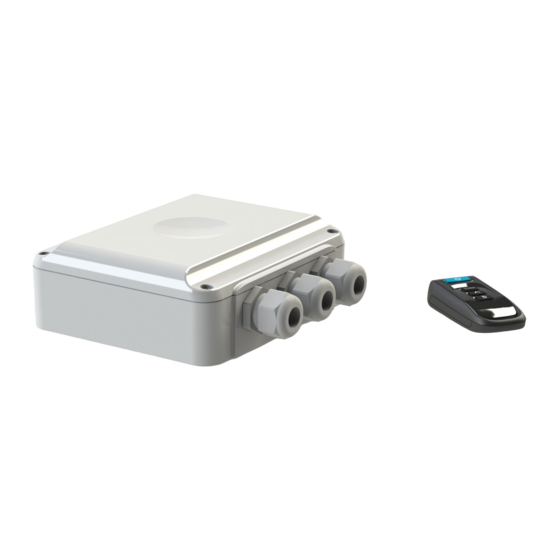

Duratech DURALINK PL-REM-60 Manual

Link driver
Hide thumbs

Advertisement

Quick Links

Download this manual
Manual
PL-REM-60
12-09-22
Driver
LINK

Advertisement

loading
Need help?

Need help?

Do you have a question about the DURALINK PL-REM-60 and is the answer not in the manual?

Questions and answers

Related Manuals for Duratech DURALINK PL-REM-60

Summary of Contents for Duratech DURALINK PL-REM-60

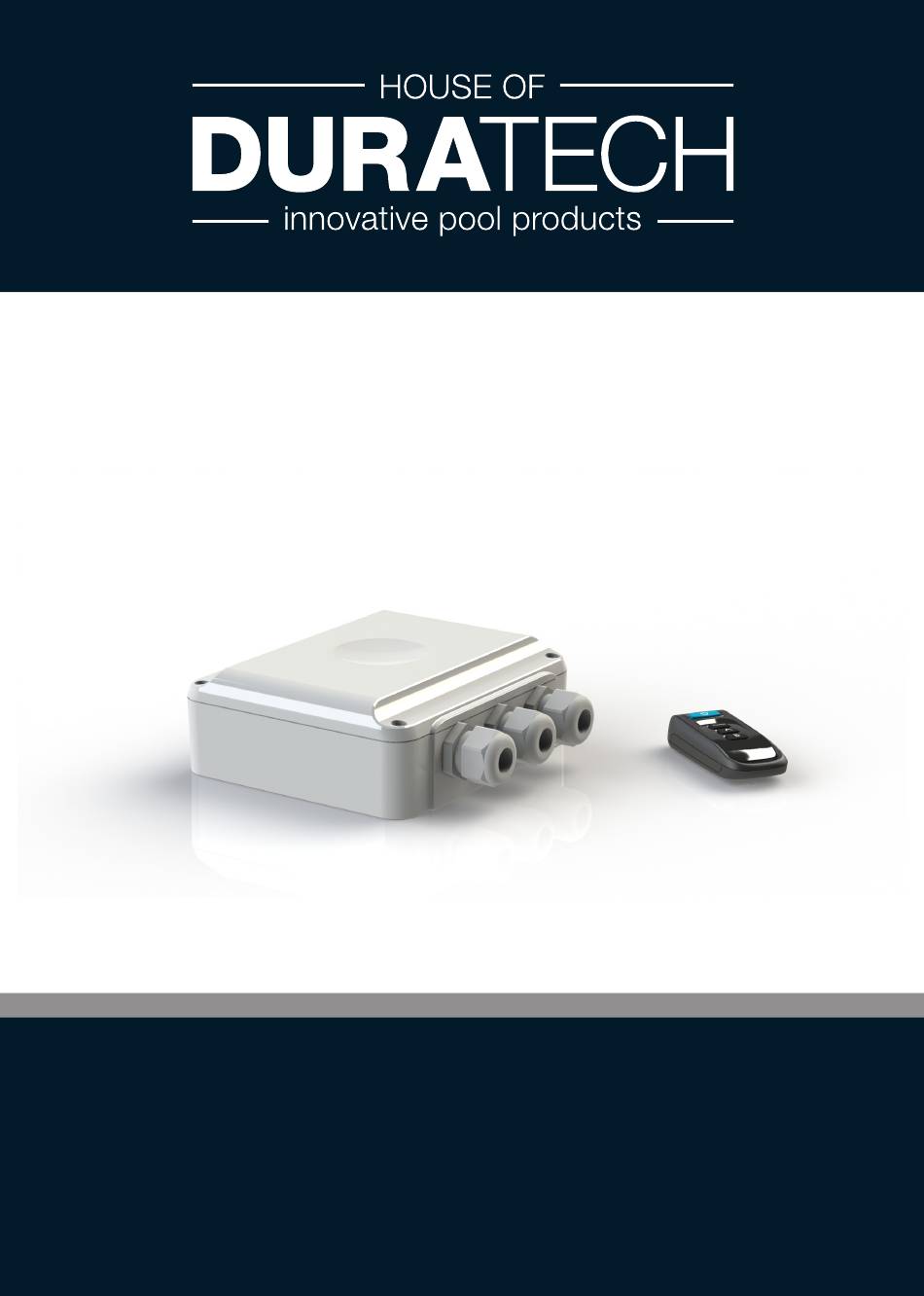

  • Page 1 Manual PL-REM-60 12-09-22 Driver LINK...

  • Page 2: Table Of Contents

    Table of contents Technical specifications Page 3 Box contents Page 4 Installation instructions Page 5 Pairing Handheld Transmitter & controller Page 6 Handheld transmitter functions Page 7 Page 7 Replacing transmitter battery Troubleshooting Page 8...

  • Page 3: Technical Specifications

    Technical specifications Electrical specifications Nominal Input voltage 230 VAC 50 Hz Output voltage on Lamp Output 12 VAC Max output current on Lamp Output Transformer VA rating 60VA Frequency band transmitter 868 MHz IEC Protection Class Class II General specifications Controller Ambient air temperature 0°C ...

  • Page 4: Box Contents

    Box contents 1. PL-REM-60 controller 2. Handheld transmitter 3. Spare battery 4. Screws (4x) & wall plugs (4x) 5. Owner’s Manual...

  • Page 5: Installation Instructions

    Installation instructions • Connect a 230VAC power source to the “220-240VAC INPUT” terminal. • Connect the swimming pool lights to the “Lamp 12VAC output” terminal Make sure the total load of pool lights does not exceed 60Watt 230VAC...

  • Page 6: Pairing Handheld Transmitter & Controller

    Pairing handheld transmitter & controller The handheld transmitter is already paired in the factory and ready to use. The PL-REM-60 can pair with up to 6 handheld transmitters. In case a problem arises, the pairing process can be done manually: Manual Pairing process: Make sure the PL-REM-60 is connected to a power source.

  • Page 7: Handheld Transmitter Functions

    Handheld transmitter functions Toggle the lamps ON/OFF Go to next color scenario Button A and B have no function with PL-REM-60 Replacing transmitter battery • Remove the philips head screw and open the transmitter • Replace the battery, respecting the polarity Battery type: A23 12V...

  • Page 8: Troubleshooting

    Troubleshooting PROBLEM SOLUTION The controller doesn’t react • Check the battery of the hand- to transmitter commands held transmitter • The transmitter is not paired correctly with the controller. Repeat the pairing process • Reduce the distance between handheld transmitter and PL- REM-60 and/or eliminate ob- stacles •...
  • Page 9 Declaraction of Conformity Declarations of conformity covering this product are available for download from the House of Duratech website: www.duratech.be...
  • Page 10 Notes...
  • Page 11 VISION Moonlight HEAT Hot Splash FLOW Inverter COVER Tube LINK Driver VISION Spectra HEAT Sun Spring COVER Motor LINK Touch VISION Adagio Pro HEAT Dura V COVER Wall Duct LINK Controller VISION HEAT COVER LINK Dura Vi Cable Duct Cover VISION Wall Conduits HEAT...
  • Page 12 Contact details Propulsion Systems bv Dooren 72 1785 Merchtem, Belgium Tel +32 2 461 02 53 www.duratech.be info@propulsionsystems.be We reserve the rights to change all or part of the contents of this document without prior notice...
