DDS 3600R RELAY PACK
Software Revision 1.0, Version C UL Versions
NSI DIGITAL DIMMING SYSTEM
INTRODUCTION
The NSI DDS 3600R relay pack represents a key part of a state of the art, integrated lighting control system.
These solid state relay packs are designed for portable or semi-permanent use for entertainment or display lighting. Several DDS
dimmer and relay packs may be combined for more channels of lighting.
SPECIFICATIONS
Number of Channels:
Output capacity:
Input Voltage:
Control system:
Control Input Types:
Control Wiring:
Output Connections:
Cooling System:
Enclosure Type
NSI CORPORATION

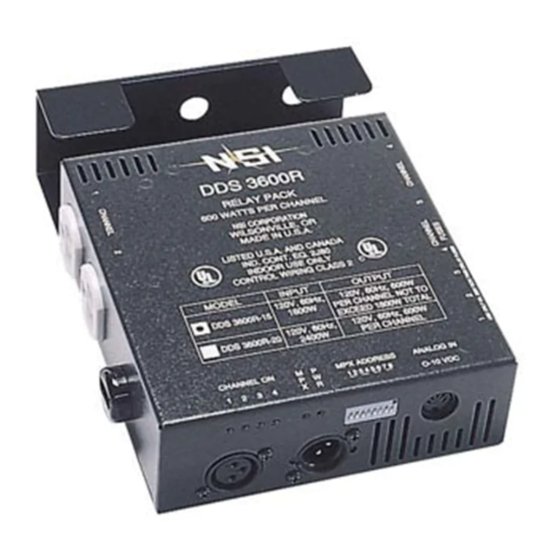

DDS 3600R RELAY PACK
INSTALLATION AND OPERATION GUIDE
Software Revision 1.0, Version C UL Versions
4
600 watts per channel
DDR 3600-15: 120 VAC 1800 Watts Max.
DDR 3600-20: 120 VAC 2400 Watts Max.
Microprocessor digital zero-crossing relay mode.
0 - 10VDC each channel on 5 pin DIN connector.
(switchpoint: on @ 2V, off @ .75V)
MICROPLEX multiplex signal (128 channel) on
three pin XLR type connector. (20% switchpoint)
DMX-512 digital signal (512 channel)
on five pin XLR optional. (20% switchpoint)
Class 2 low voltage.
1 NEMA 5-15 outlet per ch.
Passive internal aluminum heatsinks.
For indoor use only,
(Utilizer dans un endroit a l' abri )
INTRODUCTION
1
Advertisement
Table of Contents
Related Manuals for Leviton DDS3600R
Summary of Contents for Leviton DDS3600R
- Page 1 DDS 3600R RELAY PACK Software Revision 1.0, Version C UL Versions NSI DIGITAL DIMMING SYSTEM DDS 3600R RELAY PACK INSTALLATION AND OPERATION GUIDE Software Revision 1.0, Version C UL Versions INTRODUCTION The NSI DDS 3600R relay pack represents a key part of a state of the art, integrated lighting control system. These solid state relay packs are designed for portable or semi-permanent use for entertainment or display lighting.
- Page 2 MOUNTING MOUNTING The NSI DDS 3600R relay packs are designed to be mounted vertically. Each pack pack is provided with a reversible hangar bracket that can be hung on up to 1 15/16" tubing, or may accept a pipe clamp. BE SURE TO USE A SAFETY CABLE TO PREVENT INJURY IF PACK FALLS.
- Page 3 DDS 3600R RELAY PACK Software Revision 1.0, Version C UL Versions MICROPLEX MULTIPLEX CONTROL WIRING. Microplex is the control protocol used on most NSI lighting consoles. This system uses a single three conductor cable to transmit up to 128 channels of relay (or pack) control. For short distances (50 feet or less) a standard microphone cable may be used to carry both the control signal and the DC power source for NSI control consoles.
- Page 4 DMX-512 multiplex control wiring. DMX-512 multiplex control wiring. DMX 512 is the United States Institute of Theater Technology (USITT) standard for the digital control of dimmers. NSI DDS relay products can be converted from Microplex to DMX 512 digital multiplex with a simple kit available from your dealer. DMX-512 is the preferred type of control wiring when many relay or pack channels are used, because of the high update rate and the resistance to interference.
- Page 5 DDS 3600R RELAY PACK Software Revision 1.0, Version C UL Versions SWITCH SETTINGS When using any of the multiplex control systems the dip switches on the front panel of the DDS 3600R must be set to assign the desired relay channels. The switches control the relay channels in groups of four. See the following chart for settings. DIP SWITCH CHANNEL ASSIGNMENTS (1=up, 0=down) CONTROL 1234567...
- Page 6 DDS 3600R RELAY PACK SERVICE INFORMATION Software Revision 1.0, Version C UL Versions SERVICE INFORMATION NSI CORPORATION...
- Page 7 DDS 3600R RELAY PACK Software Revision 1.0, Version C UL Versions NSI Corporation Limited Warranty WARRANTY NSI Corporation Limited Warranty NSI Corporation warrants new electronics products to be free from defective materials and workmanship for a period of one (1) year from the date of purchase to the original owner when purchased from an authorized NSI dealer.
