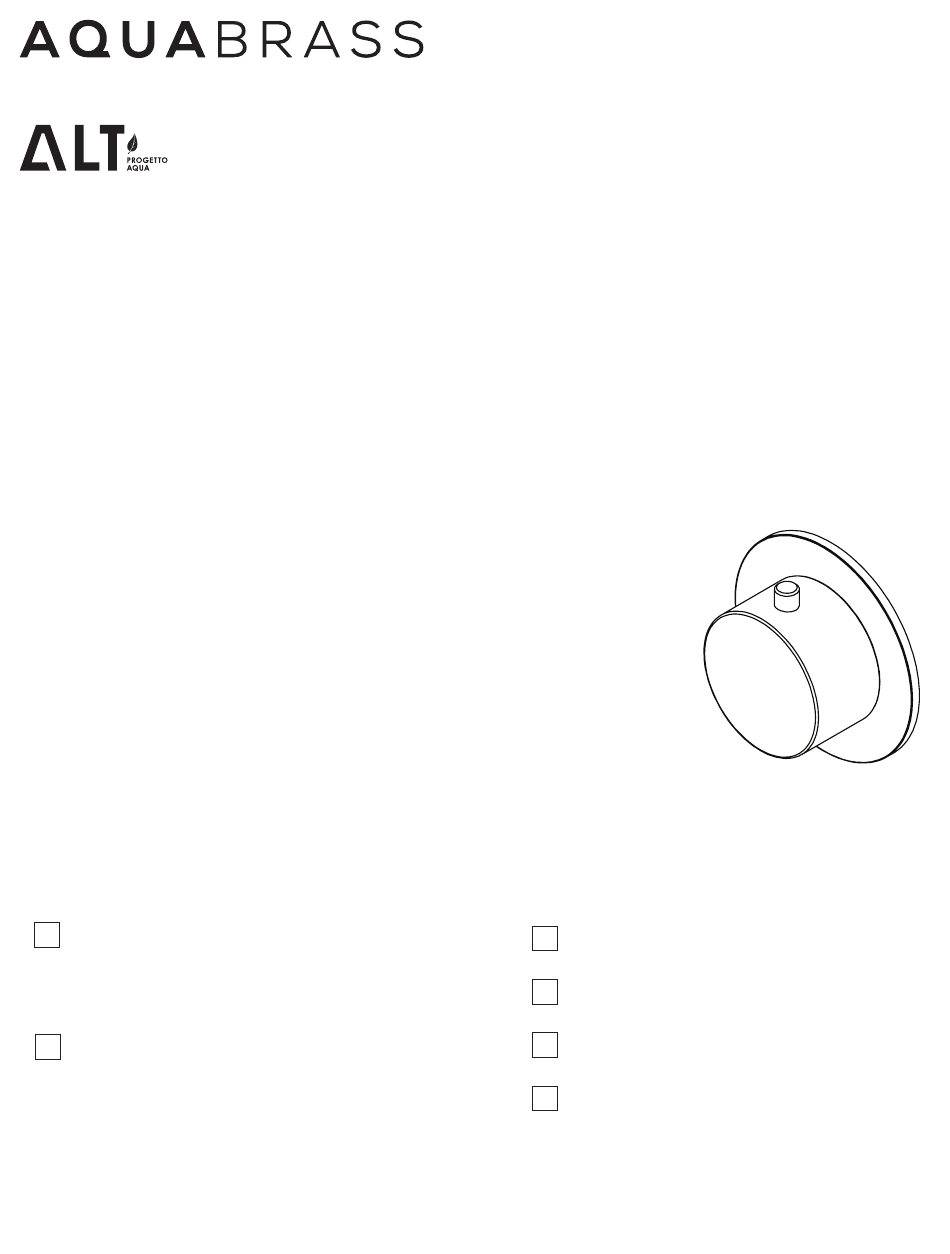

aquabrass 93921 Installation & Care Manual

aquabrass 93921 Installation & Care Manual

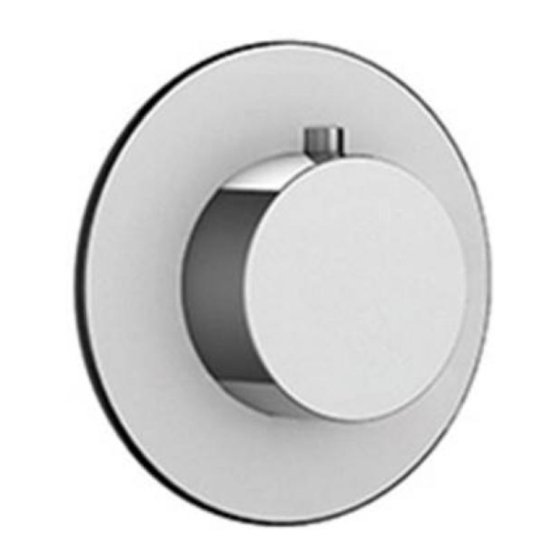

Independent diverter trim set (without cartridge)

Advertisement

Quick Links

Project Division Projet
INCLUDING ON/OFF FUNCTION, FOR CENTRAL THERMOSTAT ONLY
COMPREND LA FONCTION ON/OFF, POUR THERMOSTAT SEULEMENT
9 3921 - 9 3821 - 93 9 31 - 93 8 31
ALWAYS "ON", FOR ANY VALVE SYSTEM WITH ON/OFF VOLUME HANDLE
TOUJOURS "ON", POUR TOUT SYSTÈME DE VALVE AVEC INTERUPTEUR
932 21 - 934 21 - 93 2 31 - 9 3 4 31
* Refer to P.7 & P.8 for complete code
* Se référer aux P.7 & P.8 pour le code complet
last revision: 22/09/2020
I nde pe n de nt d iv e rt e r t ri m se t ( w it h ou t c a rt ri d g e)
G ar n it ure s po ur dé v i at e u r in dé pe n da nt ( s a ns ca rt o u c h e )
I ns t a l l a t io n & C a re G ui d e
G ui d e d' i ns ta ll a t i on e t d 'e n t re t i e n
2-WAY SHARED / 2 VOIS PARTAGÉES
2-WAY NON SHARED / 2 VOIS NON PARTAGÉES
3-WAY SHARED / 3 VOIS PARTAGÉES
3-WAY NON SHARED / 3 VOIS NON PARTAGÉES

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 93921 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for aquabrass 93921

  • Page 1 Project Division Projet I nde pe n de nt d iv e rt e r t ri m se t ( w it h ou t c a rt ri d g e) G ar n it ure s po ur dé v i at e u r in dé pe n da nt ( s a ns ca rt o u c h e ) I ns t a l l a t io n &...
  • Page 2 CONGRATULATIONS FÉLICITATIONS Congratulations on the Félicitations pour l’achat de votre purchase of your Alt product produit Alt By purchasing an Alt product, you are taking part En achetant un produit Alt, vous prenez part au in the global movement for better living. We take mouvement global pour le mieux-vivre.
  • Page 3 COMPONENTS COMPOSANTES 90571 SPECS AT LARGE / SCHÉMA DES PIÈCES ALT7-903-08-00 : o-ring / o-ring ALT7-909-62-01 : trim plate / plaque décorative ALT7-904-30-00 : threaded adapter / adapteur fileté ALT7-608-46-01 : handle with fixed button / poignée avec boutton fix...
  • Page 4 BEFORE YOU START AVANT DE COMMENCER CAUTION: FOR BEST RESULTS, WE STRONGLY MISE EN GARDE: POUR OBTENIR UN RÉSULTAT RECOMMEND THE INSTALLATION OF THIS VALVE BE OPTIMAL, NOUS RECOMMANDONS FORTEMENT QUE DONE BY A LICENSED PLUMBER. L’INSTALLATION DE CETTE VALVE SOIT FAITE PAR UN PLOMBIER ACCRÉDITÉ.
  • Page 5: Installation

    INSTALLATION How to use the threaded tube Before you start, take note of the number of complete thread sections projecting out of the finished wall on the threaded tube extension. ONLY one (1) full set will be required (always less than 2). The excedent will have to be cut. TO ENSURE PROPER INSTALLATION OF THE VALVE INSIDE THE WALL, IT IS VERY IMPORTANT TO FOLLOW THE RECOMMEND- ED DEPTH AS INDICATED IN THE ILLUSTRATION (Fig.1).
  • Page 6: Installing The Cartridge

    INSTALLATION Installing the cartridge Remove the threaded tube (3), the spline exten- sion, c-clip and the screw (4,5& 6). Set them aside for later use. Next, unscrew the diverter cartridge retaining nut (2) and remove the diverter test cap (1) (See Fig.2). Insert the diverter cartridge (7) into the valve as shown.
  • Page 7 2-WAY SHARED / 2 VOIS PARTAGÉES 93221 2-WAY NON SHARED / 2 VOIS NON PARTAGÉES 93421 3-WAY SHARED / 3 VOIS PARTAGÉES 93231 3-WAY NON SHARED / 3 VOIS NON PARTAGÉES 93431 This diverter is universal. Depending on the cartridge selected there There diverter version are suitable for any valve are 4 distinct modes of operation for the diverter.
  • Page 8 2-WAY SHARED / 2 VOIS PARTAGÉES 93921 2-WAY NON SHARED / 2 VOIS NON PARTAGÉES 93821 3-WAY SHARED / 3 VOIS PARTAGÉES 93931 3-WAY NON SHARED / 3 VOIS NON PARTAGÉES 93831 This diverter replaces all on/off valves. Depending on the cartridge There diverter version are used with central selected there are 4 distinct modes of operation for the diverter.
  • Page 9: Installing The Handle

    INSTALLATION Installing the flange Reinstall the correct length threaded tube (1). Making sure the o-ring (2) sits in its cavity , position with the decorative flange (3) against the wall and fix in place using the threaded adapter (4) provided. Intallation de la plaque Réinstallez le tube fileté...
  • Page 10: Final Steps

    INSTALLATION Final steps Cutting the screw by the same length removed on splice extension, reassemble it on the cartridge making sure the ‘‘C‘‘ clip gets repositioned inside and near the end of the threaded tube. (it acts as a centering support). Install the decorattive handle paying attention to where the reference knob lines-up.
  • Page 11: Maintenance

    MAINTENANCE Cartridges maintenance Shut off the main water supply, then remove all the components from (3) to (10). (See Fig.7). Unscrew the diverter cartridge tightening nut (2) and re- move the cartridge (1). In the unlikely case you decide the cartridge needs cleaning , you can also soak it in a vinegar and water solution to remove lime build-up.
  • Page 12 CARE SOIN To clean your ALT faucet or accessory, wash with a Pour nettoyer et conserver l’apparence de vos wet nonabrasive soapy cloth. Then wipe dry with a robinets ou accesoires ALT, lavez-les avec un linge soft towel or cloth. We recommend this be done on mouillé...
  • Page 13: Warranty Garantie

    WARRANTY GARANTIE LIMITED LIFETIME WARRANTY GARANTIE LIMITÉE À VIE ALT products are manufactured to the highest quality standards and Les produits ALT sont fabriqués selon les standards les plus élevés et vous procurerons de nombreuses années d’usage sans soucis. Nous sommes will procure you with many years of trouble-free enjoyment.

This manual is also suitable for:

938219393193831
