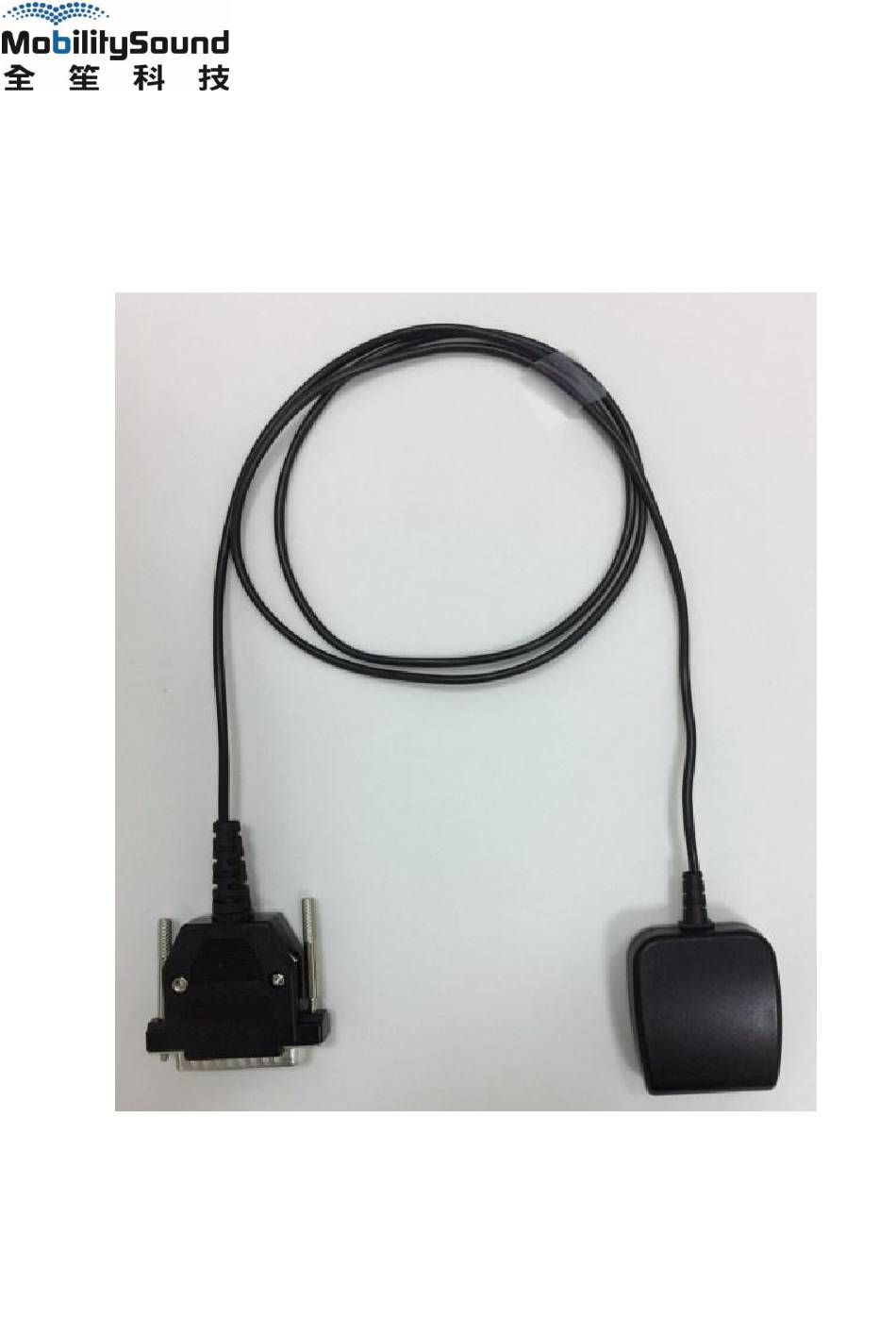

- Page 1 GPS Dongle for Kenwood Nextedge Mobile Radio Specification and User’s Manual...
- Page 2 GPS Dongle Specification Receiver type Channels Frequency Signals GPS C/A Code Configuration Time pulse 0.25 Hz to 1 kHz Navigation update rate up to 5Hz (ROM) Time-To-First-Fix(1) Cold Start (Autonomous) 28 s Warm Start (Autonomous) 28 s Hot Start (Autonomous)
- Page 3 KENWOOD NX-700 GPS SETUP STEP: 1. Connect programming cable with PC and your device then Run software KPG-111D. 2. Select COM Port Remark: Maybe in difference computer will be show difference COM port .
- Page 4 3. Read Data from the transceiver Press “Read” will start download data from transceiver to PC.
- Page 5 4. Select Edit Optional features Optional features 1 5. Check Common Page1 setting...
- Page 6 6. Check Common Page2 setting 7. Common Page 3 setting...
- Page 7 9600 Setting COM Port2 for GPS and Baudrate 9600 (see GPS Baudrate). 8. Check Common Page 4 setting Setting finished press “close” icon...
- Page 8 Optional Optional Feature 2 10. Select GPS Setting finished press “close” icon.
- Page 9 11. Key Assignment 12. Select Menu...
- Page 10 13. Select “Utility” and add “GPS position Display” Item to function list The “GPS Position Display” item will show in function list.
- Page 11 Setting finished press “closed”. 14. Write Data to the Transceiver...
- Page 12 Press “Write” will upload to your transceiver.
- Page 13 KENWOOD NX-700 GPS FUNCTION READING 1. Power on the RADIO 2. PRESS Key Select GROUNP. 3. Press KEY Select MENU to UTILITY 4. Press key.
- Page 14 5. Press key. The screen will be show GPS data . Eascape MENU Press Key.
