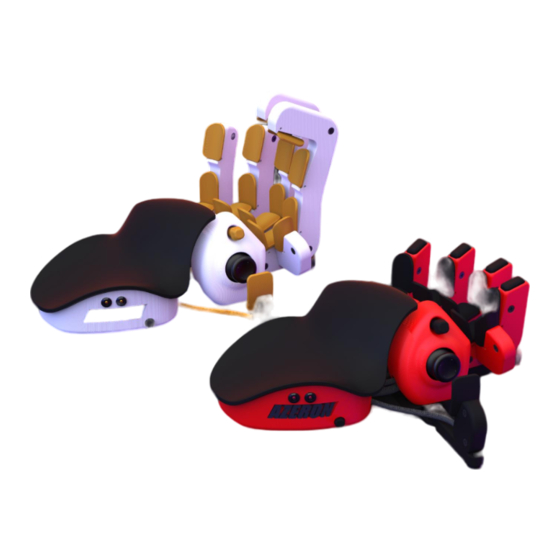

Azeron Classic Manual

Hide thumbs Also See for Classic:
Table of Contents

Advertisement

Quick Links

Download this manual
Classic and Compact
Manual
MANUAL V6.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Classic and is the answer not in the manual?

Questions and answers

Related Manuals for Azeron Classic

Summary of Contents for Azeron Classic

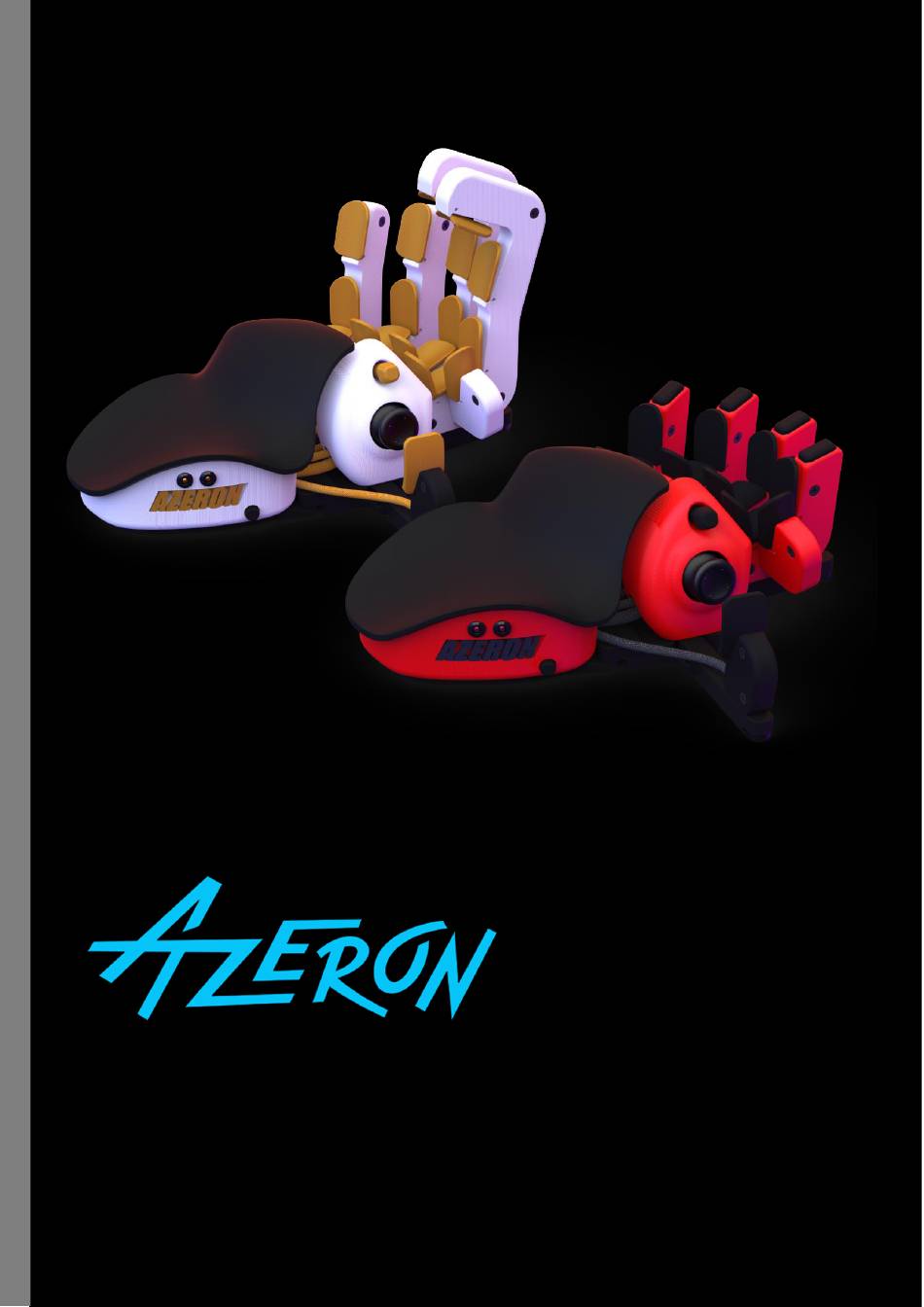

  • Page 1 Classic and Compact Manual MANUAL V6.0...

  • Page 2: Table Of Contents

    PACKAGE CONTENTS ........................ 3 DEVICE LAYOUT ......................... 4 ADJUST YOUR AZERON KEYPAD ..................5 INSTALLING SOFTWARE ....................6 HOW TO USE AZERON SOFTWARE ................. 14 5.1. CALIBRATING THUMBSTICK ..................14 5.2. INTERFACE OVERVIEW ....................16 5.3. KEYBIND SETUP ......................17 5.3.1.

  • Page 3: Introduction

    The main advantage of the Azeron keypad is the ability to move in game character with one finger – the thumb (either in 360° mode or in WASD mode, depending what your game supports).

  • Page 4: Features

     Stable metal base with antislip silicon pads  Braided cables  2 meter (6.5 feet) braided USB cable  Omron micro switches  On-board memory for your favorite keybinds PACKAGE CONTENTS Page | 3 CLASSIC AND COMPACT | Manual...

  • Page 5: Device Layout

    2. DEVICE LAYOUT Page | 4 CLASSIC AND COMPACT | Manual...

  • Page 6: Adjust Your Azeron Keypad

    3. ADJUST YOUR AZERON KEYPAD By using the included Hex screwdriver, it is possible to adjust each key tower position for your hand. You can swap included thumbstick caps just by pulling them off with some force: Page | 5...

  • Page 7: Installing Software

    4. INSTALLING SOFTWARE First you need to check if your computer recognizes Azeron keypad. Plug in the USB cable in your PC. Go to Start – Control Panel – Devices and Printers, and see if under Devices shows up Azeron keypad.
  • Page 8 We are constantly working on new features and improvements, so make sure to go to our website (https://www.azeron.eu/downloads/) and download the latest Azeron software. When shipping out the keypad to you, it already has a pre-installed latest firmware. So by default you don’t need to install that.
  • Page 9 After the installation is done, plug in the USB cable of the keypad in PC and then launch the Azeron software. If you are not sure if your PC has the USB3.0 motherboard drivers installed, then we would suggest to use USB 2.0 port to avoid unpredictable behavior of the keypad...
  • Page 10 When opening Azeron software, there are 3 options what could show up: A) When opening software, it may show this screen: It means that the keypad requires firmware update. Click on “Update” at the bottom right corner. There will be a loading animation as it downloads the newest version.
  • Page 11 After firmware installation the keypad will restart. Wait until software connects with your keypad. When the firmware update is complete the software will ask you to calibrate the thumbstick. Follow the directions on screen to complete the calibration. Page | 10 CLASSIC AND COMPACT | Manual...
  • Page 12 That means that everything is ready, the software and PC are recognizing the keypad and everything is up to date. You are ready to configure your keypad to your liking and start gaming or working. Page | 11 CLASSIC AND COMPACT | Manual...
  • Page 13 C) Another option when opening software, it may be empty It means, that the software cannot see the Azeron keypad. First of all, make sure you have plugged in the USB cable fully in the keypad. It should look like this:...
  • Page 14 (make sure you are plugging in the USB directly in PC and not via USB hub! So that it has enough power), open the software again. If that doesn’t work, please contact Azeron support via email info@azeron.eu or have a chat in...

  • Page 15: How To Use Azeron Software

    Here are the steps on how to do it: Plugin the USB cable of keypad to your PC. Open the Azeron software. Go to Settings. And press the button “Calibrate” and carefully follow instructions on the screen.
  • Page 16 5. Put back on the thumbstick cap 6. In the Azeron software go in the thumbstick settings: 7. Take the upper deadzone and lower it to ~120. Make sure the thumbstick makes perfect circle at the edge when moved around.

  • Page 17: Interface Overview

    On-board profiles are saved in the keypad memory (so you can use the keypad on other PC or consoles and it will work with the saved settings). If you are using only on-board profiles, then Azeron software doesn’t need to be opened while gaming, it is used just to setup buttons.

  • Page 18: Keybind Setup

    5.3. KEYBIND SETUP When pressing a button on the keypad, the corresponding button will light up in the Azeron software. To setup buttons, with your mouse click on the button you wish to setup, then on the right side panel choose between several modes.

  • Page 19: Keyboard Mode

    5.3.1. Keyboard mode For keyboard mode you can setup a keyboard button to be used on Azeron keypad. It is also possible to setup button combinations on one key press (up to 3 button combinations). Only buttons not possible to setup currently are Right side modification buttons, they will always default to the Left side Shift, Ctrl or Alt.

  • Page 20: Mouse Mode

    XIM device (or similar adapter), then you need to setup all buttons as joystick buttons. Upon receiving your Azeron keypad or after reinstalling firmware by default the second profile in on-board memory will have all buttons setup as joystick buttons. So you can use Azeron on console via XIM adapter straight out of box.

  • Page 21: Joystick D-Pad Mode

    QWES). After setting “Toggle analog stick” on the button, make sure to go in the thumbstick settings, turn on the 2 thumbstick and change the keybinds on it as you wish: Page | 20 CLASSIC AND COMPACT | Manual...

  • Page 22: Layering

    5.3.7. Layering Any of the buttons can be programmed as a shift button to switch between button layers, thus increasing the number of functions that can be programmed on the same buttons. Page | 21 CLASSIC AND COMPACT | Manual...
  • Page 23 1. Create 2 profiles in software section (layering will not work in on- board memory): 2. Activate Profile 1, select on the button you wish to use as layer shift. Pick Single Click and choose Layering from the dropdown menu Page | 22 CLASSIC AND COMPACT | Manual...

  • Page 24: Macro

    You can also choose how long is the keypress and delays in milliseconds (avoid Page | 23 CLASSIC AND COMPACT | Manual...

  • Page 25: No Action Mode

    In No action mode the button will be “empty” and do nothing. You can also remove the keybind by right clicking on the button. Or press “Unbind All” at the top to remove all keybinds and labels. Page | 24 CLASSIC AND COMPACT | Manual...

  • Page 26: Button Labels

    Similar to this (white color is keybinds, darker color is custom button names): To setup custom name - click on the button and then write the name in field “Custom label”: Page | 25 CLASSIC AND COMPACT | Manual...
  • Page 27 In the software Settings under User interface you can choose to: - Show labels only, without keybinds - Show both labels and keybinds - Hide all labels Page | 26 CLASSIC AND COMPACT | Manual...

  • Page 28: Thumbstick Setup

    This mode will work with any game that support Xbox controller and in the same time can work together with mouse and keyboard binds. You can see the list of games that support such simultaneous input here: https://www.pcgamingwiki.com/wiki/List_of_games_that_support_simultaneous_in Page | 27 CLASSIC AND COMPACT | Manual...
  • Page 29 If a game doesn’t support simultaneous input or is supported only partially, then the game user interface may flicker between Xbox controller and keyboard&mouse interface when trying to use Azeron keypad together with mouse. In that case you can setup analog stick with keyboard keybinds, such as WASD to have better gaming experience.
  • Page 30 (even your cat sneezing) and it may have a flickering motion in Azeron software and a character in video game may move around even if you are not touching the thumbstick. In that case you need to set the lower deadzone value higher until it stops moving by itself (for example something between 10 –...

  • Page 31: Profiles

    Profile switch on the side of the keypad. If you are using first profile, then there will light up one Profile LED, for second profile it will light up both Profile LEDs. Page | 30 CLASSIC AND COMPACT | Manual...
  • Page 32 “Profiles:”. Or just double click on any software profile to make it active. Note! When using software profiles, the Azeron software must be running in the background while playing the game. If you are using Software profiles, it is possible to choose 2 profiles as favorite and then switch between them with Profile switch similar as on- board memory profiles.
  • Page 33 OBM#1 or OBM#2. Note that Macros or layers will not work in on-board memory profiles. At the bottom of the profile list is button + Add Profile, which will create a new profile by copying already selected profile. Page | 32 CLASSIC AND COMPACT | Manual...

  • Page 34: Settings

    At the top of the Settings you can see the interface options: reWASD 5.6 support allows to use 3 party software with more advanced options, called reWASD. By turning this setting ON, Azeron keypad will use older version communication protocol to be compatible with older reWASD version.
  • Page 35 Lighting Turn LEDs OFF or ON will completely turn off the Profile LEDs on the side of the keypad. LED brightness slider adjusts the Profile LEDs. The higher the value, the brighter the LEDs will glow. Page | 34 CLASSIC AND COMPACT | Manual...
  • Page 36 You can back up all of your profiles in .JSON file, to prevent any accidental deletion when reinstalling software or Windows, updating firmware, etc. Note that it will save only profiles that are in the software and not in the On-board memory! Page | 35 CLASSIC AND COMPACT | Manual...
  • Page 37 That is the time that must pass between keypad will register next keypress on the same button. Note! The button throttle currently works on all buttons in the same time, it can’t be setup separately for each button. Page | 36 CLASSIC AND COMPACT | Manual...
  • Page 38 Reset Device this option will reset your keypad to factory setting, basically reinstalls firmware, deletes all settings and restarts software. Reset Software Profiles will delete all profiles in the software. Reset Settings this option will reset all settings in the software to defaults. Page | 37 CLASSIC AND COMPACT | Manual...

  • Page 39: How To Update Firmware Manually

    Export them before flashing firmware Settings/Profile)! The manual firmware installation is possible only for keypads with a Teensy PCB. Here are the pictures on the difference: Teensy PCB New Azeron PCB Page | 38 CLASSIC AND COMPACT | Manual...
  • Page 40 Press on the first button to load hex file (for example, “Azeron-fw- 60.hex”) Step 4: Reset Azeron keypad by pressing reset button in the hole shown in the picture (you can use the included hex screwdriver): Page | 39 CLASSIC AND COMPACT...
  • Page 41 After that, press button 3, to restart Teensy. Wait until at least one Profile LED has turned on at the side of the keypad (that means, keypad is on and running). Now unplug and re-plug the USB cable in PC, before launching Azeron software. Done!

  • Page 42: Tips And Tricks

     To get access to more advanced macros and other options– it is possible to setup Azeron keypad as generic joystick and then use party software JoyToKey to setup more advanced macros on each button.
