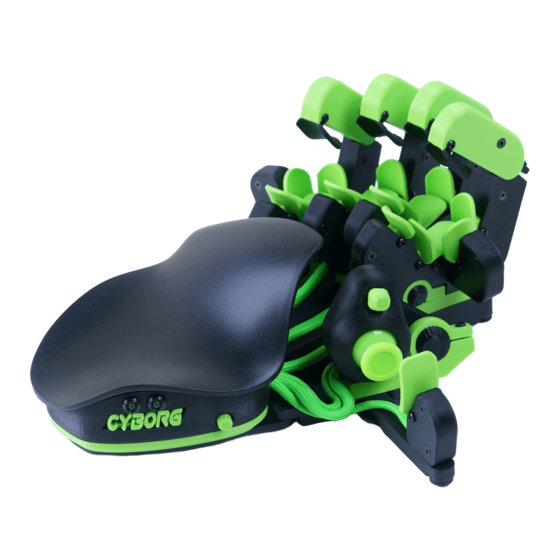

Summary of Contents for Azeron CYBORG

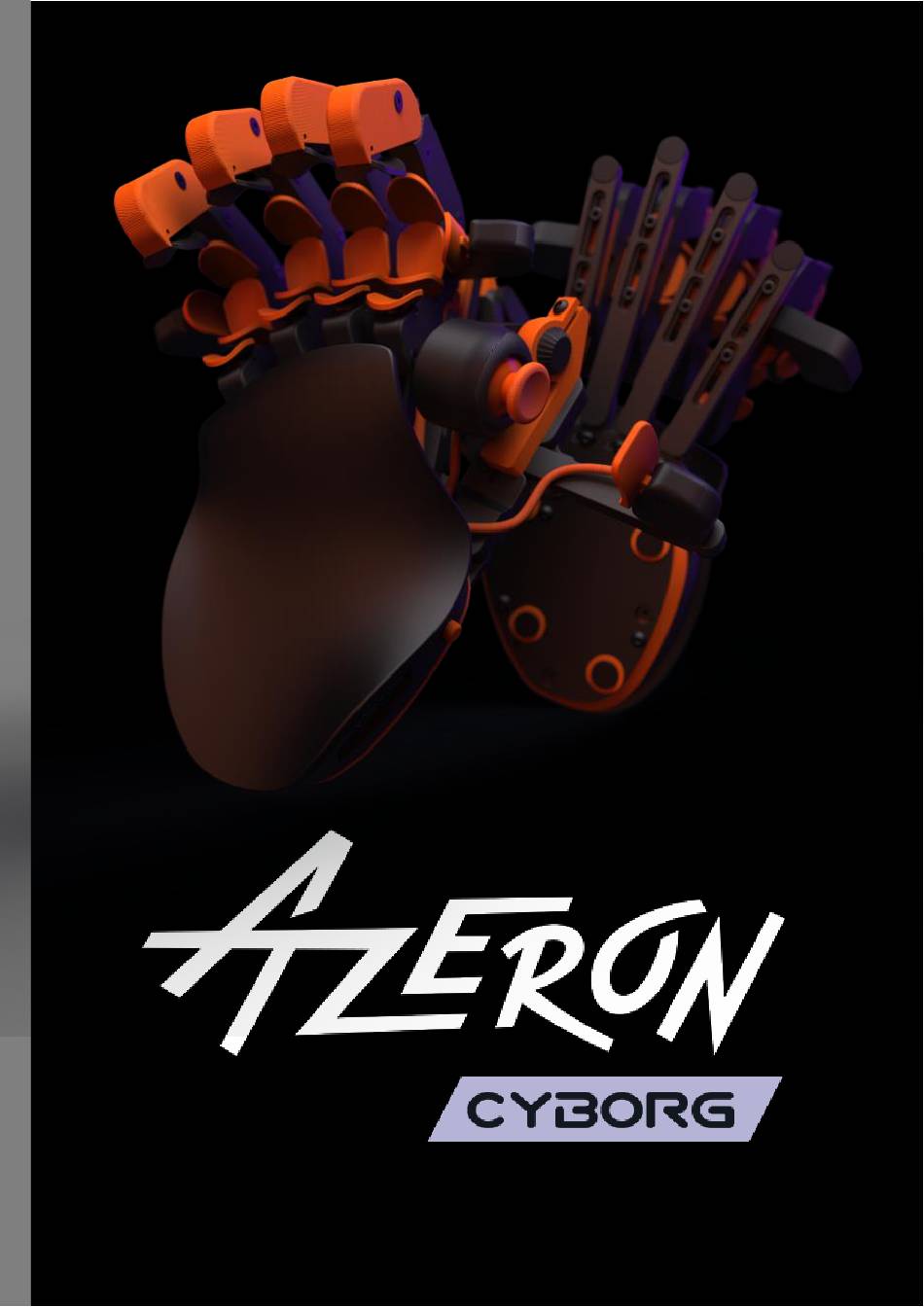

  • Page 1 Manual...

  • Page 2: Table Of Contents

    PACKAGE CONTENTS ........................ 3 DEVICE LAYOUT ......................... 4 ADJUST YOUR AZERON KEYPAD ..................5 INSTALLING SOFTWARE ....................7 HOW TO USE AZERON SOFTWARE ................. 15 5.1. CALIBRATING THUMBSTICK ..................15 5.2. INTERFACE OVERVIEW ....................16 5.3. BUTTON SETUP ......................17 5.3.1.

  • Page 3: Introduction

    The main advantage of the Azeron keypad is the ability to move in game character with one finger – the thumb (either in 360° mode or in WASD mode, depending what your game supports).

  • Page 4: Features

    1. FEATURES  22 programmable buttons on towers  7 programmable thumb buttons  A programmable full size analog thumbstick  Adjustable button positions to fit your hand  Stable metal base with antislip silicon pads  Braided cables  2 meter (6.5 feet) braided USB cable ...

  • Page 5: Device Layout

    2. DEVICE LAYOUT Page | 4 | Manual...

  • Page 6: Adjust Your Azeron Keypad

    3. ADJUST YOUR AZERON KEYPAD Page | 5 | Manual...
  • Page 7 By using the included Hex screwdriver, it is possible to adjust key and thumb module positions for your hand. You can swap included thumbstick caps just by pulling them off with a little force: Page | 6 | Manual...

  • Page 8: Installing Software

    4. INSTALLING SOFTWARE First you need to check if your computer recognizes Azeron keypad. Plug in USB cable in PC. Go to Start – Control Panel – Devices and Printers, and see if under Devices shows up Azeron keypad. If it doesn’t, and the LED lights are not turning on, make sure the USB cable is connected to the keypad properly.
  • Page 9 We are constantly working on new features and improvements, so make sure to go to our website (https://www.azeron.eu/downloads/) and download the latest Azeron software. When shipping out the keypad to you, it has already pre-installed latest firmware. So by default you don’t need to install that. You need it only in case you have some problems and need to reinstall the firmware.
  • Page 10 After that, the software will start to install. When it’s done, there will be a shortcut icon on Desktop and in the Start menu. Plug in the USB cable of the keypad in PC and then launch the Azeron software.
  • Page 11 When opening Azeron software, there are 3 options what could show up: A) When opening software, it may show this screen: It means that the keypad requires firmware update. At the “Firmware type” dropdown choose “PC (Base)”. PC (Base) means that it will install the latest ‘normal’ firmware version. The other option is XIM, which is a stripped down version of normal firmware for people who use the Azeron keypad only on consoles via XIM adapter.
  • Page 12 Now take the included hex screwdriver and press the reset button (see the picture on screen). The keypad will restart. When the update is complete the software will ask you to calibrate the thumbstick. Follow the directions on screen to complete the calibration. In case you are having any problems with installing the firmware or want to update to other version (not the latest one), then please go to HOW TO UPDATE FIRMWARE...
  • Page 13 B) The second possible option when software opens up will look like this: That means that everything is ready, the software and PC recognize the keypad and everything is up to date. You are ready to configure your keypad to your liking and start gaming. Page | 12 | Manual...
  • Page 14 C) When opening software, it is empty It means, that the software cannot see the Azeron keypad. First of all, make sure you have plugged in the USB cable fully in the keypad. It should look like this: Another possible solution is to close the software, unplug USB cable, wait...
  • Page 15 until Windows no longer see the keypad, then plug in back the USB cable (make sure you are plugging in the USB directly in PC and not via USB hub!), turn on the software again. If that doesn’t work, you may need to do the clean reset process. You can find an unofficial guide here: https://docs.google.com/document/d/136Ae743B7PmARTqDiwALLPVQ Mr1rXPrGygxB-BZPNuE/edit?usp=sharing...

  • Page 16: How To Use Azeron Software

    Here is steps on how to do it: Plugin the USB cable of keypad to your PC. Open the Azeron software. Go to Settings. And press on button “Calibrate” and carefully follow the instructions on screen.

  • Page 17: Interface Overview

    If you are using only on-board profiles, then Azeron software doesn’t need to run while gaming, it is used just to setup buttons. If you are using software profile, then the Azeron software needs to run in the background while playing the game.

  • Page 18: Button Setup

    5.3.1. Keyboard mode For keyboard mode you can setup any keyboard button to be used on Azeron keypad. It is also possible to setup button combinations on one key press. Only buttons not possible to setup currently are Right side modification buttons, they will always default to the Left side Shift, Ctrl or Alt.

  • Page 19: Xinput Button And Xinput Trigger

    XIM device, then you need to setup all buttons as joystick buttons. Upon receiving your Azeron keypad or after reinstalling firmware by default the second profile in on-board memory will have all buttons setup as joystick buttons. So you can use Azeron on console via XIM adapter straight out of box.

  • Page 20: Joystick D-Pad Mode

    5.3.5. Joystick D-pad mode In Joystick D-Pad mode the button can be setup as any function of the D- Pad (Up, Right, Down Left, Left, and also diagonally, for example Right Up or Left Down). This also will act as direct input of generic gaming controllers.

  • Page 21: Macro

    Mode Toggle R/L joystick while held down works the same as mode above, but the second thumbstick settings will work only while button is held down. 5.3.7. Macro It is possible to setup macros on keypad buttons. When choosing Macro mode for the button, it is possible to program several keyboard keypresses, mouse buttons and delays in the sequence you wish.
  • Page 22 Macro function is available only in software profiles! Currently it is not possible to save Macro in on-board memory due to the Teensy PCB limitations. We are planning to add more advanced macro functionality in future software updates. Page | 21 | Manual...

  • Page 23: Button Layering

    5.3.8. Button layering Any of the buttons can be programmed as a shift button to switch between several button layers on the fly thus increasing the number of functions that can be programmed into the other buttons by several times. For example, in the picture above, we are editing button #8 as a shift button and we will set it up to switch to another software profile, which is called “Profile #41”.

  • Page 24: Button Labels

    5.3.10. Button labels You can setup custom names for each button for easier overview of your keybinds. Similar to this (white color is keybinds, yellow color is custom button names): To setup custom name - click on the button and then write the name in field “Custom name”: Page | 23 | Manual...

  • Page 25: Thumbstick Setup

    If a game doesn’t support simultaneous input or is supported only partially, then the game user interface may flicker between Xbox controller and keyboard&mouse interface when trying to use Azeron keypad together with mouse. In that case you can setup analog stick with keyboard keybinds, such as WASD to have better gaming experience.
  • Page 26 In Keyboard mode analog stick will work in 8 directions with keybinds provided for 4 directions, such as WASD or similar. It is possible to setup 2 separate keybinds on thumbstick and switch between them on the fly (see more information at 5.3.6.
  • Page 27 (even your cat sneezing) and it may have a flickering motion in Azeron software and a character in video game may move around even if you are not touching the thumbstick. In that case you need to set the lower deadzone value higher until it stops moving by itself (for example something between 10 –...

  • Page 28: Profiles

    If you are not sure what deadzone settings you should use, just go through the Calibrate Deadzones wizard, and the software will choose the best settings for your thumbstick. See 5.1. CALIBRATING THUMBSTICK Sensitivity setting controls how sensitive thumbstick feels. The lower the value the more sensitive is the thumbstick.
  • Page 29 To work with software profiles, you need to turn them on by pressing ON button near “Profiles:”. Note! When using software profiles, the Azeron software must be running in the background while playing the game. If you are using Software profiles, it is possible to choose 2 profiles as favorite and then switch between them with Profile switch similar as on- board memory profiles.
  • Page 30 Any software profile can also be sent to On-board memory, by pressing OBM#1 or OBM#2. Note that Macro will not work in on-board memory profiles. At the bottom of the profile list is button + Add, which will create a new profile by copying already selected profile.

  • Page 31: Settings

    SETTINGS Page | 30 | Manual...
  • Page 32 3 party software with more advanced options, called reWASD. By turning this setting ON, Azeron keypad will use older version communication protocol to be compatible with reWASD. Advanced options will hide/show more advanced settings.
  • Page 33 Update and follow the instructions on the screen. (Advanced option) If you are using Azeron keypad on consoles through XIM device, then it is possible to Install XIM optimized firmware, which removes all unnecessary features, leaving only one profile in the on-board memory with joystick settings, but still keeping possibility to adjust thumbstick angle, deadzones and sensitivity.

  • Page 34: How To Update Firmware Manually

    Step 3: Press on first button to load hex file (for example, “Firmware.hex”) Step 4: Reset Azeron keypad by pressing reset button in the hole shown in the picture (you can use the included hex screwdriver): Page | 33 | Manual...
  • Page 35 After that, press button 3, to restart Teensy. Wait until at least one Profile LED has turned on at the side of the keypad (that means, keypad is on and running). Now unplug and replug the USB cable in PC, before launching Azeron software. Done!

  • Page 36: Tips And Tricks

     To get access to more advanced macros – it is possible to setup Azeron keypad as generic joystick and then use 3 party software JoyToKey to setup more advanced macros on each button.
