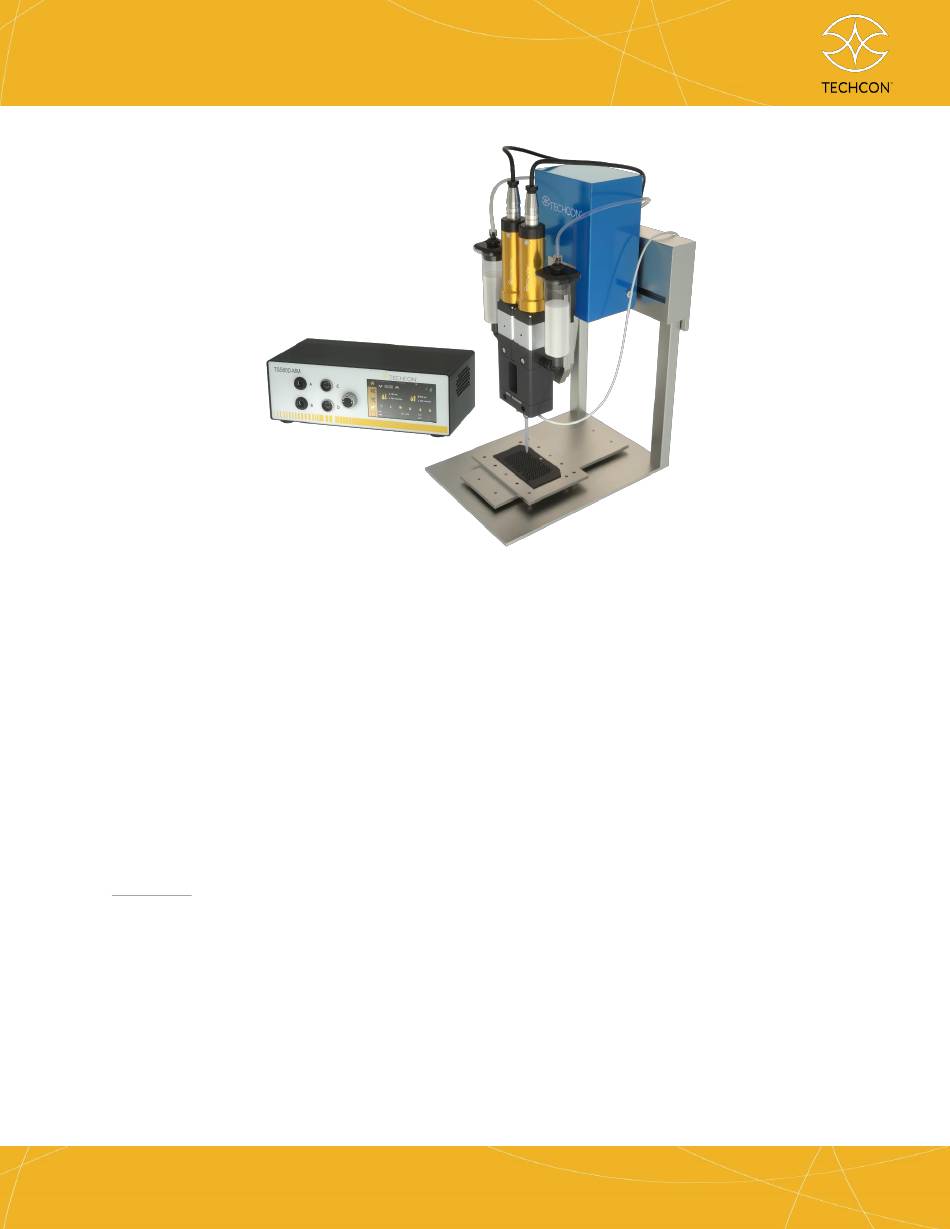

TS8200D Series
Micro-Meter Mix Quick Start Guide
______________________________________________________________________
TS8200D Series Micro-Meter Mix
True volumetric measuring, mixing, and dispensing
______________________________________________________________________
1. INSTALLATION
Required tools: 8 mm (5/16") wrench; 3.0 mm hex wrench; 2.5 mm hex wrench;
2.0 mm hex wrench
Warning! Do not dry-assemble the rotor and stator. Excessive friction between dry
components may damage stators and effect pump performance.
a. Apply the dispensing fluid or any appropriate lubricant compatible with the
dispensing fluid to the surface of the rotor.
of 2-component materials
techcon.com/contact-us
Advertisement
Related Manuals for TECHCON SYSTEMS Micro-Meter Mix TS8200D Series
Summary of Contents for TECHCON SYSTEMS Micro-Meter Mix TS8200D Series
- Page 1 TS8200D Series Micro-Meter Mix Quick Start Guide ______________________________________________________________________ TS8200D Series Micro-Meter Mix True volumetric measuring, mixing, and dispensing of 2-component materials ______________________________________________________________________ 1. INSTALLATION Required tools: 8 mm (5/16”) wrench; 3.0 mm hex wrench; 2.5 mm hex wrench; 2.0 mm hex wrench Warning! Do not dry-assemble the rotor and stator.
- Page 2 TS8200D Series Micro-Meter Mix Quick Start Guide b. Screw the stator onto the rotor in a clockwise direction, align the four tabs of the stator with the four notches of the stator housing, and push in the stator to lock it into place with the stator housing.
- Page 3 TS8200D Series Micro-Meter Mix Quick Start Guide e. Make sure that the high-pressure seals sit and fit properly along the groove located inside the manifold. f. Align the manifold with the now-assembled pump and pump housing. The engraved labels “RESIN” and “HARDENER” should be facing you. Insert and fasten four 3.0 mm hex screws with lock washers in the order shown in the image below.
- Page 4 TS8200D Series Micro-Meter Mix Quick Start Guide h. Install calibration adaptor. The calibration adaptor is required whenever calibration is performed, when a new fluid is introduced, when the valve is disassembled & reassembled, or when the stators or rotors are changed. Connecting calibration adaptor can protect the TS8200D from having direct contact with the material as it exits the pump.
- Page 5 TS8200D Series Micro-Meter Mix Quick Start Guide Using Syringes 1. Air Filter, 2. Pump, 3. Pressure Tank, 4. Pressure Tank Using Fluid Reservoir 2.1 Venting and Purging the Pumps Venting and purging the pumps is recommended before placing them into operation.
- Page 6 TS8200D Series Micro-Meter Mix Quick Start Guide 5. Allow the fluid to flow from the manifold until a steady stream of air-free material is observed. 6. Release the foot switch. 7. We are now done purging Pump 1. To vent the resin: 8.
- Page 7 TS8200D Series Micro-Meter Mix Quick Start Guide 2. Unlock the unit by clicking lock icon. Default password = 0000 3. Select the Purge Pump 2 icon. 4. Press the foot switch. 5. Allow the fluid to flow from the manifold until a steady stream of air-free material is observed.
- Page 8 TS8200D Series Micro-Meter Mix Quick Start Guide 2.2 Calibrating the Pumps The TS8200D Micro-Meter Mix needs to be calibrated before operation. Go to the TS580D Controller User Guide for calibration instructions. Return here once calibration has been completed. 3. DETERMINING CONTROLLER SETTINGS AND FINAL SET-UP To determine and enter the correct settings and ratio for Resin (Pump 1) and Hardener (Pump 2), please refer to TS580D Controller User Guide for instructions on setting up the forward run settings, reverse run settings, ratio...
- Page 9 TS8200D Series Micro-Meter Mix Quick Start Guide If using a 4:1/10:1 bayonet socket type a. Remove bayonet socket base plate adapter. b. Confirm 4:1/10:1 base plate adapter has x2 O- ring seals. c. Mount 4:1/10:1 base plate adapter followed by the bayonet socket base plate adapter.
- Page 10 TS8200D Series Micro-Meter Mix Quick Start Guide If using a bayonet mixing nozzle: a. Remove bayonet socket base plate adapter. a. Confirm that the bayonet base plate contains x2 O-rings. b. Install bayonet base plate adaptor. c. Twist and lock. d.
