Paxton Switch2 How To Program

How to program a Switch2 to use a PROXIMITY KP
Keypad

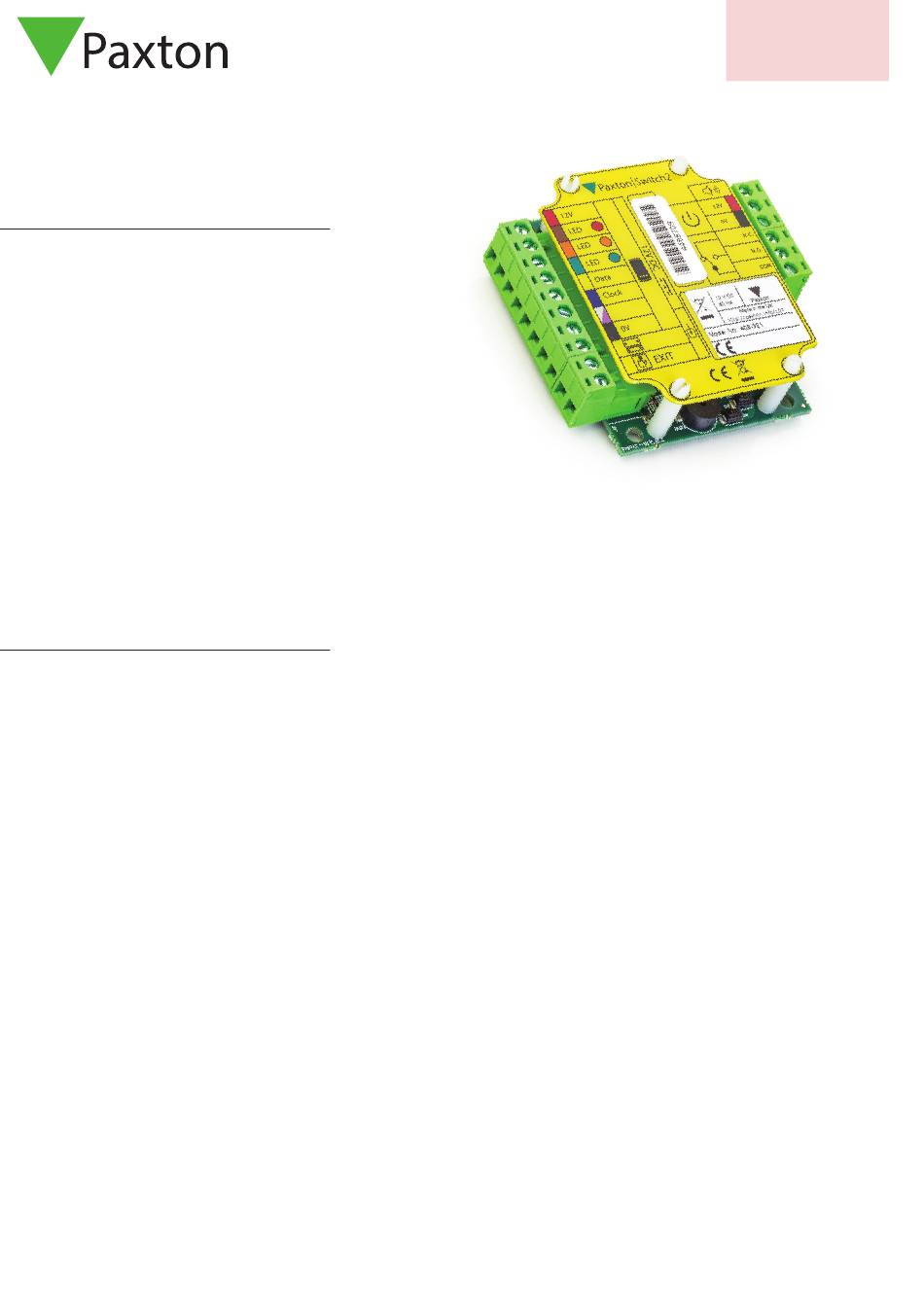

What is a Switch2 system?
A Switch2 system is a step up in security and
versatility from the compact range. Still operating
as a standalone system it uses a control unit that is
separate from the user interface; a simple data cable
linking them together. This means that the control
unit can be mounted on the 'safe' side of the door
with only the keypad or reader outside.

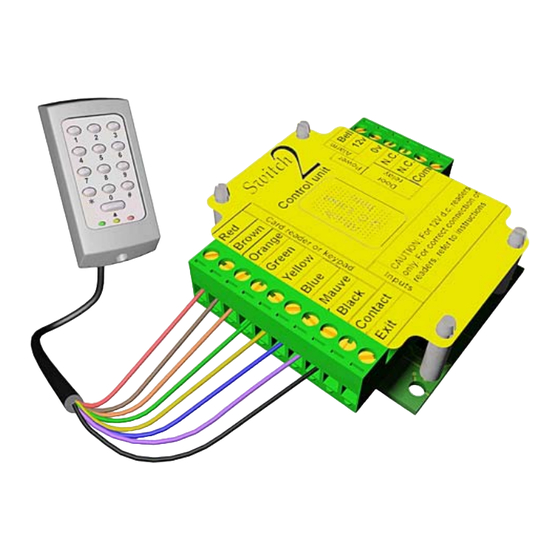

A Switch2 control unit can be used with any of the
readers in the Paxton range. It has inputs for a door
contact and an exit button and has an output for an
alarm sounder. Lock control is via a volt free relay
which can be wired to operate fail closed and fail
open locks.
Initialising the keypad
When the system is powered up for the first time the keypad will beep 3 times a second. This indicates that
the keypad is waiting to be initialised. The
green LED will flash quickly.
Enter your chosen 6 digit programming code and press the bell button (The
Confirm your programming code by entering the same 6 digit code and pressing the bell button (The
LED goes out and the unit will acknowledge that the programming code has been accepted by beeping
twice after a short pause. All the LED's are now on)
NOTE: The programming code should NOT contain the sequence of numbers 1234, as this is the default user
code for unlocking the door.
The keypad has a default user code of 1234. The programming code you just entered will now let you into
the menu where additional alterations can be made.
red LED will be steady, the
Switch2
AN1069-US
amber LED will flash slowly and the
green LED will flash faster still)
green
