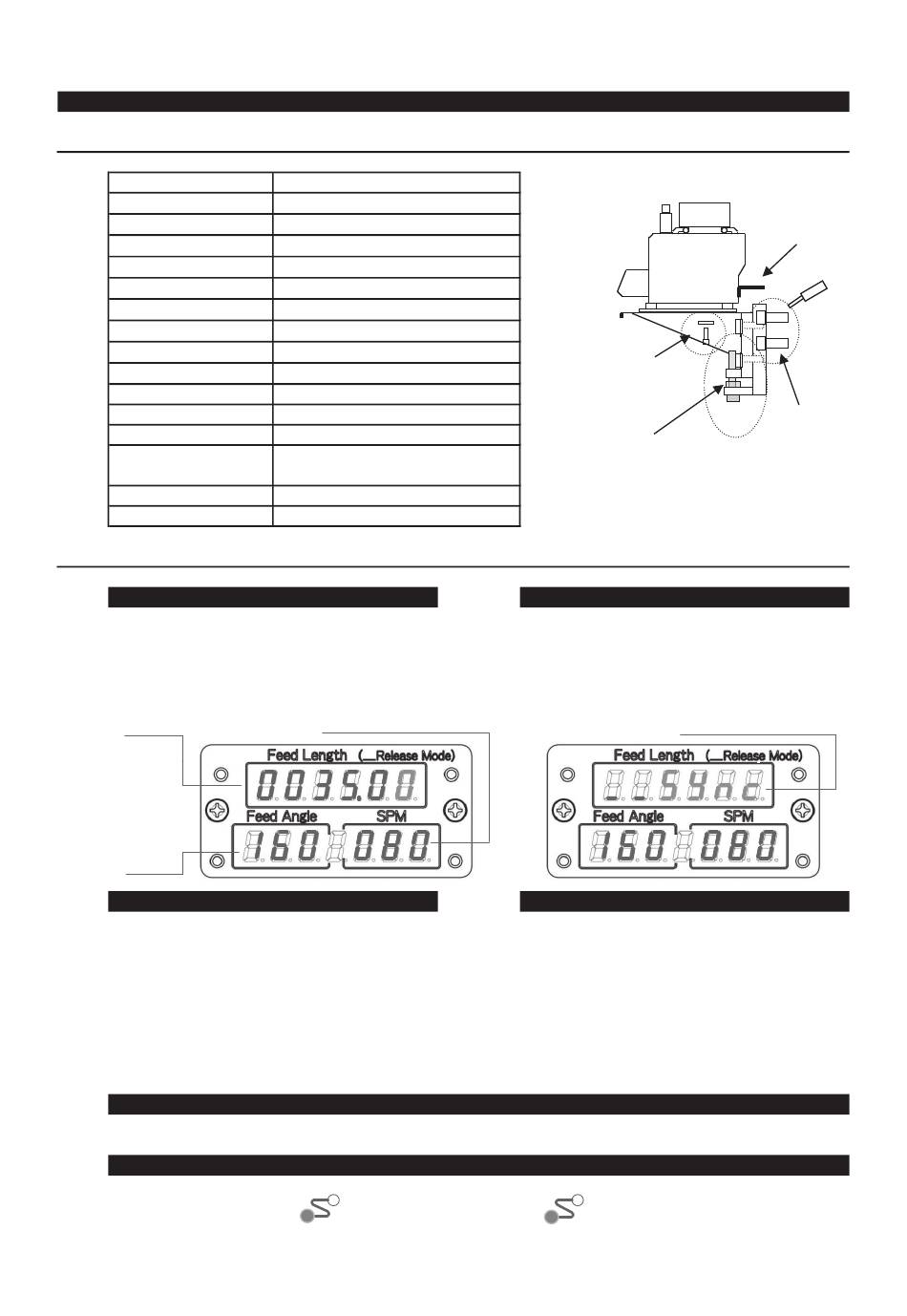

R30 R40 R50
Model
❖Accessories of Installation
Description of good
Bracket for machine
Electrical cable
Emergency cable
Air hose
Air regulator
Bolts
①for the bracket
②for the machine
③pass line adjusting
Fixture for the air regulator
④Bonding
Mark tube, Terminal
Sticker
Air connector
⑤Apron plate
❖Setting Items
Feed Length, Feed Angle, SPM
Changeable main screen in "Set" state.
Feed length
Feed
Angle
Setting method of table screen
① Power
Turn ON "Power switch"
Numeric value that can be changed item or
number will be blink.
② ← →
Setting items can be changed.
③ + / -
The value can be Changed.
If you need to continue inputting, repeat
②,③.
After setting
④
Set ⇔ Run
Synchronous operation
⑤
Sync Feed
Installation Manual
R30, R40, R50
Exclusive type
P6：8M
8M
8*5：6M
With air filter
4-M14*30
4-M8*25
1-M12*120
2-M6*12
Net 4ml
Assortment
Signal(Feed/Release), Scale for
pass line (on the plate)
1-3/8B, 2-2/8B
Exclusive type
Press rotation speed
Push "Set ⇔ Run" switch, when "Run" lamp is lit, the setting
finishes.
Sync Release
Release Mode
"Release Mode" is not displayed in "Set" state.
To display "Release Mode", push on "Sync
Release" switch in "Set" state.
Setting method of "Release Mode"
① Power
Turn ON "Power switch"
Numeric value that can be changed item or
number will be blink.
② First, push on "Sync Release" switch, keep
it.
③ + / -
The value can be Changed.
When "Sync Release" is turned off, the
display returns the main screen.
Press the both switches of Sync-
Feed, -Release switches, then the
feeder will be able to operate
automatically.
1
DIMAC
⑤
④
②
①
③
Release Mode
Advertisement
Related Manuals for Dimac R30
Summary of Contents for Dimac R30
- Page 1 DIMAC R30 R40 R50 Model Installation Manual ❖Accessories of Installation Description of good R30, R40, R50 Bracket for machine Exclusive type Electrical cable P6：8M ⑤ Emergency cable Air hose 8*5：6M ④ Air regulator With air filter Bolts ①for the bracket 4-M14*30 ②for the machine...
- Page 2 ❖R30, R40, R50 Pass line The pass line height is decided by combination a plate and a holder. The plate-center equals the feeding rolls -center. CAUTION It is necessary to tighten 4 points with a bolt to fix the holder on the plate.
- Page 3 ❖Wiring You can select which 3 phase or single phase. If it's single phase, you don't have to connect the black wire. R(200V 50/60Hz) PC-A Power cable White S(200V 50/60Hz) 0.75mm Black T(200V 50/60Hz) Not wiring when single phase E(Earth) Green/Yellow DANGER Connect to the primary side...
- Page 4 ❖Cable connecting The receptacles of PC-A, PC-B, PC-C are placed inside the connecting cover. Connecting cover Need to fix three external cables in prepared nylon band. DANGER ❖Air piping 3/8B To Air connector 2/8B 2/8B Air passes in specific direction *Approximate air pressure : 0.3～0.5 MPa CAUTION *Maximum air pressure: 0.5 MPa...
- Page 5 ❖Adjusting Press cam signals Feed signal adjusting Set the feed start position to feed signal OFF position. Press cam signal When you make the feed starts on 270°, 0° Set the ON angle of feed to 240°, and set the OFF angle to 270° NOTE 270°...
- Page 6 ❖Code The code will display the operating state of the feeder to suit the operation state and setting disabled state. Feed Angle SPM Contents Method of reset Feed Length Position: Left - - ] ] Direction: L to R Position: Right -.
