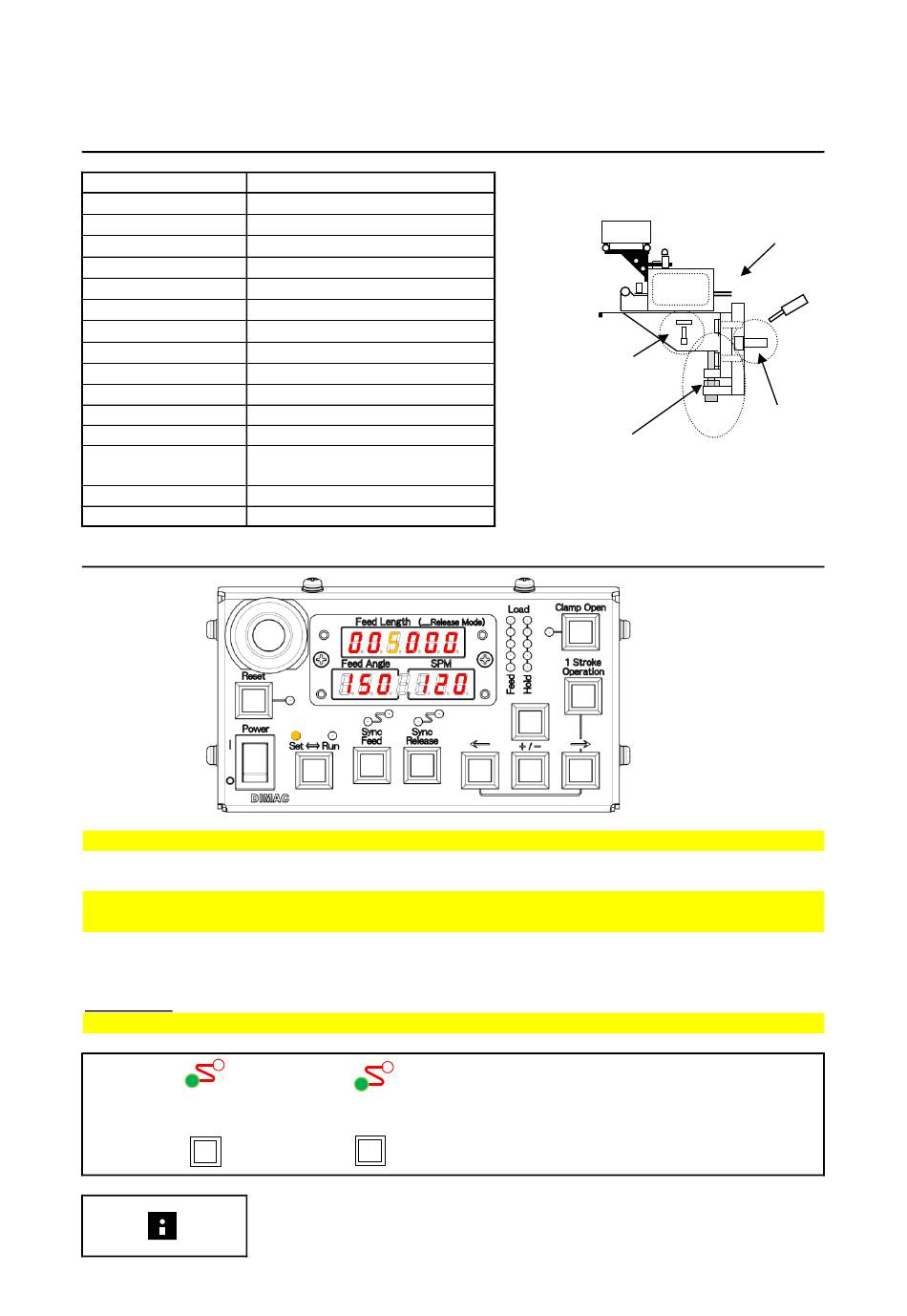

Model J06
Installation Manual
❖Accessories
Description of good
Bracket for machine
Electrical cable
Emergency cable
Air hose
Air regulator
Bolts
①for the bracket
②for the machine
③pass line adjusting
Fixture for the air regulator
④Bonding
Mark tube, Terminal
Sticker
Signal(Feed/Release), Scale for
pass line(on the bracket)
Air connector
⑤Apron plate
❖Method of Input
Power
Set ⇔ Run
Numeric value that can be changed item or number will be blink.
← →
+/-
If you need to continue inputting, repeat the ③, ④.
After setting
Set ⇔ Run
Sync
Feed
Usually, the Release mode does not display.
Only when changing settings item, the Release mode is supposed to display on the
"Feed Length" after displaying digit of lowest of "Feed Length"
J06
Exclusive type
P6:8M
8M
8*5:6M
With air filter
2-M12*30
4-M8*15
1-M12*120
2-M6*12
Net 4ml
Assortment
1-TS8-03, 2-NTS8-02
Exclusive type
Turn on "Power" switch
You can input a set value when "Set" lamp is lit.
Using the switches, you can move the cursor position.
Using the switches, you can change the value.
Push "Set ⇔ Run" switch, when "Run" lamp is lit, the setting
finishes.
Sync
Release
1
DIMAC
Press the both switches of Sync Feed and
Sync Release switches, then the controller will
be able to receive the sync press cam signals.

Advertisement

loading
Need help?

Need help?

Do you have a question about the J06 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Dimac J06

  • Page 1 DIMAC Model J06 Installation Manual ❖Accessories Description of good Bracket for machine Exclusive type Electrical cable P6:8M ⑤ Emergency cable Air hose 8*5:6M ④ Air regulator With air filter Bolts ①for the bracket 2-M12*30 ②for the machine 4-M8*15 ② ③pass line adjusting...
  • Page 2 ❖J06 Pass line The pass line height is decided by combination a plate and a holder. CAUTION The plate-center equals the feeding rolls -center. It is necessary to tighten 4 points with a bolt to fix the holder on the plate.
  • Page 3 ❖Wiring You can select which 3 phase or single phase. If it's single phase, you don't have to connect the black wire. R(200V 50/60Hz) PC-A Power cable White S(200V 50/60Hz) 0.75mm Black T(200V 50/60Hz) Not wiring when single phase E(Earth) Green/Yellow DANGER Connect to the primary side...
  • Page 4 ❖Cable connecting The receptacles of PC-A, PC-B, PC-C are placed inside the connecting cover. Connecting cover Need to fix three external cables in prepared nylon band. DANGER ❖Air piping TS8-03 NTS8-02 NTS8-02 Air passes in specific To solenoid valve direction *Approximate air pressure : 0.3~0.5 MPa CAUTION *Maximum air pressure: 0.5 MPa...
  • Page 5 ❖Adjusting Press cam signals Feed signal adjusting Set the feed start position to feed signal OFF position. Press cam signal When you make the feed starts on 270°, 0° Set the ON angle of feed to 240°, and set the OFF angle to 270° NOTE 270°...
  • Page 6 ❖Massage code Contents display : 【 Feed Length (_Release Mode) 】, Code number : 【 Feed Angle SPM 】 Feed Angle   SPM Contents Method of reset Feed Length Ins. Left, Direction Push - - ] ] Ins.Right, Direction Pull -. -. . ] . ] . Model When turning on power only, the number...
