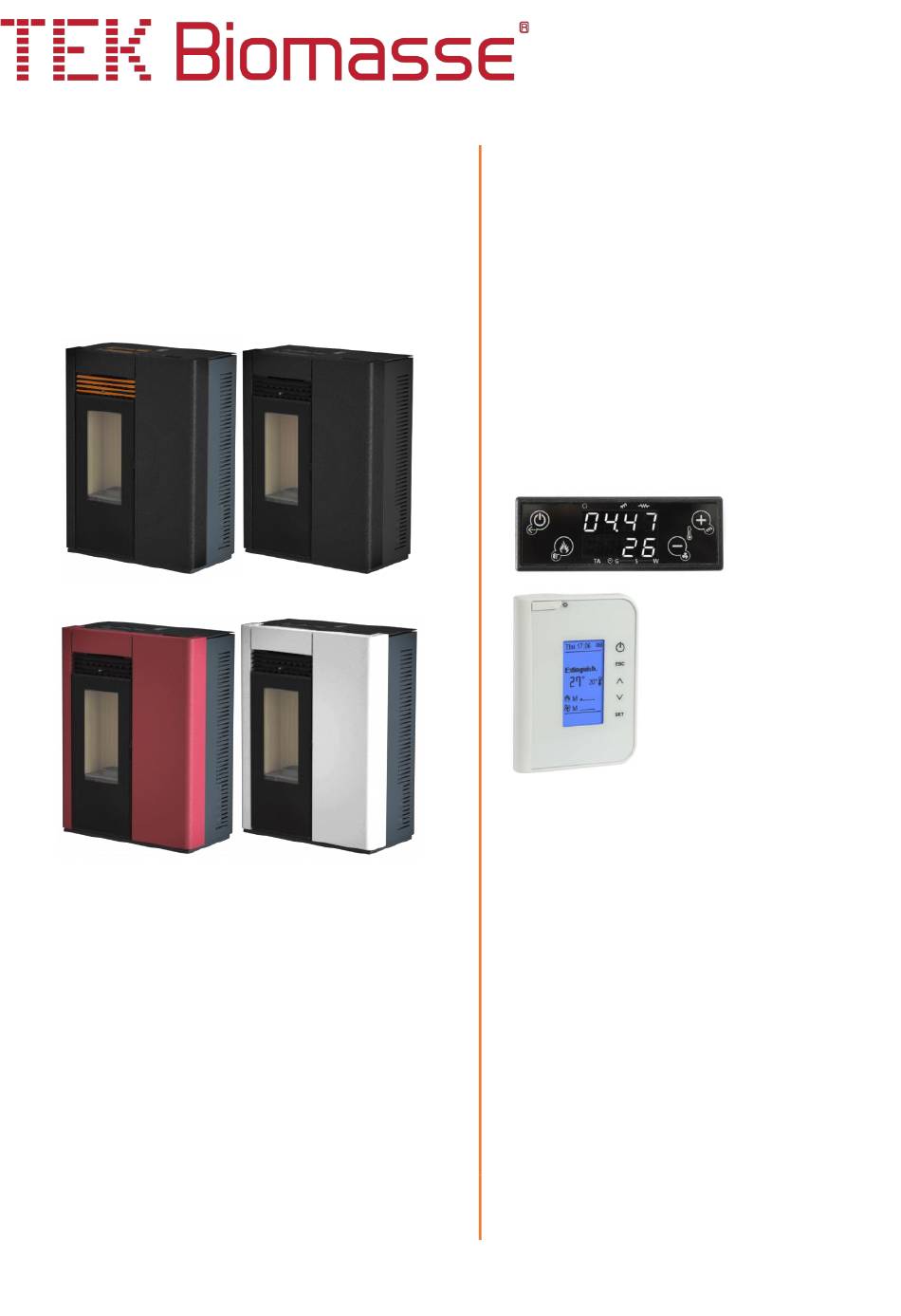

- Page 1 AVALON Pellet canalizable stove A STOVE, A WORLD OF OPTIONS Painel CP115 2Ways2+ Instruction manual ® TEK Biomasse 2022 TMNG01 EN 20220919...
-
Page 2: Table Of Contents
Index 9.4. State ..........13 9.5. User Menu 1 ........14 General Considerations ......2 9.7. User Menu 2 ........15 1.1. Symbology ........2 10. 2Ways2+ Remote Command ..... 19 1.2. Use ........... 2 10.1. The screen ........19 1.3. -
Page 3: General Considerations
ENERAL ONSIDERATIONS This manual, as well as any other applicable documentation, must be stored diligently so that TEK Biomasse ® is a registered trademark, whose it is available at all times. In case of moving or air conditioning equipment is manufactured by selling the equipment, the documentation must Vitor Monteiro Lda. -
Page 4: User
On water models, the installer must inform the user of the following: Do not make electrical connections with • In case of water leaks, it is necessary to temporary or non-insulated cables. turn off the water supply and immediately notify technical support. Check that the equipment ground connection is effective. -
Page 5: Legal Guarantee
• Installation compliance certificate issued During the first lighting of your equipment, by the installer. it is possible that some odors may be released resulting from the natural drying of paints and putties. Avoid prolonged Exclusions: exposure to these odors. It is advised: warranty does cover... -
Page 6: Fuel
The manufacturer will guarantee replacement For correct operation you must use pellets parts for the legally prescribed period. according to the characteristics below. Technical Fuel Information (Pellets) Diameter 5. F Length 10 to30 mm Density in the bag min. 650 kg/m 100% pressed pine... -
Page 7: Pellet Storage
5.2. Pellet storage 7.2. Installation constraints It must be safeguarded that no mechanical The functioning of the stove depends largely on exhaust fans or collective ventilation ducts are the quality and conservation conditions of the installed at the installation site. pellets, for this reason they must be stored in a dry place where they do not reach too low In any case, it must be safeguarded that the... -
Page 8: Air Intake
You must not use bends or tubes with a section smaller than 60mm, nor a maximum length During installation, structures, coverings, beams, greater than 800mm. etc., must be protected from combustible or flammable material and which are exposed to You must also safeguard that this admission will excessive heat from both the stove and the never be obstructed from the outside and that it chimney, particularly when crossing partitions... -
Page 9: Smoke Evacuation Duct
Depending on these factors, it may be necessary +5) correct the feeder if to make adjustments to the stove's operating necessary (from 0 to -5). parameters. Excess draft when it is not possible If not, contact technical to correct it by changing parameters such as air support. -
Page 10: Piped Air Installation
The stove has two 80 diameter hot air outlets at the rear, intended for channeling air to other rooms in the house through appropriate piping. Figure 5- Example of installation with wall outlet 7.6.1. Thermal discharge device system protected against boiler overheating. -
Page 11: Electrical Installation
If we want to heat a space with 100m then we 7.7. Electrical installation have: 100m x40W/m = 4000W, that is, 4 kW. Installation must be carried For this main heating requirement, a 6.5 kW out by qualified personnel according 10683. -
Page 12: Lighting
8.2. Lighting The stove is switched on by pressing the ON/OFF key for 3s. The word “Activation” will appear on the display until ignition is complete. This process will take an average of 5 to 12 min. Once completed, the ignition will move to a flame stabilization phase and, finally, it will enter the previously selected power level or what was in use when the stove... -
Page 13: Control Panel Functions
9. C ONTROL PANEL FUNCTIONS 9.1. Panel CP115 Values shown on the panel Display D1: time, system status, error, menu, submenu, parameter value; Display D2: power, parameter code; D3 display: recipe; Display D4: main temperature, parameter code. Functions 1 Click Prolonged pressure (3s) View / Exit menu (Esc) Ignition / Extinguishing... -
Page 14: Messages
9.3. Messages Description of messages Code Viewing the status of the temperature probes. The message displayed in the probe Check-Up indicates that the temperature reading on one or more probes is equal to the minimum (0 °C) or maximum value (depends on the probe considered). Check that the probes are not open (0 °C) or that they are short-circuited (maximum value of the temperature scale). -
Page 15: User Menu 1
9.5. User Menu 1 Views tF: Smoke temperature [°C] tA: Room temperature [°C] tr: Remote room temperature [°C] FL: Primary airflow speed UF: Combustion fan speed / Voltage [RPM / Volt] Co: Speed / Auger ON time [RPM / sec ] St: Time remaining for maintenance 1 [h] St2: Time remaining for maintenance 2 [h] FC: Firmware Code and Revision... -
Page 16: User Menu 2
9.7. User Menu 2 Access to the menu is done by pressing P3 and P4 at the same time This menu allows you to change the heating power, if A04 = 1 the menu is not visible. Heating Description Heating power (Air) 1 - Level Power manually set from 1 to the power level available number... - Page 17 This menu allows you to set the system on/off times. Chrono (Cron) Chrono has two submenus: Chrono activation menu This menu allows you to select the desired chrono mode. ModE appears on the display. MODALITY (Mode) Gior: Daily program day by day SEtt: Weekly Mon-Sun program.
- Page 18 Instructions For each program it is necessary to define the start time and end time. DESCRIPTION display 1) Press the P2/P4 keys until the desired submenu and Giorn press the P3 key 2) Press the P2/P4 keys to select one of the 3 available - - - - programs 3) Press the P1 key for 3 seconds...
- Page 19 This menu is for setting the time and date. The upper display shows the hour and Watch (oroL) minutes, the lower display shows the day of the week. DESCRIPTION DISPLAY Press P3 key to enter edit mode. The hour, minute and day of week 0 7.
-
Page 20: Ways2+ Remote Command
2+ R EMOTE OMMAND The radio remote control thermostat manages the operation of the boiler and monitors the operating status in real time. The main features are: • System remote control • Room thermostat • Management of operating and control parameters Attention: The system operates on the 868.3MHz ISM radio band. -
Page 21: Control Panel
10.2. Control panel 10.2.1. The keys Occupation Descriptive Turn the boiler on and off by pressing the button for 3 seconds On / Off Unlock System unlock by pressing the key for 3 seconds Exit menu Enter Submenu, edit and save data Change ambient Radio thermostat temperature modification... -
Page 22: Menu
10.2.2. Menu To enter the menu press the SET key. A list of available submenus appears by pressing, selecting the desired submenu and pressing SET again, the desired parameters will be displayed: Submenu System Menu Auger Auger 1.0_________ Parameter code Auger______ Combustion Fan Combustion Fan 2... -
Page 23: User Menu
10.2.4. User menu Menu Descriptive Combustion Power management Allows you to modify the combustion power of the system in pellet mode. It can be set to automatic or manual mode. In the first case, the system chooses the combustion power. In the second case, the user selects the desired power. The combustion mode (a = automatic combustion, m = manual combustion) and the system's working power level are indicated on the left side of the display. - Page 24 Auger working time [s] (Only visible Auger Current combustion recipe [ nr ] ( Revenue Only visible if >1) Product code Product Code: 537 FSYSI01000060.0.0 Firmware code and version Remote Control firmware code and FSYSC03000006.0.0 version Manual loading Function for filling the auger on the first start-up, or after a start-up failure due to an empty hopper.
- Page 25 Exit Radio Test This Menu is used to test the connection between the radio terminal and the boiler controller, thus checking the level of electromagnetic pollution. The Radio Terminal enters continuous transmission and counts correct and failed responses. The signal quality depends on the number of errors (misses). Change code (only if it is necessary to pair different boilers with different thermostats in the same area) Code change allows the remote control to be matched to the boiler, so that a...
-
Page 26: Chrono Menu
Test Outputs Output Tests Menu Menu restore values Restore Factory Values parameters set by the manufacturer 10.3. Chrono Menu Menu to set the start and end time of work in heating mode. 10.3.1. Modality To turn the system on using the chrono, select the mode after programming the on and off times. Descriptive keys Display... - Page 27 Schedule Weekly Mon-Sun Daily Weekly 09:30 11:15 Weekend 00:00 00:00 00:00 00:00 • Weekend: Choose between 'Monday-Friday' and 'Saturday and Sunday'. There are 3 time slots for each period. This mode runs 3 intervals from Monday to Friday and 3 separate intervals on Saturday and Sunday. Weekend Schedule Weekend...
-
Page 28: Installing And Configuring The 4Heat App
NSTALLING AND CONFIGURING THE 11.1. System architecture The architecture includes three macrosystems: 4HEATModule (Wikey or Pinkey): hardware device that interacts with the TiEmme electronic control board and the local Wi-Fi router; SERVER CLOUD: web server infrastructure that allows data storage and works as a stellar hub for remote communication;... -
Page 29: Keys And Leds On 4Heat Modules
11.3. Keys and LEDs on 4Heat modules 11.4. Installation To test the device, perform the following procedures: 1. Connect the 4HEATModule to the power supply: • WiKEY: make sure that the equipment (boiler, stove or stove) is connected to the network; •... -
Page 30: New 4Heat Module Configuration
11.5. New 4HEAT module configuration Install the 4HEAT app available on Google Play Store and App Store for free, to interact with the heating system. Connect your smartphone to your home Wi-Fi network and disconnect your mobile phone from the data connection. - Page 31 5. Enter a device name and a PIN of your choice. Each 4HEATModule device has its own name and password. 6. Once the app and the 4HEATModule are connected, you are asked to choose the home Wi-Fi network that the 4HEATModule device should connect to; 7.
-
Page 32: Connection To 4Heatmodule
On Android devices: • Press the lower right button for devices with soft keys or the lower left button for devices with fixed keys • Swipe the 4HEAT app preview to the left to close it. The procedure may differ from one smartphone to another smartphone. -
Page 33: Maintenance
12.2.2. Weekly cleaning AINTENANCE Glass cleaning 12.1. Security measures Before starting maintenance work, make sure Wait for the glass to be completely cold, that the stove is disconnected from the electricity otherwise it will break. The weekly cleaning of the supply, that the stove is cold and the ashes are glass should be done with a damp cloth or paper out. - Page 34 Clean the exchanger by pulling and pushing the shaft located between the central fins of the grid as shown in the picture below. With the aid of an ash vacuum cleaner, vacuum the ash compartments. Open the combustion chamber door, remove the brazier and vacuum the ash using an ash vacuum.
-
Page 35: Semi-Annual Cleaning
Loosen the 2 screws to access and clean the rear 12.2.3. Semi-annual cleaning chamber. You must periodically clean the boiler and the smoke collector or for every 600 kg of pellets consumed. This cleaning must also include cleaning the smoke extraction fan. Air Model Access to the interior of the equipment is made through the rear panel and side panels. -
Page 36: Chimney Cleaning
Replace the packing whenever it does not 12.3.1. Chimney cleaning guarantee correct tightness. Carry out the same check for the ash drawer Chimney cleaning should be carried out at least packing. twice a year at the beginning and middle of the winter season or when necessary. -
Page 37: Control And Maintenance Program
12.7. Control maintenance program Yearly Brazier Cleaning the exchanger (activate the mechanism on the grid) Ash compartment Glass Ignition resistance tube cleaning Turn the turbulators to clean the exchanger (water version) Structure of the stove Smoke collector Door trim and brazier Chimney flue Fans... -
Page 38: Error Codes
RROR CODES Origin Cause Action Er01 Auger boiler safety The water is not circulating. Check the installation. thermostat Wait for the boiler or Circulator pump blocked with hopper to cool down and It occurs if the hopper (85ºc) dirt, installation with air in the for the message Stop or boiler (95ºc) - Page 39 Er08 Combustion fan encoder. Check the plug and connecting Reset error cable on the fan and controller restart the boiler, if the Occurs if the controller is error persists, call unable to obtain rotational Possible encoder technician. speeds according to the value malfunction defined by it.
- Page 40 Er23 Boiler sensor, open The boiler is programmed to Check sensor connection circuit. read one or more of the In case the boiler does following sensors and has not not have DHW, it must detected them: deactivated Boiler temperature changing the following parameters P26=5 and DHW temperature P83=0...
-
Page 41: Electric Scheme
LECTRIC SCHEME... -
Page 42: Dimensions Of Connections
IMENSIONS OF CONNECTIONS... -
Page 43: Models And Technical Characteristics
ODELS AND TECHNICAL CHARACTERISTICS Avalon Models Pot. Pot. Term. Term. Nominal Reduced Weight Height 1012 Width Depth heating volume thermal power pellet consumption kg/h 1.91 0.99 Autonomy 6.80 12.1 Performance %CO to 13% O 0.01 0.01 Mass flow of smoke 7.52... - Page 44 Authorized Agent Vitor Monteiro, LDA Office and Factory 1: Factory 2: Estrada dos Guilhermes, 27 Moinho de Vento, 1-E 2405-012 Maceira LRA 2405-008 Maceira LRA Portugal Portugal Phone: +351 244 770 240 +351 968 020 460 +351 918 049 907 Email: tekbiomasse@grupovm.pt...
