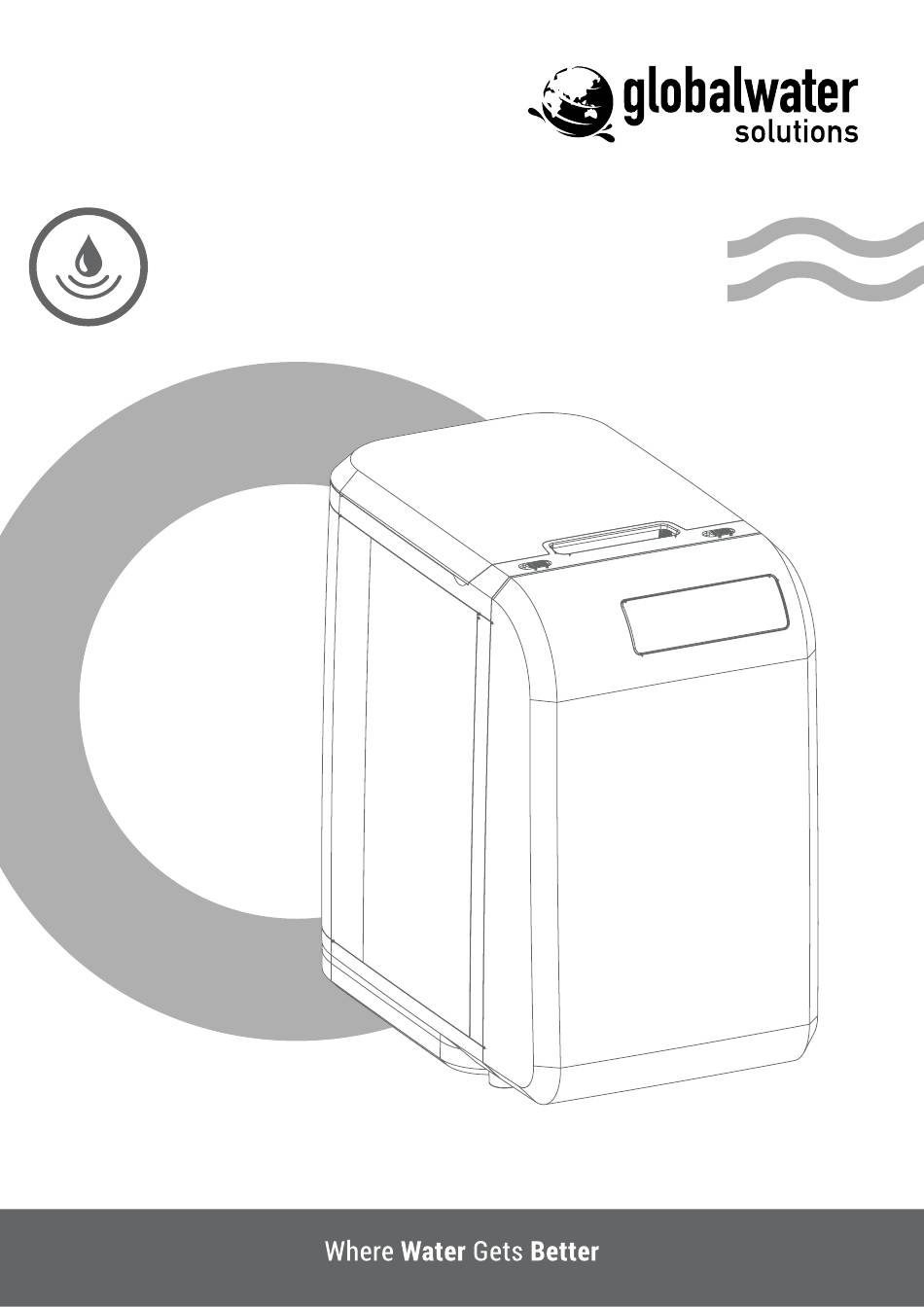

- Page 1 G500 Installation & Operating Manual Compact Reverse Osmosis System...
-
Page 2: Introduction And Warnings
Congratulations on your purchase of the G500™ Direct Flow Reverse Osmosis System. The G500 Direct Flow Reverse Osmosis System is designed with advanced filtration technology, and utilizes a 5-stage filtration process to purify and deliver fresh tasting water. This system is designed exclusively for municipal water systems, and will remove volatile organic chemicals, chlorine, odor, sediment, suspended impurities, metals and other harmful contaminants from your water. -
Page 3: Specifications
Global Water Solutions or an authorized GWS distributor. Product warranty is void if non-GWS approved spare parts are used. SPECIFICATIONS Product Series Name G500™ Dimensions 44*26*44cm / 16.5*10.2*17.3 inch Weight 19 kg / 41.9 lb... -
Page 4: Installation & Diagram
INSTALLATION & DIAGRAM G500 Compact Reverse Osmosis System COMPONENTS G500 COMPACT WRENCH BLUE, WHITE & RO SYSTEM BLACK TUBES WASTEWATER CLIP BRASS BALL VALVE WATER ADAPTOR PP FILTER REVERSE OSMOSIS CARBON FILTER MEMBRANE... -
Page 5: Installation Instructions
INSTALLATION INSTRUCTIONS 1. Place the G500 system in the cabinet. (refer to Fig. 1) 2. Connect the tube to the back of the G500's water outlet quick connect fitting. (refer to Fig. 1) White tube: Filtered water outlet Blue tube: Water inlet Black tube: Wastewater Fig. - Page 6 INSTALLATION MANUAL G500 Compact Reverse Osmosis System INSTALLATION INSTRUCTIONS 4. Connect the other end of white tube to the faucet. (refer to Fig. 2.2) Faucet Fig. 2.2 OUTLET QUICK CONNECT - BACK Drain White tube: Filtered water outlet 5. Connect water source to the water adapter and brass ball valve with blue tube. (refer to Fig. 3.1)
- Page 7 Compact Reverse Osmosis System 6. Connect the other end of the blue tube to the bottom back of G500's water inlet quick connect fitting. (refer to Fig. 3.2) Fig. 3.2 7. Connect the other end of the black tube to drainpipe using the wastewater clip. (refer to Fig. 4)
- Page 8 When connecting the power cord again on the fourth time, “Auto Flush” light will blink, indicating the auto flush is operating. Auto Flush will last about 2 minutes. Fig. 5 9. Please refer to Fig. 6 for installed G500's illustration. (refer to Fig. 6) Fig. 6...
-
Page 9: Filter Replacement Procedure
B. Auto flush will perform 5 minutes after each time the system generates filtered water. Subsequent auto flush will last about 15 seconds. After continuous use of G500 for over 30 minutes, G500 will auto flush for a duration of 30 seconds. - Page 10 INSTALLATION MANUAL G500 Compact Reverse Osmosis System FILTER REPLACEMENT PROCEDURE 2. Open the top system lid and take out the filter cover using the wrench. (refer to Fig. 2) Fig. 2 3. Filter should be placed according to the following instructions: (refer to Fig. 3) a.
- Page 11 Compact Reverse Osmosis System 4. Filters should be pushed firmly into the respective filter compartments. (refer to Fig. 4) Caution: Filter pull-ring should face up, and the filter O-ring should face downwards into the filter compartment Fig. 4 5. After installation or replacement of filter, use the wrench to close and tighten the filter housing cover. (refer to Fig.
- Page 12 INSTALLATION MANUAL G500 Compact Reverse Osmosis System FILTER REPLACEMENT PROCEDURE 6. The system includes five filter cartridges; the fifth cartridge (post filter T33 carbon filter) has been installed in the front housing compartment. (refer to Fig. 6) Fig. 6...
-
Page 13: Warranty
Compact Reverse Osmosis System WARRANTY Global Water Solutions (“GWS”) warrants the product will be free of defects in material and workmanship under normal usage conditions beginning on the date of manufacture and continuing for a warranty coverage period of 1 year. Warranty applies only when the product is used for its intended purpose and does not apply if a defect is due to improper use of the product, result of accident, misuse, or abuse. - Page 14 Have questions or need assistance? www.globalwatersolutions.com rev1 © 2022/07 globalwatersolutions...
